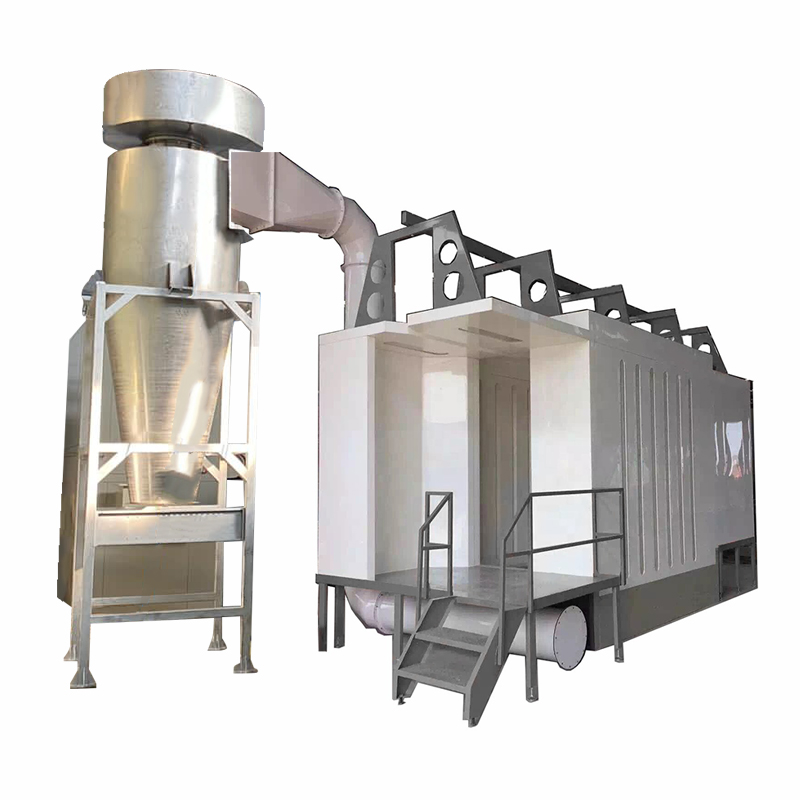

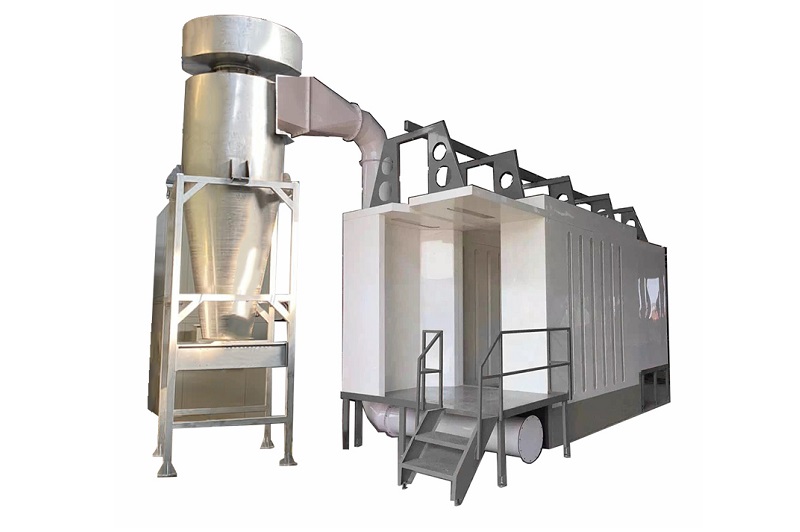

Mono-cyclone Automatic Powder Coating Booth

Mono-cyclone Automatic Powder Coating Booth, Fast Color Change Powder Spray Booth

Kafan cyclone powder booth provides powerful air extraction and equal airflow distribution for perfect powder application job and creates a dustless working area. Working with reciprocator spraying guns for uniform powder coating, advanced self-recycling powder center for maximum utilization of powder.

Benefits of Mono Cyclone Powder Coating Booth

• High powder recovery rate up to 98%, a great saving of powders.

• Quick color change efficiency costs around 15 minutes.

• Safe and clean. No need for the operator to enter the booth.

• Durable steel materials with coated surface ensures extremely long lifespan.

• Can be confgured with advanced anti-static PP plastic material for maximum cleaning effiency

• Easy operation and maintenance, only 1 operator can complete the color change.

Cyclone Recovery Automatic Powder Coating Booth Features

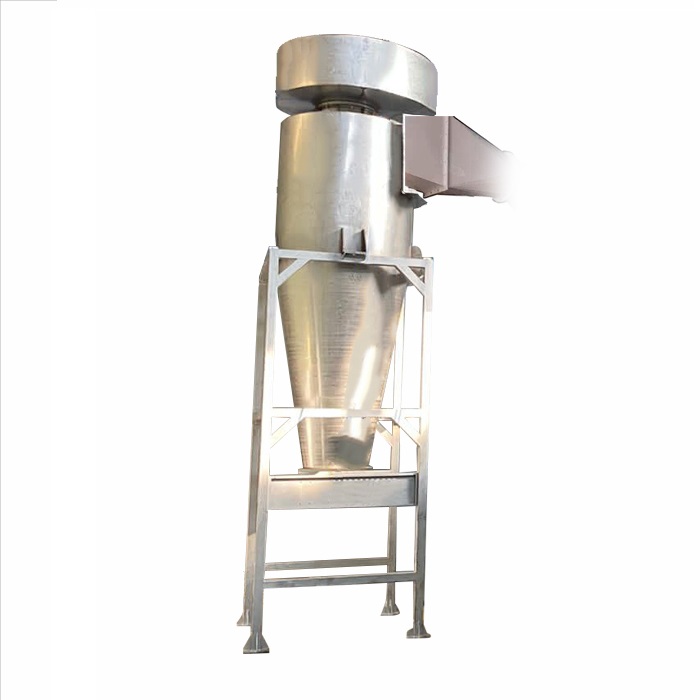

Mono Cyclone Separator

Overspray powders will be transfered to cyclone first. The mono-cyclone is the most powerful choice for overspray collection especially in high speed and high productivity powder coating line.

The cyclone equipment uses centrifugal force and gravity to separate particulates from air stream according to their relative density. Thus, the powders will be effectively collected and transferred to the recycling equipment.

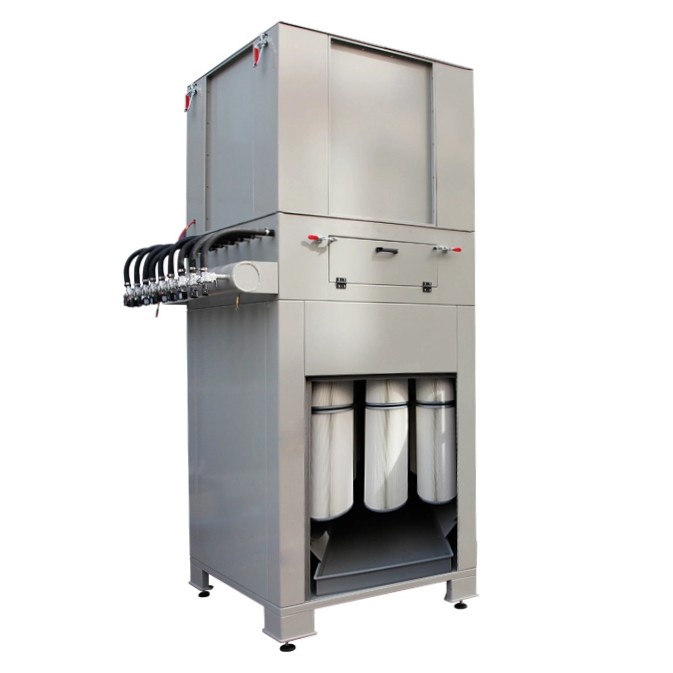

Cartridge Filter Unit

The secondary stage recovery unit usually includes 16-32 pcs cartridge filters.

As there are also some ultrafine powder particulates with light gravity will not fall down to cyclone bottom, they will be transfered to filter cartridges for final collecting.

Thus vented air stream from the whole system is free of dust particulates, creating a clean working environment.

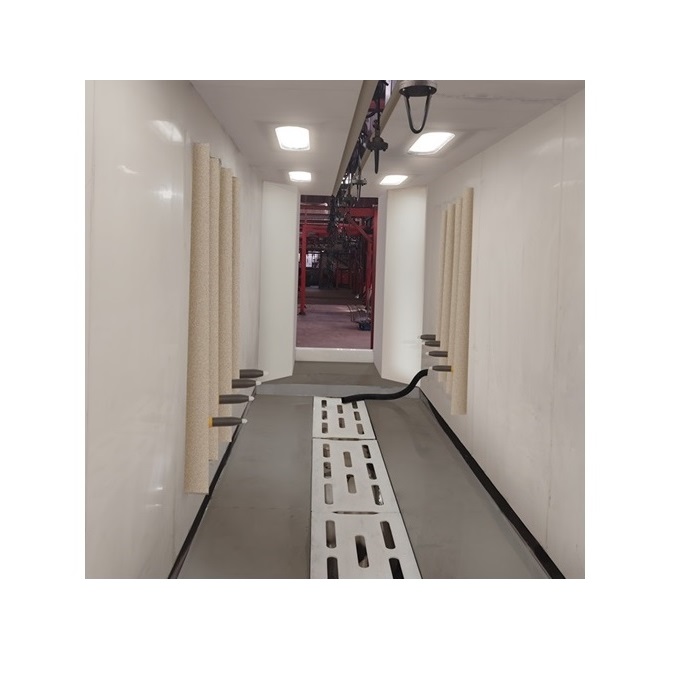

Self-cleaning Booth Floor

The spray booth floor designed with an automatic air knife device prevents powder accumulation for easily and quick cleaning, also minimized the color contamination during color change.

The cleaning system is controlled by air blasts, which remove the powder accumulated on the booth floor and push it to the extraction and recovery system.

Kafan Standard Cyclone Powder Coating Booth Specifications

Automatic Cyclone Powder coating Booth Applications

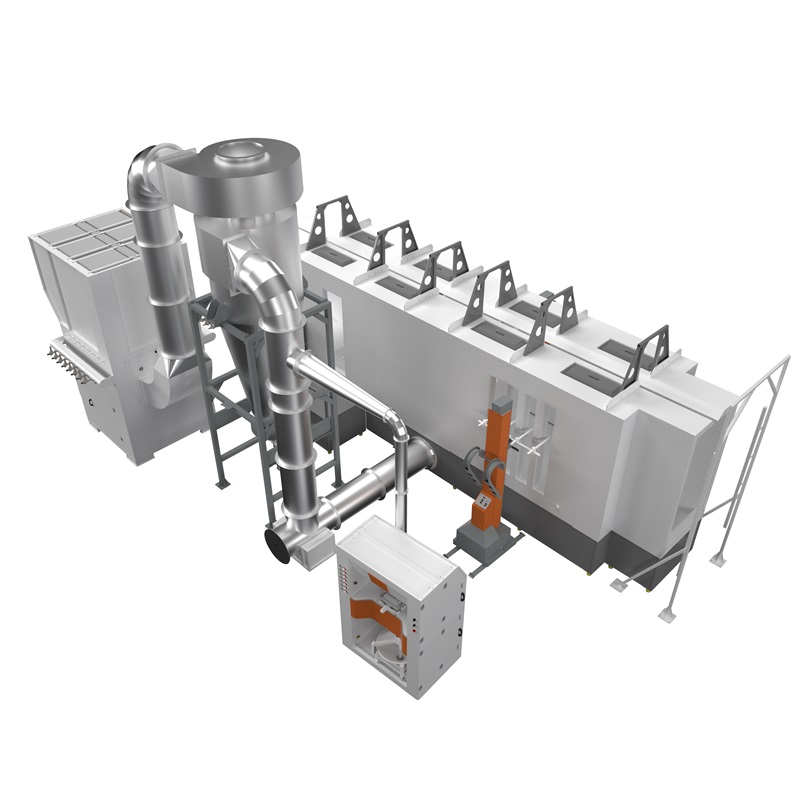

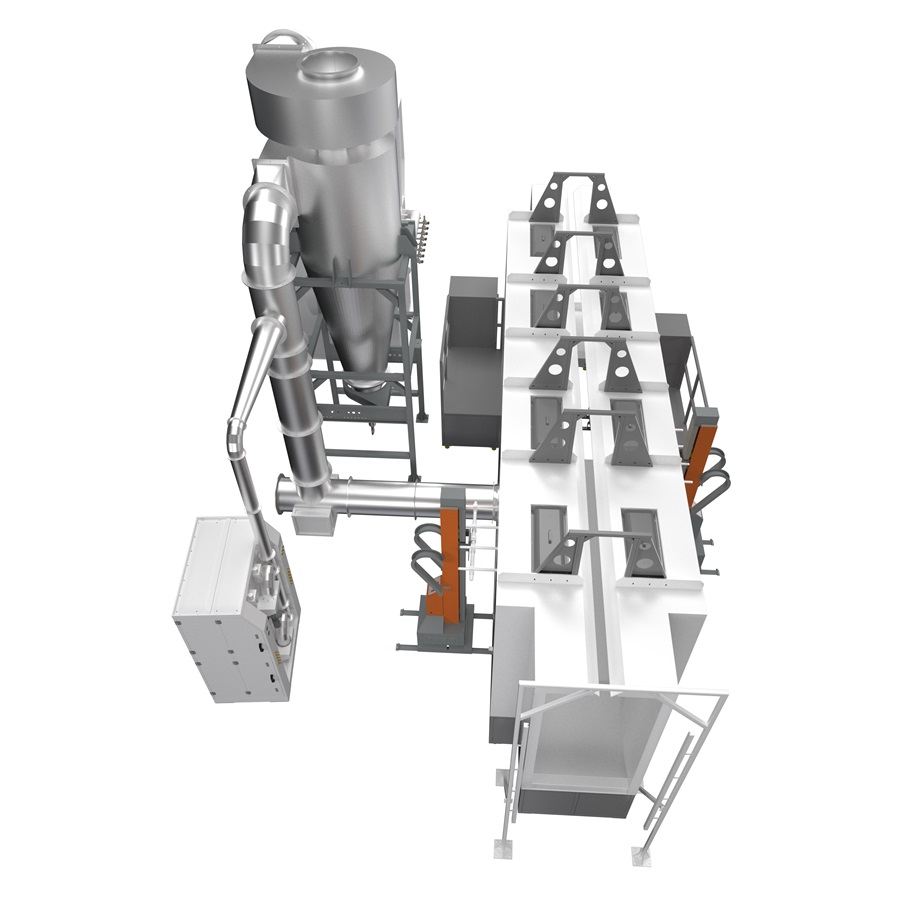

The automatic powder coating cyclone booth configured  is an efficient and excellent solution, suitable for high speed coating line and high volume products of  various industrial workparts, such as aluminium profiles, metal furniture and auto parts, etc. Cyclone type automatic booth increase powder utilization, reduces downtime and maximizes your production efficiency.
