Cartridge Filter Powder Coating Booth

COLO-1517 powder coating booth is the best selling booth system, which meets most powder coating applications, such as alloy wheels, bicycle frames, small accessories, electronic products, and other metal parts.
Working Size: width1500*depth1000*height1700mm
  • COLO-1517

  • Kafan

  • Powder Coating Booth


Cartridge Filter Powder Coating Booth, Manual Powder Coating Booth

Our powder coating booth comes with high precision cartridge filters effectively capture overspray, and ensures more powders are recycled and only free-of-particle air is discharged to the atmosphere. It is constructed in reliable quality and performance through COLO many years' proven technology.

cartridge filter powder coating boothmanual powder coating booth

COLO-1517 Cartridge Filter Powder Coating Booth Configurations

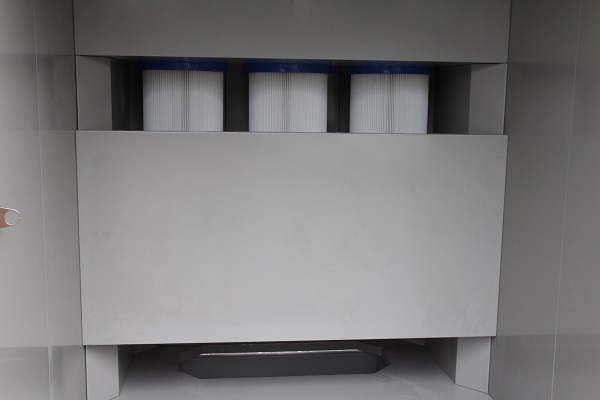

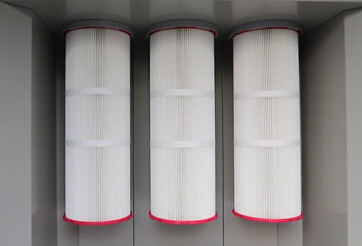

The high precision catridge filters are easy to replace when changing powder colors.

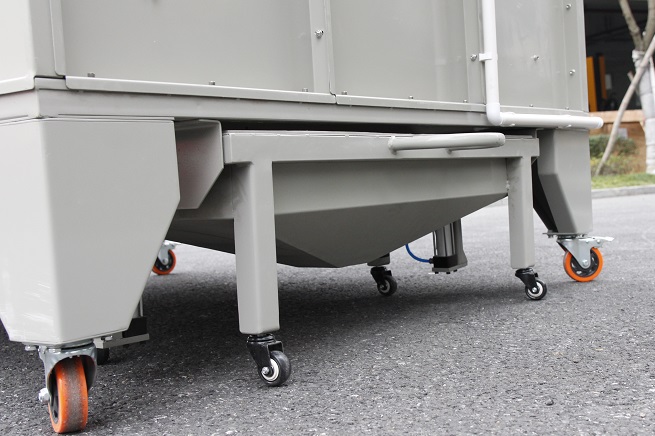

Removable Hopper

Filtered powder is discharged into a hopper beneath the unit which can be taken away for emptying and recycling

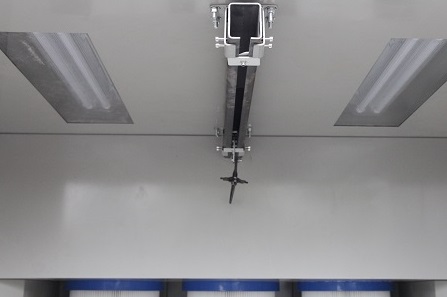

Rail, Hangers, Lights

Overhead rail and hangers for easy loading of workparts. 2 sets of energy-saving lights increase the accuracy of powder coating jobs.

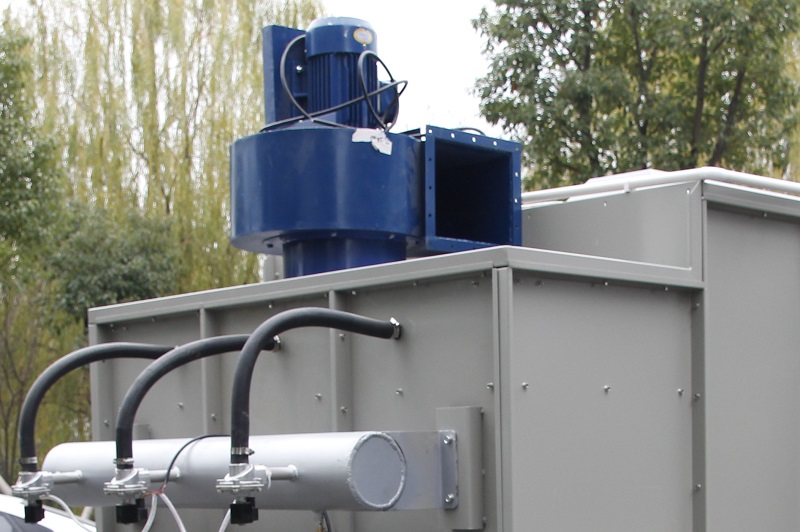

2.2kw centrifugal fan motor energy-saving and long lifespan.

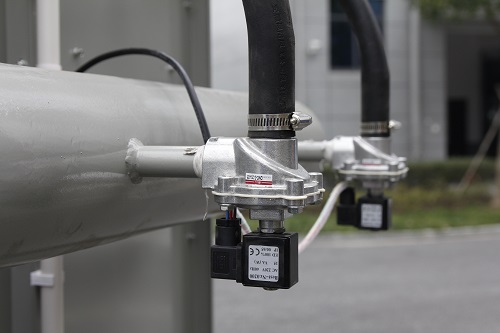

Solenoid Valve

Control the pulse-jet cleaning of each filter.

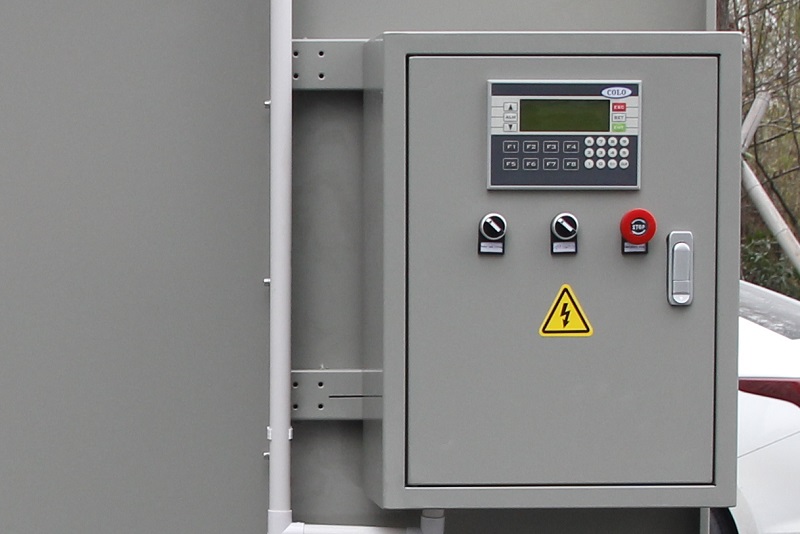

PLC control

Easy-to-use system to control filter cleaning, fan working, etc


Air Filter of Powder Spray Booth Fan (optional)

Connect with the Air fan to prevent ultrafine powder entering to the workshop air, ensures extremely dustfree of vented air. This fan filter creates a clean and healthy workshop.

This filter for 4KW air Fan .

Size : 450mm x 450mm x 789mm

COLO-1517 Cartridge Filter Powder Coating Booth Specifications

Mode COLO-1517
Type Closed Powder Coating Booth
Working Dimension Width1500 * Depth1000 * Height1700mm
Overall Dimension width1640 * Depth2070 * Height2180mm
Weight 400kgs
Power Supply Electric
Voltage 220V/380V/410V, can be customized
Nominal Power 2.2kw
Cartridge Filter Material 100% polyester
Filter Count 3 pcs
Filter Hang Type Quick release
Filter Cleaning System
Air Consumption 4000m^3/h

Why choose Kafan Cartridge Filter Powder Coating Booths?

During the operation, oversprayed powder accumulates on the cartridge filters of powder coating booth. As the cartridge filter loads, airflow decreases and the negative pressure rises, A timer activates a system of solenoid valves that clear the cartridge filters of the accumulated powder making it drop to the bottom powder collector. It causes great powder savings and extends filter life.

With various standard powder coating booths that meets any application, covering vehicle industry, furniture industry, machinery parts, electronic industry, etc. Kafan powder spray booths support any small or big powder coating production.

Here are some models for choice.

TypeWorking sizeApplication


Small Powder Coating Booth

Width1000 * Depth1000 * Height1500powder coating small workpieces


Filter Powder Coating Booth

Width1500 * Depth1000 * Height1700normal manual powder coating production


Batch Powder Coating Booth

Width2300 * Depth1500 * Height1500batch powder coating job, such as wheels


Walk-in Powder Coating Booth

Width3000 * Depth1700 * Height2000larger size parts to be coated


Pass Through Powder Spray Booth

Width620 * Depth2920 * Height1500Pass through conveyor tyoe.

1. Kafan Pre-sales Service

Inquiry on the website or directly contact with our sales, they are well speaking in English, Spanish, German, Russian, and 24hour online for any of your questions. Our sales is knowledgeable for powder coating machines and applications. We have professional techinical team, productions, quality control team, management and finance team, etc.

Kafan powder coating gun

2. Kafan On-sales Service

Before order a powder coating booth, we need get clear of below questions

Q1: What metal product do you coat and its size?

Size of the powder booth depends on product's specification, we have different standard models for your choice and price varies.

Q3: Do you have many powder colors need to be frequently changed?

If one or two powder colors, choose the economical filter powder spray booth, if you have many powder colors and have enough budge, you can choose cyclone powder coating booth.

Q4: What is the required production capacity?

Manual powder coating booth for small and normal production. Automatic powder coating booth for large production.

Q5: What is your local voltage?

Before production, we must confirm your voltage, we can customized based on your local, 110V/220V/380V/410V, etc.

Powder Coating Equipment Production

Design & Drawing (for non-standard products) - Material Preparing(CNC punching, bending, welding) - Preliminary Assembly - Surface Coating - Complete Assembling - Electricity Connection - Testing

powder coating equipment production

Packing & Delivery

Order of powder coating gun and parts, wooden case for sea shipping, cartons for international express, each machine is wrapped with film first to prevent scratch, each package is filled with foam to eliminate damage.

For powder spray booth or large quantities orders, if reach to a certain dimension, we can ship you by a full 20’ or 40’ container. That is much safer.

powder coating machine package  Wooden Case Packing  powder coating equipment shipping & delivery

3. Kafan After Sale Service

  • Each powder coating equipment is delivered with a manual to guide you how to Install & operation, any doubts contact with our sales, or watch our teaching videos.

  • One year warranty for any quality problem, free replace of main parts, PCB, cascade, gun cable(not includes wearing parts).

  • We will call back or email back to ask your satisfactory of using our machine, and anything if you need our help.

  • Powder coating machine daily maintenance, technical upgrading, sale promotion will be offered to you.

  • Build warehouse for quick wearing parts and replacements, such as spray nozzles, insert sleeves, gun shells, injectors, powder hose, etc.
