Manual Powder Coating Track Booth for Profiles & Frames

COLO-3212 powder coating spray booth is ideal for long thin work parts, such as aluminium profiles,window and door frame, metal plates. With double working station, powder coaters can do an effective job.
  • COLO-3212

  • Kafan


Manual Powder Coating Track Booth

Track powder coating spray booth also called pass through powder booth, means the work parts enter the booth through the overhead track from one side opening to another side, during the movement, the parts are powder sprayed. This powder coating booth is widely applicated in manual powder coating plant.

manual powder coating booth

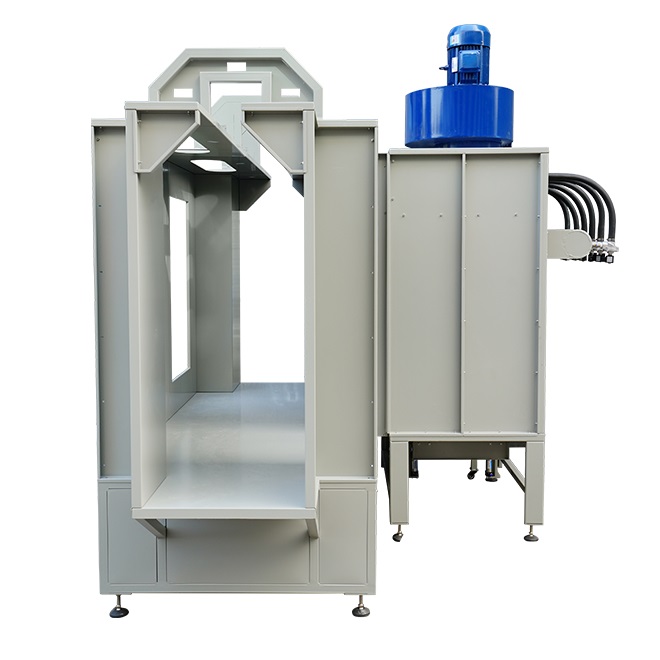

powder coating track booth

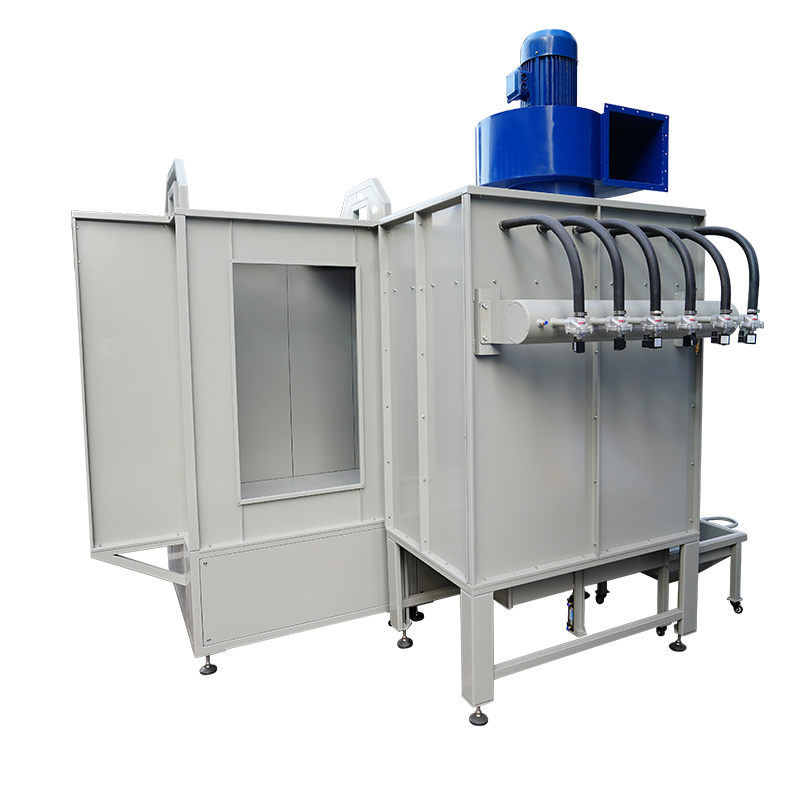

powder coating booth

Manual Powder Coating Track Booth Configurations

MLF00701 - 副本

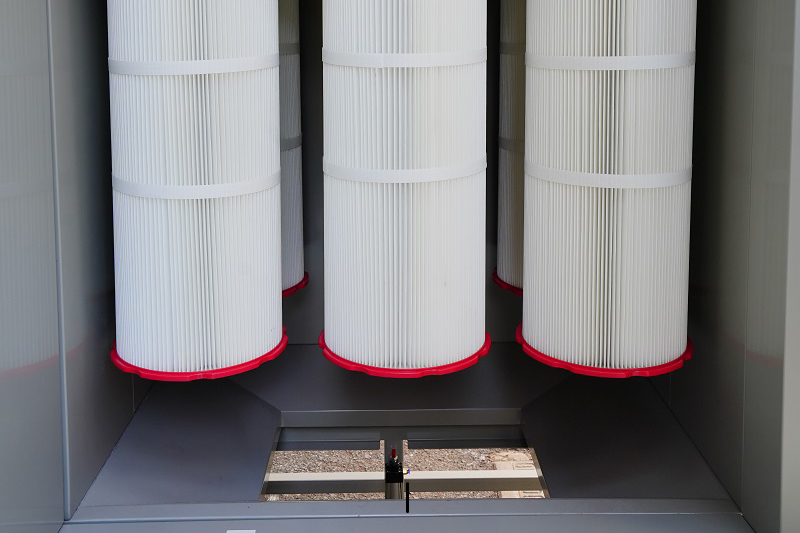

1. Filtration

Kafan powder coating spray booth uses highest quality filters made from 100% polyester, ensure high recycling rate of oversprayed powders.

The interchangeable filters are easy to replace when changing powder colors.

powder recovery hopper

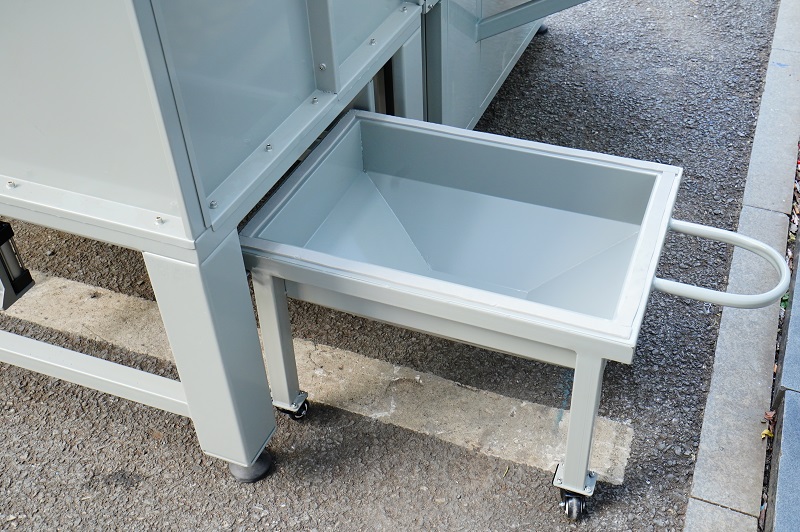

2.Recovery Hopper

A removable powder collector beneath the filter stage will holds oversprayed powders and can be taken out for recycling use. You will get pure and clean recycled powders.

powder coating booth fan

3.Fan Motor

3.5kw centrifugal fan motor with strong extraction volume powerfully draw air through powder booth filter and ehaust the air back to the atmosphere free of powder particulars.

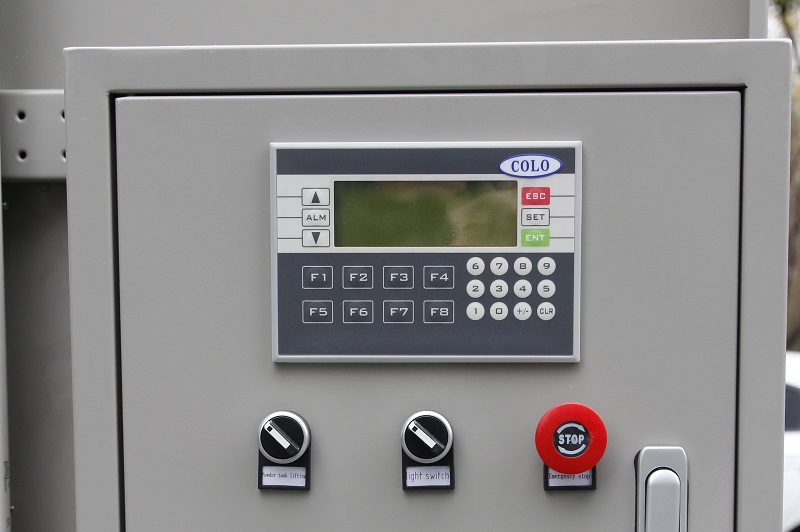

4.PLC Electric Controller

Reliable and easy operation, the PLC panel allows users to stop and start fan motor, set working times of solenoid valves which controls the filter cleaning, also has powder collector lifting switch and emergency stop switch,

COLO-3212 Powder Coating Spray Booth Specifications

Mode COLO-3212
Type Pass Through Powder Booth
Working Dimension Width620 * Depth2920 * Height1500mm
Overall Dimension Width1200 * Depth3000 * Height2030mm
Power Supply Electric
Voltage 220V/380V/410V, can be customized
Nominal Power 3.5kw
Cartridge Filter Material 100% polyester
Filter Count 3 pcs
Filter Hang Type Quick release
Filter Cleaning System

Why Choose Kafan Powder Coating Booths

Comes with 100% polyester cartridge filters and extraction fan motor powerfully capture oversprayed powders, reach to 98% powder recycle rate.  Quick-release cartridge filter is simple to clean and replace, which allows quick powder colour changes. The powder coating reclaim booth applies PLC control, provides easy, precise and reliable working process.
