Pass Through Powder Coating Booth

This manual powder coating spray booth has side doors which can be open or closed for multi purpose application. Made of long-life coated steel plate, consists of high precision filters. electric controller, fans to achieve best performance of powder recovery.
  • COLO-2152

  • Kafan

  • Pass Thourgh Powder Coating Spray Booth

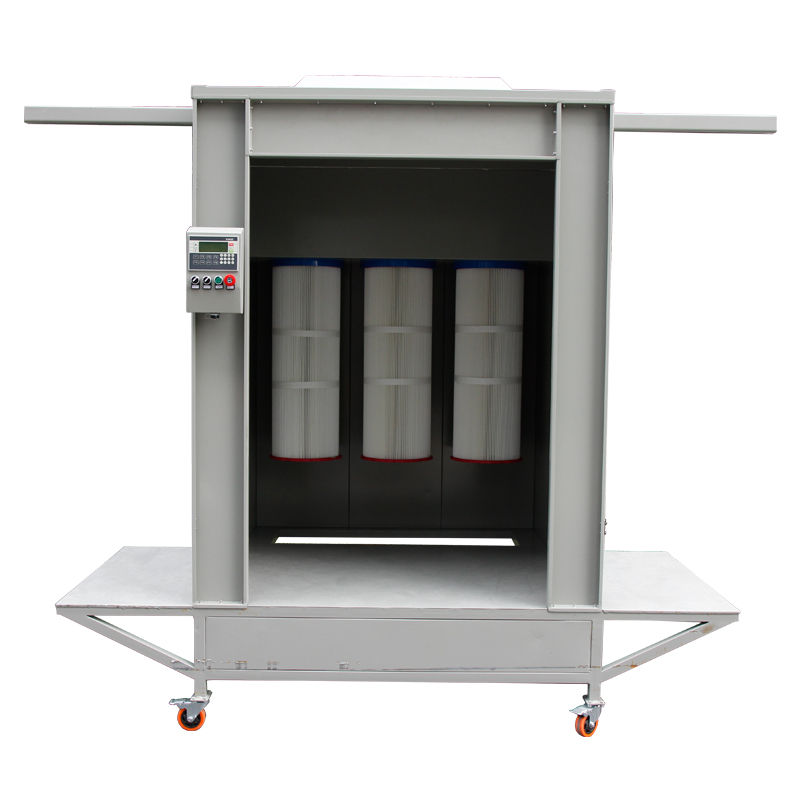

COLO-2152 Pass Through Powder Coating Booth

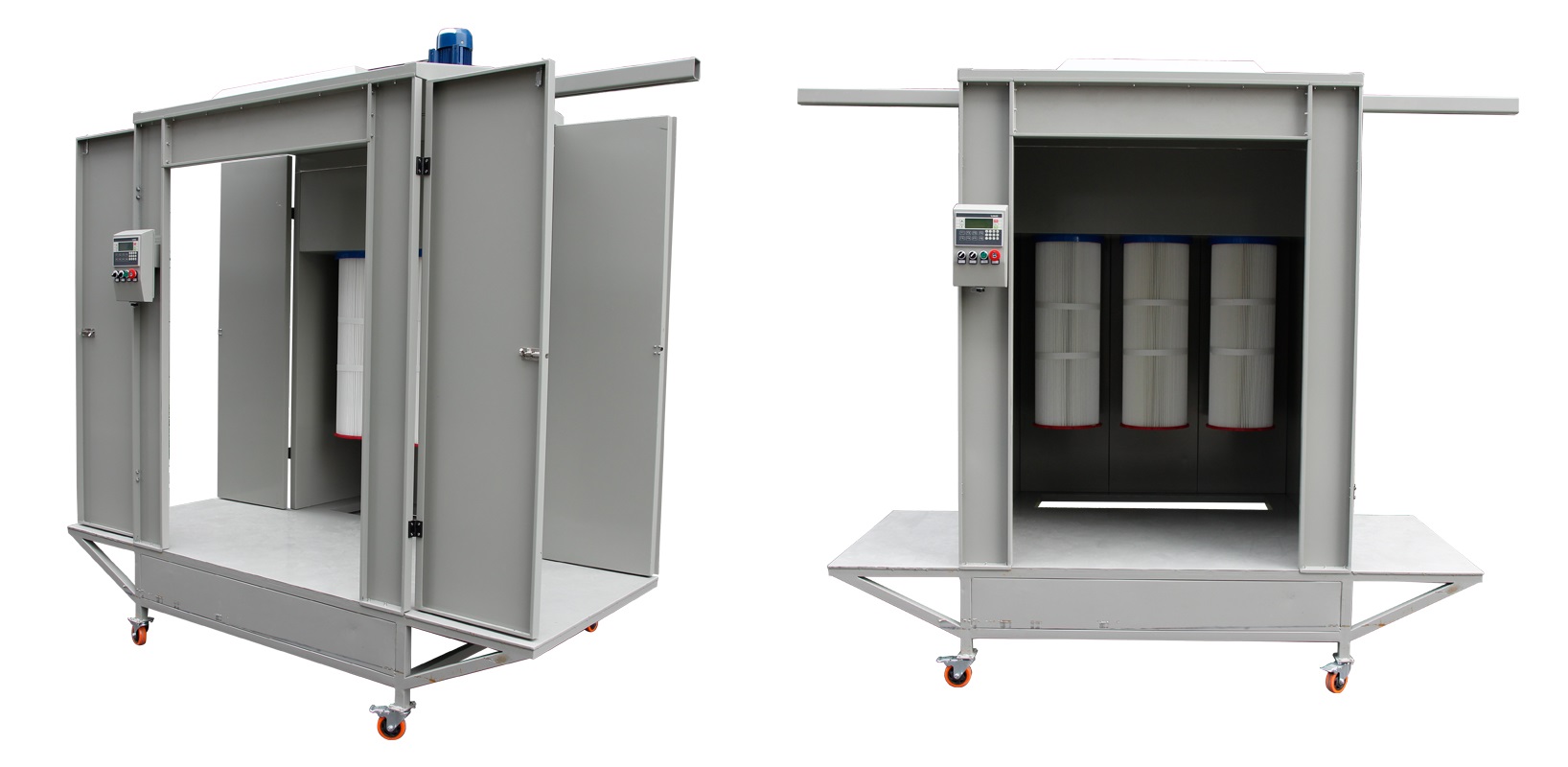

This powder coating spray booth has side doors which can be open or closed for multi purpose application:

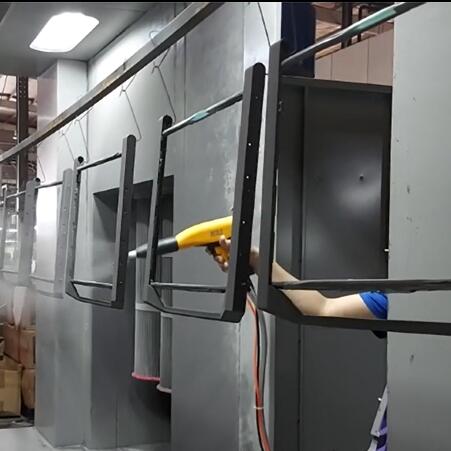

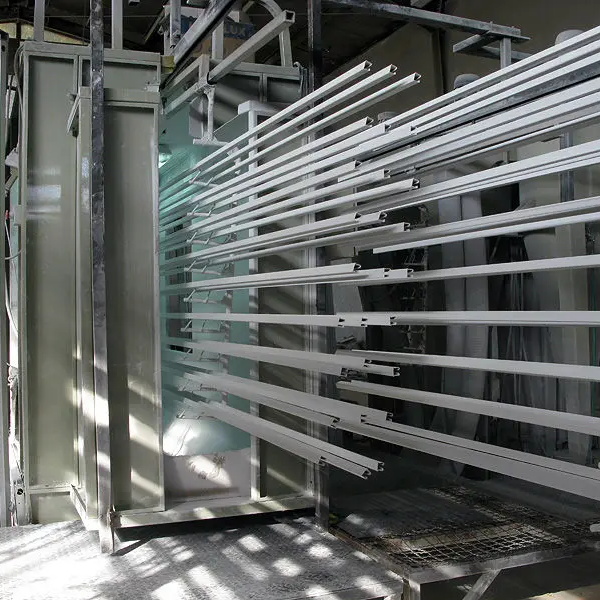

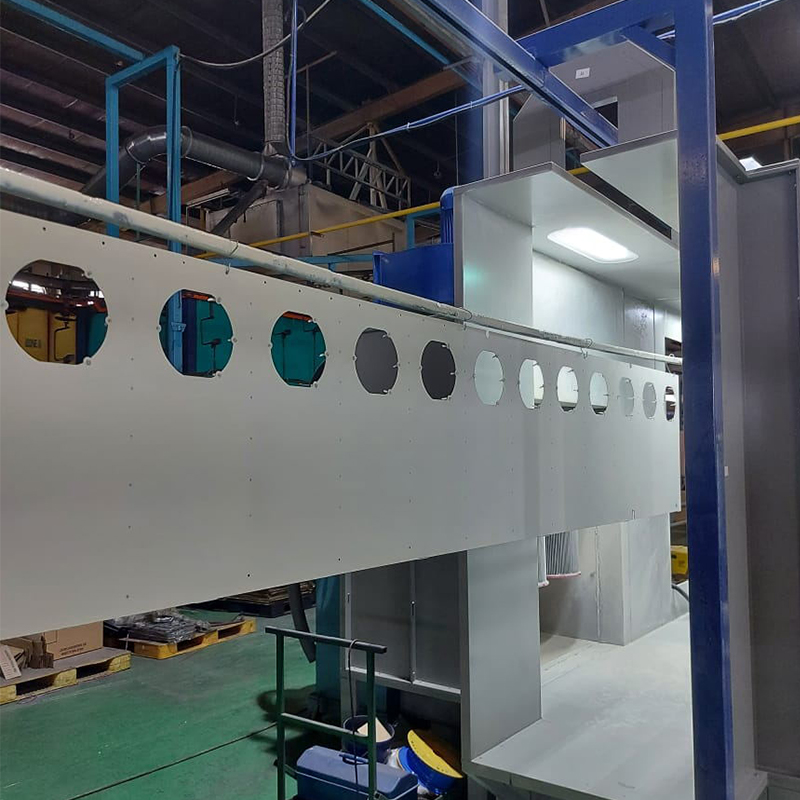

  • When the door open, parts enter from one side and exit from the other side door, coating is done by moving the parts slowly through the track. It is suitable for longer parts.

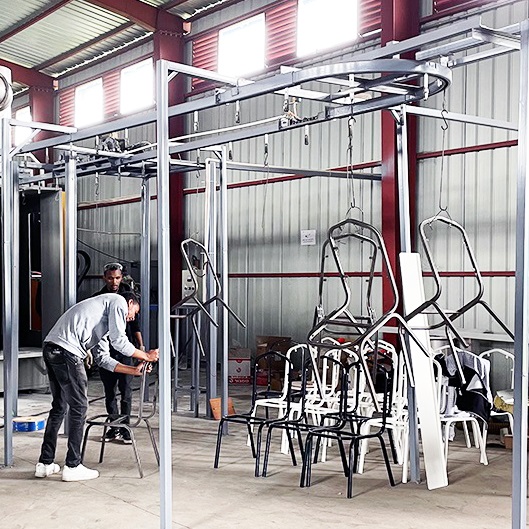

  • When coat normal small parts, keep the side doors closed, make it to be a closed powder booth. In this case, powder recovery will be increased.

powder coating spray booth (1)

Components of Pass Through Powder Coating Spray Booth

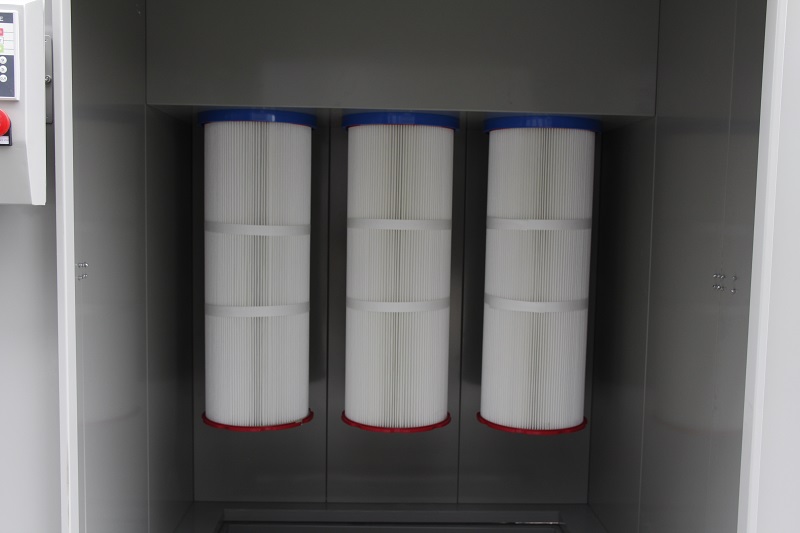

powder coating booth filter


Kafan powder coating spray booth uses highest quality filters made from 100% polyester, ensure high recycling rate of oversprayed powders.

The interchangeable filters are easy to replace when changing powder colors. Drawn air filtered through the cartridge filters is clean to be discharged to the atmosphere.

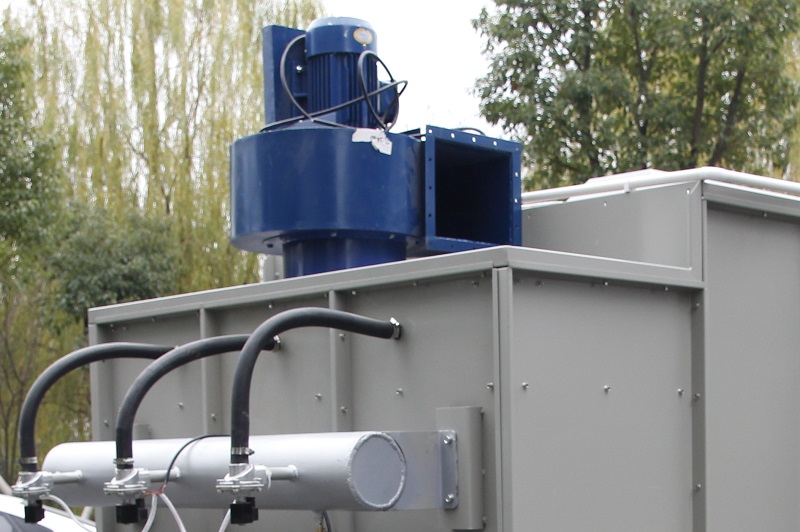

powder coating booth fan

2.Fan Motor

3.5kw centrifugal fan motor with strong extraction volume powerfully draw air through powder booth filter and ehaust the air back to the atmosphere free of powder particulars.

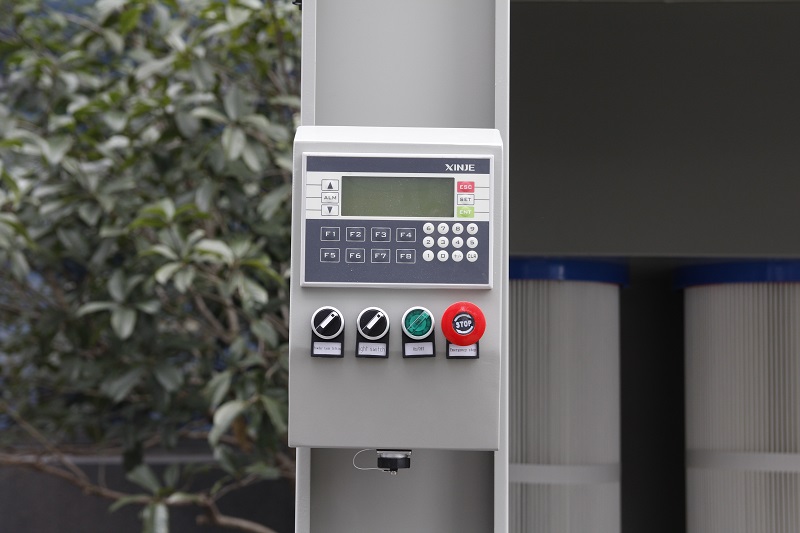

powder coating booth controller

3.PLC Electric Controller

Reliable and easy operation, the PLC panel allows users to stop and start fan motor, set working times of solenoid valves which controls the filter cleaning, also has powder collector lifting switch and emergency stop switch,

COLO-2152 Powder Coating Spray Booth Specifications

Mode COLO-2152
Type Pass Through Powder Booth
Working Dimension Width1400 * Depth1000 * Height1800mm
Overall Dimension Width2500 * Depth1500 * Height2300mm
Power Supply Electric
Voltage 220V/380V/410V, can be customized
Nominal Power 3.5kw
Cartridge Filter Material 100% polyester
Filter Count 3 pcs
Filter Hang Type Quick release
Filter Cleaning System

How does the powder coating booth recycle excess powders?

Use a powerful fan motor draw air to the powder booth forming negative pressure in the chamber, which prevents powder escaping outside. During the powder coating, excess powders and airflow pass through the cartridge filters, clean air is discharged to the atmosphere, while powders accumulate on the cartridge filters, as the pulse-jet filters works by solenoid valve, powders are cleared from the filters and drop to a removable powder collector. Thus the powder utilization reaches high and the filter life is extended.
