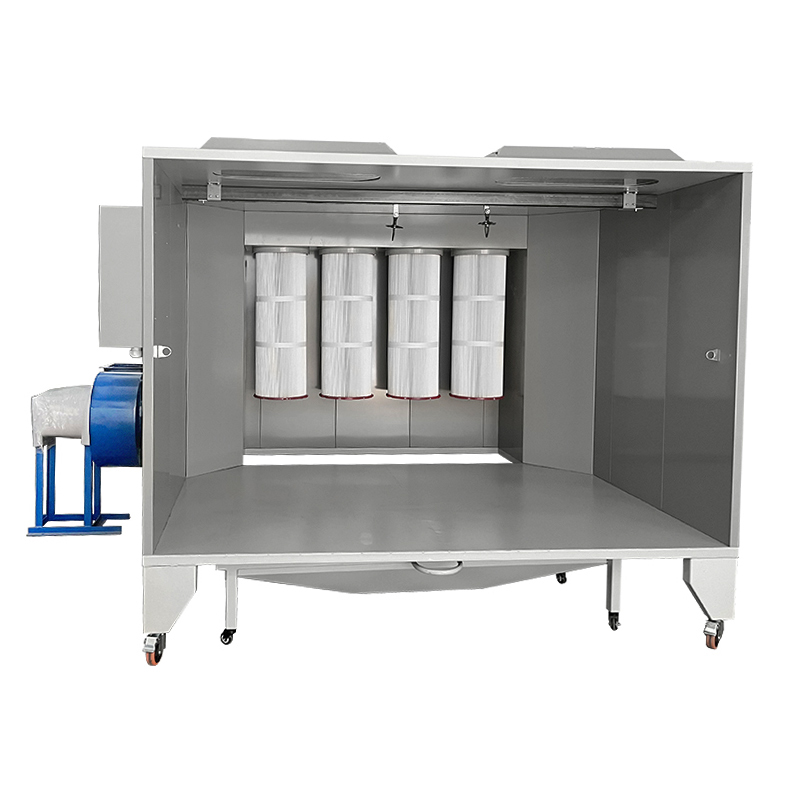

Batch Powder Coating Reclaim Booth

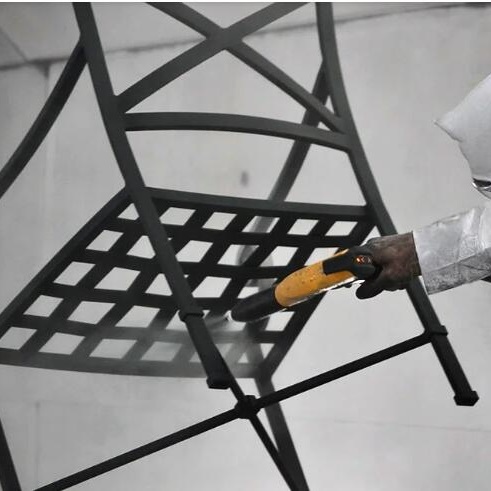

COLO-2315 powder coating booth is the best selling booth system, which meets most powder coating applications, such as alloy wheels, bicycle frames, small accessories, electronic products, and other metal parts.

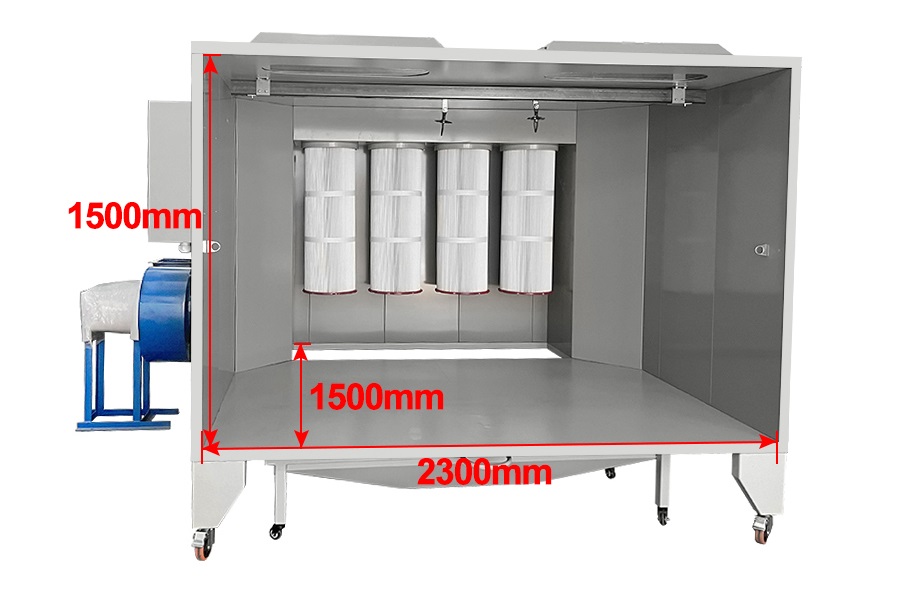

Working Size: width2300*depth1500*height1500mm
  • COLO-2315

  • Kafan


Batch Powder Coating Reclaim Booth

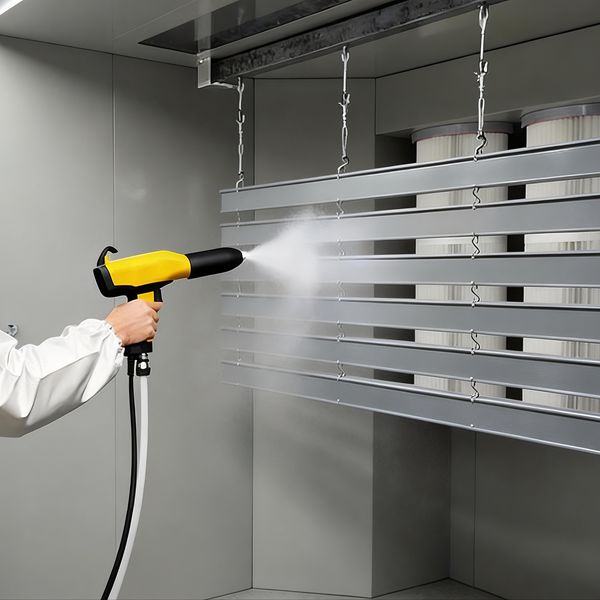

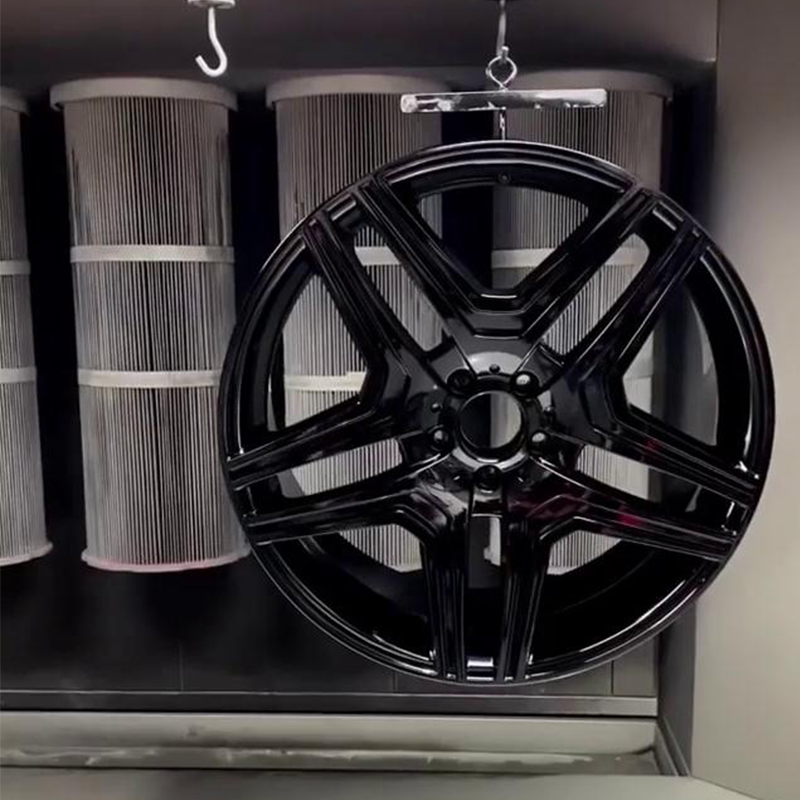

COLO-2315 powder coating booth is a simple and economical solution for batch production of small to medium sized products, such as alloy wheel coating, bike frame, auto parts, profiles and other metal parts. By mature technology and rich experience, Kafan supply powder coating booth in best performance and longer lifespan then your expectation.

powder coating booth price

COLO-2315 Batch Powder Coating Booth Confiurations

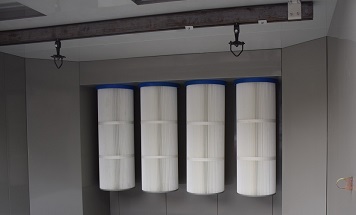

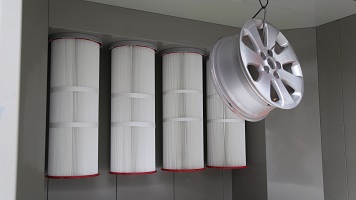

filter powder booth


Kafan powder coating booth uses highest quality filters made from 100% polyester, ensure high recycling rate of oversprayed powders.

The interchangeable filters are easy to replace when changing powder colors.

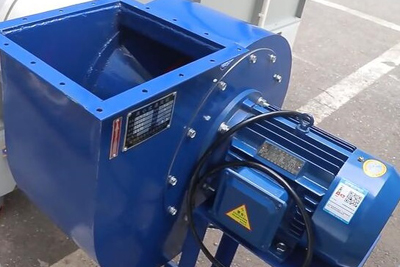

powder coating booth fan

Fan Motor

4kw centrifugal fan motor with strong extraction volume from 6000Nm3/h to 13000 Nm3/h, powerfully draw air through powder booth filter and ehaust the air back to the atmosphere free of powder particulars.

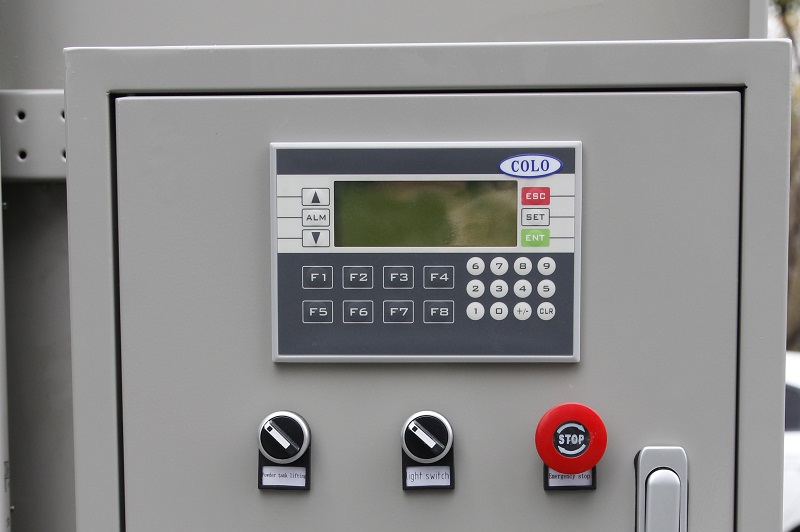

Powder Coating Booth PLC

PLC Electric Controller

Reliable and easy operation, the PLC panel allows users to stop and start fan motor, set working times of solenoid valves which controls the filter cleaning, also has powder collector lifting switch and emergency stop switch,

powder spray booth

Rail and Hanger

With overhead rail and hanger to conveniently hang the work parts. Also has pcs of light help powder coater do the job perfectly, clear observation reduce the powder coating defects.

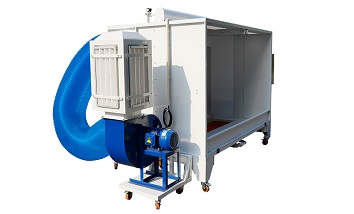

powder booth air filter

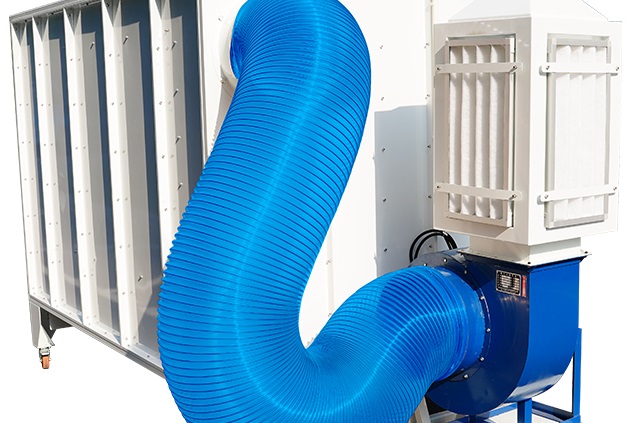

Air Filter of Powder Spray Booth Fan (optional)

Connect with the Air fan to prevent ultrafine powder entering to the workshop air, ensures extremely dustfree of vented air. This fan filter creates a clean and healthy workshop.

This filter for 4KW air Fan .

Size : 450mm x 450mm x 789mm

COLO-2315 Batch Powder Coating Booth Specifications

Mode COLO-2315
Type Closed Powder Coating Booth
Working Dimension Width2300 * Depth1500 * Height1500mm
Overall Dimension Width2750 * Depth2070 * Height2180mm
Power Supply Electric
Voltage 220V/380V/410V, can be customized
Nominal Power 4kw
Cartridge Filter Material 100% polyester
Filter Count 4 pcs
Filter Hang Type Quick release
Filter Cleaning System
Air Consumption 6000-13000m^3/h

Batch Powder Coating Reclaim Booth Advantages

High Powder Recovery

Comes with 4 pcs of cartridge filter and 4kw extraction fan motor powerfully capture oversprayed powders, reach to 98% powder recycle rate. Using a powder coating booth saves you thousand dollars one year on environmental management.

Quick Color Change

Quick-release cartridge filter is simple to clean and replace, which colors quick powder colour changes. A specially designed removable powder collector in the bottom carries the dropped powders for further

Easy-to-use Control Panel

The powder coating reclaim booth is PLC controlled, allows users to stop and start fan motor, set working times of solenoid valves which controls the filter cleaning, also has powder collector lifting switch and emergency stop switch, reliable and convenient.

With various standard powder coating booths that meets any application, covering vehicle industry, furniture industry, machinery parts, electronic industry, etc. Kafan powder spray booths support any small or big powder coating production.

Here are some models for choice.

TypeWorking size (mm)Application


Small Powder Coating Booth

Width1000 * Depth1000 * Height1500powder coating small workpieces


Filter Powder Coating Booth

Width1500 * Depth1000 * Height1700normal manual powder coating production


Batch Powder Coating Booth

Width2300 * Depth1500 * Height1500batch powder coating job, such as wheels


Walk-in Powder Coating Booth

Width3000 * Depth1700 * Height2000larger size parts to be coated


Pass Through Powder Spray Booth

Width620 * Depth2920 * Height1500pass thru conveyor type.

1. Kafan Pre-sale Service

Inquiry on the website or directly contact with our sales, they are well speaking in English, Spanish, German, Russian, and 24hour online for any of your questions. Our sales is knowledgeable for powder coating guns, powder coating booth and oven, We have professional techinical team, productions, quality control team, management and finance team, etc.

Kafan powder coating gun

2. Kafan On-sale Service

Before order a powder coating spray booth, we need get clear of below questions

Q1: What metal product do you coat? Shape? Size?

The product information determines the size and type of powder spray booth, such as KF-1115 is for small parts application, KF-2315 can be used for bigger size parts. The price of different size booth varies a lot.

Q4: What is the required production capacity?

Manual powder coating booth for small and normal production. Automatic powder spray booth with auto powder gun equipment, reciprocator, conveyor system achives high automation and productivity.

Q3: Do you have many powder colors need to be frequently changed?

If you have limited budget and small production, choose filter powder spray booth, changing filters when changing powder colors. If have higher requirement, choose a cyclone powder booth to achieve fast and automatic powder color change, especially used in automatic line.

Q5: What is your local voltage?

Before production, we must confirm your voltage, we can customized based on your local, 110V/220V/380V/410V, etc.

Powder Coating Equipment Production

Design & Drawing (for non-standard products) - Material Preparing(CNC punching, bending, welding) - Preliminary Assembly - Surface Coating - Complete Assembling - Electricity Connection - Testing

powder coating equipment production

Packing & Delivery

Order of powder coating gun and parts, wooden case for sea shipping, cartons for international express, each machine is wrapped with film first to prevent scratch, each package is filled with foam to eliminate damage.

For powder spray booth or large quantities orders, if reach to a certain dimension, we can ship you by a full 20’ or 40’ container. That is much safer.

powder coating machine package  Wooden Case Packing  powder coating equipment shipping & delivery

3. Kafan After-sale Service

  • Each powder coat booth is delivered with a manual to guide you how to Install & operation, any doubts contact with our sales, or watch our teaching videos.

  • We will call back or email back to ask your satisfactory of using our machine, and anything if you need our help.

  • Powder coating equipment daily maintenance, technical upgrading, sale promotion will be offered to you.

  • Build warehouse for quick wearing parts and replacements for powder coating equipment, such as spray nozzles, insert sleeves, gun shells, injectors, powder hose, cartridge filters, etc.
