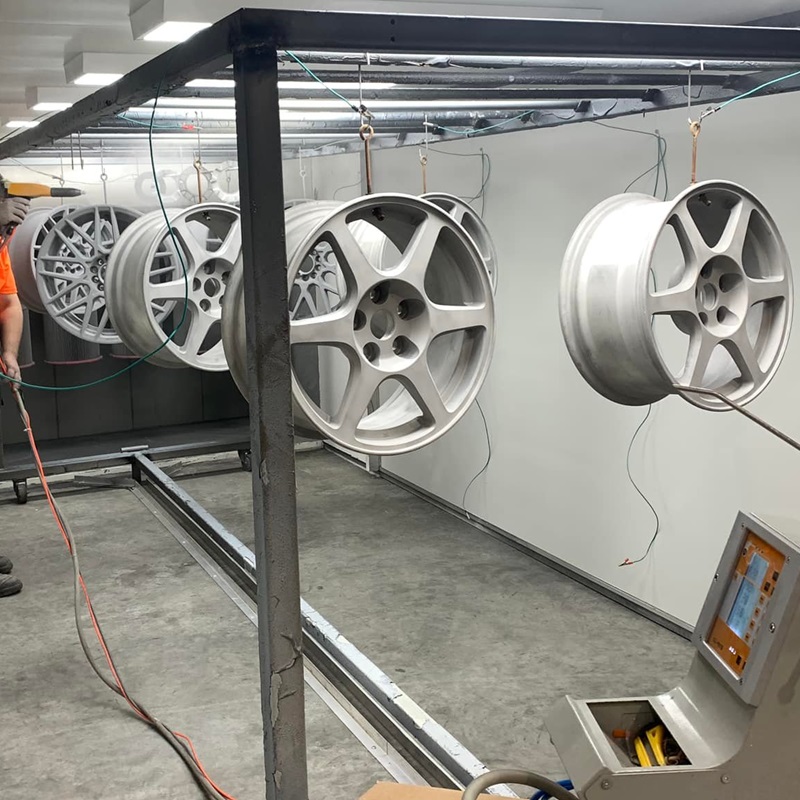

Heavy Wheels

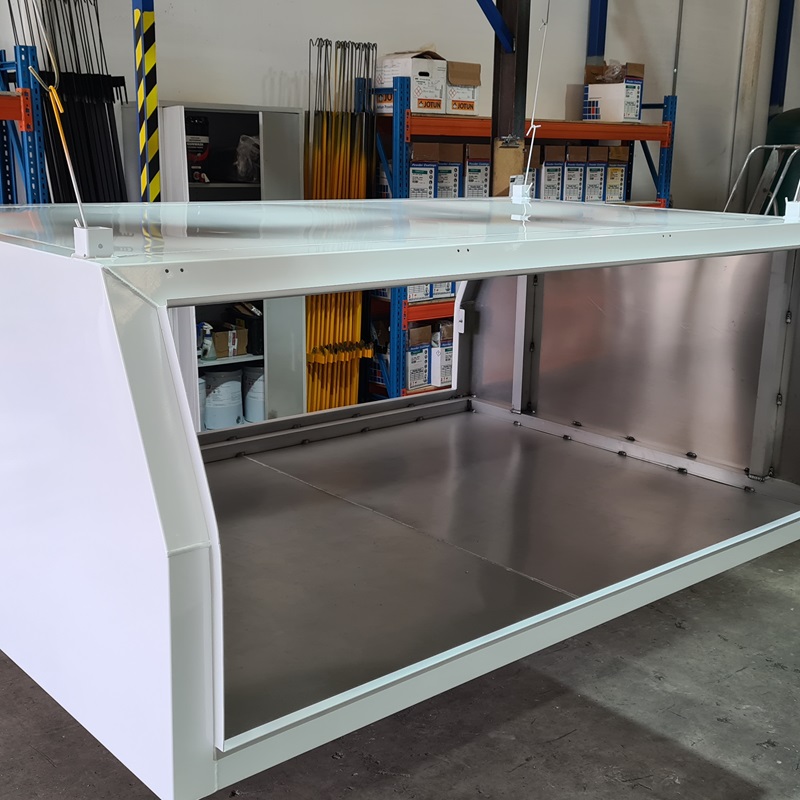

Big Cabinets

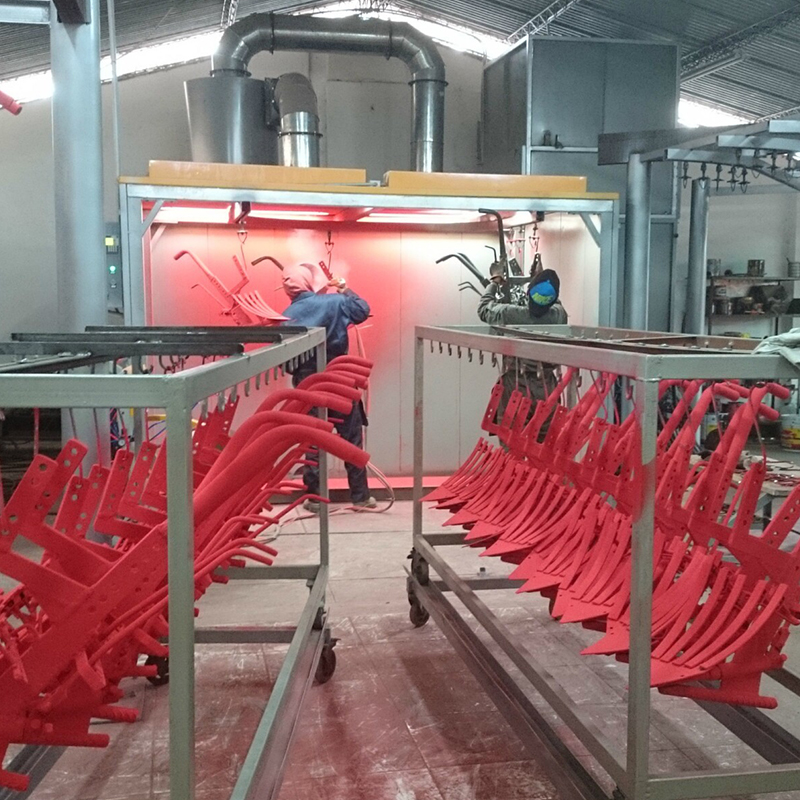

Farm Tools

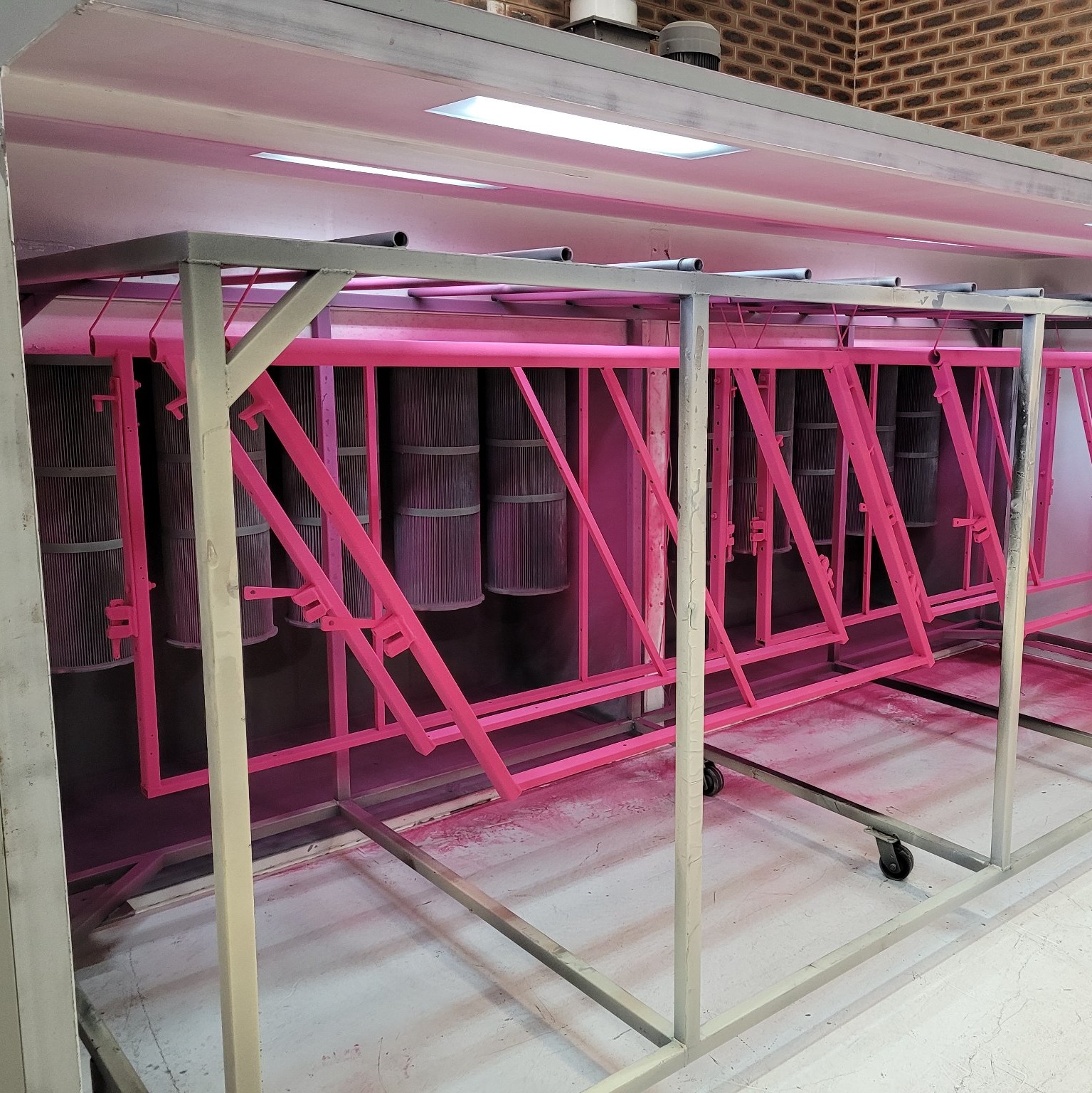

Frames

Walk-in Powder Coating Paint Booth

This walk in powder paint booth is ideal when coating large or bulky and heavy parts. With 4 pcs of cartridge filters creates a high powder recovery rate. As the name suggests, operator roll the work parts into the booth cabin, then walk in and powder coat it from all sides.

KF-3222 Walk-in Powder Paint Booth Advantages

• Features a more economical and budget-saving powder recovery system.

• Sturdy structured powder paint booth,  reliable and long service life.

• The cartridge filter is quick-release type, easy to couple and uncouple during color change.

• High powder recycling rate with clean working environment.

• Durable steel sheet welded with powder coated surface, corrosion-resistant.

KF-3222 Powder Coating Booth Configurations

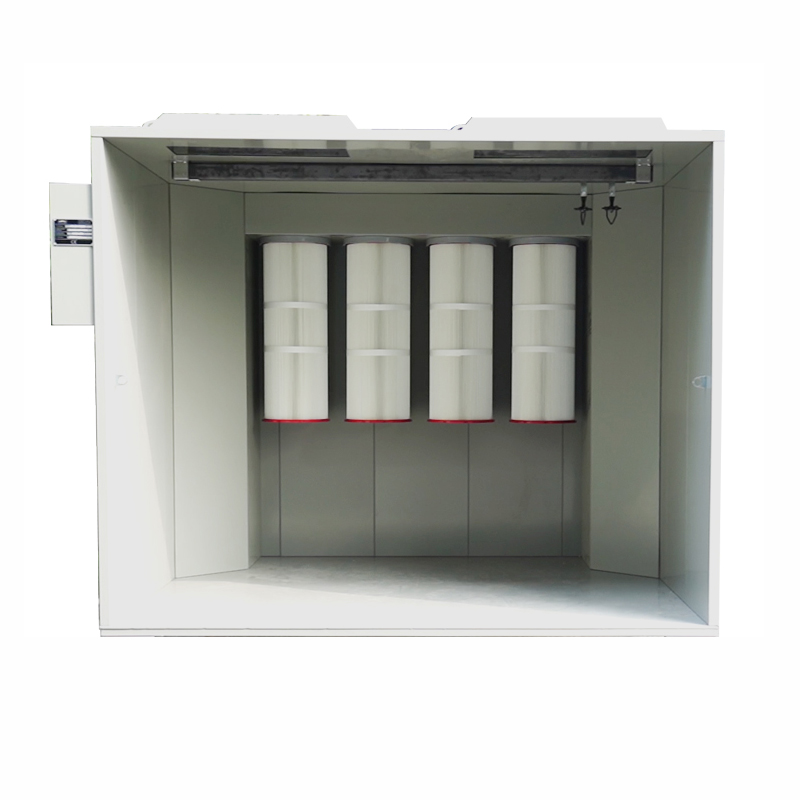

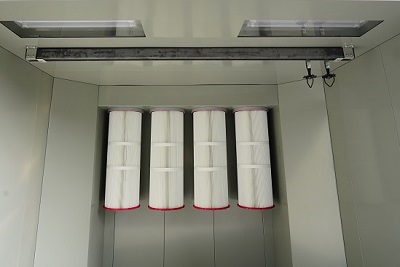

Cartridge Filters

4pcs of high quality filters made from 100% polyester, ensure high recycling rate of oversprayed powders.  Those quick-release-type filters are easy to replace when changing colors

Rails, Hangers, Lights

Overhead rail and rotating hangers for easy loading of workparts.  2 sets of energy-saving lights increase the accuracy of coating jobs.

PLC Control

Easy-to-use PLC system allows users set solenoid valve working which controls the filter cleaning, as well as start/stop the fan motor,

Air Circulation Fan

4kw centrifugal fan motor with strong extraction volume from 6000Nm3/h to 13000 Nm3/h, powerfully draw air into the booth and passing through the filters.

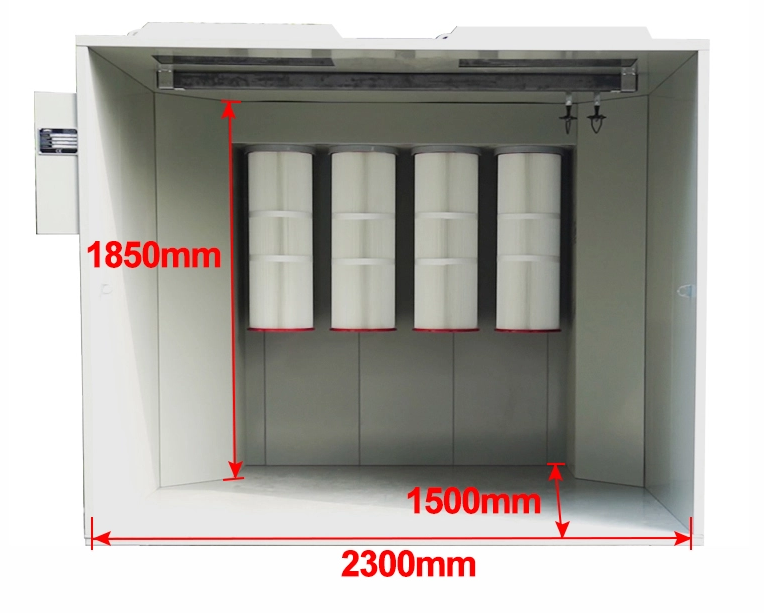

KF-3222 Powder Paint Booth Specifications
