Double-purpose Powder Coating Spray Booth with Side Doors

Double-purpose Powder Coating Spray Booth with Side Doors

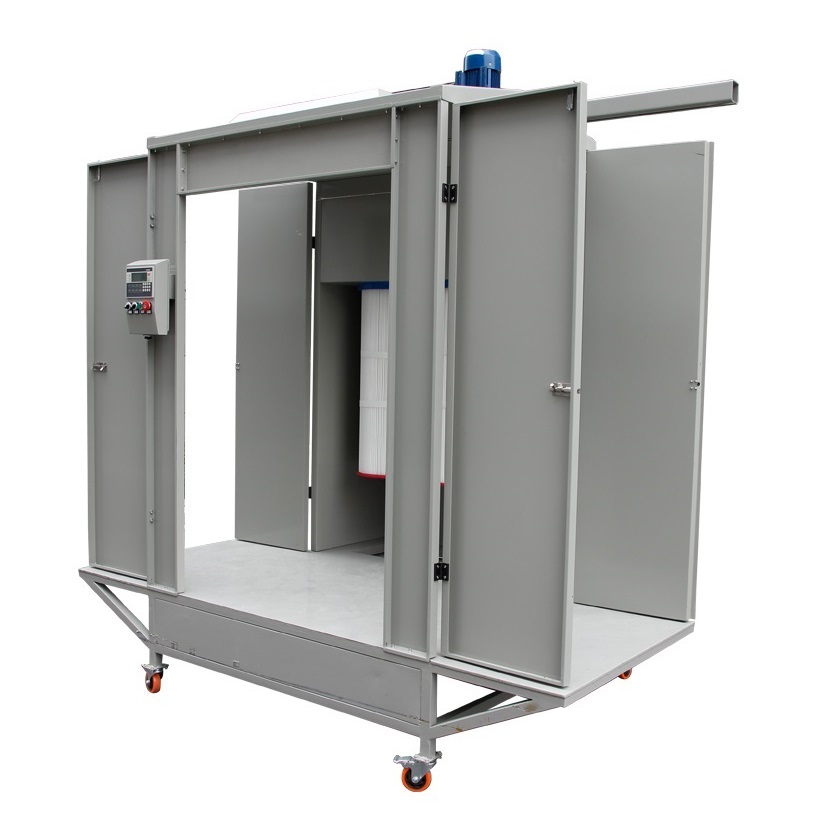

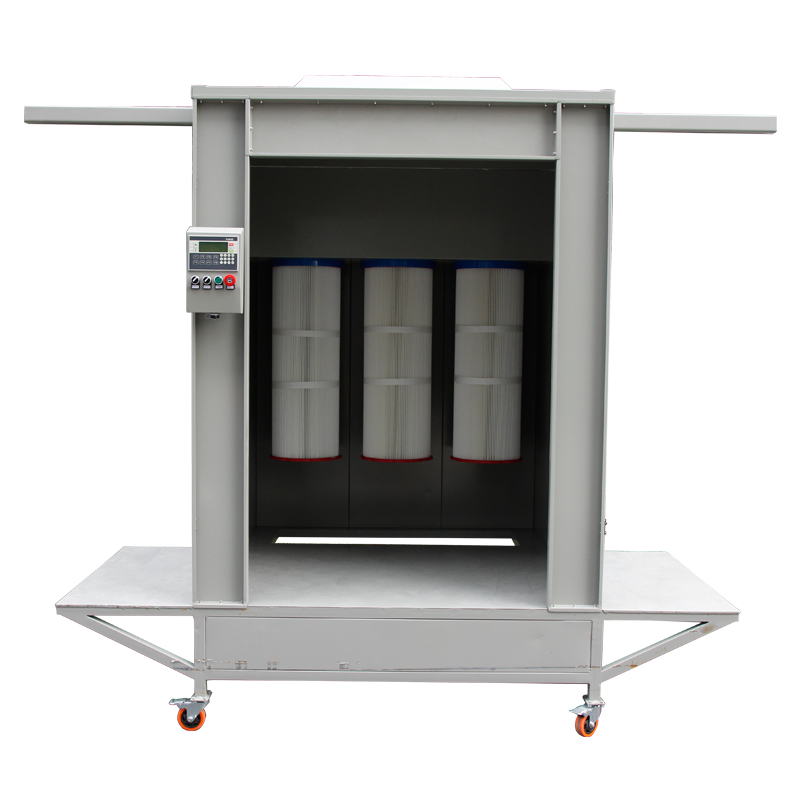

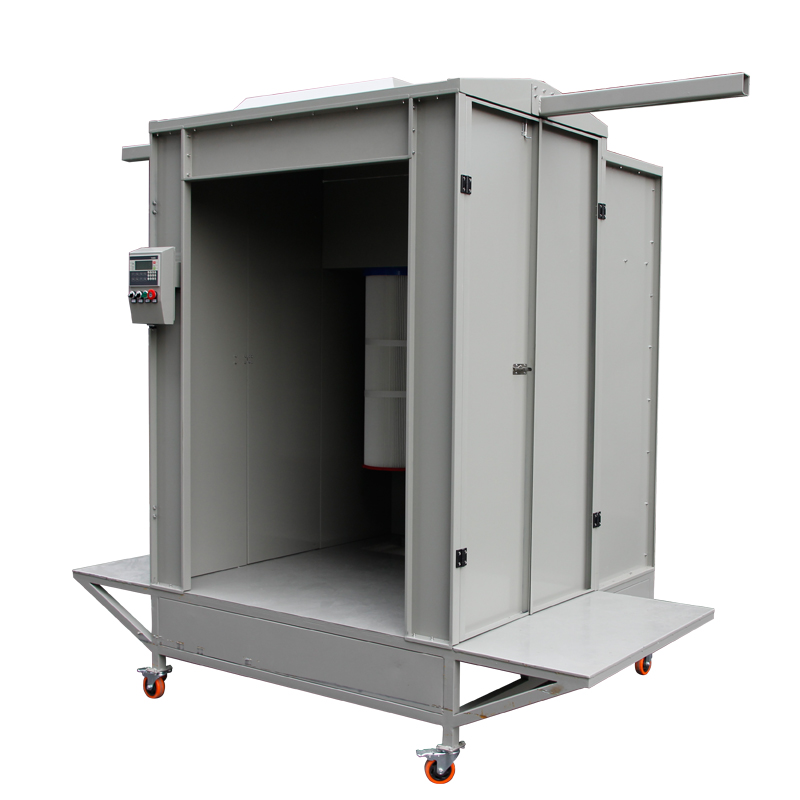

This powder coating spray booth has side doors which can be open or closed as a pass through booth or a open faced booth.

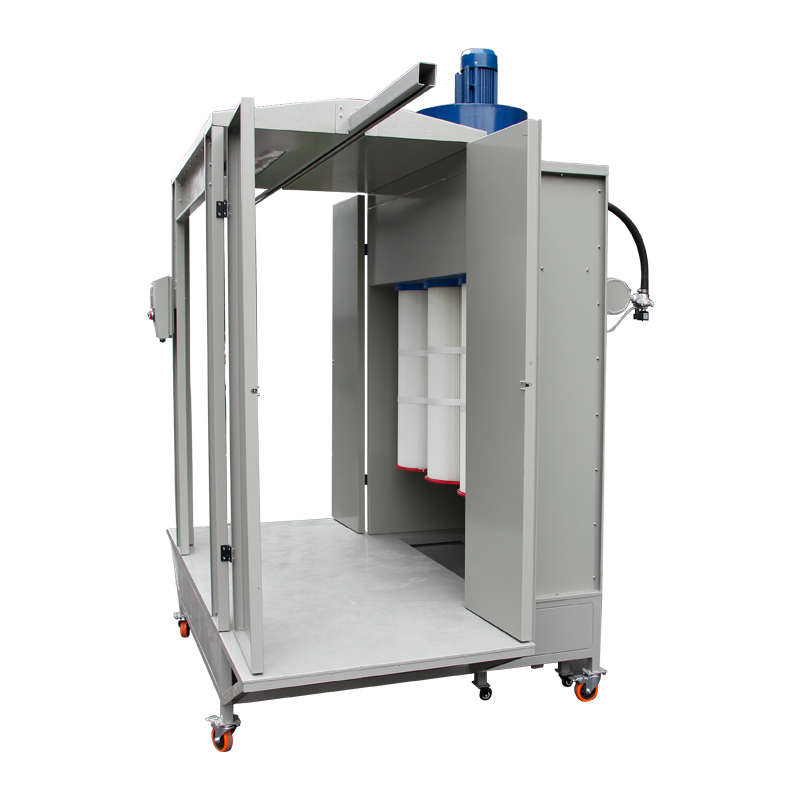

• When the door open, parts enter from one side and exit from the other side door, coating is done by moving the parts slowly through the track. It is suitable for longer parts.

• When coat normal small parts, keep the side doors closed, make it to be a closed powder booth. In this case, less powders will escape outside, and powder recovery will be increased.

How does the powder coating booth recycle excess powders?

Use a powerful fan motor draw air to the powder booth forming negative pressure in the chamber, which prevents powder escaping outside. During the powder coating, excess powders and airflow pass through the cartridge filters, clean air is discharged to the atmosphere, while powders accumulate on the cartridge filters, as the pulse-jet filters works by solenoid valve, powders are cleared from the filters and drop to a removable powder collector. Thus the powder utilization reaches high and the filter life is extended.

KF-2152 Powder Coating Spray Booth Configurations

3 pcs Cartridge Filters

High precision filters made of 100% polyester, ensure high recycling rate of oversprayed powders.  Those filters are quick-release-type designed for fast color change

3.5kw Fan

3.5kw centrifugal fan motor with strong extraction volume powerfully draw air to the booth passing though filter that ensures vented air is free of powder particulars.

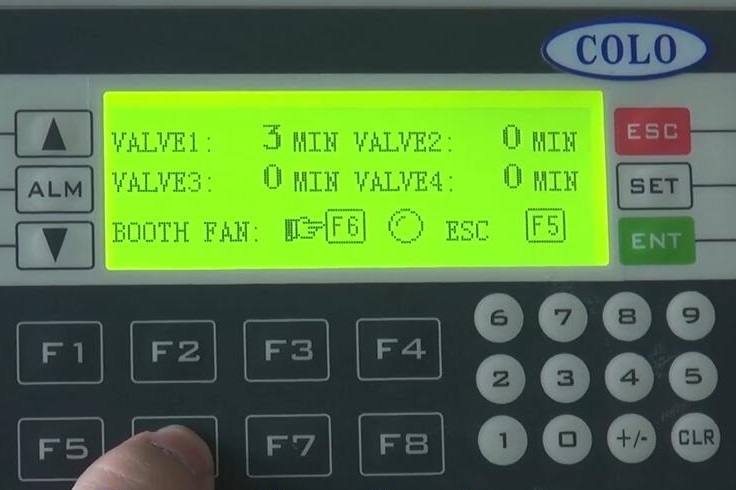

PLC Control

Easy-to-use PLC system allows users set solenoid valve working which controls the filter cleaning, as well as start/stop the fan motor,

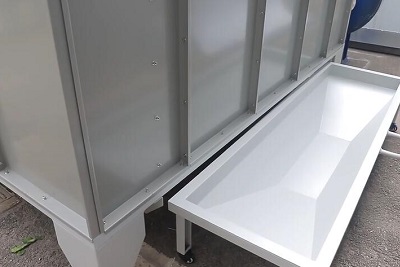

Powder Collector Funnel

The oversprayed powders released from filters will drop into a funnel which can be taken away for fully emptying and efficient recycling

KF-2152 Powder Coating Spray Booth Specifications
