Large Walk-in Powder Coating Booth

for Big & Heavy Frames

for Long Shelves

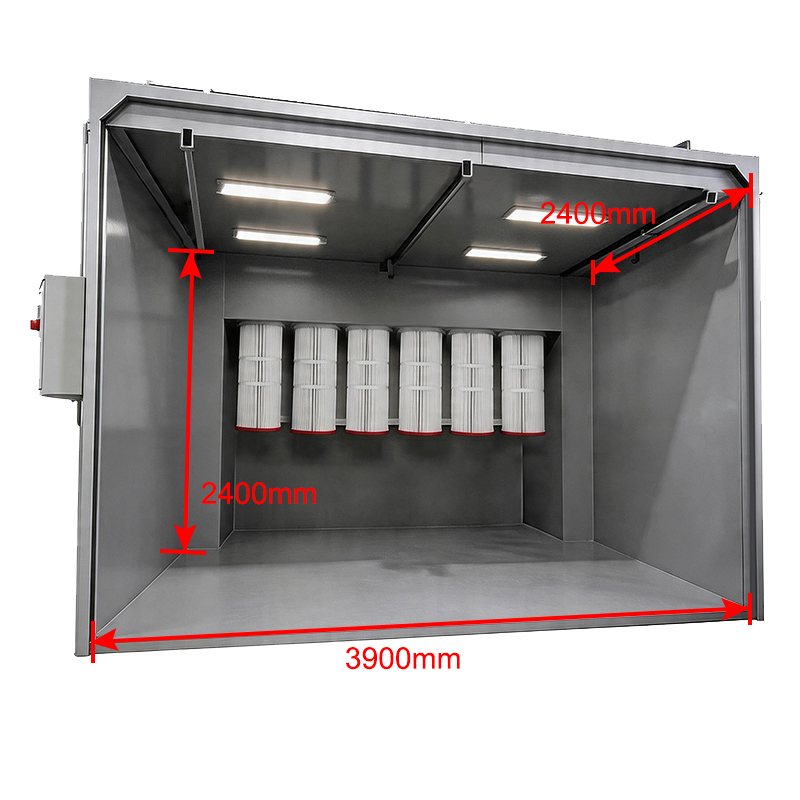

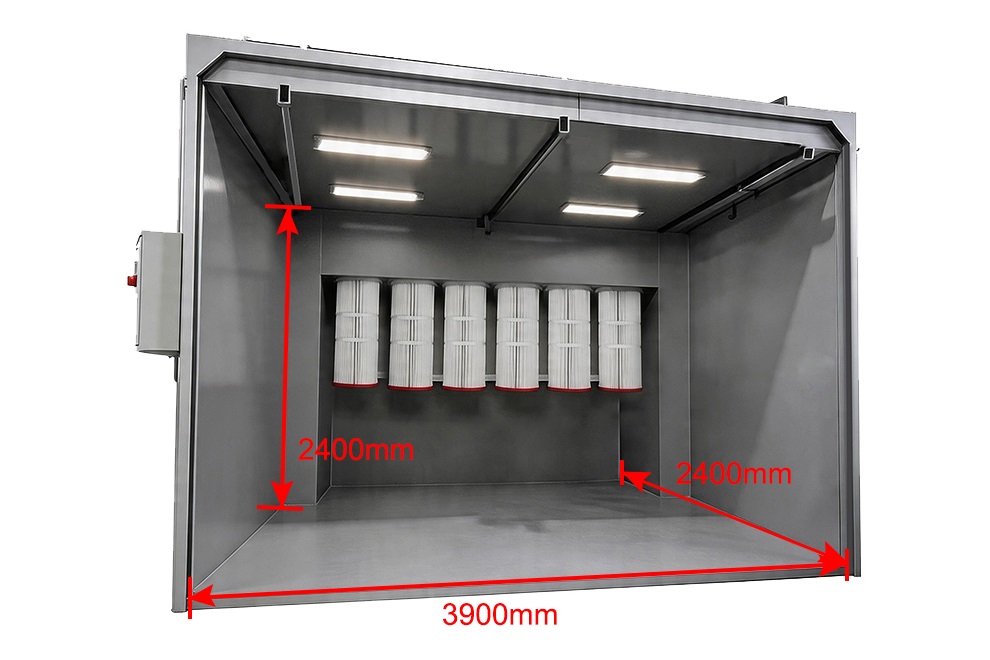

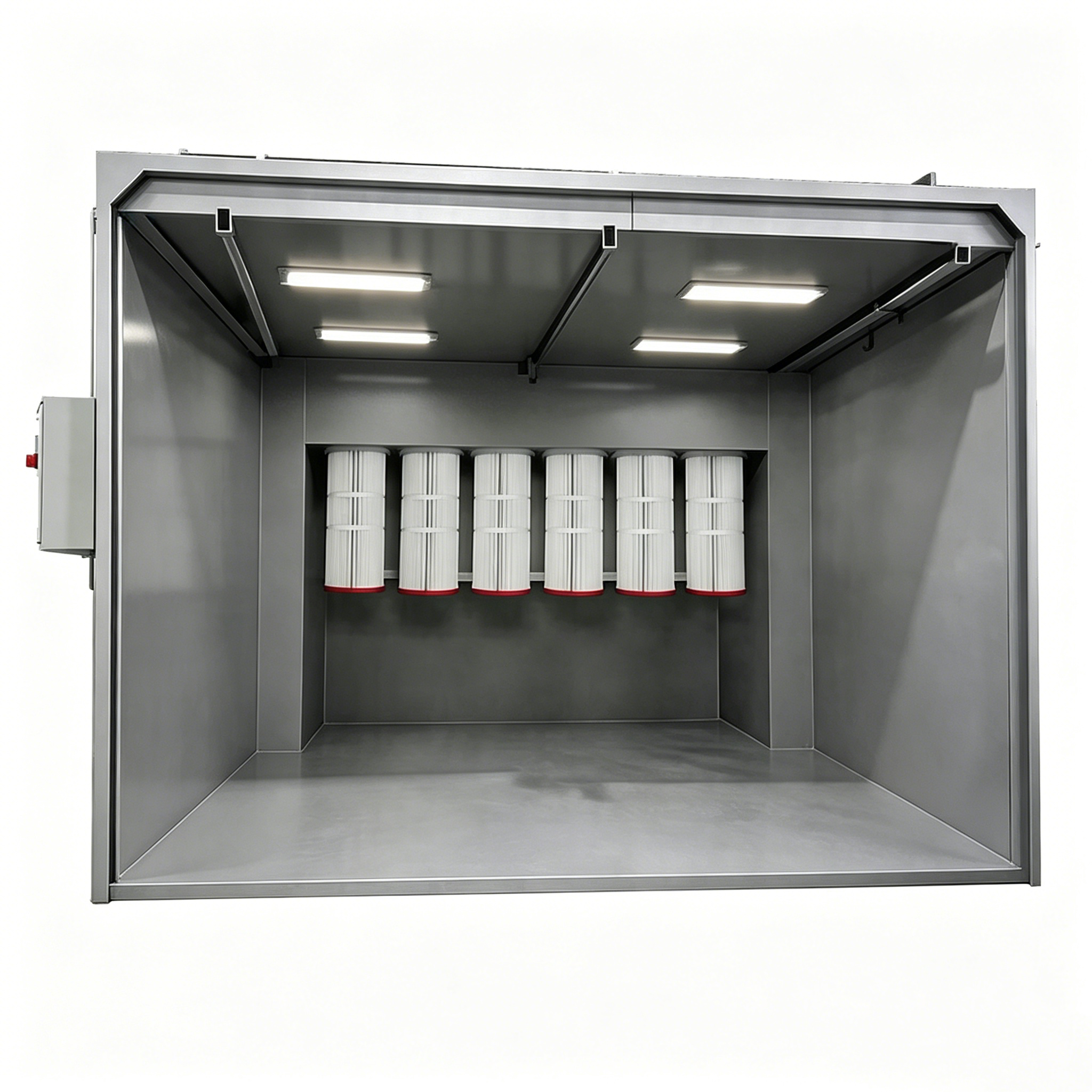

Large Powder Coating Booth, Walk-in Powder Spray Booth

The KF-3924 walk in powder coating booth has enough space for flexible coating large and complex metal products. With 12 pcs(2 rows) of cartridge filters effectively capture overspray powders, ensures a dustless working area.

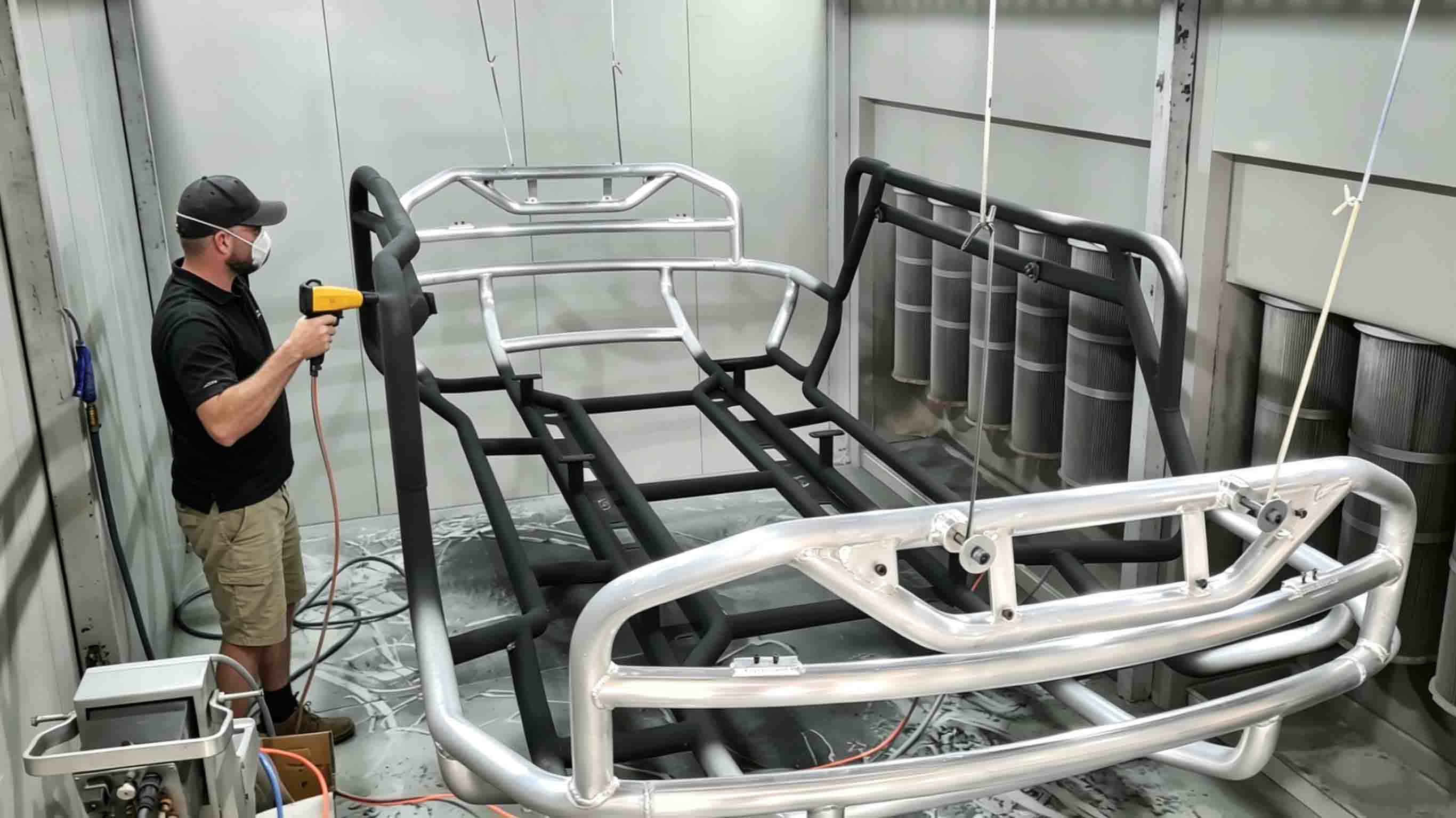

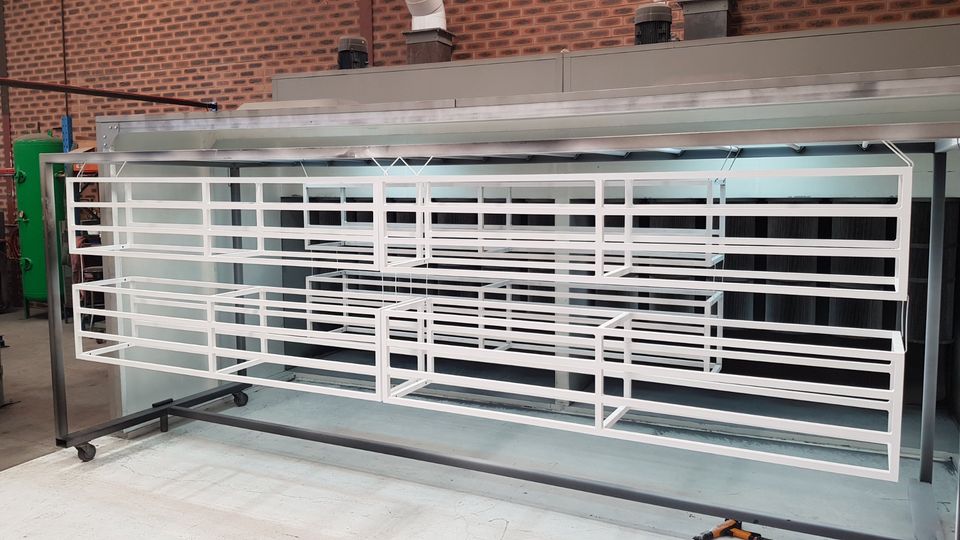

It allows hanging workparts on the overhead hangers, as well as rolling the heavy objects into the booth cabin, then walk into the chamber and medicously coating it from all sides.

KF-3924 Powder Coating Booth Configurations

Our powder coating booth is made of durable cold-rolled steel sheet, surface is powder coated, elegant appearance, corrosion-resistant, long lifespan.

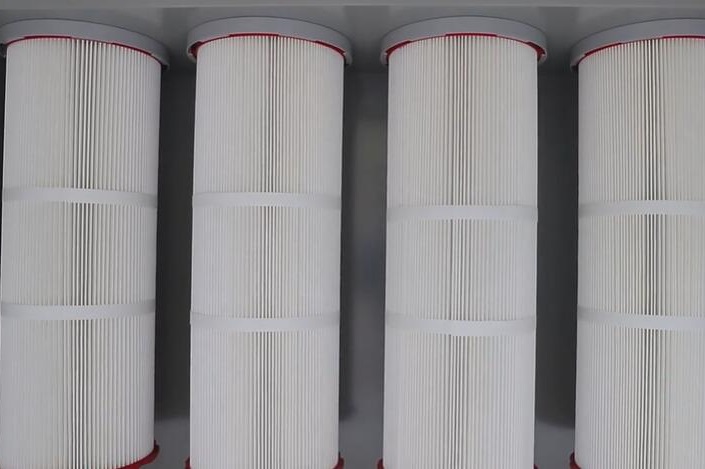

Cartridge Filters

4pcs of high quality filters made from 100% polyester, ensure high recycling rate of oversprayed powders.  Those quick-release-type filters are easy to replace when changing colors

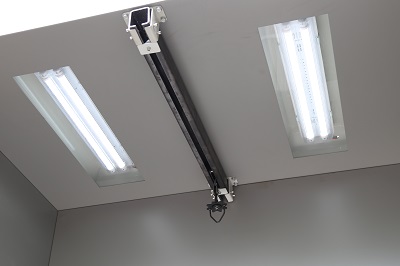

Rails, Hangers, Lights

Installed with 4 pcs of lights help powder coater do the job perfectly, clear observation reducing the powder coating defects.

PLC Control

Easy-to-use PLC system allows users set solenoid valve working which controls the filter cleaning, as well as start/stop the fan motor,

Air Circulation Fan

5.5kw centrifugal fan motor with strong extraction volume from 6000Nm3/h to 13000 Nm3/h, powerfully draw air into the booth and passing through the filters.

KF-3924 Powder Paint Booth Specifications

Why Choose Kafan Powder Coating Booth?

Kafan powder coating booth creates optimal airflow which is critical to powder spraying operation.

• Control Finish Quality: Too much airflow blows powder off complex geometries; .Our powder booth delivers proper airflow ensures uniform powder coating, consistent finishes, minimizing defects by controlling air velocity and direction.

• Increase Powder Recycling: Too little airflow causes overspray escape out of the booth. Our spray booth with pptimal velocity keeps powder overspray contained for recovery (95%+ efficiency with good cartridge systems).

• Ensure operator Safety: Our well-ventilated spray booth reduces exposure of powder particles at the working area. This helps protect workers and ensures compliance with environmental and workplace safety regulations.
