KF-1115
Kafan
Width1000 * Depth1000 * Height1500 (mm)
| Quantity: | |
|---|---|
KF-1115 Powder spray booth can be matched with powder coating oven and powder gun for small to medium powder coating application, it is a worldwide popular and budge-saving solution. The installed 2 pcs of cartridge filter is quick-released type, you can order extra filters for frequent powder color changers.
1. Small footprint, make efficient powder coating use of small factory space
2. High precision cartridge filter made of 100% polyester, 2 pcs, quick-release type, ideal for fast color change.
3. Durable galvanized plate material forms the long life powder spray booth
4. 0.75kw powerful and energy-saving centrifugal fan motor
5. Built-in light for clear view of powder coating jobs.
6. Factory assembled and shipped completely before delivery, making for a quick installation and start-up.
Cartridge Filters
Lights

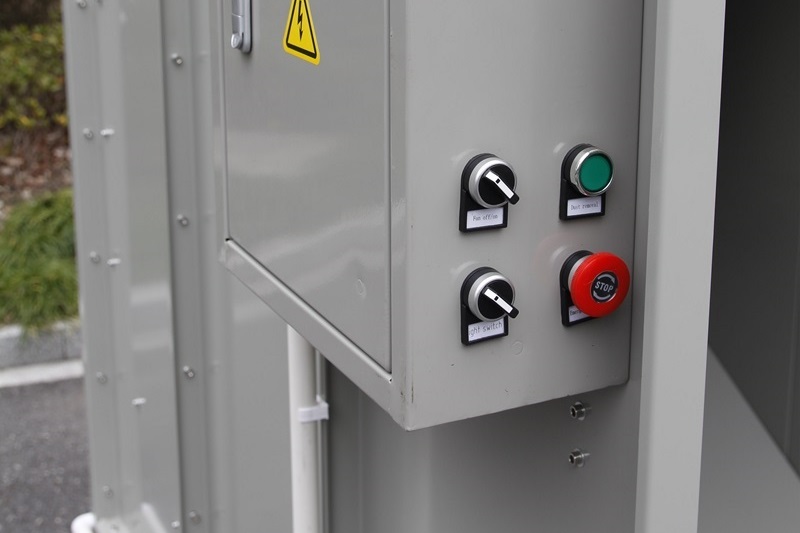

Electric Controllor

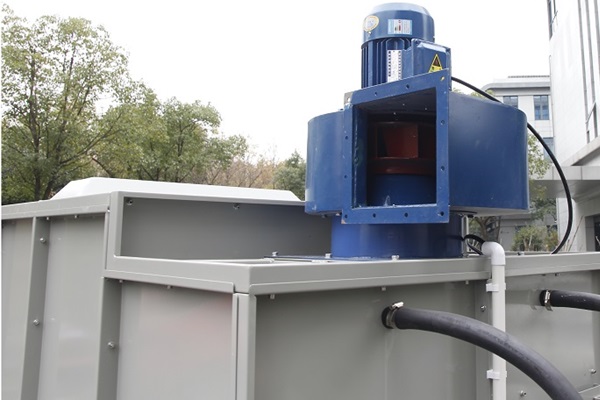

Fan
| Mode | KF-1115 |
| Working Dimension | Width1000 * Depth1000 * Height1500 mm |
| Overall Dimension | Width1200 * Depth1200 * Height1900 mm |
| Power Supply | Electric |
| Voltage | 220V/380V/410V, can be customized |
| Nominal Power | 0.75kw |
| Cartridge Filter Material | 100% polyester |
| Filter Count | 2 pcs |
| Filter Hang Type | Quick release |
| Filter Cleaning System | Pneumatic |
| Air Consumption | 805-1677m^3/h |
During the operation, oversprayed powder accumulates on the cartridge filters. As the cartridge filter load, airflow decreases and the negative pressure rises, A timer activates a system of solenoid valves that clear the cartridge filters of the accumulated powder making it drop to the bottom powder collector. It causes great powder savings and extends filter life.
