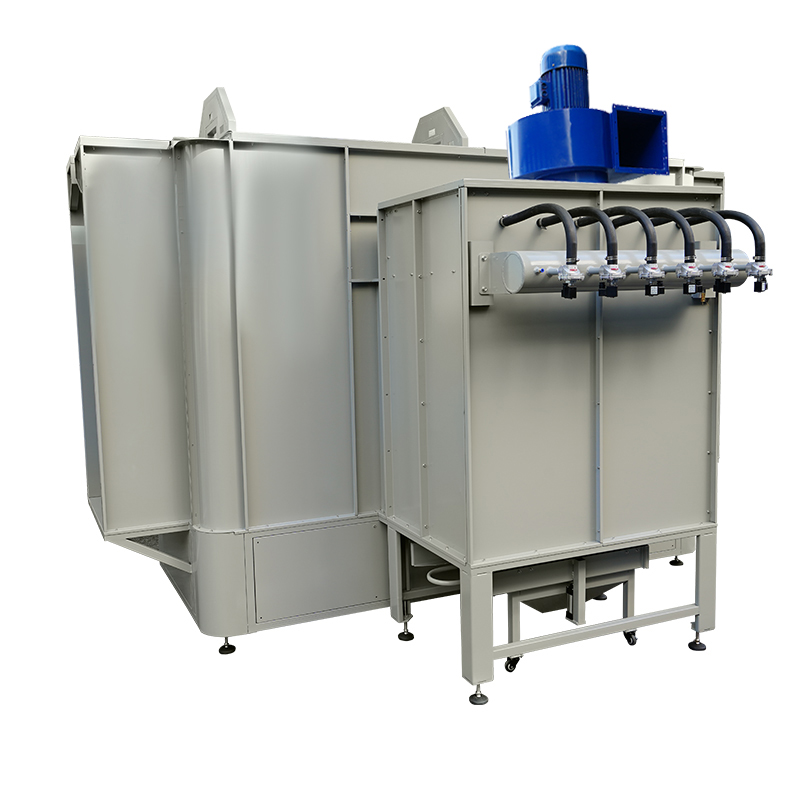

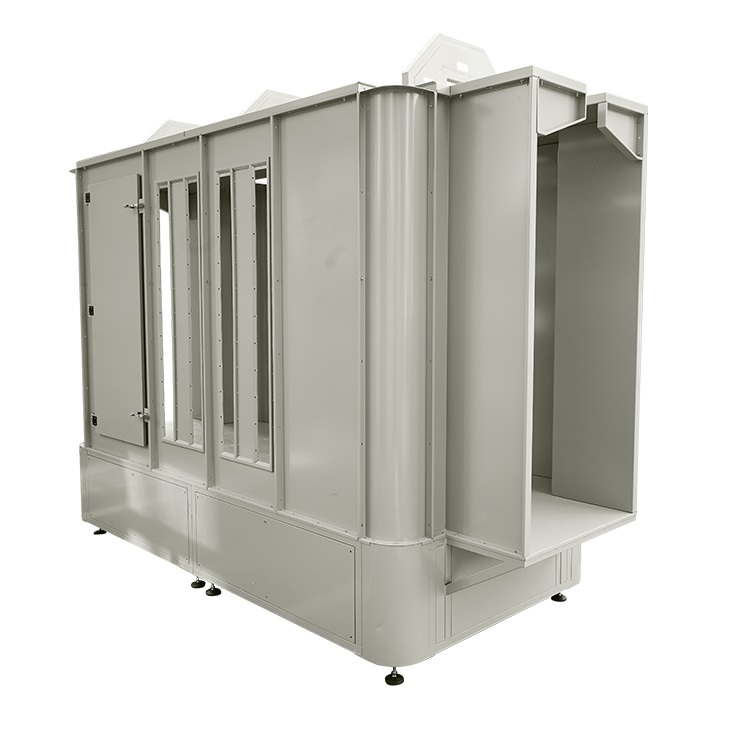

Automatic Powder Coating Booth for Cylindrical Shapes

Specially designed powder coating booth is made for LPG tank, fire extinguisher or other cylinder shaped products, which applied in their automatic powder coating line.
  • COLO-3145

  • Kafan


Automatic Powder Coating Spray Booth

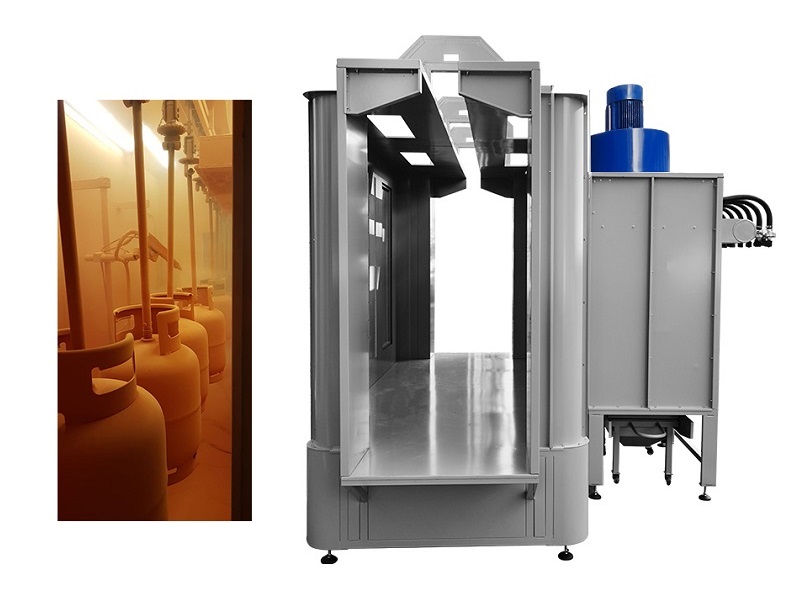

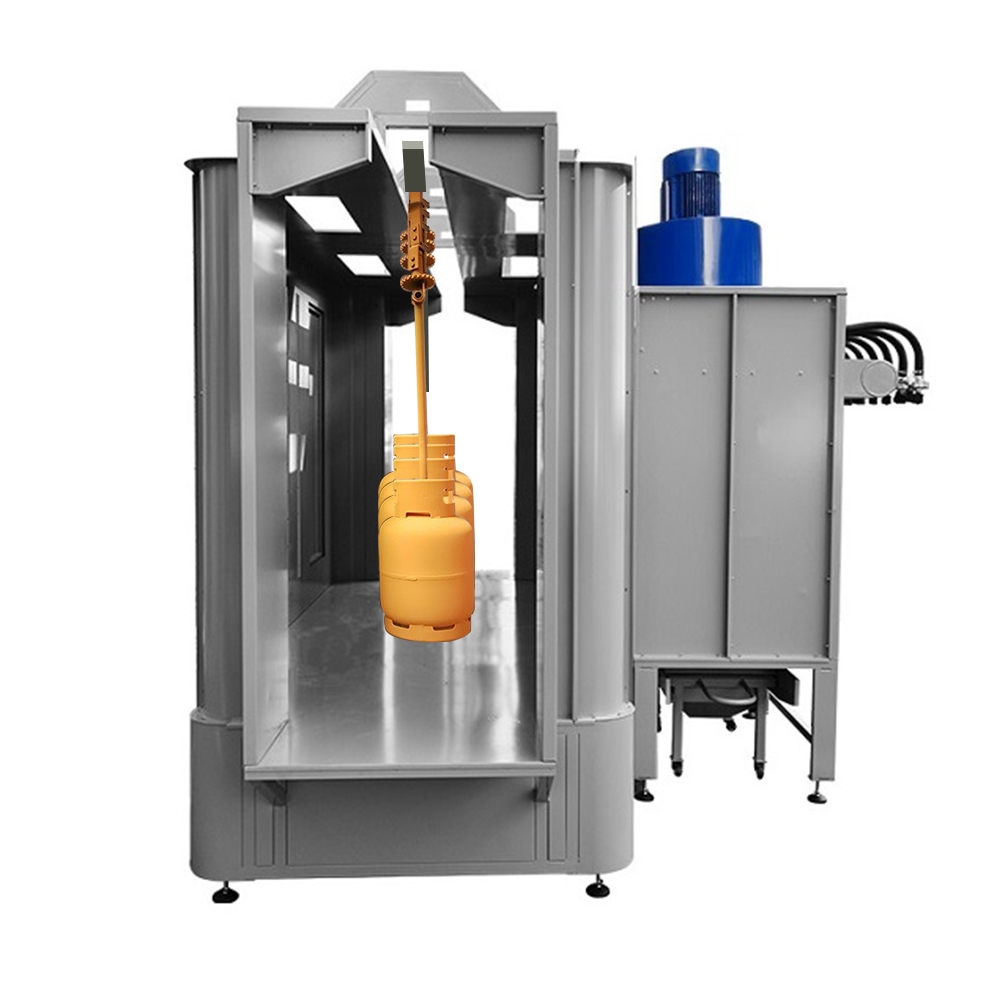

Specially designed powder coating booth is made for LPG tank, fire extinguisher or other cylindrical shaped products, which applied in their automatic powder coating line. There're tunnel track with rotatable hangers installed on the top of powder booth, ensures cylinder or round products can be completely coated.

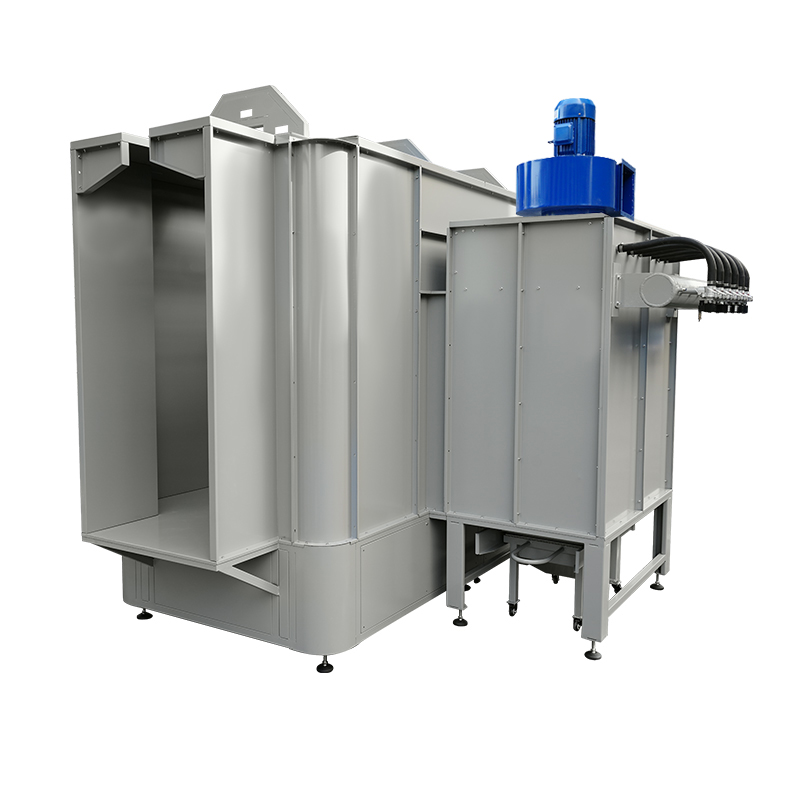

automatic powder coating booth

automatic powder booth
automatic powder spray booth

Automatic Powder Coating Booth Design

With one automatic reciprocator working station and one manual repair coating station, allow 4-6pcs auto spay gun moving up and down to coat the cylinder body. Also Equipped with 2pcs auto powder gun at the bottom to spray the bottom of the cylinder, and 2pcs auto gun fixed at the top to powder coat the top of the cylinder.

automatic powder coating booth designpowder coating booth design

COLO-3145 Automatic Powder Coating Booth Features

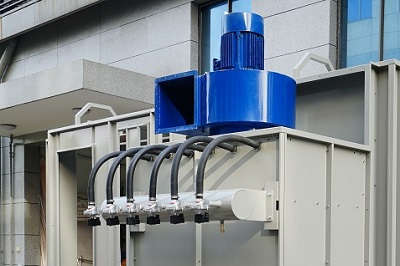

  • 4 Pcs of high quality cartridge filters forms a recovery stage, with a 5.5kw fan motor, effectively collect oversprayed powders, reach a 98% powder recycling rate. The filters are easy for changing.

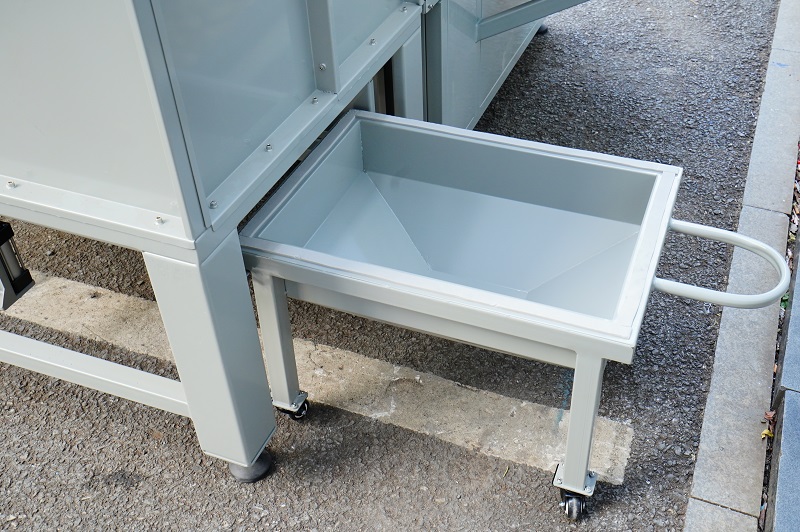

  • A removable powder hopper beneath the filter stage, the released powder will directly drop into the hopper for easy recycling.

  • The working of fan motor and filter's pulse-jet can be set through the PLC control panel.

  • The powder booth is made from cold-rolled steel plate welded with surface powder coated, durable and wear-resistance.

  • Compact modular design, easy operation, minimum maintenance and budget-saving.

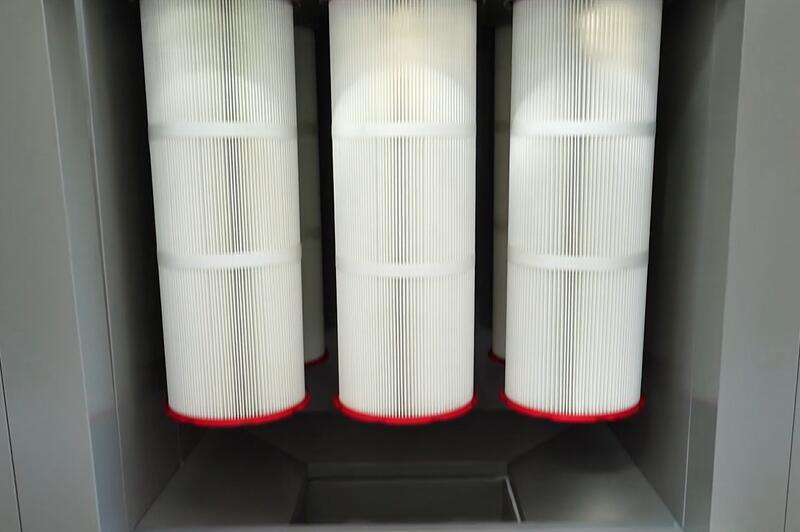

powder coating booth cartridges filters

Cartridge Filters

powder collector hopper

Recycled Powder Collector

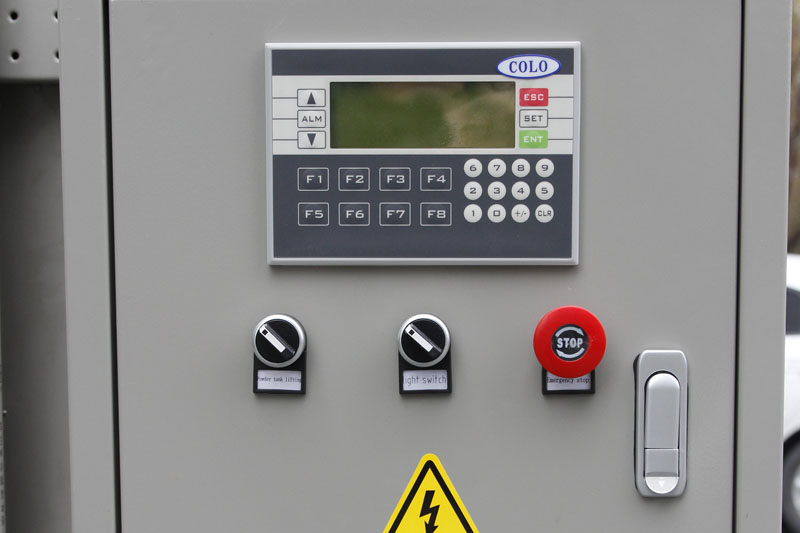

PLC Controller

PLC Control

powder coating booth fan

Fan Motor

COLO-3145 Automatic Powder Coating Booth Specifications

Mode COLO-3145
Type Pass Through
Working Dimension Width800 * Depth3000 * Height1550 mm
Overall Dimension Width1400 * Depth3800 * Height2484 mm
Power Supply Electric
Voltage 220V/380V/410V, can be customized
Nominal Power 5.5kw
Cartridge Filter Material 100% polyester, D325xH900mm
Filter Count 6 pcs
Filter Hang Type Quick release
Filter Cleaning System

How automatic powder coating booth works?

Use a powerful fan motor draw air to the powder booth forming negative pressure in the chamber, which prevents powder escaping outside. During the powder coating, excess powders and airflow pass through the cartridge filters, then clean air is discharged to the atmosphere. The powders accumulate on the cartridge filters, as the pulse-jet filters works by solenoid valve, powders are cleared from the filters and drop to a removable powder collector. Thus the powder utilization reaches high and the filter life is extended.
