Multi-cyclone Powder Coating Booth

Multi-cyclone Automatic Powder Coating Booth Application:
1.Applied in automatic powder coating line, reach high production
2.Meet for frequently powder color changing, a great saving of time.
3.Can be installed in factory whose inner height is restricted.

  • KF-Cyclone
  • Kafan
  • Multi-cyclone Powder Coating Booth

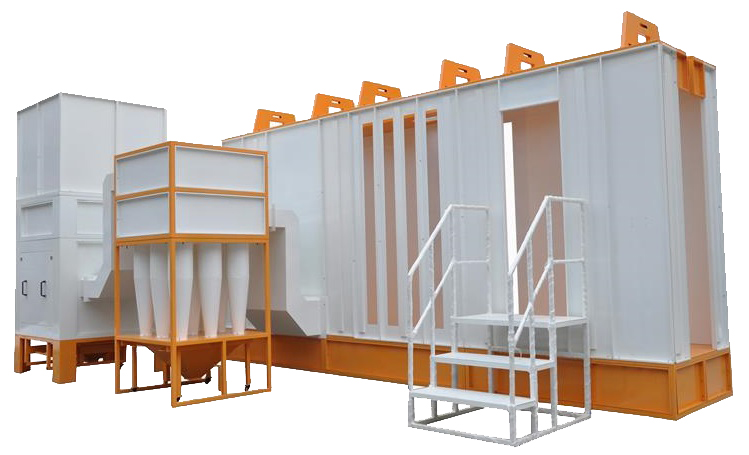

Multi-cyclone Powder Coating Booth, Fast Cleaning Automatic Powder Coating Booth

Multi-cyclone automatic powder coating booth is ideally applied in automatic powder coating line to reach high production, whose outstanding features is saving color changing times.

Benefits of Multi-cyclone Powder Coating Booth

1.Multi-cyclone powder recovery structure ensure high powder recovery rate, up to 98%.

2.Powerful ventilation of cyclone system prevents powder accumulation performing easy cleaning and fast color change,

3.Compact structure, multi-cyclone requires smaller and lower factory size.

4.The filters will have longer life by using rotary wing cleaning mechanism

multi cyclone powder coating booth fast cleaning


Technical Drawing of Multi-cyclone Powder Coating Booth

Kafan offers customized service based on your product specification, factory size, coating requirements. A professional and experienced technical team will design the most application multi-cyclone powder booth for you!

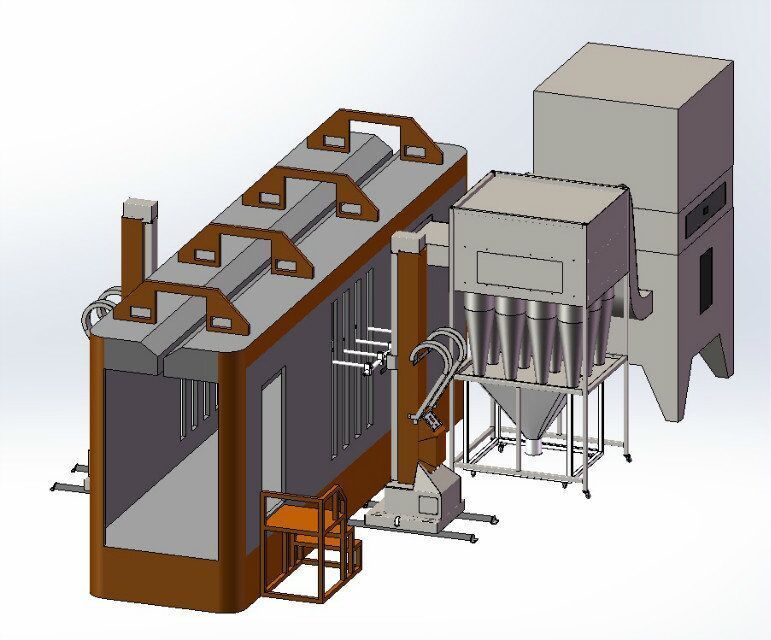

multi cyclone powder coating booth

cyclone powder booth


Details of Fast Cleaning Automatic Powder Coating Booth

multi cyclone powder spray booth 1

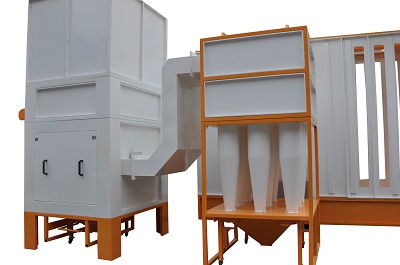

Powder recovery system

9 units of small cyclone, fast for color change,

9 pcs of high precision cartridge filters for superfine powders collecting.

The connection between cyclone and filteration is the air tube.

fast cleaning powder coating booth

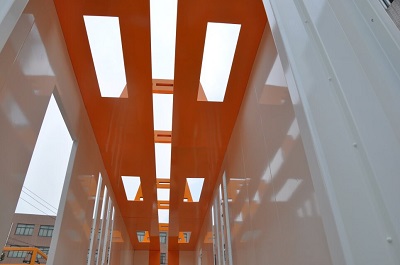

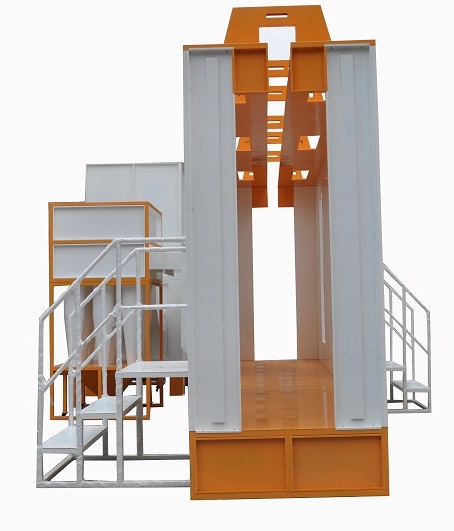

Overhead tunnel

Designed for automatic conveyor system

Work parts pass through the booth chamber by conveyor driving, achieves uniform and effective powder coating, improve application quality as well as reduce manpower.

cyclone powder recovery booth

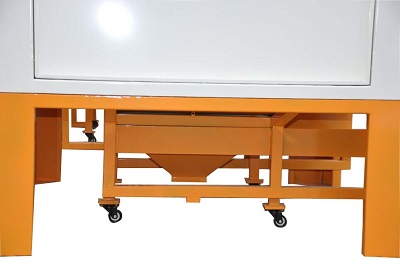

Powder Collector

Bottom powder recovery tank, can be connected with powder

sieving unit of powder management center, reach for continuous powder feeding

Multi-cyclone powder coating booth specifications for reference, can be customized according to different workparts.

TypeMulti-cyclone Powder Spray Booth
Working DimensionL6000 x W1200 x H2500mm
Power SupplyElectric
Voltage220V/380V/410V, can be customized
Fan Motor Power11 kw
Cyclone Count9 pcs
Cartridge Filter Material100% polyester
Filter Count9 pcs
Powder Recovery System Control
Pneumatic
