Automatic Powder Coating Booth with Filter Recovery

Automatic Powder Coating Booth with Filter Recovery

Automatic Powder Coating Booth System designed for fast powder recycle, reliability, precision spray and a mass of parts production application.

Model:
KF-0825

Availability:

Quantity:



Inquire Add to Basket

Product Description

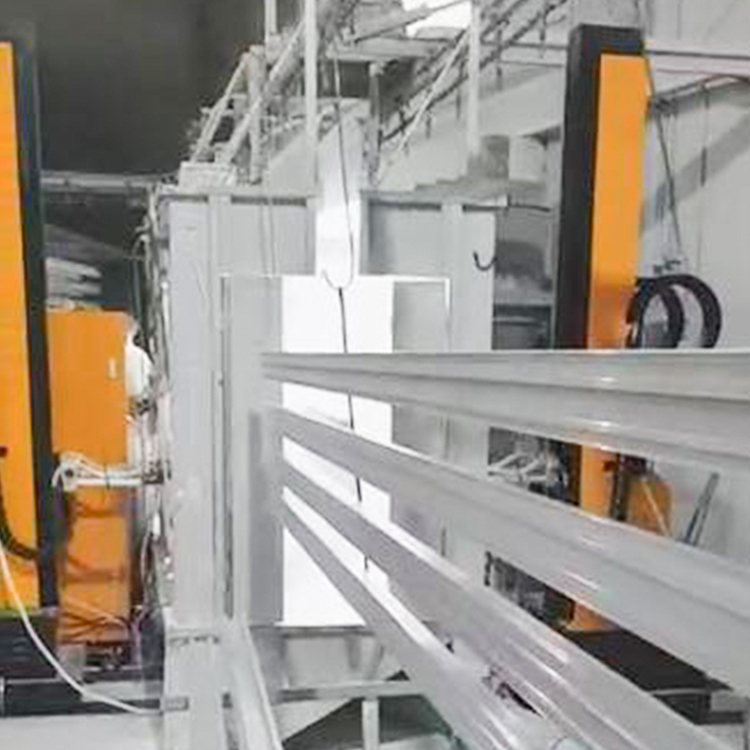

profiles

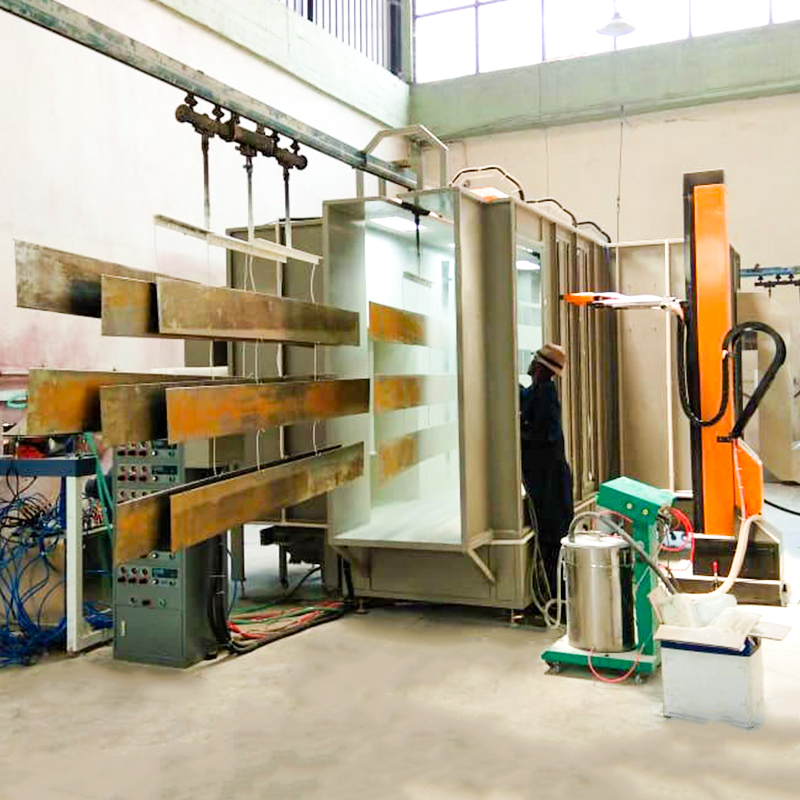

plates

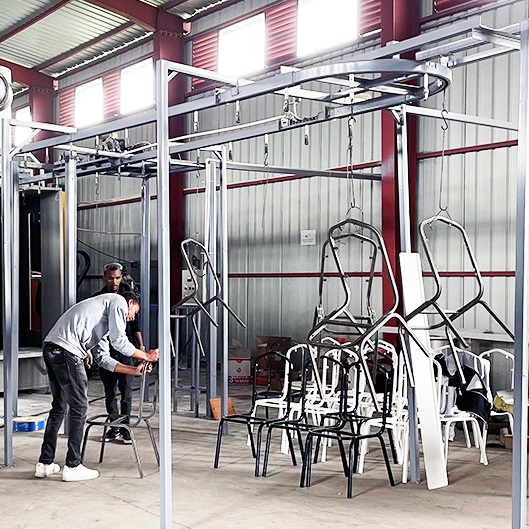

chairs

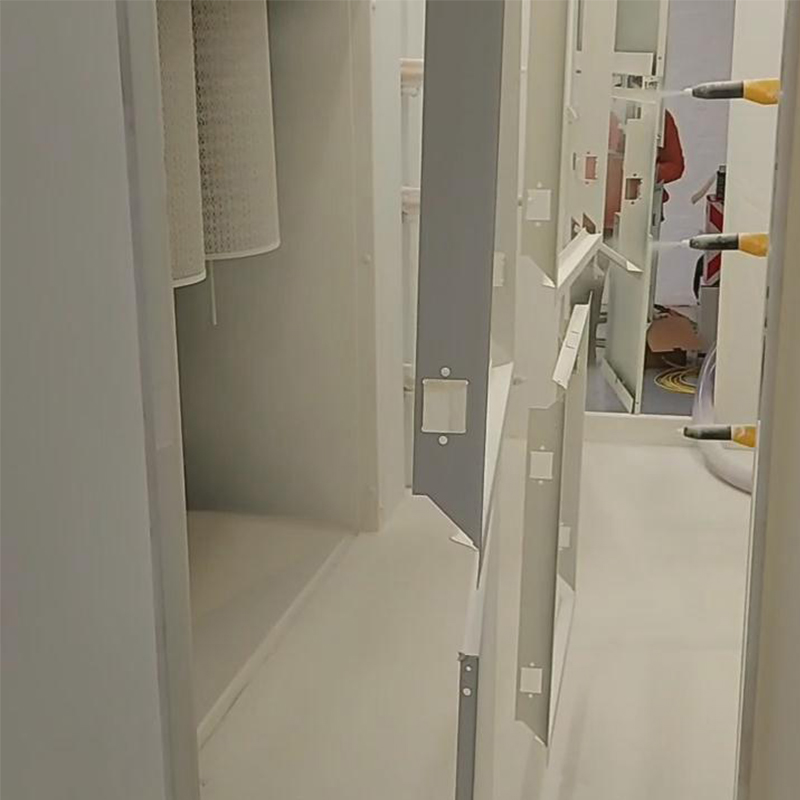

frames

Automatic Powder Coating Booth System with Filter Recovery

The automatic powder coating booth configured with doube coating station and double filter recovery system is an efficient and economical solution, suitable for application of aluminium profiles, metal furniture and other various workparts but without frequent color change demands.

The compact structure takes up limited space which is friendly to small factories. We have experienced technical team supporting custom design and oversea installation.

automatic powder coating booth

Automatic Powder Coating Booth Configurations

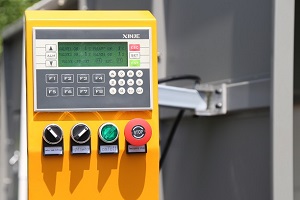

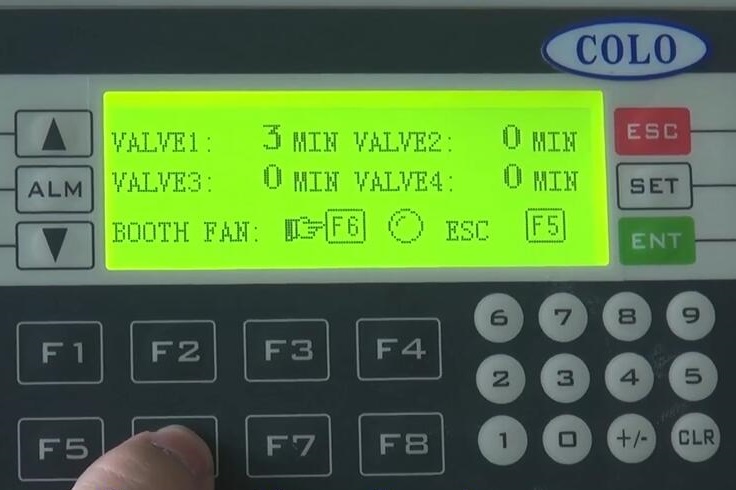

PLC Controller Panel

Monitors the whole range of components, controls all parameter and stores important data. Provides easy and reliable operation

1. Allows users to stop and start fan motor,

2. Set and program the working of solenoid valves to controls the filter cleaning,

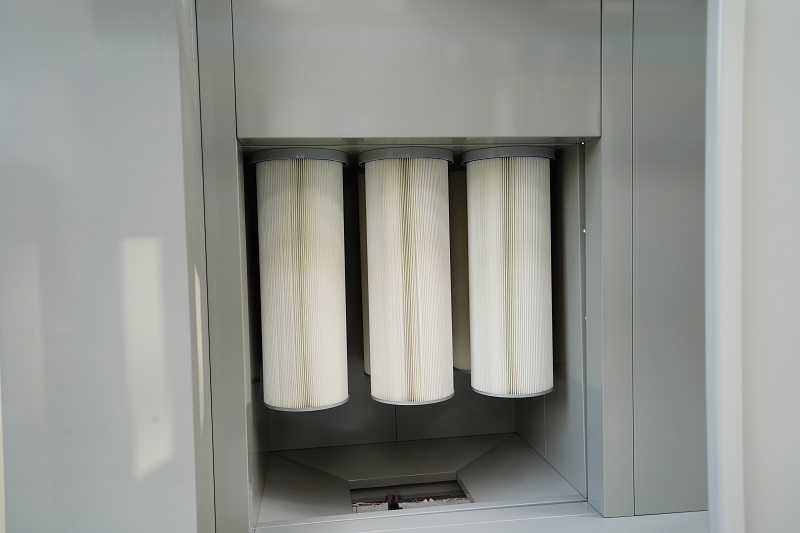

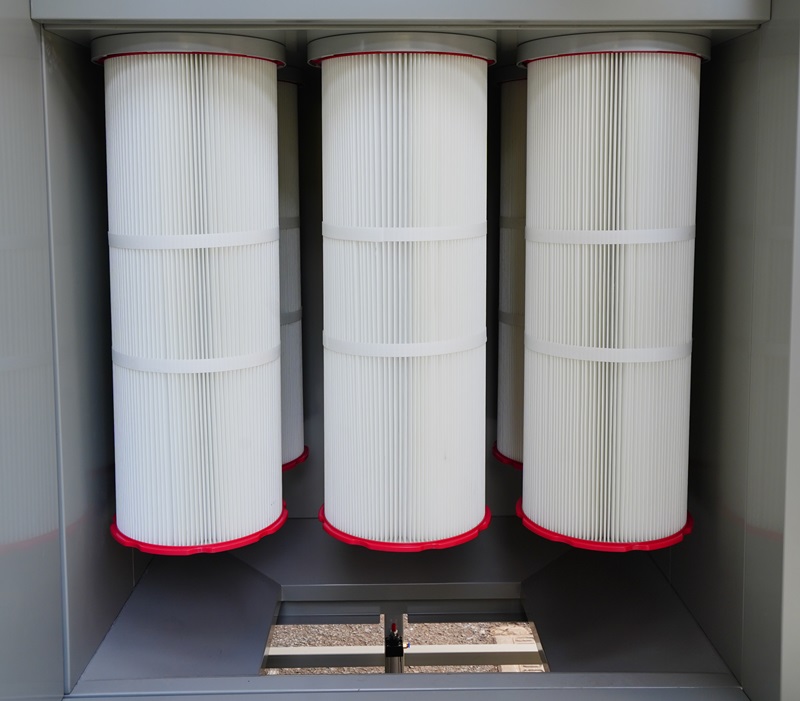

Filter Cartridge Powder Collection Module

Highest precision filters made of 100% polyester, effectively capture even 0.1 micron powder particles. Filtered airflow through the cartridge is free of powders to be discharged to the atmosphere.

Those filters will be automatically and ntermittently cleaned to release powder accumulation which extend their service life.

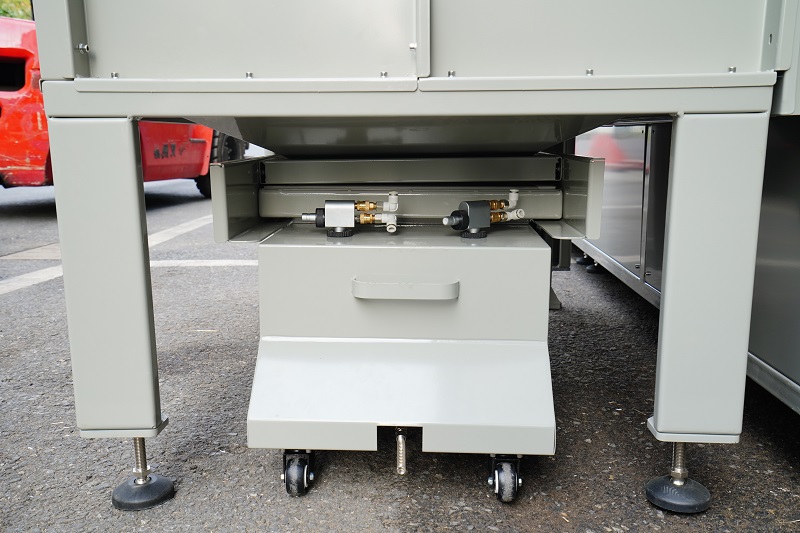

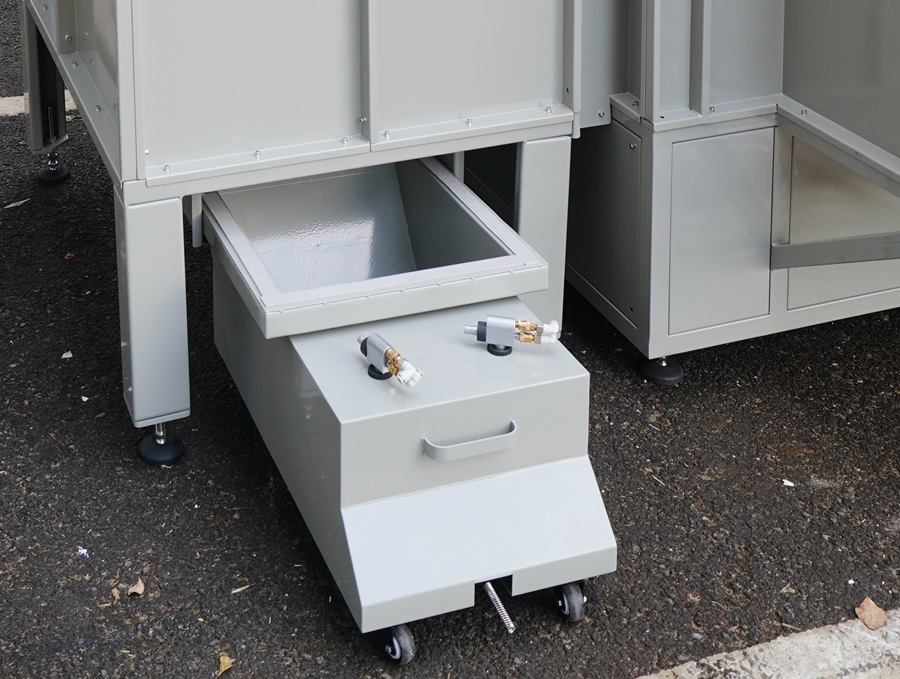

Powder Collection Hopper

A removable powder recovery hopper beneath the filter module will collect the dropped powders released from cartridge filters,

Installed with recovery pumps thus powders can be automatically transferred to powder center for recycling use.

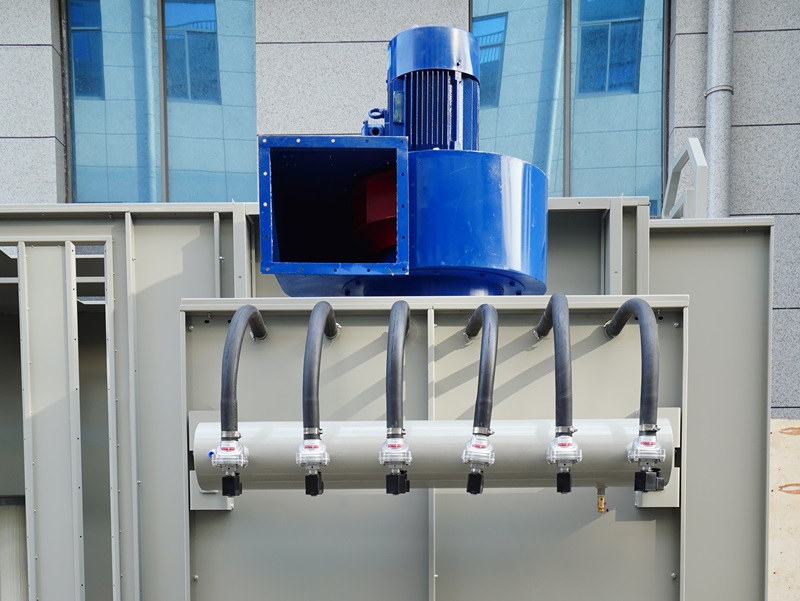

Fan Motor

The 5.5kw centrifugal fan powerfully sucks the air from the spray booth cabin, dragging the remaining "overspray" particules towards filters which will capture them. Thus the vented air is filtered and completely clean.

Our spray booth creates optimal airflow that ensures a safe, dustless working area.

Automatic Powder Coating Booth Specifications

Model	KF-0825
Booth Type	Automatic
Working Size	Width800mm x Depth4000 x Height2000mm
Overall Size	Width1200mm x Depth2580 x Height5000mm
Voltage	220V/380V Customized
Frequency	50-60Hz
Fan Power	5.5kw/set, 2 sets total
Filters Qty	12pcs
Filter Material	Polyester
Filter Hang Tyoe	Rotary Wing

Automatic Powder Coating Booth Applications

Our robust powder coating booth is designed to deliver best productivity and application quality in automatic production line, synchronously working with powder coating reciprocator, tailored automatic guns & control cabinets, conveyor system. With double coating stations and double filter recycling station, the automatic spray booth ensures efficiency and performance.
