KF-6010-10A
| Quantity: | |
|---|---|
The through-conveyor system allows components continuously to be presented to an array of automatic blast guns for surface treatment, as parts are conveyed on an adjustable-speed belt. The oscillated working of automatic blasting guns ensures the products are finished entirely and uniformly with great efficiency, suitable for big volume production.
1. The belt conveyor speed can be steplessly regulated by the inverter based on actual needs.
2. The quantity of blasting guns can be configured 8pcs, 12 pcs, 16 pcs or more, Nozzles in wear-resistant boron carbide material.

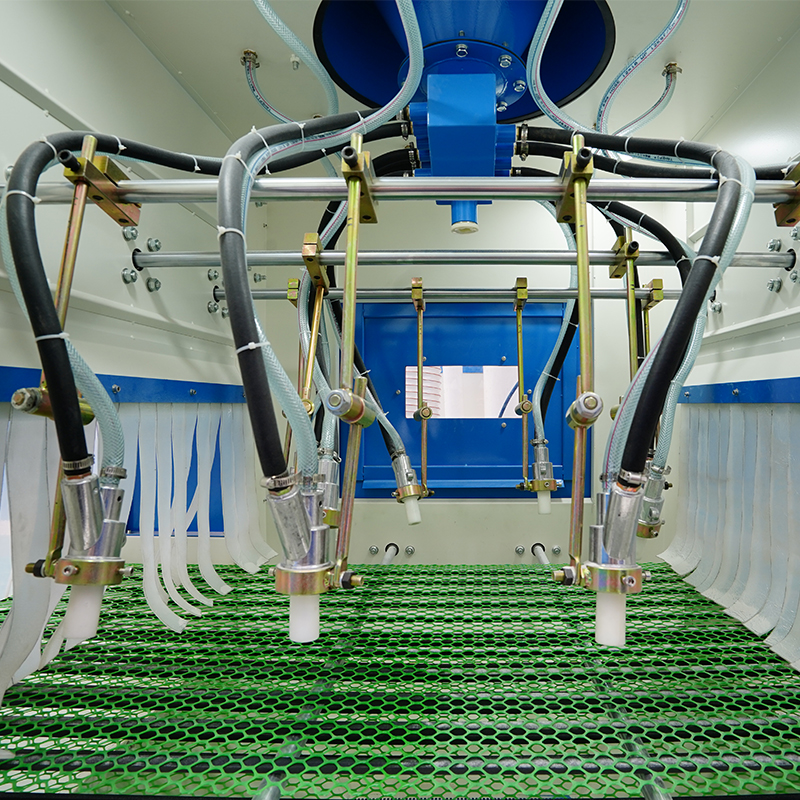

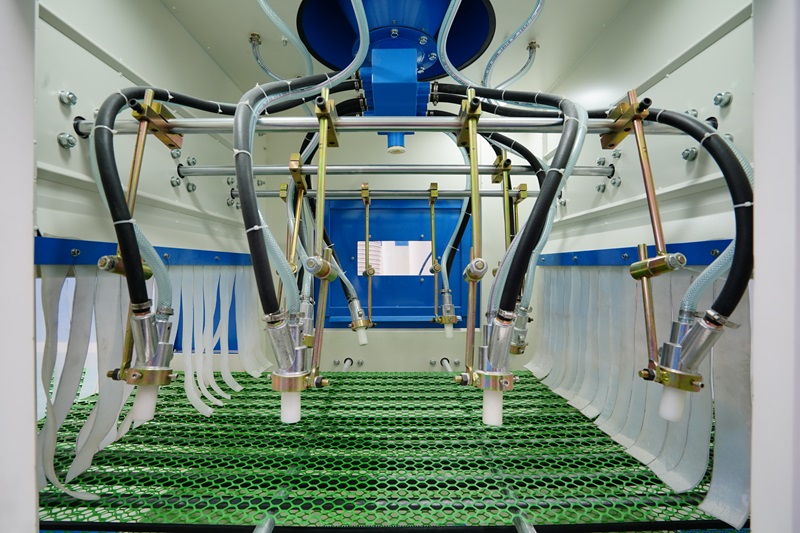

3. Automatic blast guns can be controlled with adjustable swinging speed and angle, in order to cover more surface area.

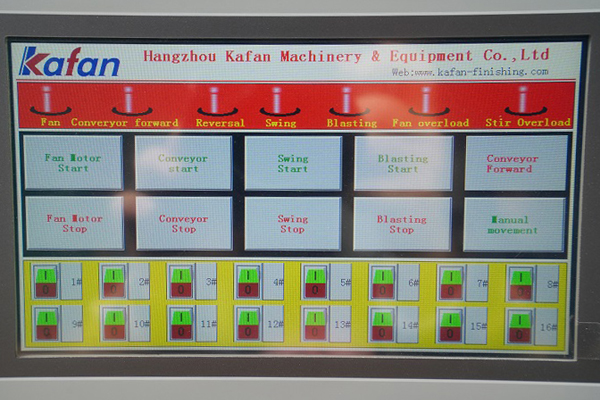

4. Using advanced PLC controls the blasting process achieves high automation and stability, low failure rate.

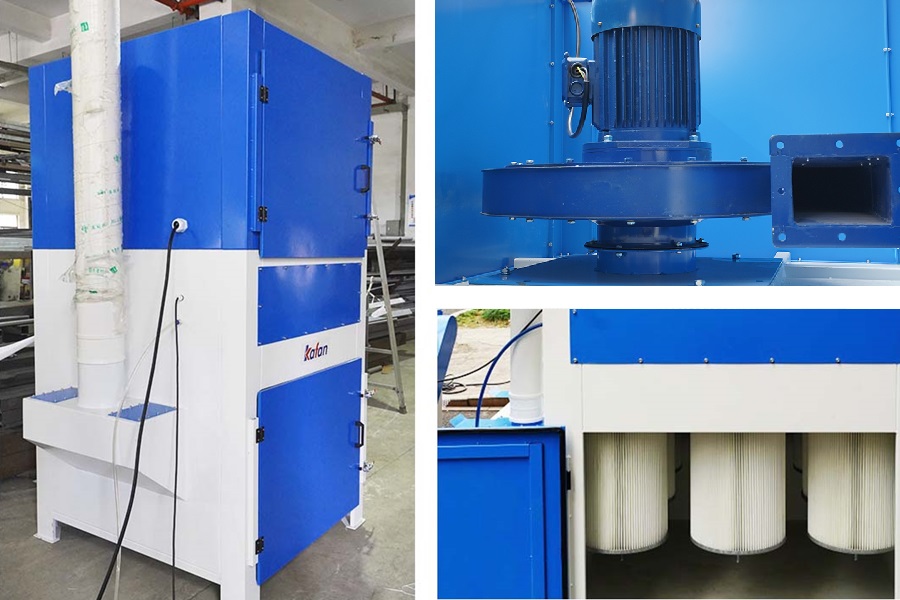

5. Independent filter dust collector, powerfully remove dust, keeps the working chamber dustless and increases abrasive recyling rate.
| Type: | Pass Though Conveyor Type |
| Model： | KF-6010-10A |
| Machine dimensions: | Length3200 * Width1400 * Height2400 mm |
| Working Space size: | Length1000 * Width1300 * Height1000 mm |
| Through Size | Length800 * Width300 mm |
| Dust collector size: | Length1200 * Width700 * Height1900mm |
| Dust Collector Filter Qty | 6pcs |
| Dust fan motor power: | 5.5kw |
| Blast gun swing motor: | 370W 380V 50HZ |
| Lighting: | 18W fluorescent lamps, 2pcs |
| The number of blast nozzles: | 10pcs ( boron carbide nozzle) |
| Machine Shell: | 2.5mm-6mm cold-rolled steel plate welded |
| Perspective window: | 2 frames |
| Abrasive funnel | 3pcs |
| Pressure | 5-8 bar (kg / cm2) |
| Air compressor | 6.8 cubic meter |
| Conveyor loading capacity: | 300 kg |
| Total power: | 8.8KW |
| Total weight: | 1.55 tons |

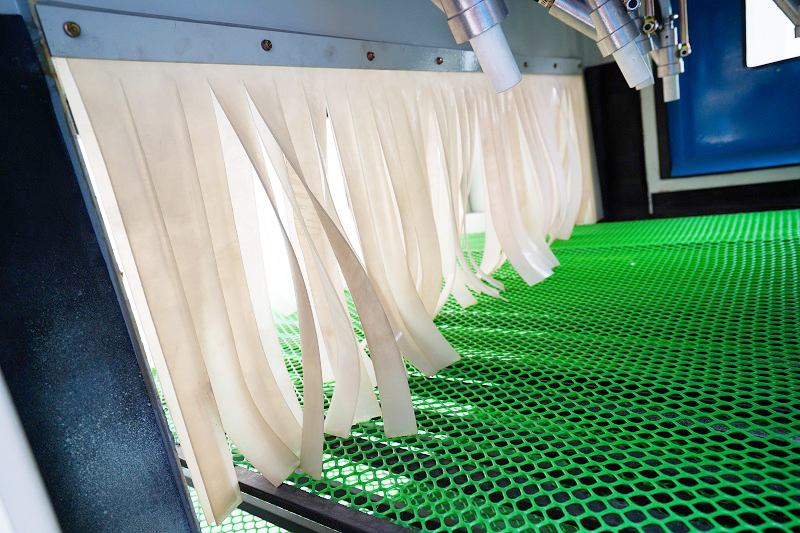

The operators put or fix the workpiece on the conveyor belt, when the workpiece is transported into the sandblasting chamber, a certain quanlity of suction-blast guns sweep the workparts synchronized with continuous movement of the belt. After blasting, the workparts comes out from the other side of the conveyor to be discharged.
The through-conveyor system allows components continuously to be presented to an array of automatic blast guns for surface treatment, as parts are conveyed on an adjustable-speed belt. The oscillated working of automatic blasting guns ensures the products are finished entirely and uniformly with great efficiency, suitable for big volume production.
1. The belt conveyor speed can be steplessly regulated by the inverter based on actual needs.
2. The quantity of blasting guns can be configured 8pcs, 12 pcs, 16 pcs or more, Nozzles in wear-resistant boron carbide material.
3. Automatic blast guns can be controlled with adjustable swinging speed and angle, in order to cover more surface area.
4. Using advanced PLC controls the blasting process achieves high automation and stability, low failure rate.
5. Independent filter dust collector, powerfully remove dust, keeps the working chamber dustless and increases abrasive recyling rate.
| Type: | Pass Though Conveyor Type |
| Model： | KF-6010-10A |
| Machine dimensions: | Length3200 * Width1400 * Height2400 mm |
| Working Space size: | Length1000 * Width1300 * Height1000 mm |
| Through Size | Length800 * Width300 mm |
| Dust collector size: | Length1200 * Width700 * Height1900mm |
| Dust Collector Filter Qty | 6pcs |
| Dust fan motor power: | 5.5kw |
| Blast gun swing motor: | 370W 380V 50HZ |
| Lighting: | 18W fluorescent lamps, 2pcs |
| The number of blast nozzles: | 10pcs ( boron carbide nozzle) |
| Machine Shell: | 2.5mm-6mm cold-rolled steel plate welded |
| Perspective window: | 2 frames |
| Abrasive funnel | 3pcs |
| Pressure | 5-8 bar (kg / cm2) |
| Air compressor | 6.8 cubic meter |
| Conveyor loading capacity: | 300 kg |
| Total power: | 8.8KW |
| Total weight: | 1.55 tons |
The operators put or fix the workpiece on the conveyor belt, when the workpiece is transported into the sandblasting chamber, a certain quanlity of suction-blast guns sweep the workparts synchronized with continuous movement of the belt. After blasting, the workparts comes out from the other side of the conveyor to be discharged.
