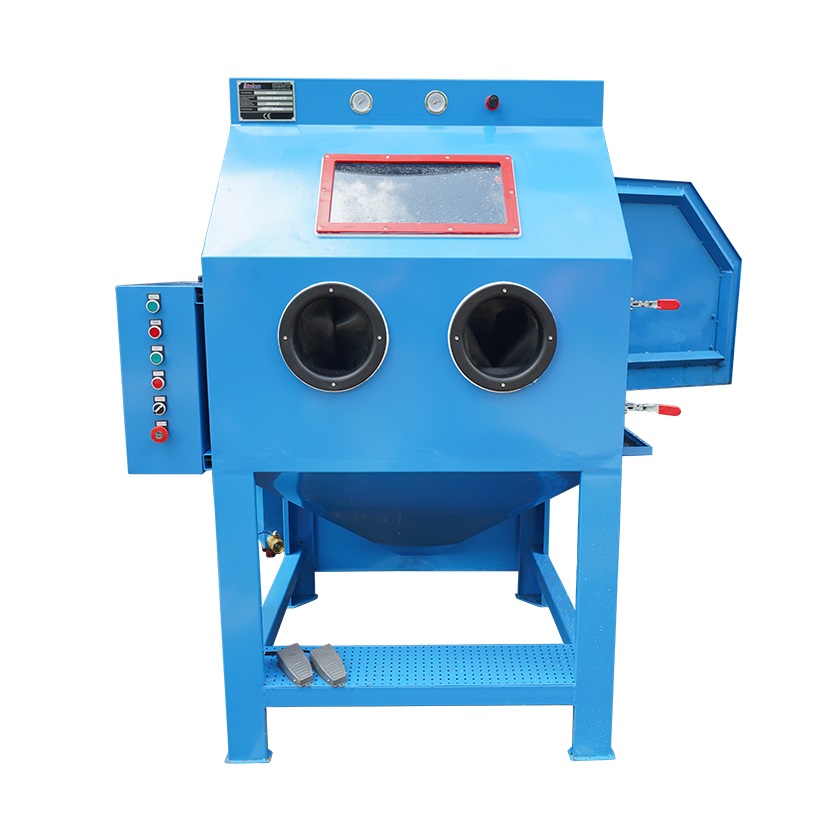

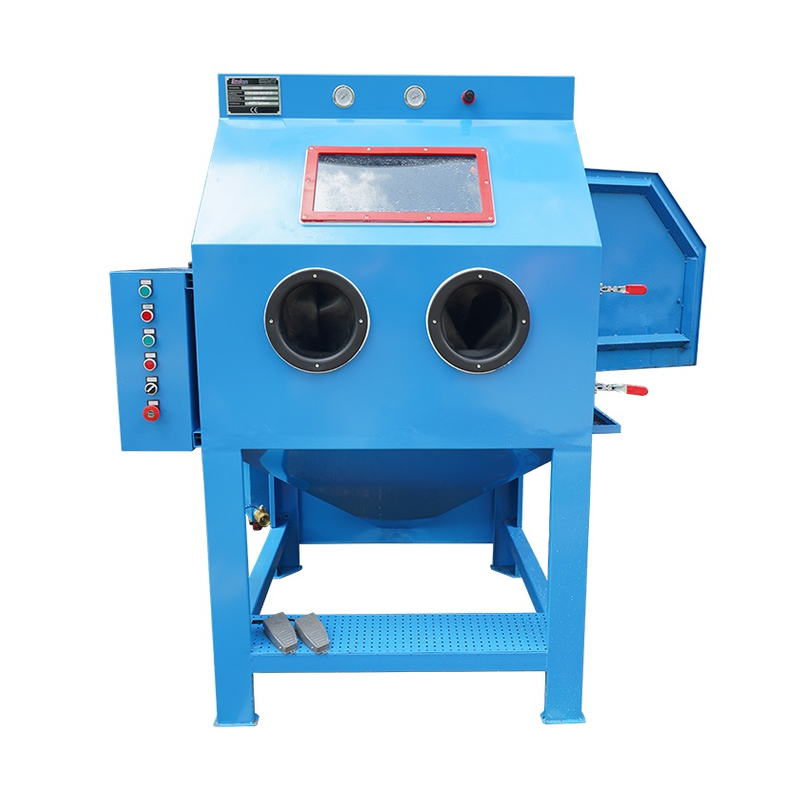

Wet Dustless Blasting Cabinet

Wet blasting is the first choice for applications requiring the highest quality of surface finish. Kafan wet blast cabinet is proved to be an innovative and popular mode in surface finishing industry.
  • KF-1212W

Availability:
Quantity:

Wet Dustless Blasting Cabinet

Ou wet blast cabinet uses a high performance slurry pump fully agitating water and abrasives into slurry mixture, then blasts the mixture onto the target surface for both clean and wash purposes. The introduce of water makes the process dustfree, and creates smoother and finer surfaces,

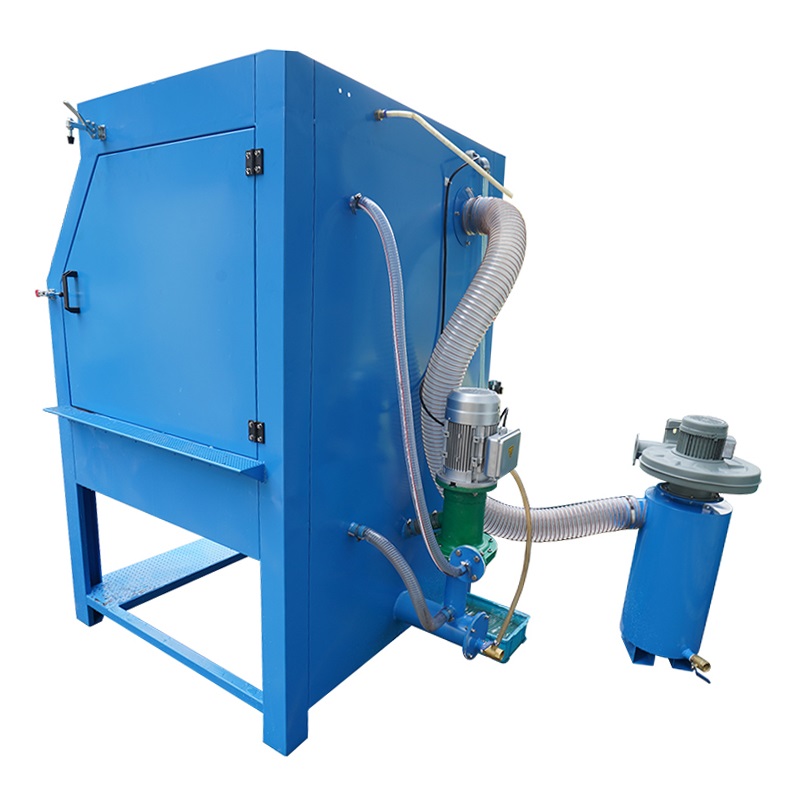

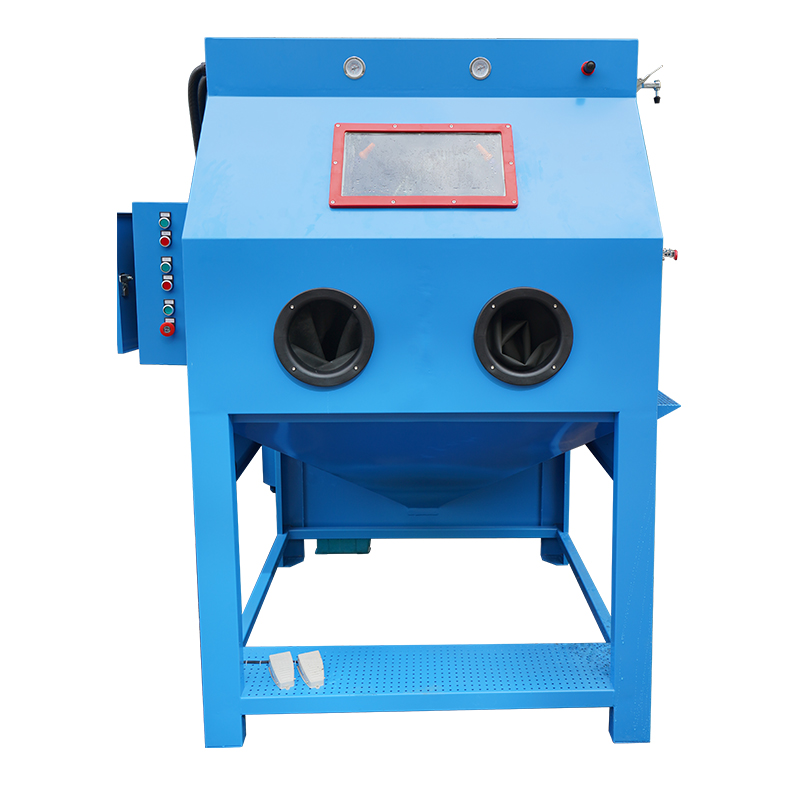

231107-1212W-卡菲自制2   231107-1212W-卡菲自制7


Kafan Wet Blasting Cabinet Standard Configurations

1. Made of 3mm thick stainess steel plate with coated surface, durable, anti-rust and long lifespan.

2. Designed with window  washer, always keeps a clear visibility during processing.

3. Standardly configured with 8mm high flow wet blasting gun with durable boron carbide nozzle,

4. The blast gun is controlled via safe and reliable foot switch to reduce operator's fatigue.

5. An additional demister ensures higher quality working conditions.

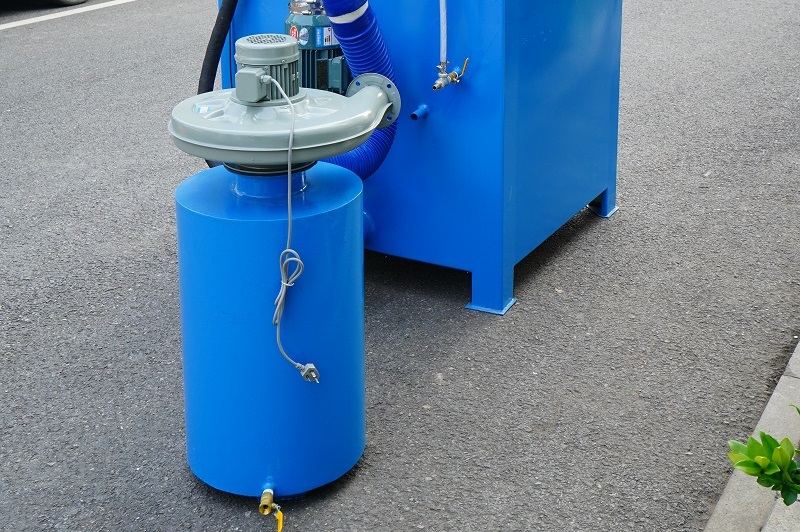

MLF06075 - 副本

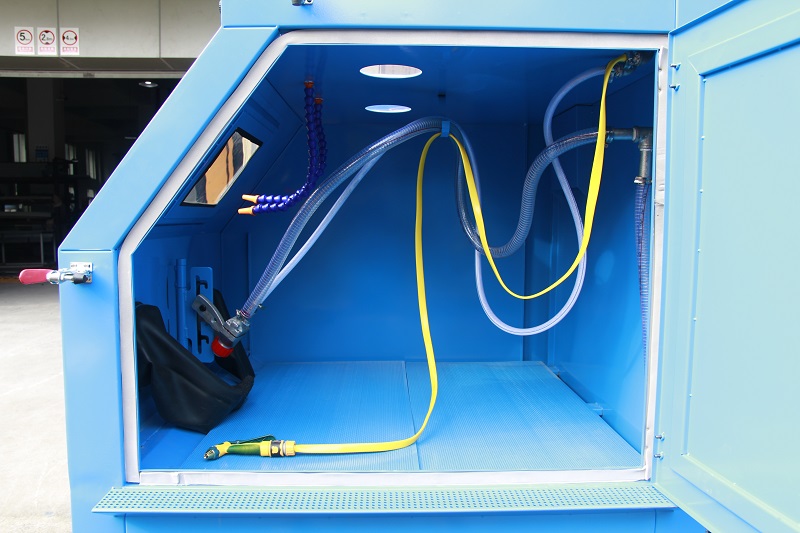

Stainess Steel Blast Cabin

MLF06228

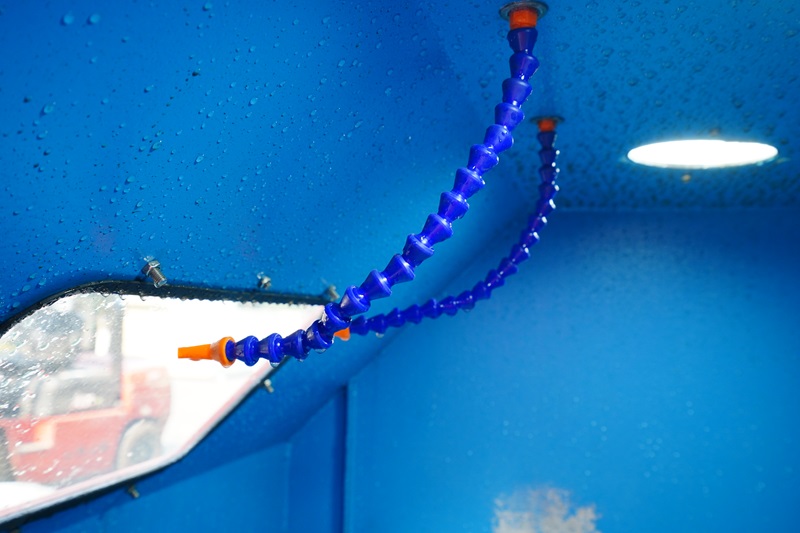

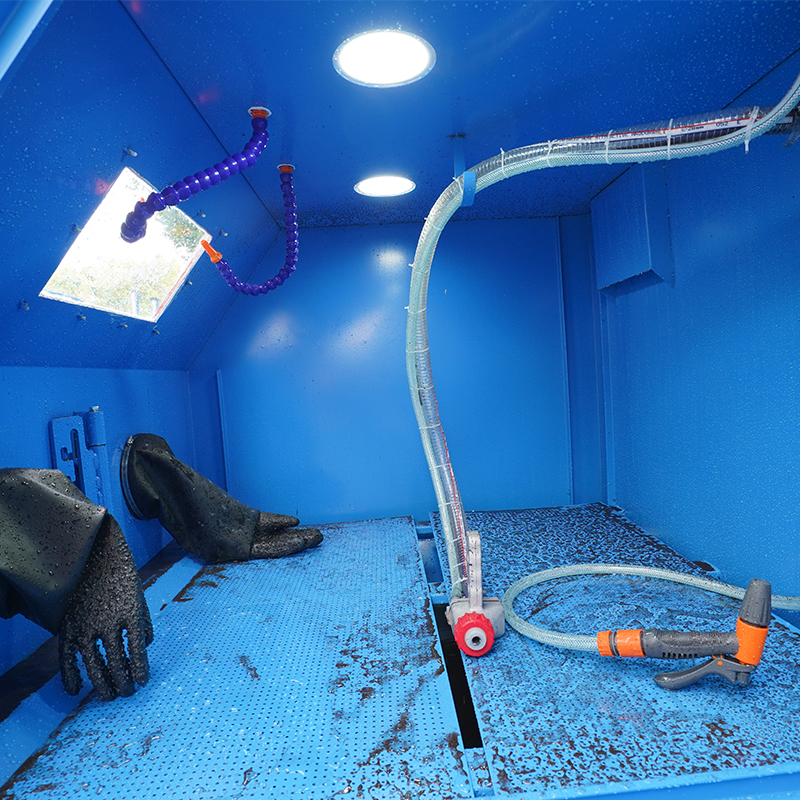

Window Washer

_MG_2150

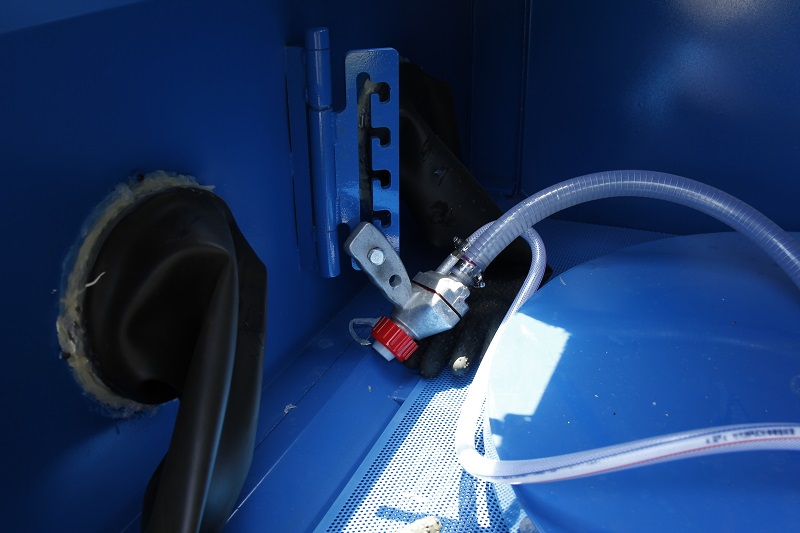

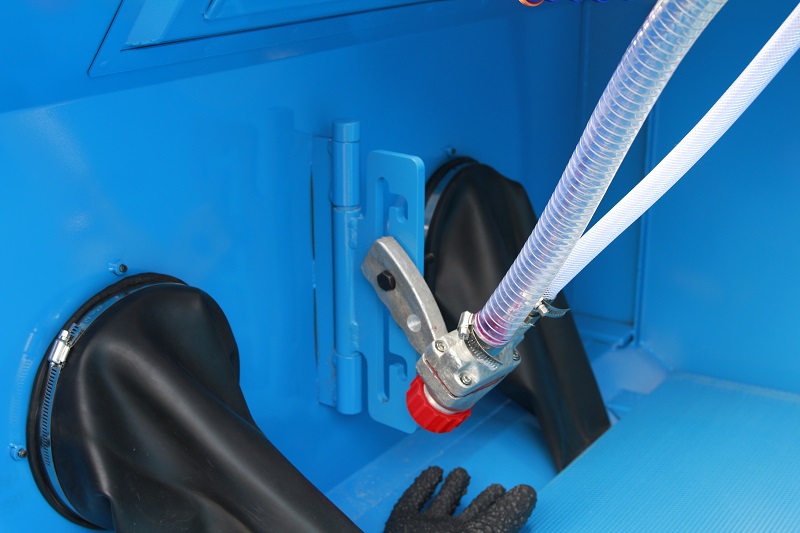

Wet Blast Gun

QQ截图20231115181003

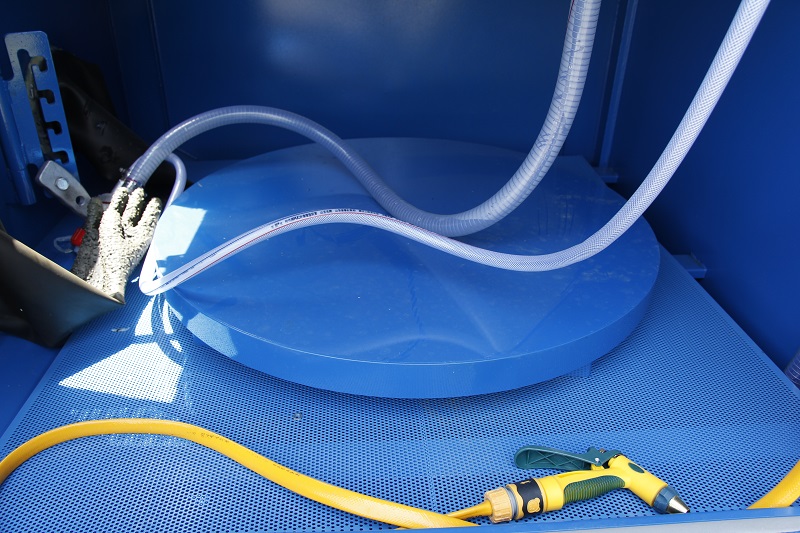

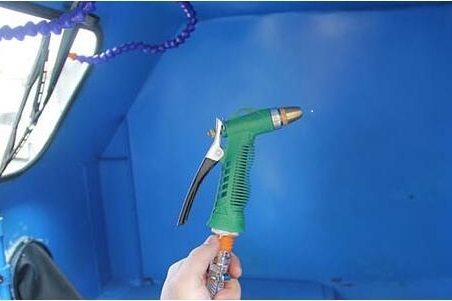

Water Cleaning Gun


Kafan Wet Blasting Cabinet Optional Configurations

8

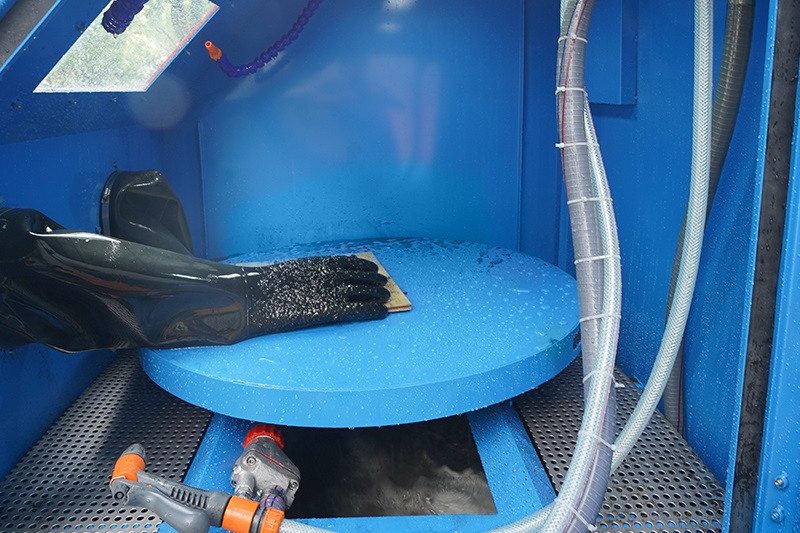

Turntable & Cart

The wet blasting cabin can be added with a heavy-duty turntable for easily operating larger, heavier, complex components, giving operators an easy access to clean surfaces and corners.

The heavy-duty turntable loading the workparts is easy to move inside and outside across the track assembly, also can be configured with a cart making it convenient to transport the tools.


1010W带水槽-1 - 副本

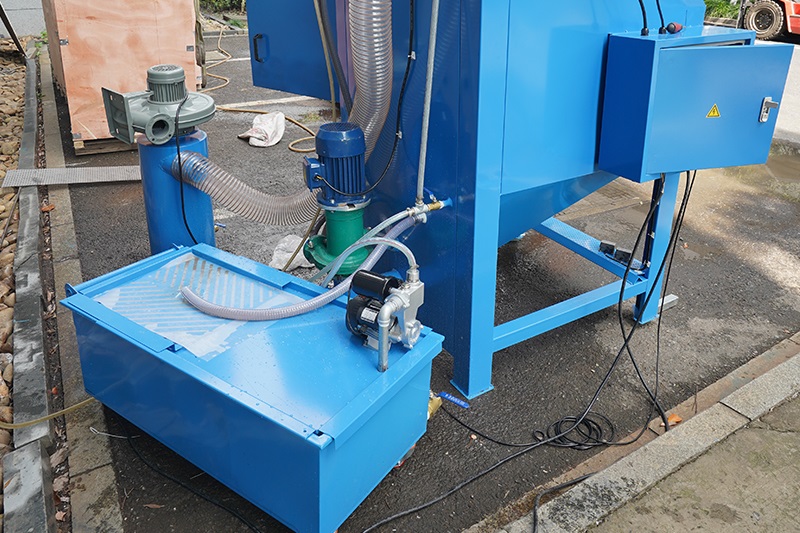

Water Recirculating Tank

Can be added with a water recirculating tank interconnected to the slurry hopper for a closed loop system, the blasted slurry mixture will be transferred to the tank for separating of water and abrasive for recycling both of them.

If in your workshop running water is not available there, or worrying about waste water disposal, a closed loop wet blast cabinet is a good choice.


Why use wet blasting machine for surface finishing?

1. Clean Process. As the flushing action of the water, three is no media impregnation into the parts, and features dustfree when removing impurities.

2. Finer Finish: Water borne abrasive cushions the cleaning process, giving a higher quality finish, especially for delicate or precise products.

3. Reduce Wear. The broken rate of media is decreased due to the cushioning from the water, and the blasting tool also gets less wear, as a results that wet blasting reduces production cost.


Wet Sandblasting Cabinet Specifcations

Model KF-1212W
Work Chamber Size L1200 x W1200 x H800mm
Outer Size L1300 x W1600 x H2000mm
Motor 2.2kw
Feed Abrasive 4-6kgs
Abraisve : Water 1:3
Power Supply 220V/50hz  (voltage can be customized)
Blasting Gun 1pc, with boron carbide nozzle
Air consumption for 1 gun 0.4-0.8Mbar
Gloves 1 pair
Lighting 18w * 2pcs fluorescent
Working Pressure 5-8 bar
Required Flow 0.5-1.1m3/min
Material 3mm cold-rolled steel plate with powder coated surface

Standard Sizes of Wet Blast Cabinets for Choice (Custom-made sizes pls contact with us)

Model KF-1212W KF-1010W KF-9080W KF-6868W
Working size 1200*1200*800mm 1000*1000*800mm 900*900*800mm 600*600*500mm
Weight 350kgs 300kgs 280kgs 200kgs
Loading Capacity 80-120kgs 50-80kgs 30-50kgs
20-30kgs
