KF-A40
| Quantity: | |
|---|---|
Tumble belt sandblasting machine allows parts automatic tumbling on a thick, perforated rubber belt, a group of blast guns uniformly blast medias to all exposed surfaces to deliver a consistent finish automatically. Our automatic blasting system can be designed to address all process constraints and for optimal results and productivity.
Long life, wear-resistant rubber belt with a loading capacity of 100kgs.
Each blast gun is individually controlled thus to select single gun or multi-gun working according to the quanlity of parts.
Blast media is continuously separated from dust by a cyclone device, returning only pure medias in good shape back to the blast nozzles for optimal results.
Configured a pulse filter cartridge for dust removal system, features high removal efficiency.\
Easy-to-use electric control to adjust blasting pressures, belt tumbling speed, and blasting cycle time, etc.

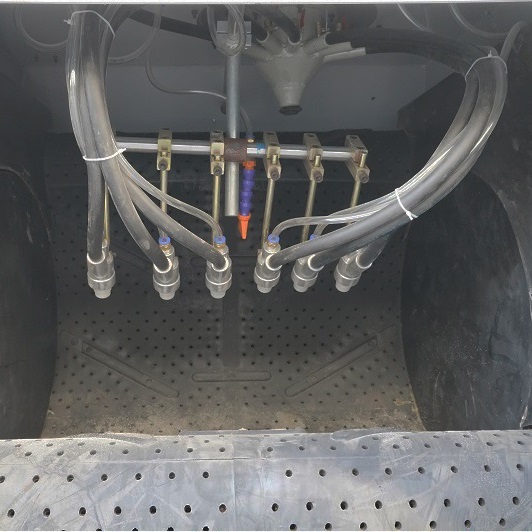

Rubber belt & Oscillating Blast Guns

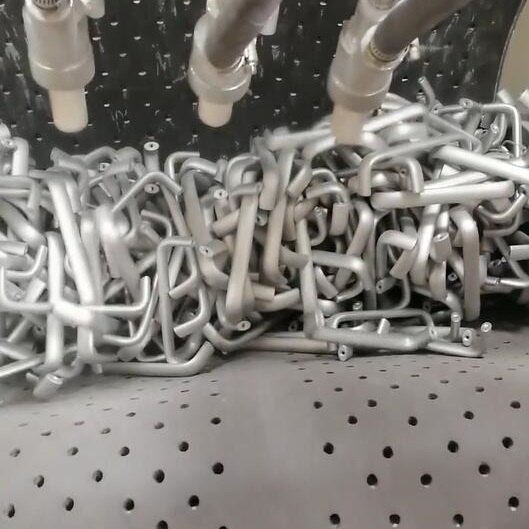

Tumble Blasting for Batch Small Parts

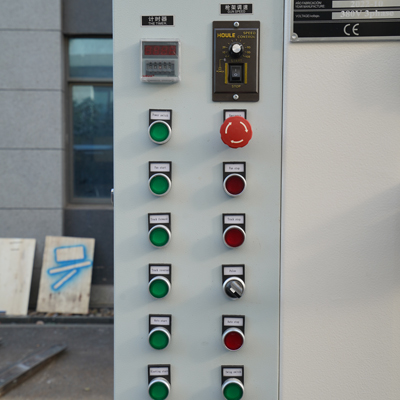

Electric Cabinet for Control Each Blast Gun
Filter Cartridge Dust Collector System
| Model | KF-A40 |
Working cabinet: | L600*W500*H500 (mm) |
Cabinet outsize: | L800*W650*H2720 (mm) |
Dust collector dimensions: | L800*W800*H2100mm |
Productivity: | 0.3-0.5 T/H |
Load capacity: | ≤100KGS |
Rolling motor power: | 1.5KW |
Dust collection motor power: | 2.2KW |
Automatic blasting gun: | 4pcs Aluminium alloy blasting guns, with 4pcs boron carbide nozzles, dia 8mm. |
Voltage: | 380V 50HZ |
*The blast guns quanity, rubber belt size, chamber size all can be tailored to the customers specifications
The automatic tumble blasting machine is very suited for surface treatment of small and medium sized parts in batches, as well as relatively heavy, complex-shaped parts that would be hard to handle in a traditional blasting cabinet.
