Automatic Turntable Sand Blasting Cabinet

Specially for surface treatment of irregular round shape snd heavy workparts, such as alloy wheels, moulds, motors, saving labor and increase finishing consistency.
  • KF-1212-4A

  • Kafan

Availability:
Quantity:

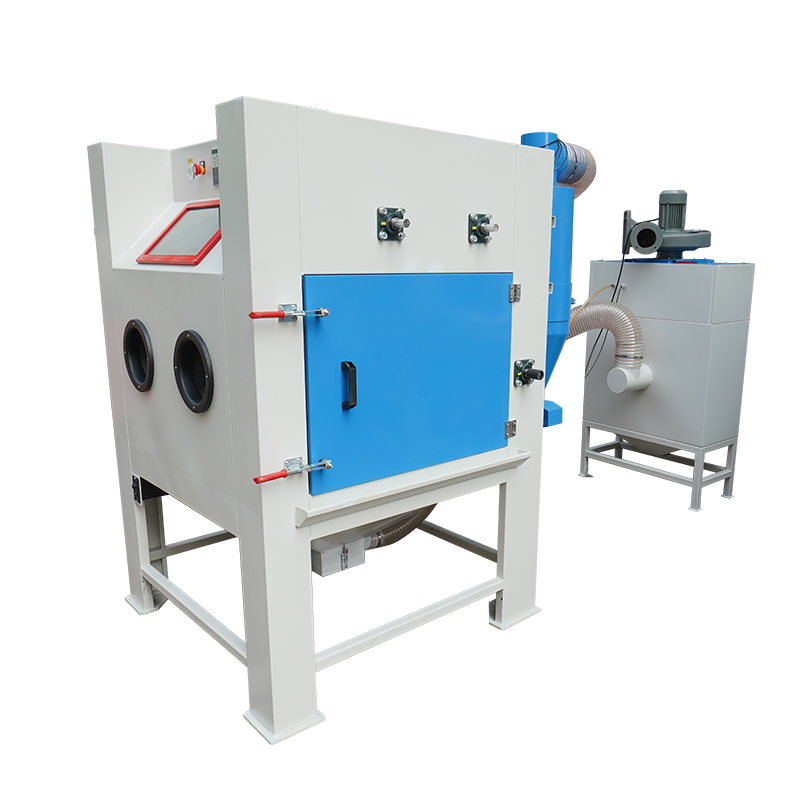

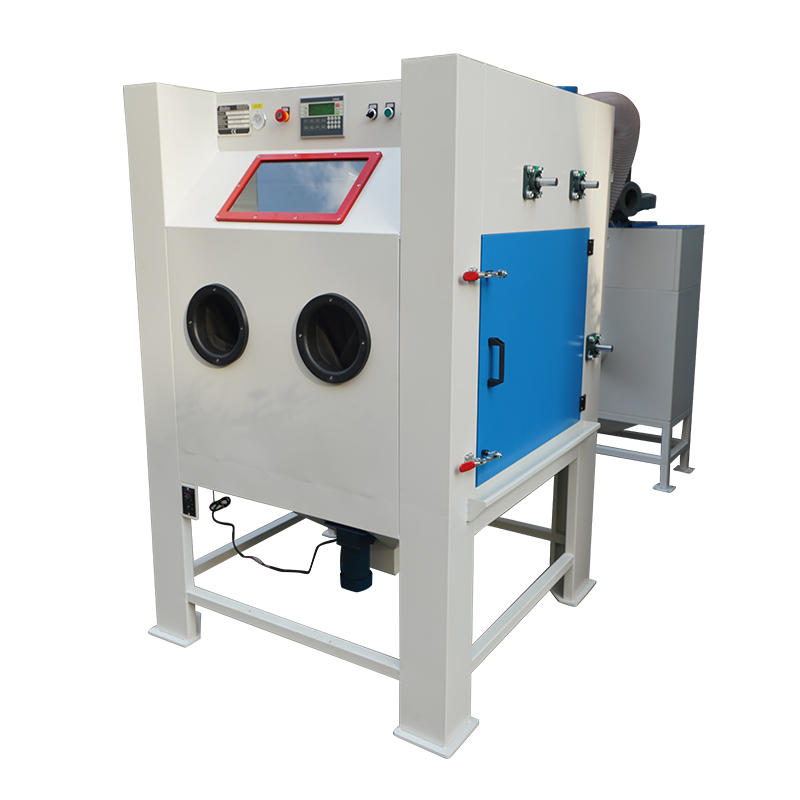

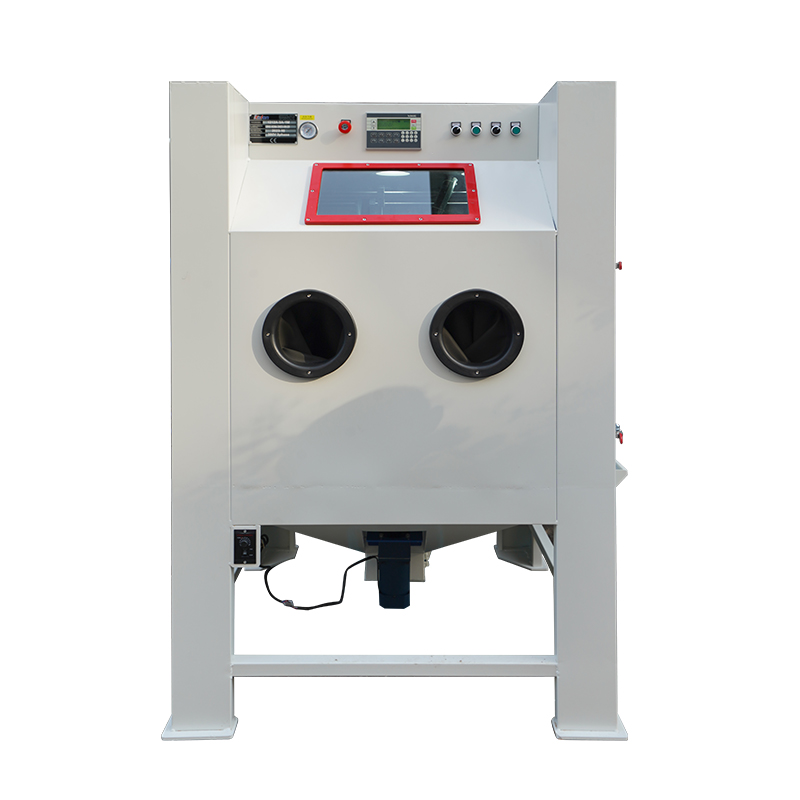

Automatic Turntable Sandblasting Cabinet

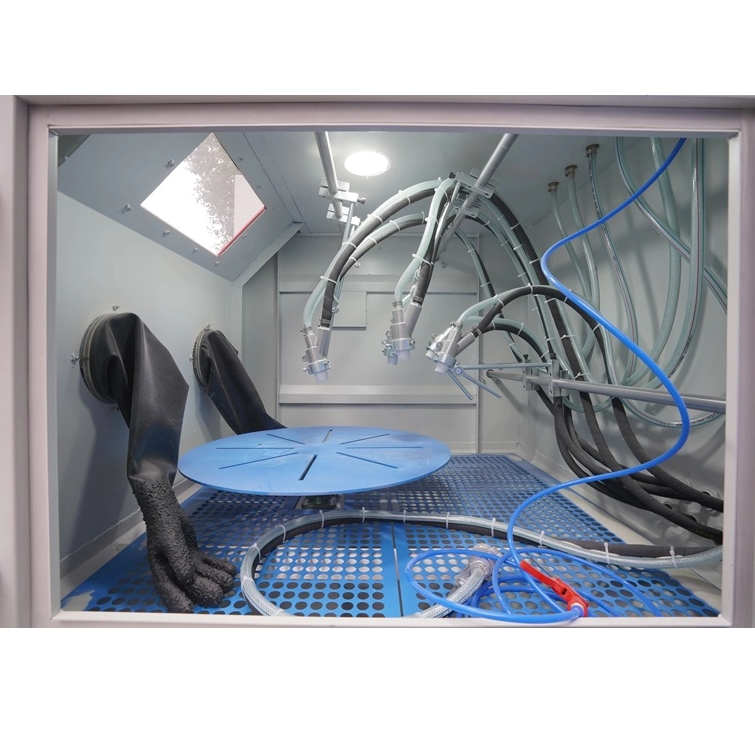

This automatic sandblasting cabinet designed with a turntable achieves high processing efficiency and great labor saving. As a group of automatic guns blasting and oscillating, the turntable rotates automatically at the same time, thus blasting flow covers all surfaces and corners of the object which is cleaned thoroughly and evenly.

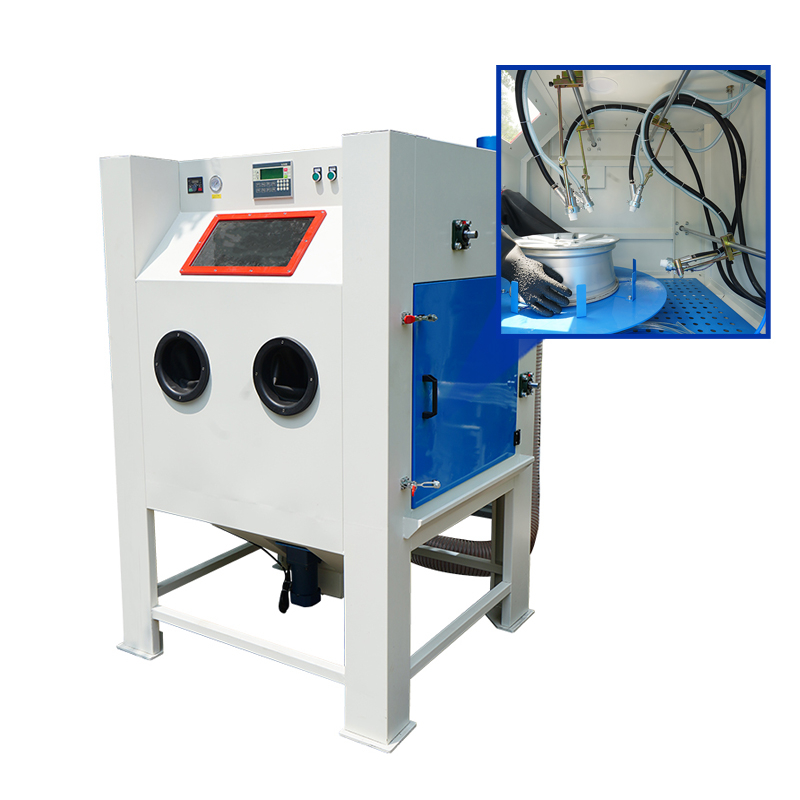

Automatic Turntable Sandblasting Cabinet automatic sandblasting cabinet


How automatic sandblasting cabinet works

Turntable automatically rotates while guns swing and blasting automatically as well, ensure entire surfaces and corners will be uniformly cleaned, increasing efficiency and saving labor, can be configured with a manual gun for after-check blasting, This automatic sandblaster effectively removes rust, old paints, cleans dirts, an ideal pretreatment tool for powder coating or painting


Automatic Sandblasting Cabinet Features

  • Configured with 4 pcs of automatic blast guns and 1 piece of manual gun, the automatic blast guns can be adjusted for fixing blasting or oscillating blasting.

  • The heavy-duty turntable is ideal for loading big and irregularly shaped workpieces, also can be fitted with fixture for handling small and light workparts.

  • PLC system allows easily control the work of each blast gun, time, turntable rotating, dust collector working, you can preset all working parameters to achieve a fully automatic process,

  • The automatic blaster can be optionally equipped with a cyclone, in order to separate ultrafine abrasives from dust, increasing the recycling rate of pure abrasives.

  • Each of our sandblasting cabinet is designed with a dust collector, included a high-precision filter to absorb micro dust particulates, which ensures vented airflow back to the workshop is dustfree .

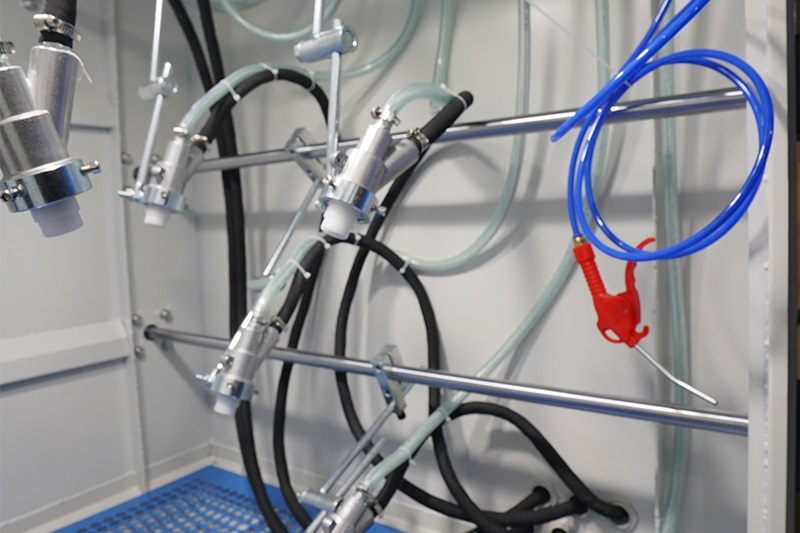

Automatic Sandlasting Guns

Automatic Sandlasting Guns

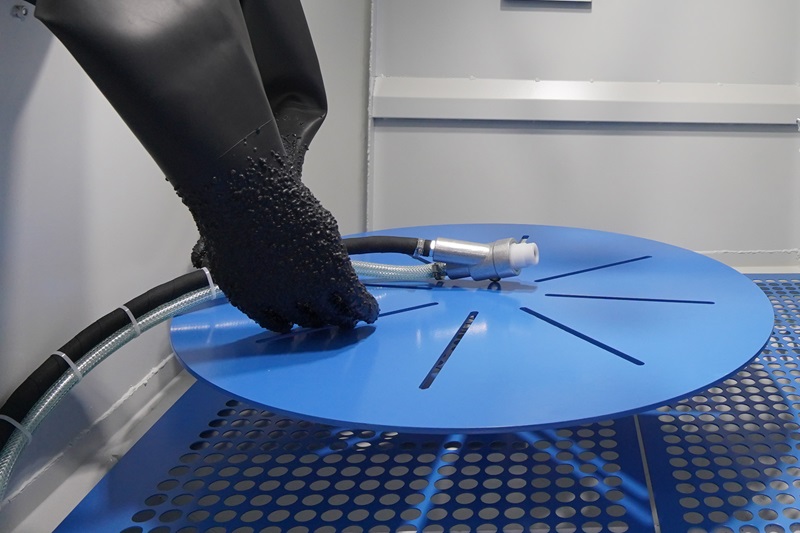

Automatic Turntable

Automatic Turntable

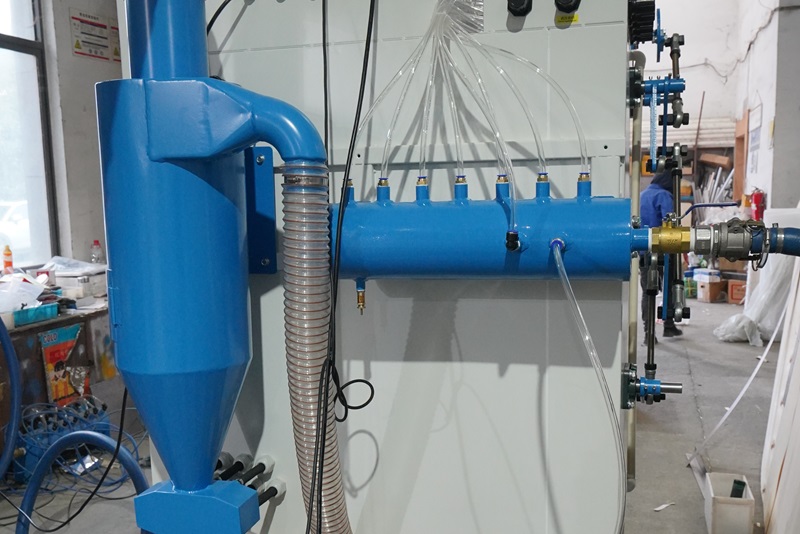

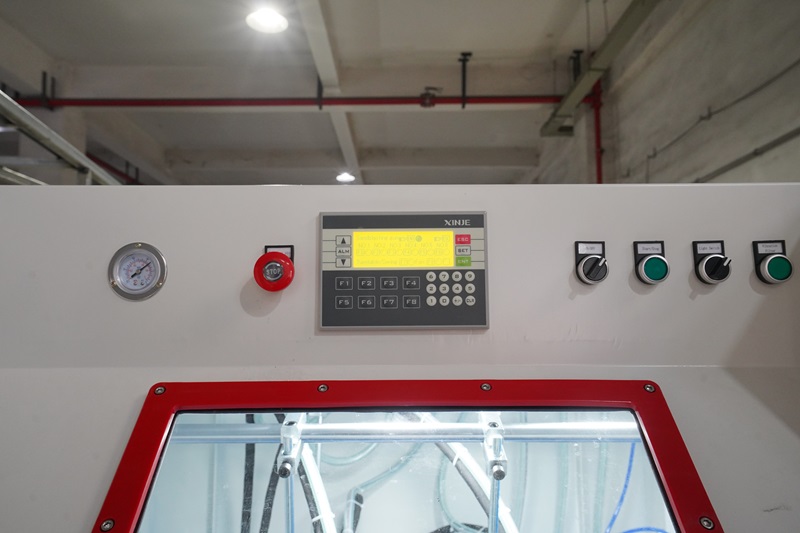

Sandblasting Machine Electric & Pneumatic Control

Electric & Pneumatic Control

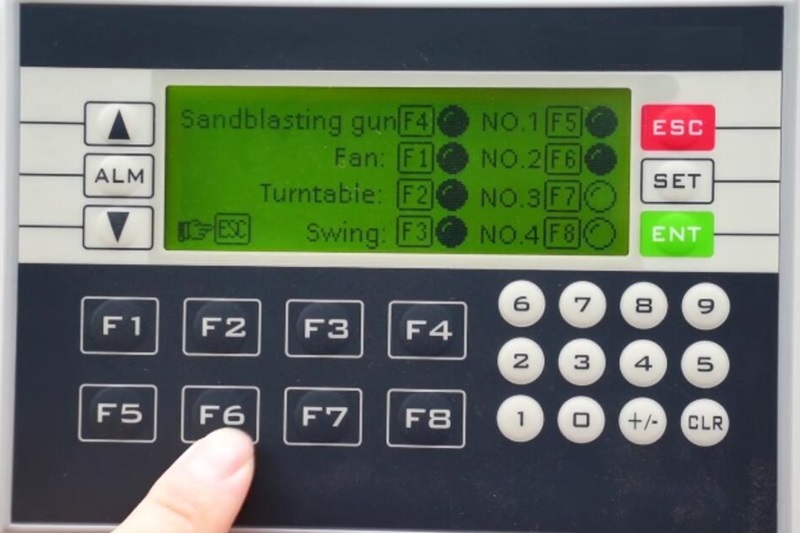

sandblasting machine PLC

PLC for Parameter Setting

sandblasting cyclone

Cyclone Seperator

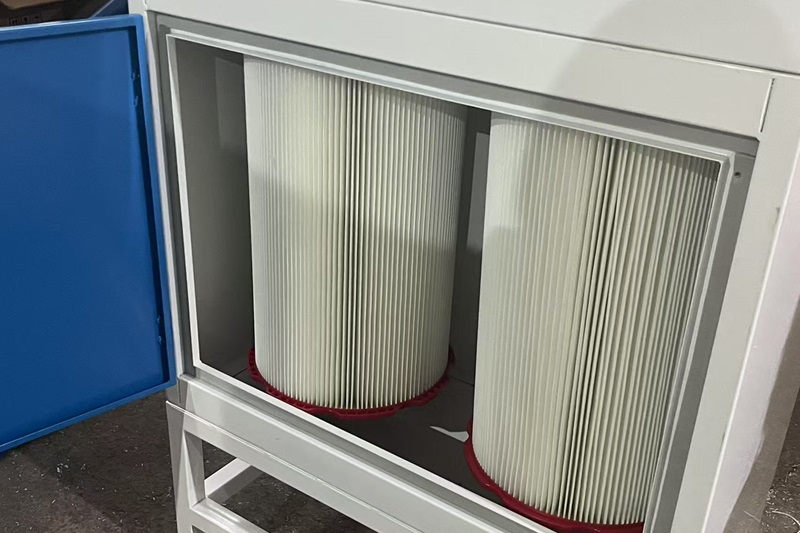

Filter Dust Collector

Filter Dust Collector


Automatic Sandblasting Cabinet Specifcations

Model KF-1212-4A
Work Chamber Size L1200 x W1200 x H800mm
Outer Size L1200 x W1680 x H1840mm
Door size W830xH770mm
Turntable Diameter 800mm
Max. Loading 200kgs
Power Supply 220V/50hz  (voltage can be customized)
Dust Collector Power 0.75kw 220V/50hz
Dust Collector Type Cartridge Filters
Blasting Gun 4pc, with boron carbide nozzle
Gloves 1 pair
Lighting 18w fluorescent
Working Pressure 5-8 bar
Required Flow 0.5-1.2m3/min
Material 2mm cold-rolled steel plate with powder coated surface

*Cabin Size, Blasting Guns Quantity Can be Customized as Requests
