Turntable Sandblasting Cabinet for Alloy Wheels

Specially for surface treatment of heavy workparts, such as alloy wheels, molds, machinery parts, increase working efficiency and reduce manual labor.
  • KF-1212FTA


Wheel Sandblasting Cabinet Features

  1. Designed with turntable and cart, suitable for easy operation of heavy workparts, such as alloy wheels.

  2. Basic suction type blaster, requires lower budget, easier opeation and less maintenance.

  3. Remove rust, old paints, clean dirts, an ideal pretreatment equipment for powder coating or painting

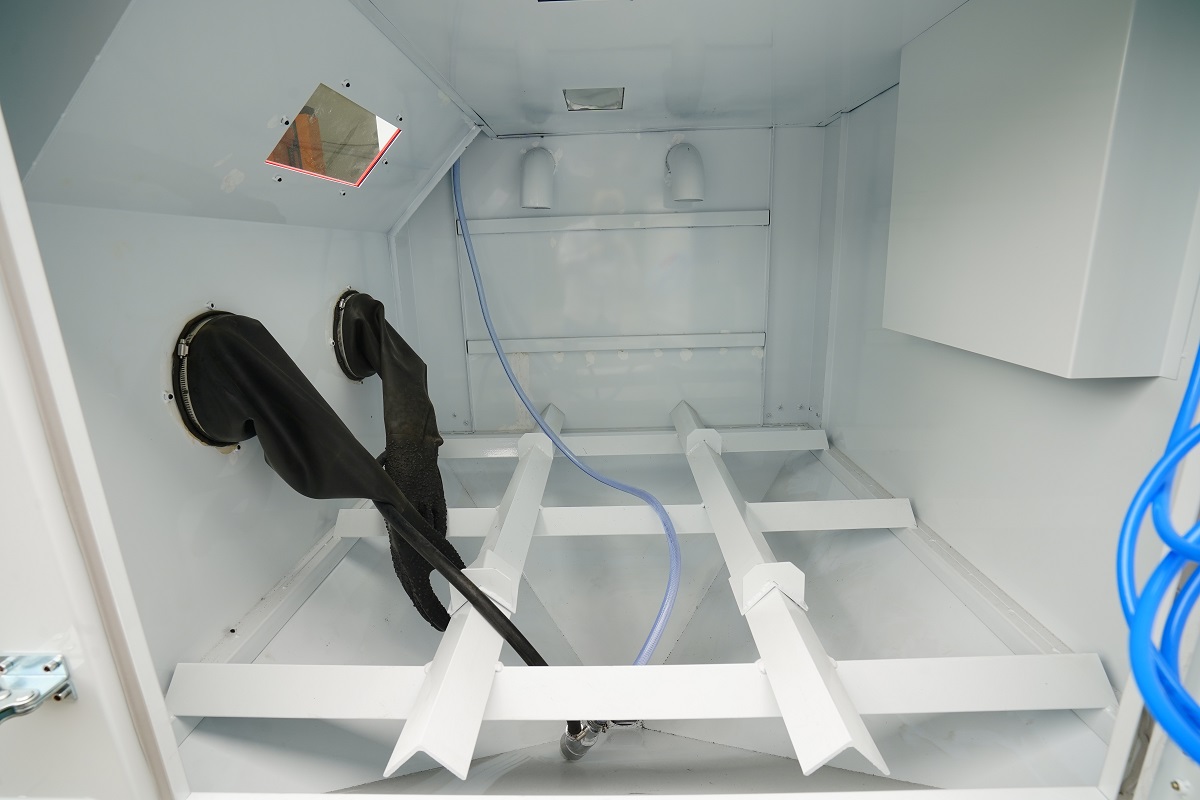

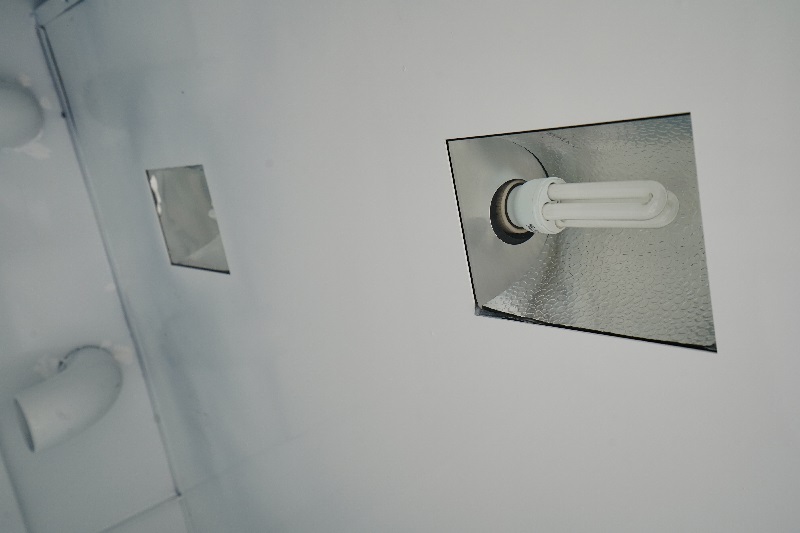

  4. Built with overhead lights inside the working chamber, ensures clear and precise processing jobs.

  5. Filter cartridge dust collection keeps dust away and improves the visibility of chamber.

  6. Standardly configured with durable blasting gun with boron carbide nozzle for wear-resisting.

  7. Safe and reliable foot control switch reduce operator's fatigue.

1(2) - 副本   1212-1 - 副本

MLF08064    MLF08067    _MG_55121

Wheel Sandblasting Cabinet Specifcations

Model KF-1212FTA
Work Chamber Size L1200 x W1200 x H800mm
Outer Size L1200 x W1680 x H1840mm
Door size W830xH770mm
Turntable Diameter 800mm
Max. Loading 200kgs
Power Supply 220V/50hz  (voltage can be customized)
Dust Collector Power 0.75kw 220V/50hz
Dust Collector Type Cartridge Filters
Blasting Gun 1pc, with boron carbide nozzle
Gloves 1 pair
Lighting 18w fluorescent
Working Pressure 5-8 bar
Required Flow 0.5-1.2m3/min
Material 2mm cold-rolled steel plate with powder coated surface

Turntable Sandblasting Cabinet Applications

In the blast cabinet, users handle the workparts through a manual gun controlled via foot switch, at the same time manually rotate the turntable, thus all sides and corners can be precisely cleaned. The cart makes the it convenient to transport the tools. This system is ideal for alloy wheel finish before powder coating or painting application.
