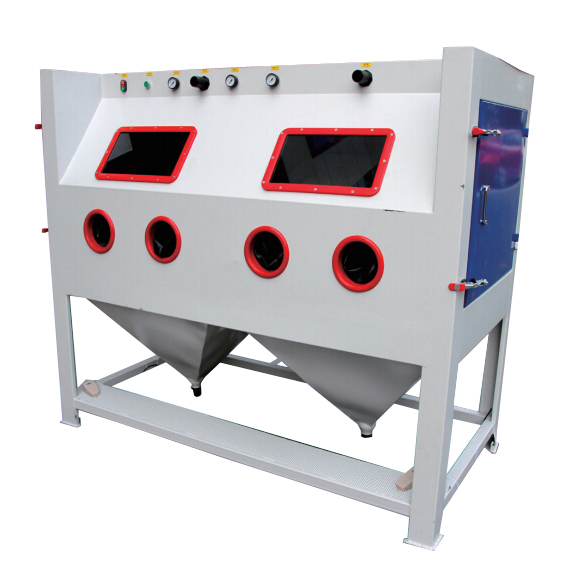

Multistand Blast Cabinet Large Sandblasting Machine

Our large sandblasting cabinet designed with multi work stations is ideal for processing oversized workparts that saves you time and efforts, the blast cabinet can be designed with 2, 3 or more working station for special needs.

Model:
KF-2010-2

Availability:

Quantity:



Inquire Add to Basket

Product Description

Multistand Large Sandblasting Cabinet Features

Allows 2 or more workers processing oversized workparts synchronously that increase efficiency Allows you to blast large workparts just simply move from one station to another while don't have to move the part inside the cabinet Remove rust, old paints, clean dirts, an ideal pretreatment equipment for powder coating or painting.

large sandblasting cabinet

Large Sand Blast Cabinet Features

- The blast cabinet is made of 2mm durable steel with powder-coated surface ensuring long service life, and it is well-sealed prevents any of dust escaping.

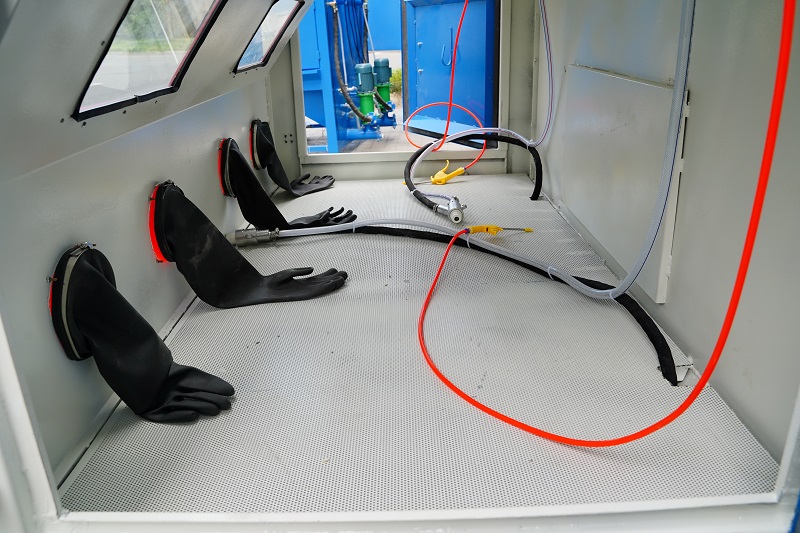

- Built with overhead lights inside the working chamber, ensures clear and precise processing jobs.

- Standardly configured with durable blasting gun with boron carbide nozzle for wear-resisting, and a piece of air flower for cleaning residual medias.

- Safe and reliable foot switch controls the blast gun to reduce operator's fatigue.

- Filter cartridge dust collection keeps dust away and improves the visibility of chamber, can be added a cyclone for effectively seperating ultra-fine abrasives.

Lights

Sand Blasting Gun

Air Blower

Filter Dust Collector

2 Stage Large Sandblasting Cabinet Specifcations

Model	KF-2010-2
Work Chamber Size	L2000 x W1000 x H850mm
Outer Size	L2100 x W1500 x H1700mm
Door size	W830xH770mm
Turntable Diameter	800mm
Max. Loading	200kgs
Power Supply	220V/50hz (voltage can be customized)
Dust Collector Power	0.75kw 220V/50hz
Dust Collector Type	Cartridge Filters
Blasting Gun	2pcs, with boron carbide nozzle
Gloves	2 pair
Lighting	18w fluorescent
Working Pressure	5-8 bar
Required Flow	0.5-1.2m3/min
Material	2mm cold-rolled steel plate with powder coated surface
