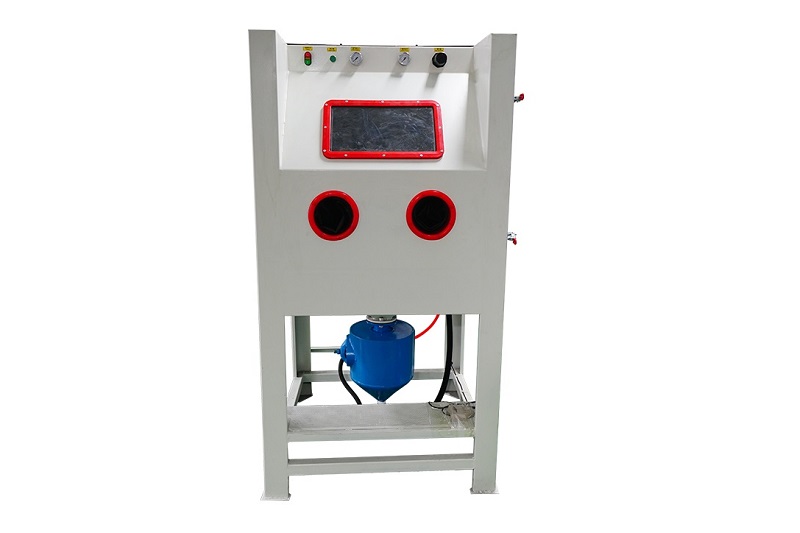

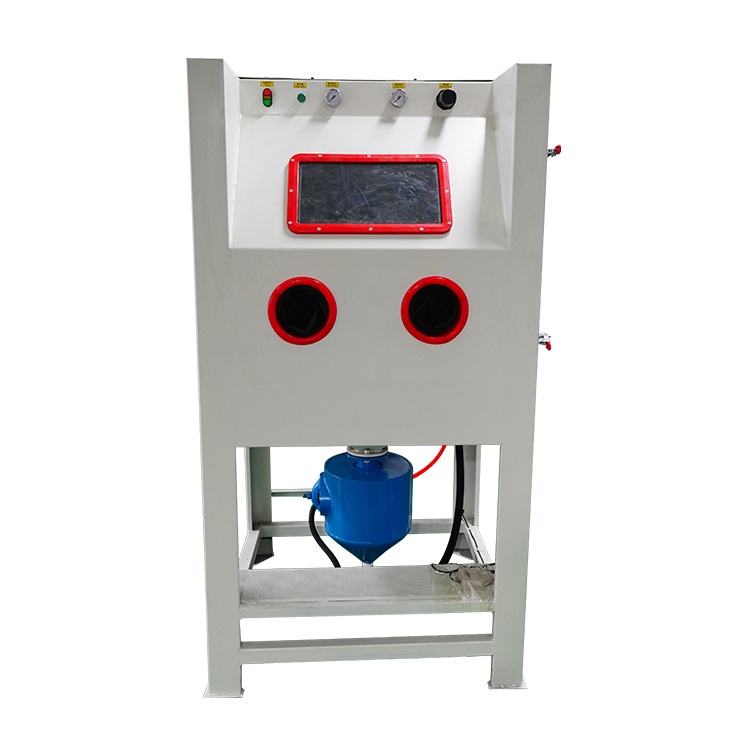

Pressure Blast Cleaning Cabinet for Tough Jobs

Ideal for touch jobs, applications where large surfaces or thick layers must be cleaned quickly, pressure blasting force is 3 time higner than a siphon cabinet.

Model:
KF-1212P

Availability:

Quantity:



Inquire Add to Basket

Product Description

Pressure Sandblasting Cabinet for Tough Cleaning Jobs

Pressure sandblasting cabinet works through a high performance pressure pot directly push and accelerate media conveying, comparing with suction blast cabinet, pressure cabinets has much stronger blasting force that requires less efforts and less time to remove heavy layers or clean larger areas.

pressure blast cabinet pressure sandblasting

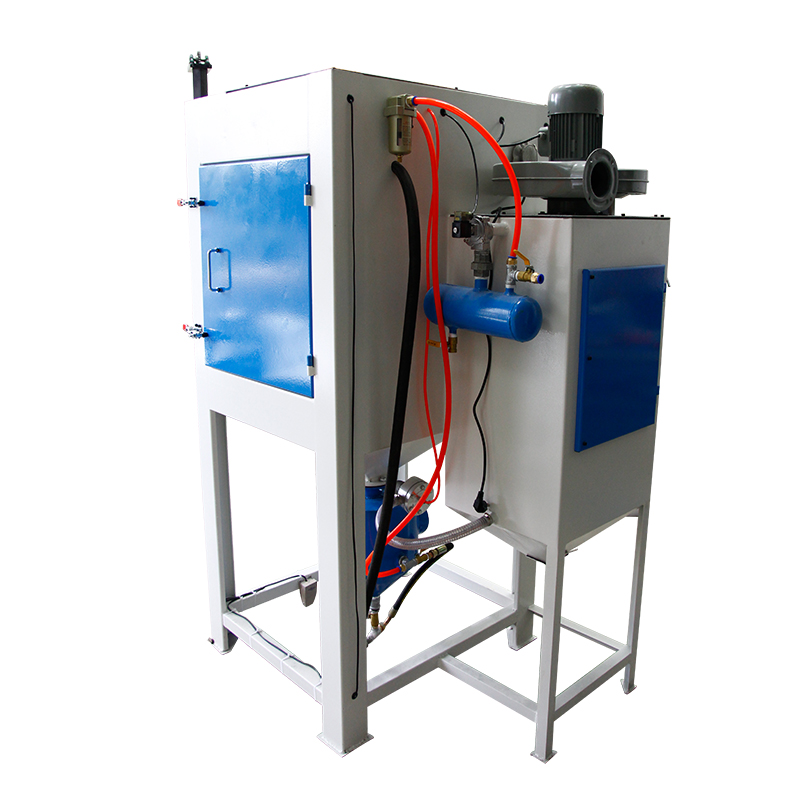

Kafan Pressure Blasting Cabinet Configurations

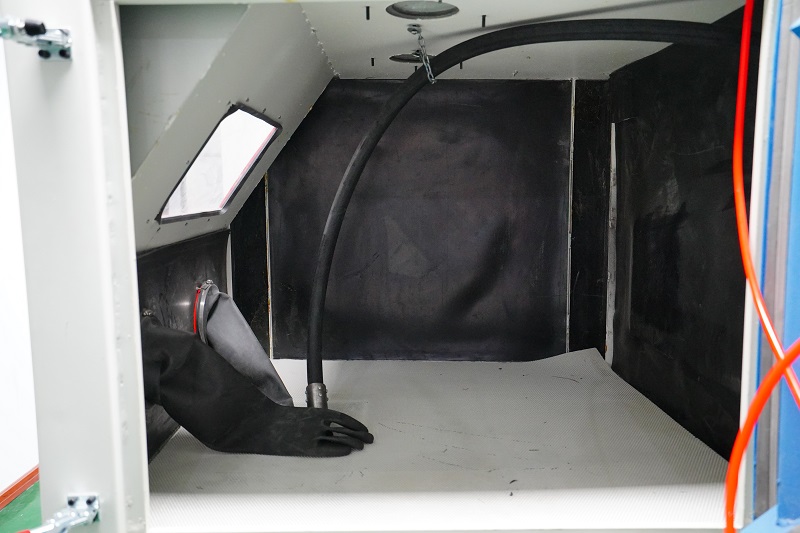

Our pressure blast machine is cabinet design, enclosed type without dust and abrasive leakage, cause no pollution to environment, built with rubber inside the cabinet for wear-proof

A piece of high flow blasting gun with durable boron carbide nozzle, as well as a piece of air gun for removing residual dust and media after blasting .The blast gun is controlled via safe and reliable foot switch reduce operator's fatigue.

The kafan pressure blast cabinet is standardly configured with filter cartridge dust collector effectively removes dust away and keeps the environment clea, as well asimproves the visibility of blast chamber.

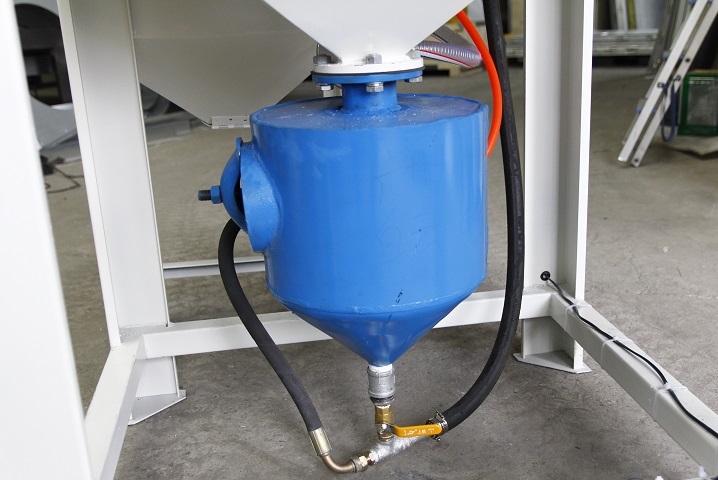

Pressurized Pot

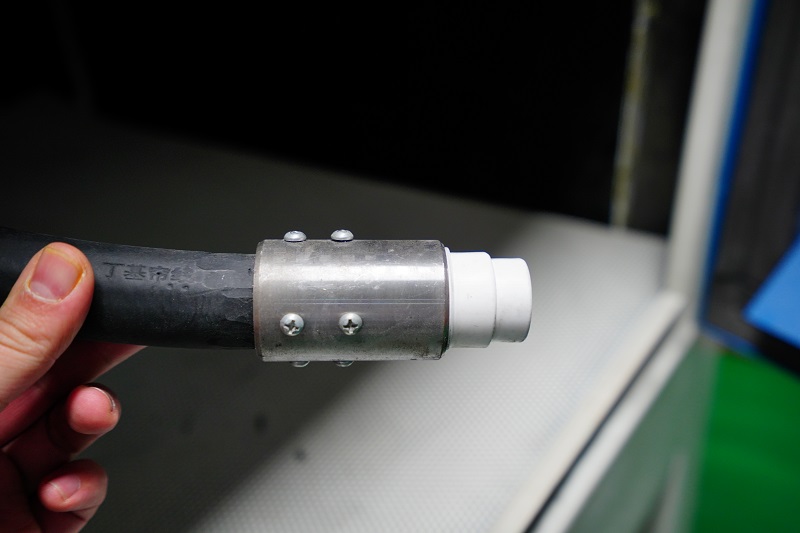

Sand Blast Gun

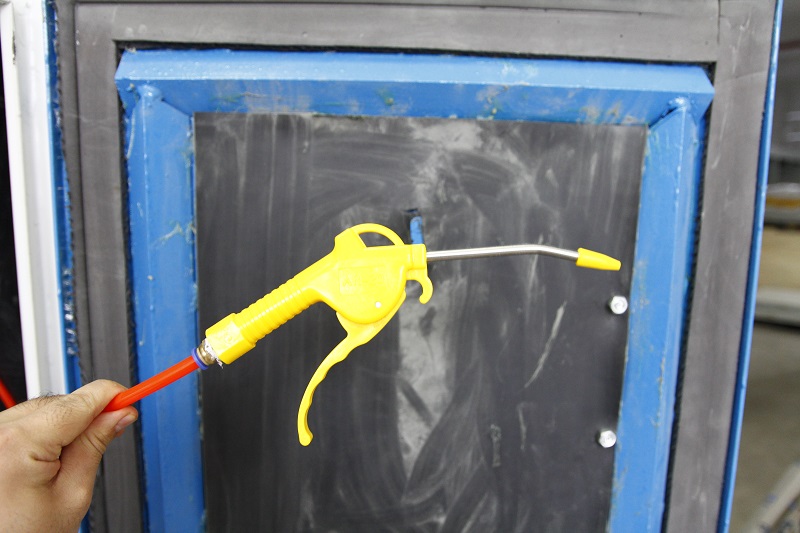

Air Cleaning Gun

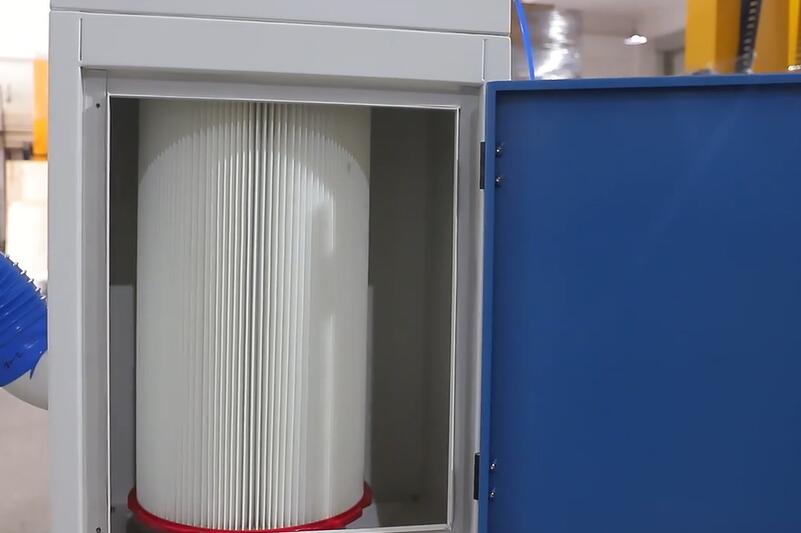

Filter Dust Collector

Optional Configurations

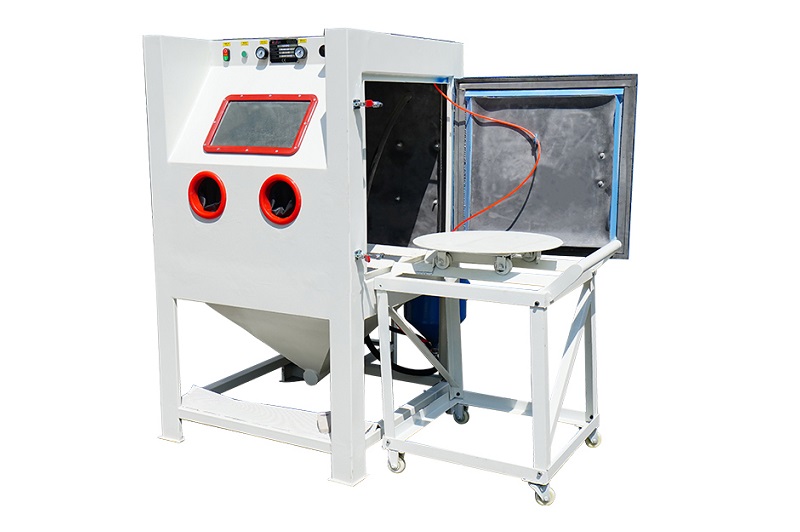

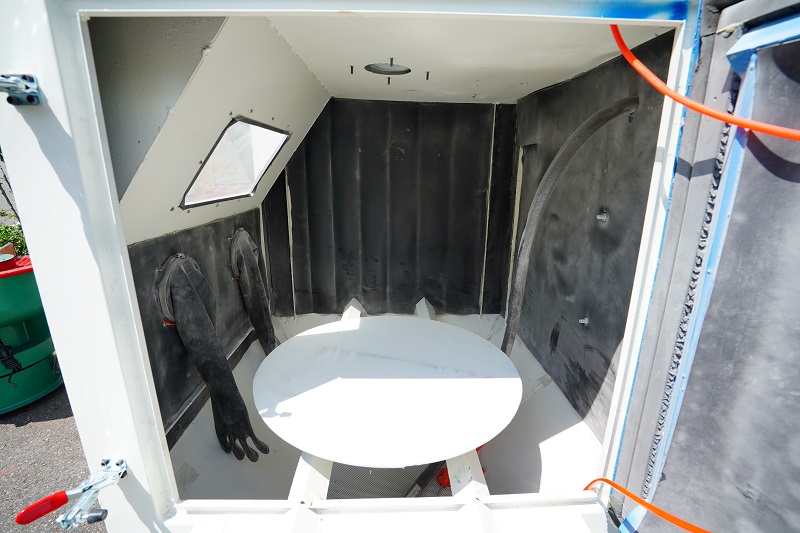

Can be optionally incorporate a turntable with cart on a track extension used to roll the tool in and out with minimal force.

The size of turntable can be made as actual needs, specially applicable for surface treatment of cyclinder shape, irregular-shaped or heavy products, like mold, statue, motor, car wheells, etc, which significantly reduce efforts and increase the working efficiency

Pressure Sandblasting Cabinet Applications

As the abrasive is conveyed at a much higher velocity and blasted at stronger force, comparing with suction cabinets, pressure blaster completes job 3-5 times faster than siphon time, greatly increase the productivity.

Pressure blasting requies less efforts and time for removing heavy burrs or stripping thick oxide layers or old coats, and allows the use of heavy media or large mesh sizes for handling hard substrates

Pressure Sandblasting Cabinet Specifcations

Model	KF-1212P
Work Chamber Size	L1200 x W1200 x H800mm
Outer Size	L1200 x W1680 x H2100mm
Power Supply	220V/50hz (voltage can be customized)
Dust Collector Power	0.75kw 220V/50hz
Dust Collector Type	Cartridge Filters
Blasting Gun	1pc, with boron carbide nozzle
Gloves	1 pair
Lighting	18w fluorescent
Working Pressure	5-8 bar
Required Flow	0.5-1.2m3/min
Material	2mm cold-rolled steel plate with powder coated surface
