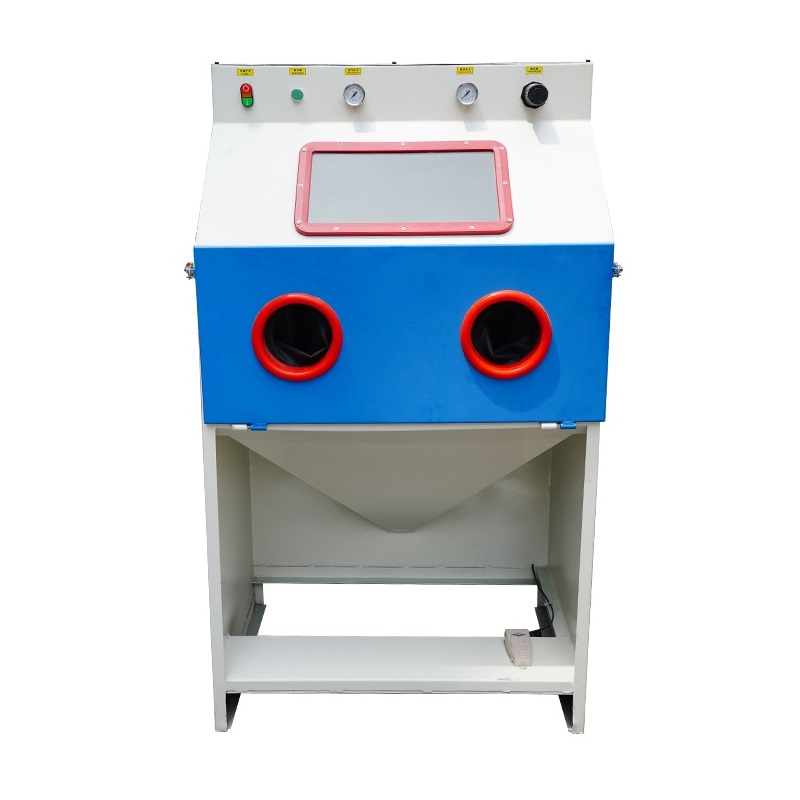

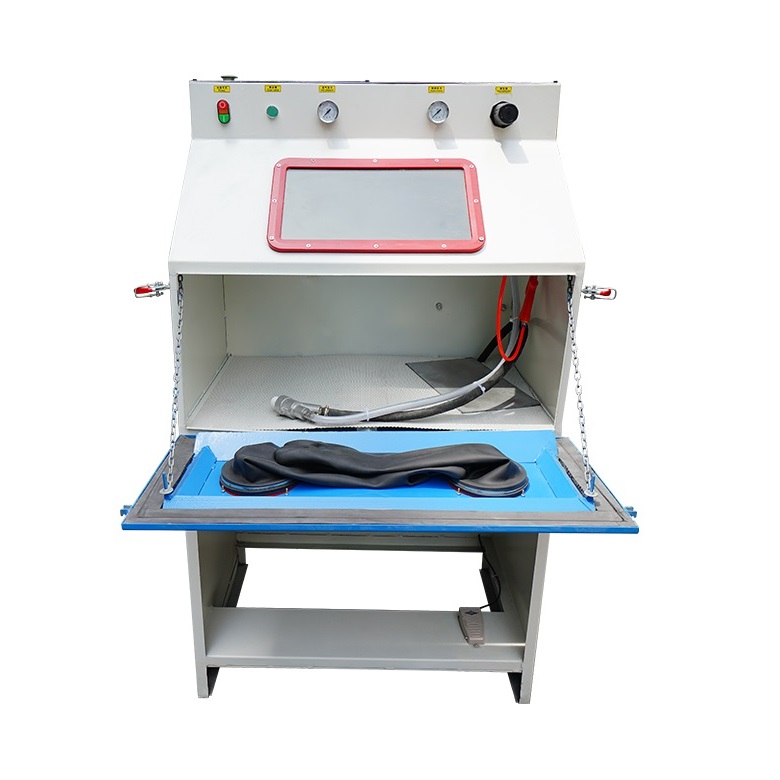

Small Industrial Sandblasting Cabinet

Suction blast cabinet works by an air jet sucks the media up to the gun then blast to the target surface. Suction blasting supports most basic finishing applications while requires less budget and less maintenance.
  • KF-9060


Small Industrial Sandblasting Cabinet Features

  1. Designed for surface treatment of small dimension workparts.

  2. Basic suction type blaster, requires lower budget, easier opeation and less maintenance.

  3. Removing rust, old paints, restoring scratches, cleaning and smoothing.

  4. Designed with cyclone separator especially for ultrafine media recycling, such as glass beads

  5. Filter cartridge dust collection keeps dust away and improves the visibility of chamber.

  6. Standardly configured with durable blasting gun with boron carbide nozzle for wear-resisting.

  7. Safe and reliable foot control switch reduce operator's fatigue.

4   5

Small Sandblasting Cabinet Specifcations

Model KF-9060
Work Chamber Size L900 x W600 x H650mm
Outer Size L1130 x W700 x H1650mm
Dust Collector Size L430 x W380 x H1500mm
Power Supply 220V/50hz  (voltage can be customized)
Dust Collector Power 0.75kw 220V/50hz
Dust Collector Type Cartridge Filters
Blasting Gun 1pc, with boron carbide nozzle
Gloves 1 pair
Lighting energy-saving lamp
Working Pressure 2-7 bar
Required Flow 0.8-1.2m3/min
Material 2mm cold-rolled steel plate with powder coated surface
