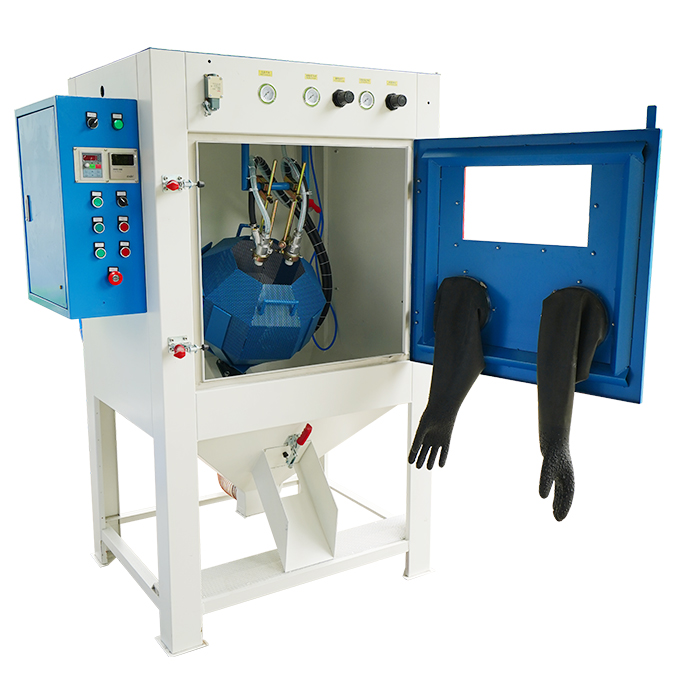

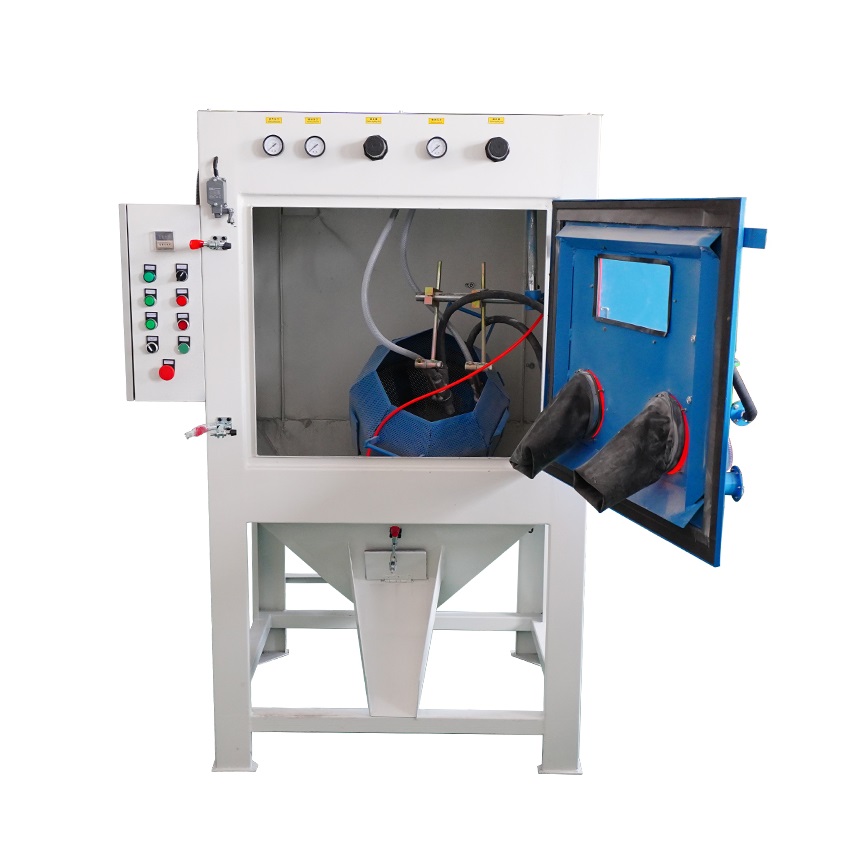

The tumble blaster mounted with a basket which will holds a certain quanty of small parts for surface finishing purpose.
Batch parts will be processed entirely and evenly through automatic blasting guns and tumbling basket/
The tumbling blaster can be set automatic or manual blasting for multi purposes.
The size of the rotary basket, the quantity of blasting guns can be designed according to user requirements,
Each blast gun is individually controlled thus to select single gun or multi-gun working according to the quanlity of parts.
Optimal surface finishes can be achieved by varying tumbling speed, blast duration, blasting pressures.
A high efficiency dust collector with filter units for effective duct removal.
Model | KF-1080ZL |
Outer Size | Length1200 * Width1250 * Height1800mm |
Working Chamber Size | Length1000 * Width800 * Height800mm |
Barrel Diameter | 500mm(can be customized) |
Sandblasting Gun | 2 pcs with Boron Carbide Nozzle |
Totating Speed | 8 round/min |
Barrel Motor | 380V/50HZ/400W |
Dust Collector Motor | 380V/50HZ/550W |
Air source | Pressure 2-7bar(kg/cm^2) |
Compressed Flow | 1.5-2.0m3/min |
Machine Shell Thickness | 2-5mm Coated Steel Plate |
Lighting | 220V 13W LED Lamp |
Total Machine Power | 380V/50HZ/1100W |
