Walk-in Manual Powder Coating Plant
This complete system includes manual powder coating machine, walk-in spray booth, batch curing oven and heavy-duty track system. The configured spray booth allows operator walking in and coating all kinds of sizes, shapes, especially flexible for spraying over-dimensional and complex-shape objects.
Manual Powder Coating Line Applications
This powder coating line is specially designed for manual coating of various heavy weight, big dimension or long length workparts in batches, such as aluminium profiles, frames, brackets, etc It greatly reduces manual efforts while ensures high production efficiency.

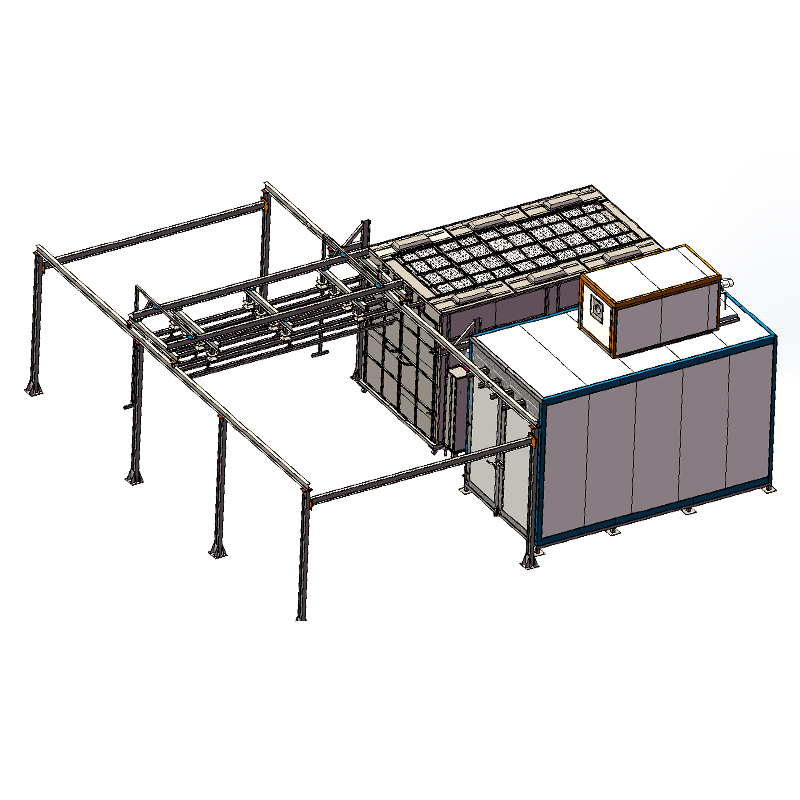

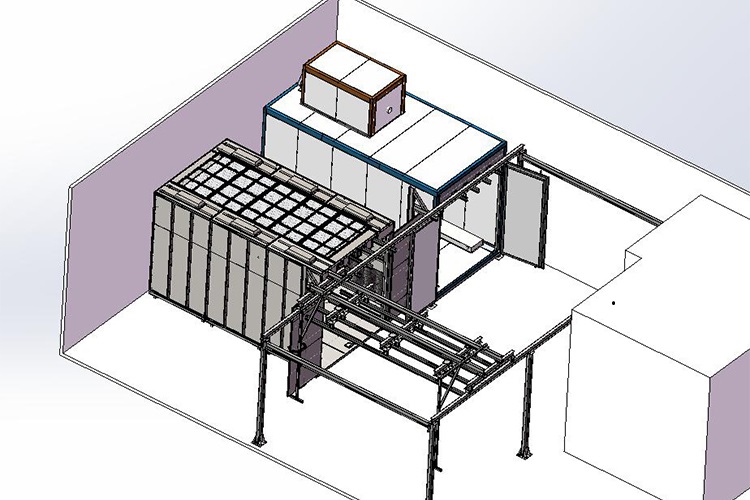

Walk-in Manual Powder Coating Line Configurations

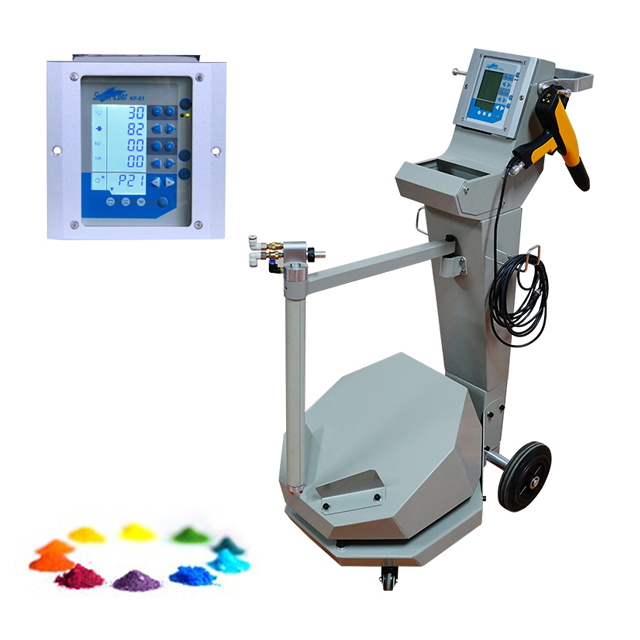

KF-X1 Powder Coating Machine
This machine is digital valve controlled, features precise and easy operated, offering best application quality for even most complex shapes. It is a well-known model in worldwide market for the increased efficiency and powder-saving.
Excellent Features
Full Digital Control. Powder Flow and Dosing Air is Precisely Controlled by Digital Valves. Flexible Control of Gun Voltage and Current.
3 Pre-set application programs, flat parts coating, corner coating and re-coating, one touch key to handling different shapes of workparts, 20 Customized Programs Library can be created and stored.
Long-lasting 100kv hand spray gun maximizes the electrostatic charging. Lightweight and ergonomical design enables operators to accomplish jobs at ease.

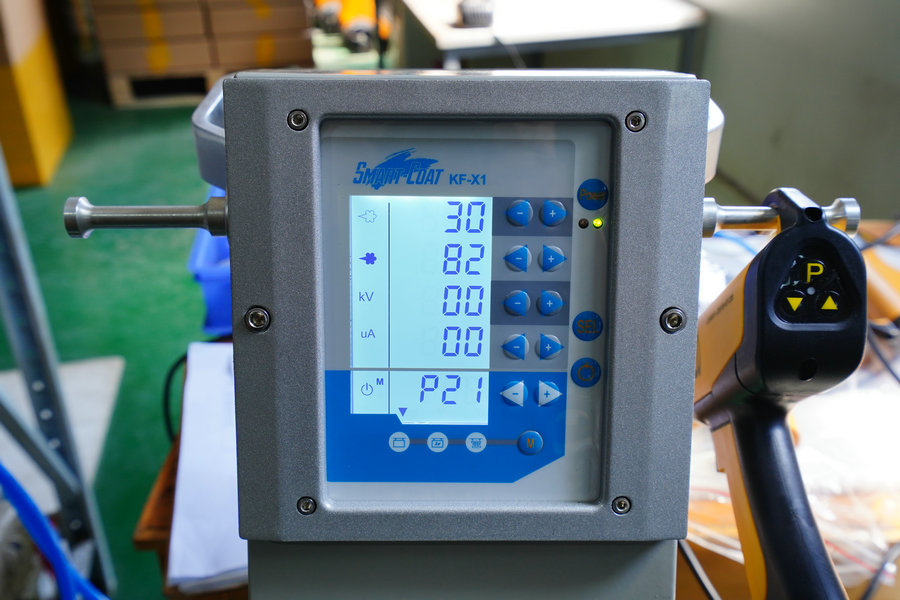

Intelligent Control Offers Easy and Flexbile Operation
100kv Spray Gun Delivers Uniform Coating Film Thickness
Multiple-spray-pattern Nozzles Meets Different Metal Shapes
Walk in Powder Coating Booth

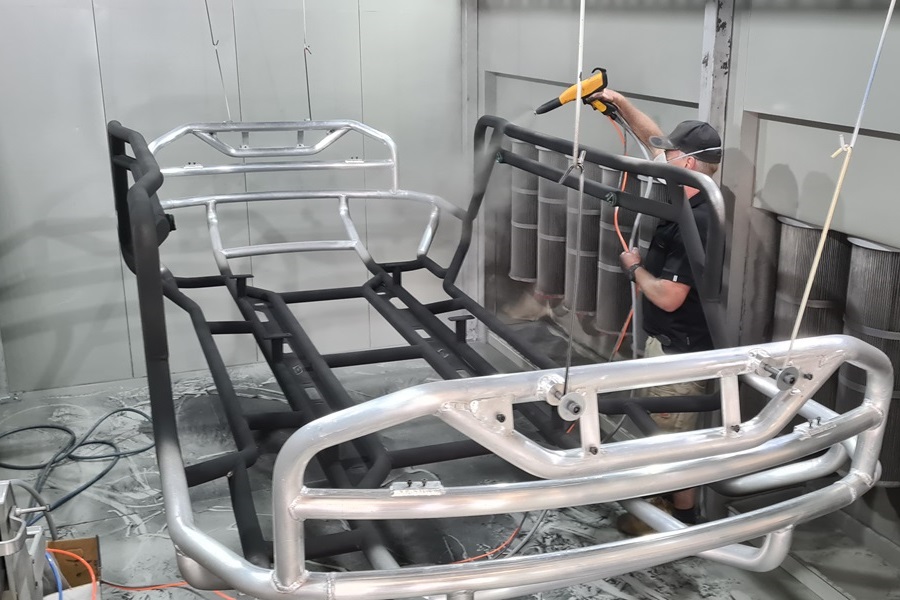

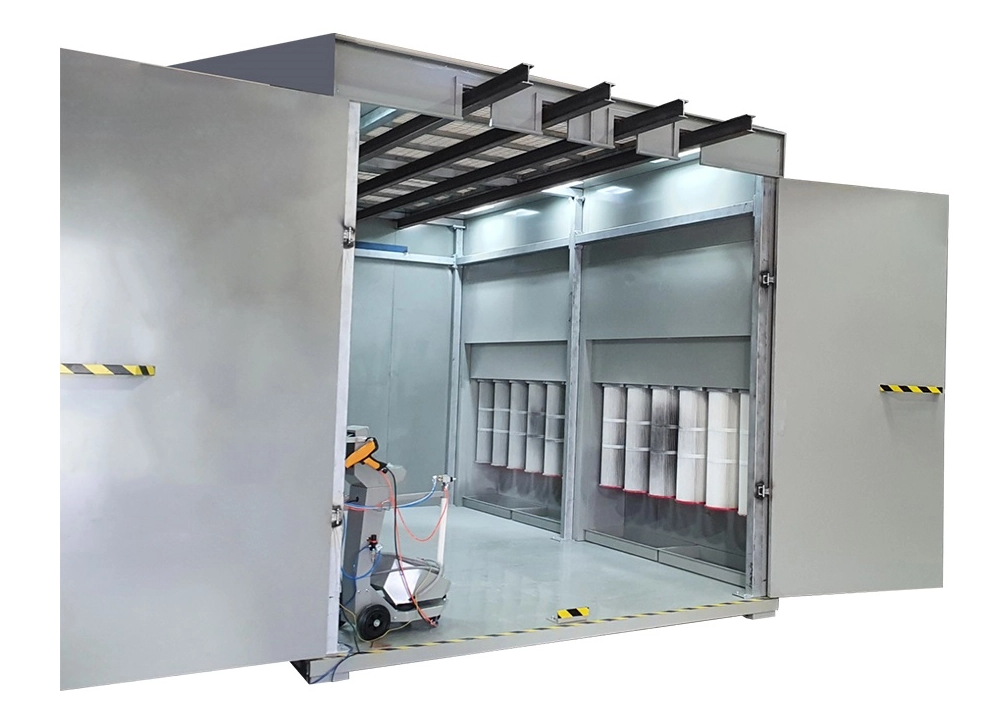

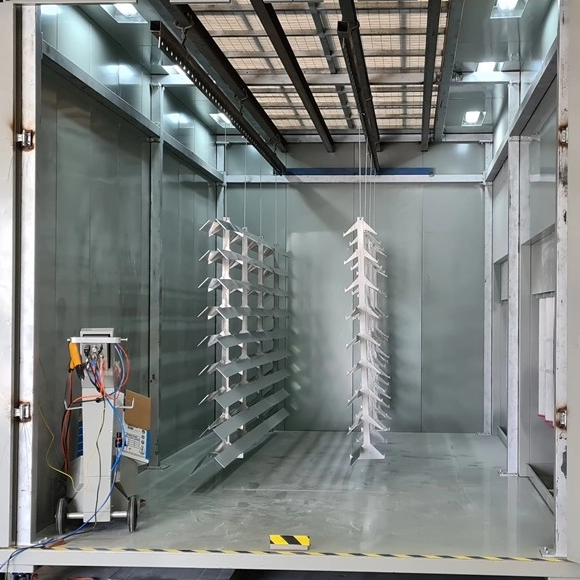

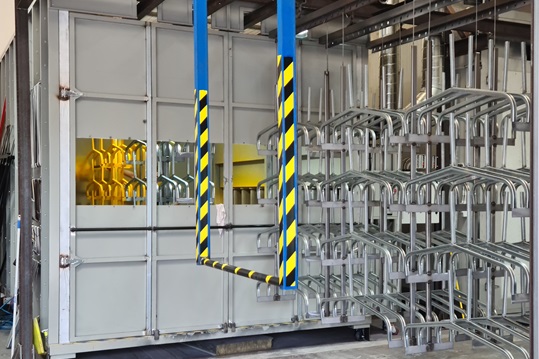

As the name suggests, after the part to be transported into the spray booth, the operator walks in and coats the parts from all sides. Doors are closed when coating which ensures a dustless workshop.
Configurations & Features
Filter cartridge units directly connect to the booth wall, those high precision filters effectively separate powders from air, create dustless working condition.
The booth is made of study powder-coated steel ensures durability, safety and long service life, and consists of high quality components requireing less maintenance
Applies PLC control unit providing user-friendly interface and a simple operation process
Size and configurations can be customized as requests

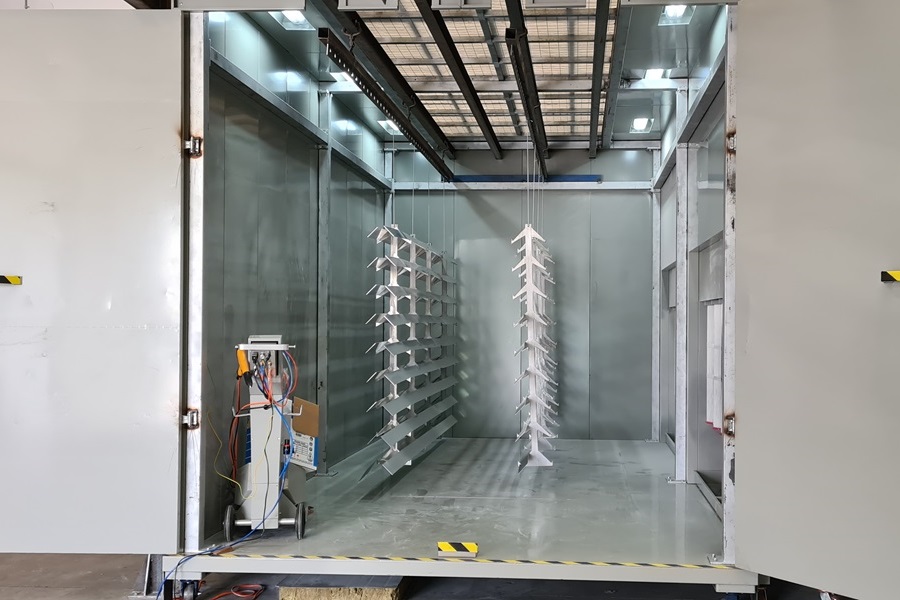

Doors Closed for a Dustless Workshop

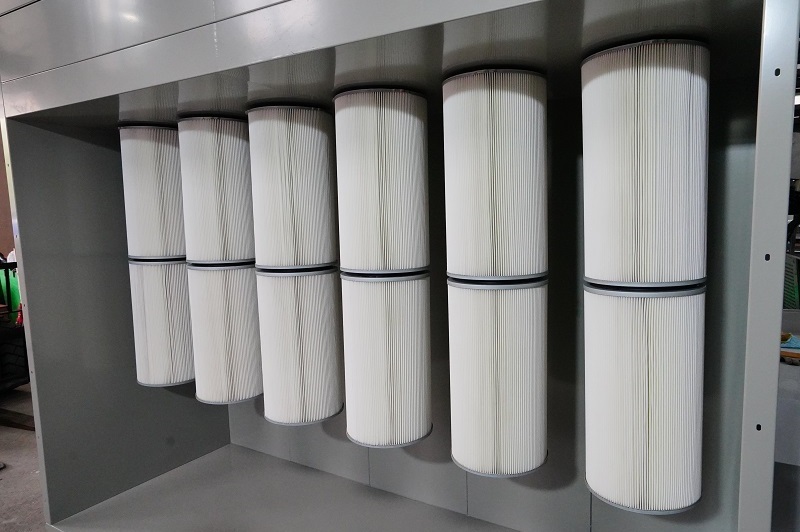

Abundent Filters for Efficient Powder Collecting

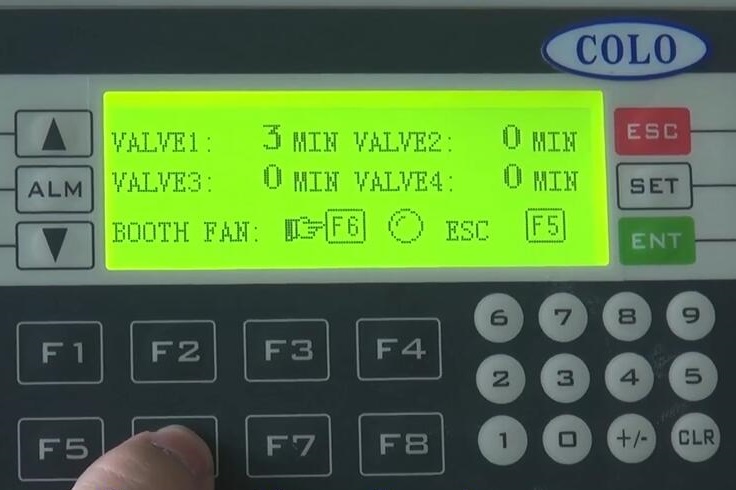

Precise PLC Controls Automatic Filter Cleaning, Fan Working

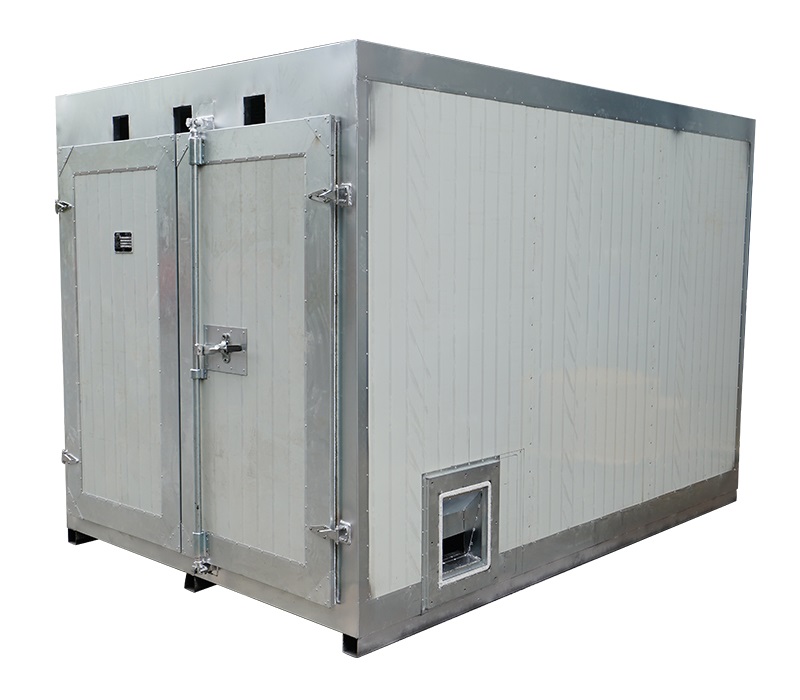

Track Powder Coating Gas Oven
This powder coating oven designed wth top tracks allows batch workparts entering for powder curing. Our batch curing oven are gas fired featuring quck-heating, energy-saving, reducing operating cost and curing more parts everyday.
Configurations & Features
The oven Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation. Inner wall is heat-resisting galvanized steel, outer wall is anti-rust steel, durable and long lifespan

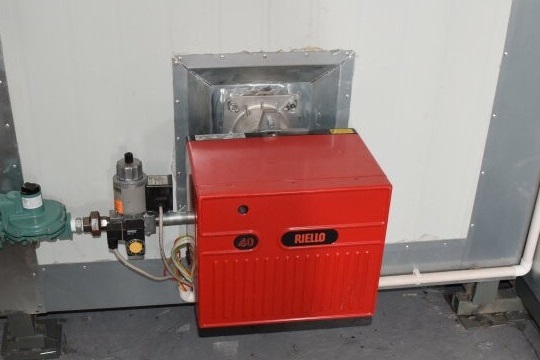

Applies Imported RIELLO gas burner, takes full utilization of fuels, making chamber rapidly and raise to required temperature
Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature stability less than 3 degree. creating quality, durable finish and no color difference.
The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers great flexibilities to achieve precise heating process.

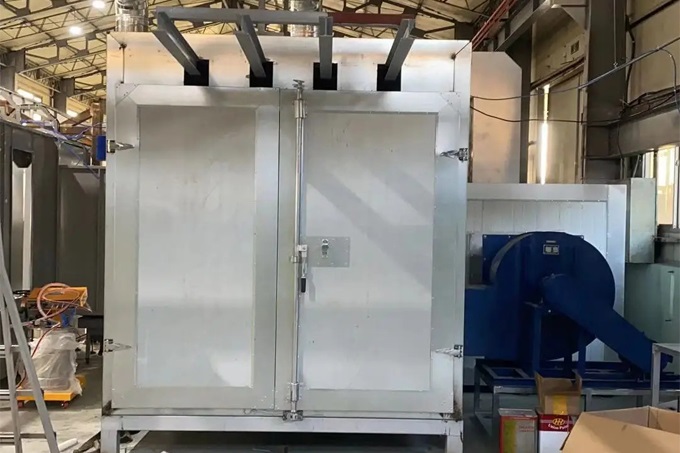

Ovhead Rails for Carrying Heavy Parts
Riello Burner for Gas/Diesel Heating Source

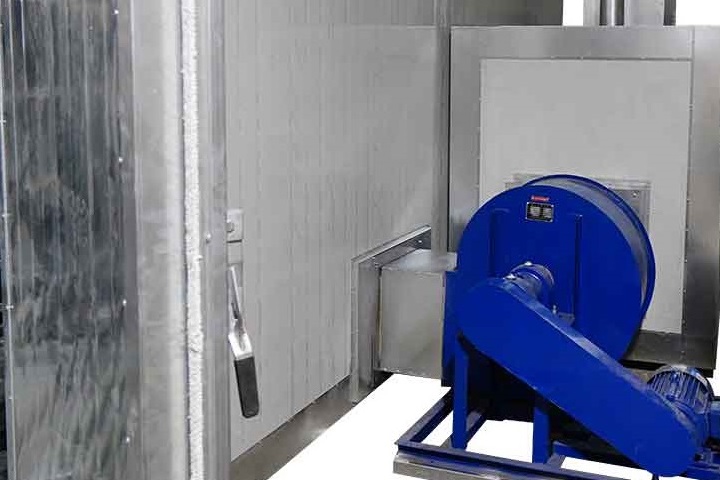

Powerful Circulation Fan for Uniform Heat Distribution.

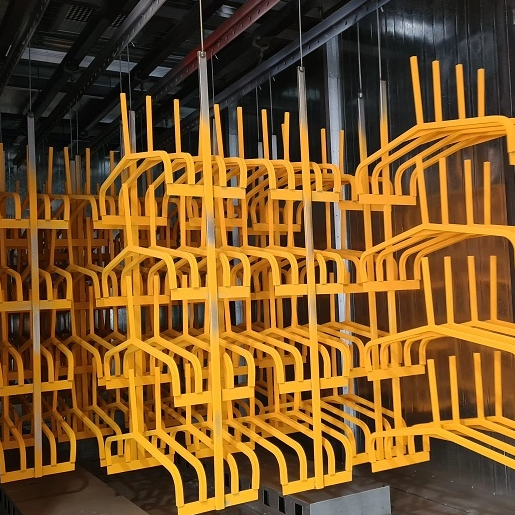

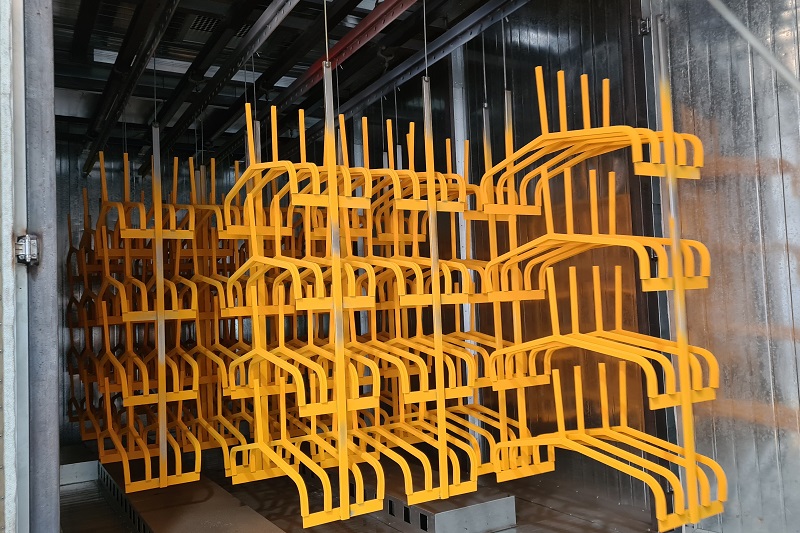

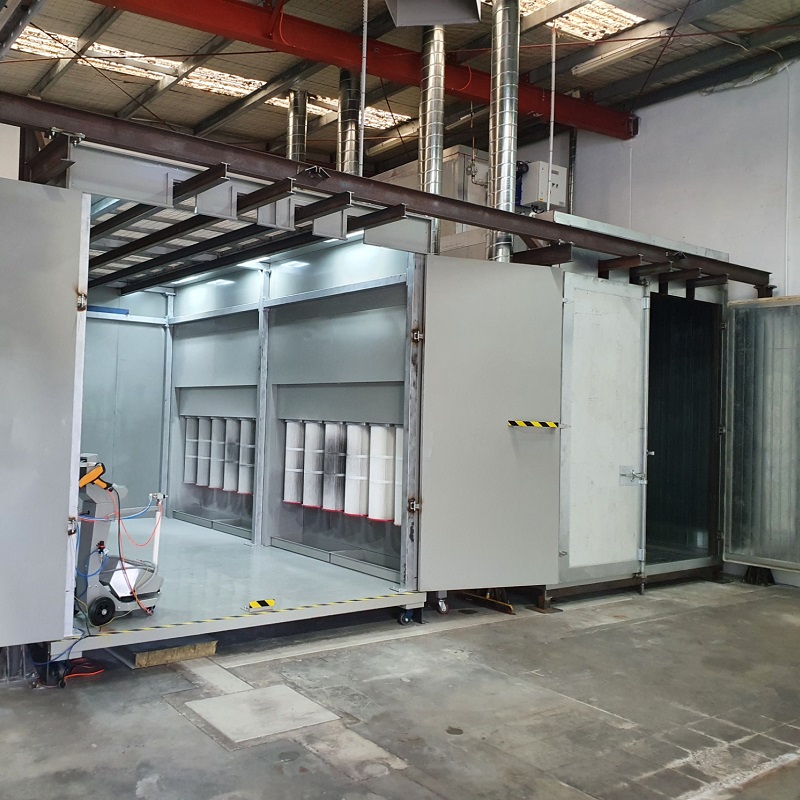

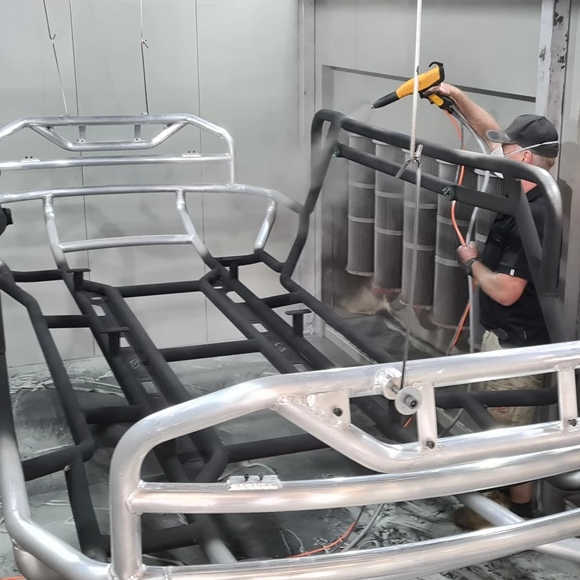

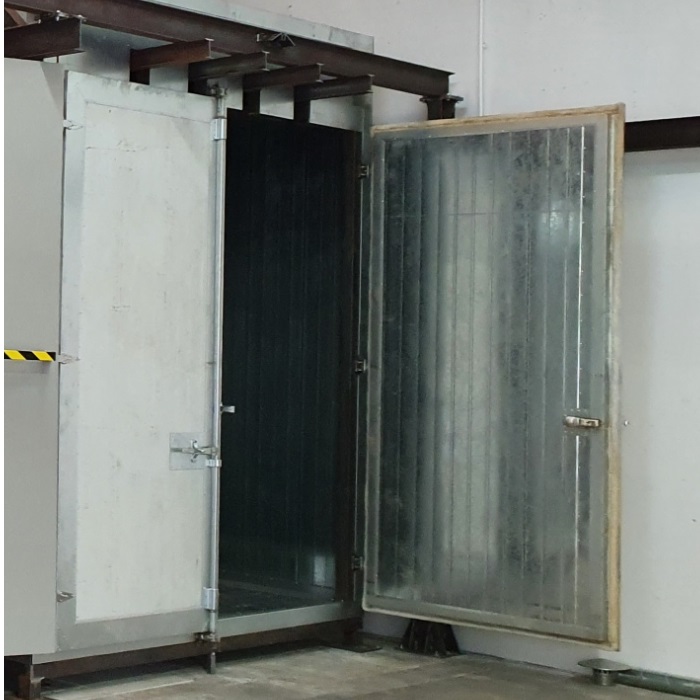

Manual Powder Coating Plant Customer Case - Built in Australia
Manual Powder Coating Plant Specifications for Reference
| Powder Coating Machine |
Model
| KF-X1 |
| Type | Box Feed |
| Max. Output Voltage | 100kv |
Powder Coating Booth
|
| Type | Walk-in |
| Inner Size | L5.5m x W2.8m x H3.1m |
| Opening Size | W2.8m x H2.9m |
| Material | SPCC/t=1.5mm |
| Bottom Frame | 8# square tube |
| Booth Inner Frame | 8# square tube |
| Recovery System | Filter Cartridge (12pcs) |
| Fan Motor | 3kw, 4sets |
| Air Flow | 4050m^3/h |
| Powder Coating Oven |
| Type | Gas Curing Oven |
| Working Dimension | Width 2.5m x Height 3.1m x Depth 5.6m |
Insulation
| t=100mm
|
| Hemming | SGCC/t=1.5mm |
| Bottom Frame | 8# Square Tube |
| Inner Frame | 8# Square Tube |
| Gas Burner | 300,000 kcal/h, RIELLO brand |
| Fan Motor | 11kw, 1 set |
| Air Flow | 12000-14000m^3/h |
