Manual Powder Coating Line with Track System
This manual powder coating line allows transporting a batch of heavy workparts from stage to stage. Thanks to the manually-pull track system, it greatly reduces labor efforts while ensures high production efficiency.

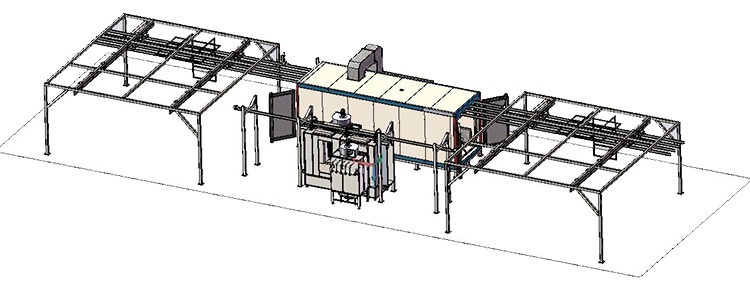

The complete powder coating system includes manual coating machine, pass thru spray booth and batch curing oven and heavy-duty track system.
Manual Powder Coating Line Applications

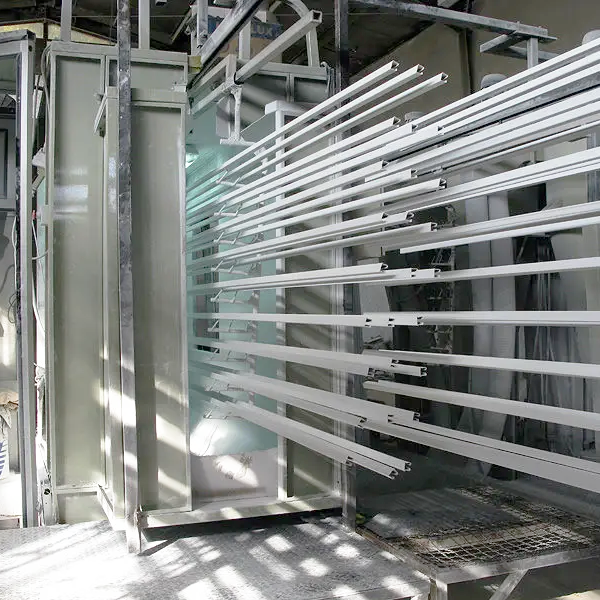

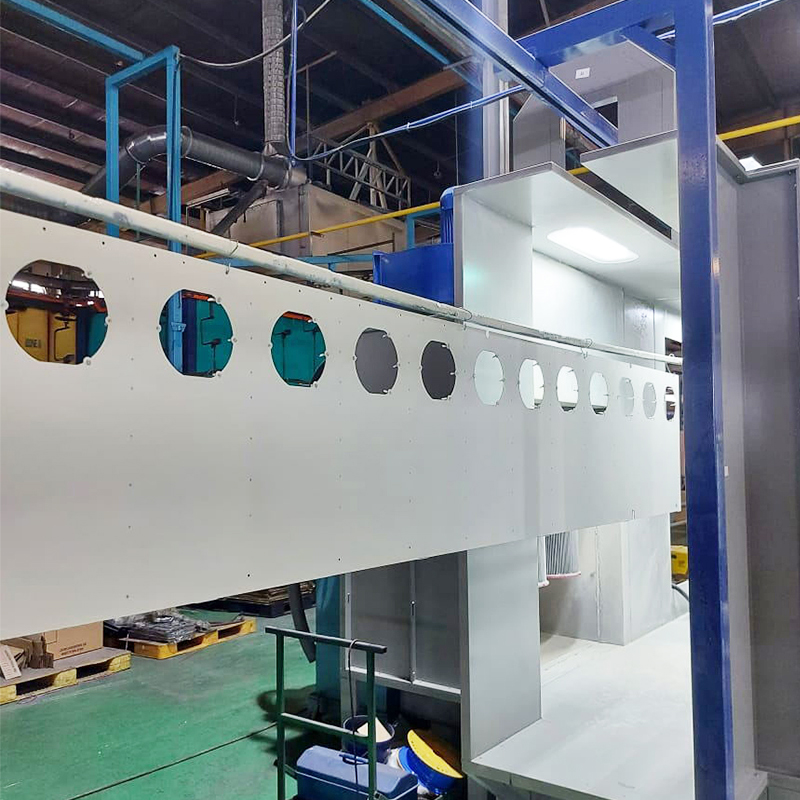

This powder coating line is specially designed for manual coating of various small, big dimension or long length workparts in batches, such as aluminium profiles, frames, brackets, etc Get a custom plan to start your own powder coating business with Kafan teams!
Manual Powder Coating Line Configurations

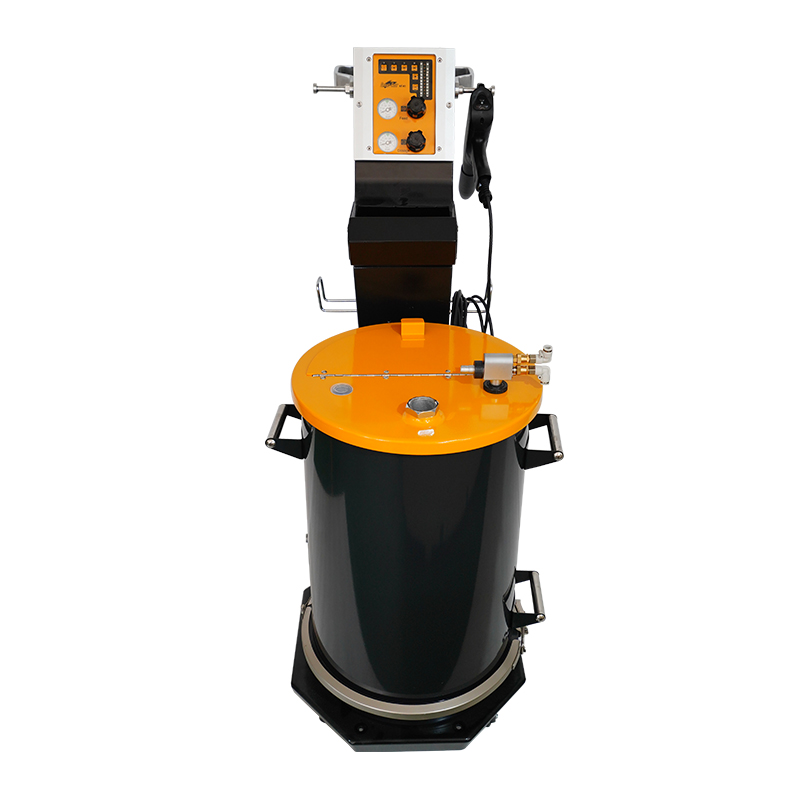

KF-K1 Powder Coating Machine
Powder coating is by manual spray system, which offers more precise operation that automatic line can not achieve, especially for handling objects in complex shapes.
KF-K1 Intelligent powder coating equipment has 3 application programs pre-set for beginners, including flat parts coating program, corner coating program, re-coating program. 0-100kv voltage adjustable by digital, help you easily find the optimal data for different applications
The 60 pounds hopper allows big powder coating productivity. We also supply box feed for fast color change demands.
Intelligent Control Offers Easy and Flexbile Operation
100kv Spray Gun Delivers Uniform Coating Film Thickness
Multiple-spray-pattern Nozzles Meets Different Metal Shapes
Pass Thru Powder Coatig Booth
Pass thru powder coating booth allows parts enter the booth from one entrance and exit from the other through overhead track while recieving powder coating from bilateral stations, suitable for long lenth workparts.
The powder spray booth configured with double filter stages for highly-efficient powder recovey, as well as ensures cleaning working environment.

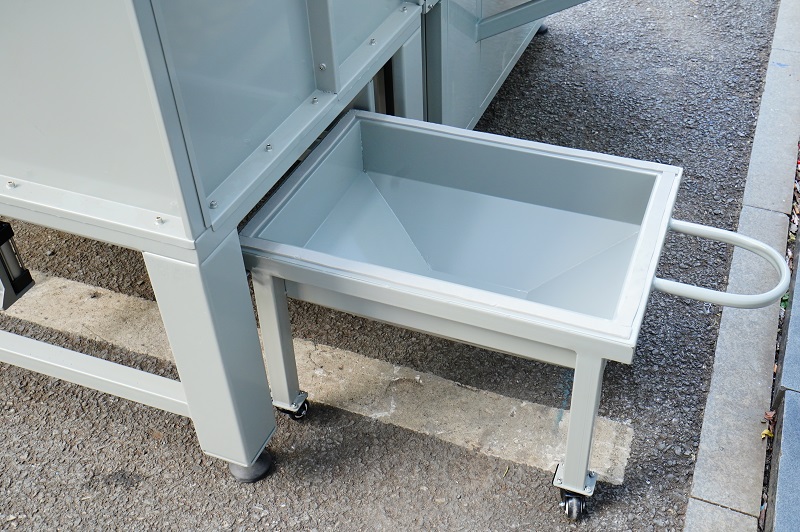

A removable powder collector beneath the filter stage will holds oversprayed powders and can be taken out for recycling use.
Automatic filter cleaning is acted through programmed pulse-jets controlled via PLC.

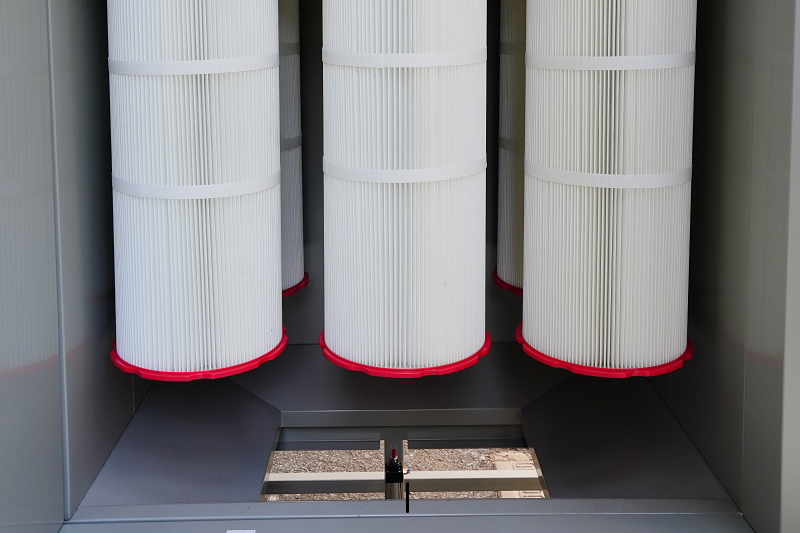

HIgh Precision Filters for Powder Recovery
Clean Overspray Powders Can be Collected and Recycled
Precise PLC Controls Automatic Filter Cleaning, Fan Working

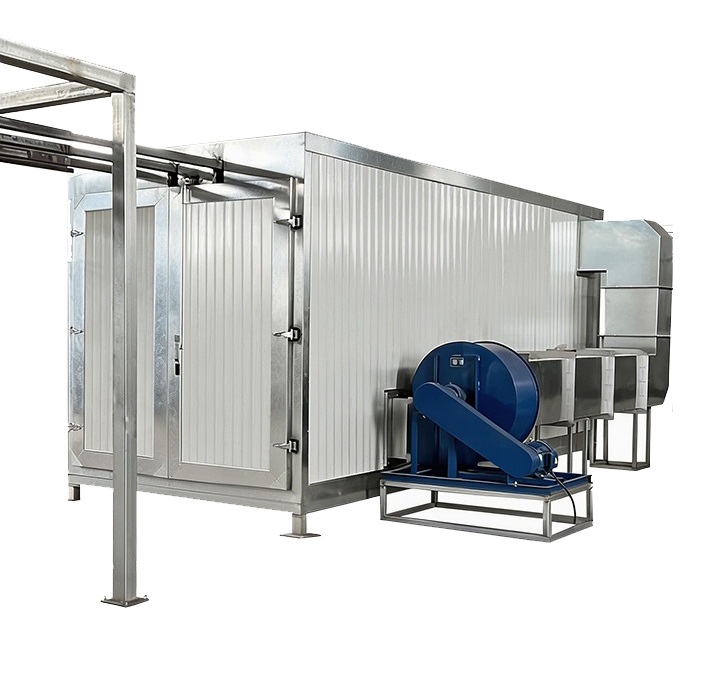

Track Powder Coating Gas Oven
This powder coating oven designed wth top tracks allows operators easily moving batch workparts entering for curing process.
Made of 100mm thick rock wool board, the oven keeps good heat preservation. A circulation fan cycles hot air uniformly that results quality curing effect.
The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.
Gas fired powder coating oven features quck-heating, energy-saving, reducing operating cost and curing more parts everyday.
Ovhead Rails for Carrying Heavy Parts
Riello Burner for Gas/Diesel Heating Source
Powerful Circulation Fan for Uniform Heat Distribution.

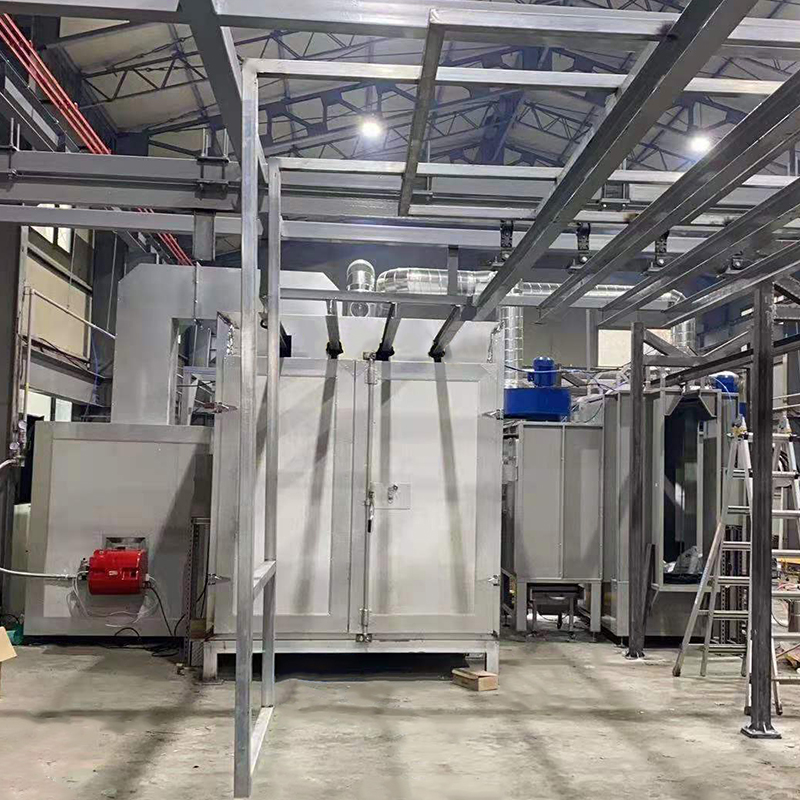

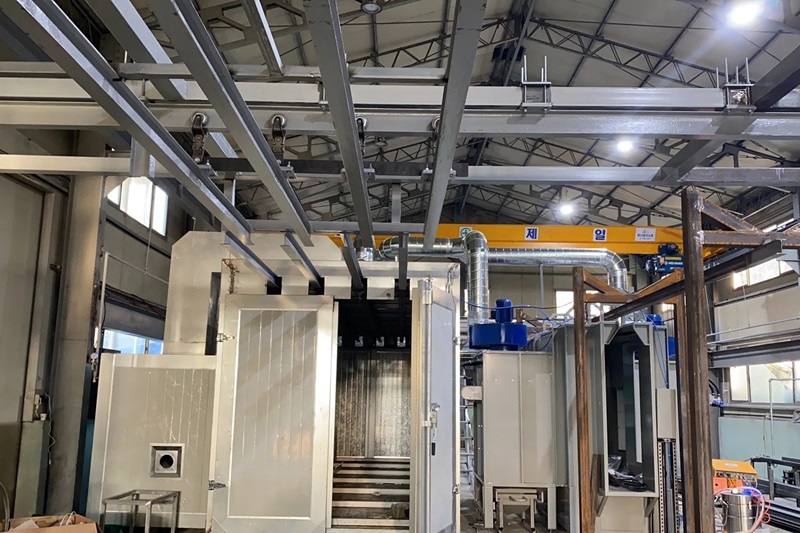

Manual Powder Coating Line Customer Case - Built in Korean for Aluminium Profiles
Manual Powder Coating Line Specifications for Reference
| Powder Coating Machine |
Model
| COLO-191S |
| Max. Output Voltage | 100kv |
| Powder Hopper Capacity | 60lbs |
Powder Coating Booth
|
| Type | Pass Thru |
| Inner Size | L4m x W1.1m x H1.82m |
| Opening Size | W0.5m x H1.82m |
| Material | SPCC/t=1.5mm |
| Bottom Frame | 8# square tube |
| Booth Inner Frame | 8# square tube |
| Recovery System | Filter Cartridge (10pcs) |
| Fan Motor | 4kw, 2sets |
| Air Flow | 5000m^3/h |
| Powder Coating Oven |
| Type | Gas Curing Oven |
| Working Dimension | Width 1.87m x Height 2.16m x Depth 7m |
Insulation
| t=100mm
|
| Hemming | SGCC/t=1.5mm |
| Bottom Frame | 8# Square Tube |
| Inner Frame | 8# Square Tube |
| Gas Burner | 300,000 kcal/h, RIELLO brand |
| Fan Motor | 7.5kw, 1 set |
| Air Flow | 8000m^3/h
|
