Manual Batch Powder Coating Plant
This manual batch powder coating plant allows batch of workparts to be processed, featuring cost-saving, space-saving and easy-operated. This plant mainly includes manual coating machine, pass thru powder coating booth with filter recovery, gas fired batch curing oven,
Manual Powder Coating Plant Applications

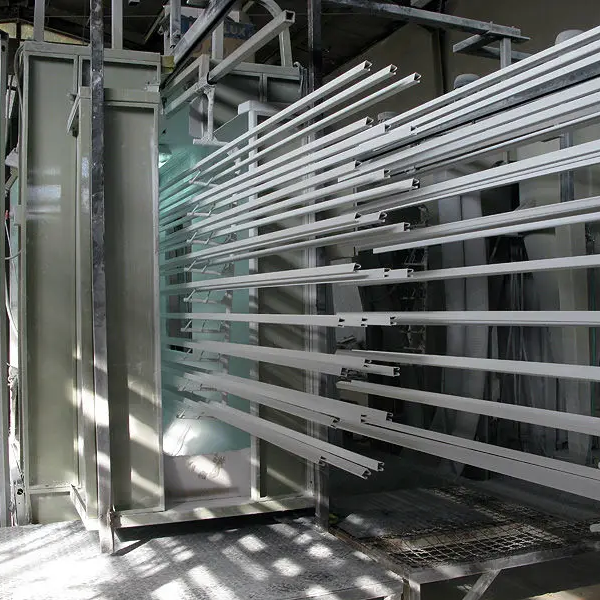

This powder coating plant is specially designed for manual coating of long length and thin workparts in batches, but not too heavy, as it requires moving the powder spraying workparts from booth to oven by manual.
Manual Powder Coating Plant Configurations
KF-K1 Powder Coating Machine
Kafan KF-K1 series powder coating machine applies advanced techbology that delivers consistent and uniform powder output for perfect coating results, whether for flat shape parts or complex shape parts, increase working efficiency, reduce powder cost.
The intelligent control has 3 application programs pre-set for beginners, including flat parts coating program, corner coating program, re-coating program. 0-100kv voltage adjustable by digital, help you easily find the optimal data for different applications
Intelligent Control Offers Easy and Flexbile Operation
100kv Spray Gun Delivers Uniform Coating Film Thickness
Multiple-spray-pattern Nozzles Meets Different Metal Shapes
Pass Thru Powder Coatig Booth
Pass thru powder coating booth allows parts enter the booth from one entrance and exit from the other through overhead track while recieving powder coating from bilateral stations, suitable for long lenth workparts.
The powder spray booth configured with double filter stages for highly-efficient powder recovey, as well as ensures cleaning working environment.
A removable powder collector beneath the filter stage will holds oversprayed powders and can be taken out for recycling use.
HIgh Precision Filters for Powder Recovery
Clean Overspray Powders Can be Collected and Recycled
Precise PLC Controls Automatic Filter Cleaning, Fan Working

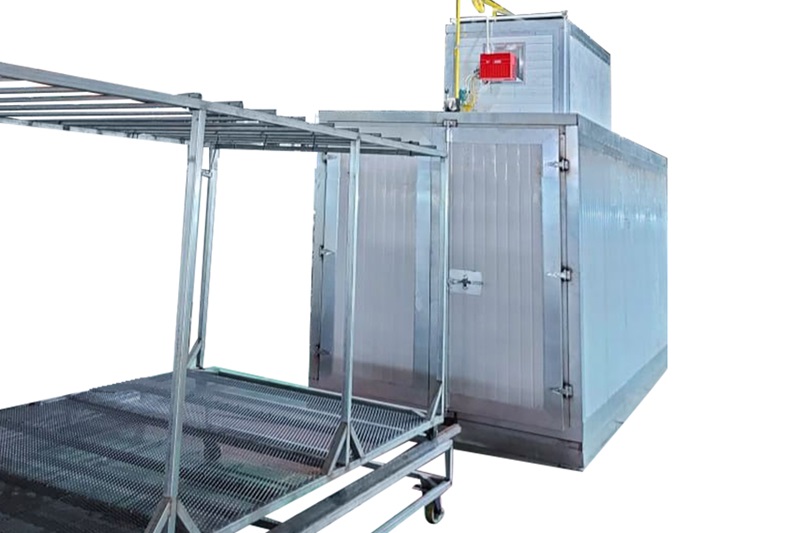

Gas Powder Coating Batch Oven
This powder coating oven designed wth ground trolleys that allows loading a group of workparts for big production. Made of 100mm thick rock wool board, the oven keeps good heat preservation. A circulation fan cycles hot air uniformly that results quality curing effect.
The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.
Gas fired powder coating oven features quck-heating, energy-saving, reducing operating cost and curing more parts everyday.

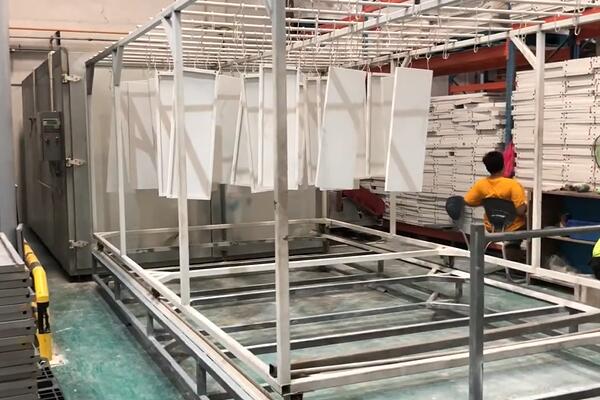

Trolley for Loading Batch of Workparts
Riello Burner for Gas/Diesel Heating Source
Powerful Circulation Fan for Uniform Heat Distribution.

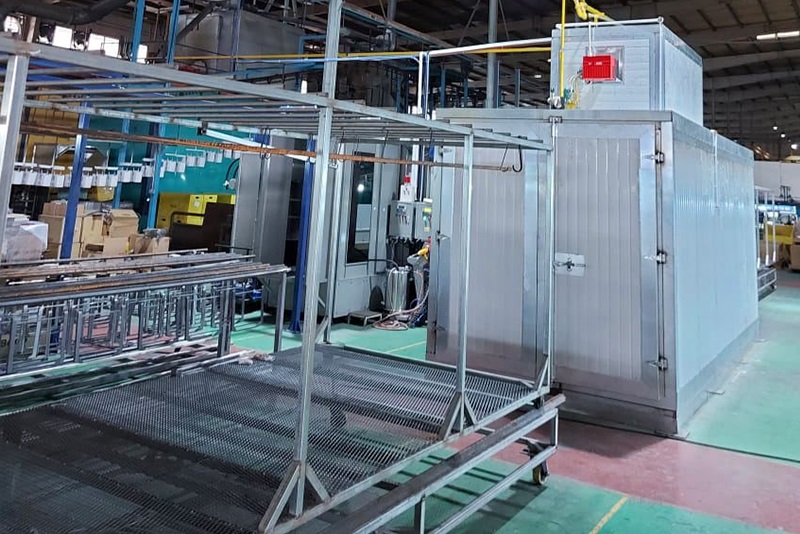

Manual Powder Coating Plant Customer Case - Built in Malaysia
Manual Powder Coating Plant Specifications for Reference
Powder Coating Machine
|
Model
| KF-K1 |
| Control | Digital Valve |
| Max. Output Voltage | 100kv |
| Hopper Capacity | 60lbs |
Powder Coating Booth
|
| Type | Pass Thru |
| Inner Size | width 1.12m x depth 4m x height 2m |
| Opening Size | W0.8m x H2m |
| Material | SPCC/t=1.5mm |
| Recovery System | Filter Cartridge (12pcs) |
| Fan Motor | 5.5kw, 2sets |
| Recovery Hopper | 2 sets |
| Air Flow | 5000m^3/h
|
| Powder Coating Oven |
| Heating Source | Gas Curing Oven |
| Working Dimension | Width 2m x Height 2m x Depth 6m |
Oven Insulation
| t=100mm
|
| Transporting | trolley, 2sets |
| Gas Burner | 200,000 kcal/h, RIELLO brand |
| Fan Motor | 7.5kw, 1 set |
| Air Flow | 8000m^3/h |
