Small Budget-saving Powder Coating Oven

COLO-1688 Powder coating oven is specially applied to car rims, alloy wheels and other small parts. The optimal design and performance ensures best curing effect.
  • COLO-1688

  • Kafan

  • Small Powder Coating Oven

  • Width1000 * Depth845 * Height1600mm (3.2‘ x 2.7’ x 5.2‘)

  • Electric, 6.5kw

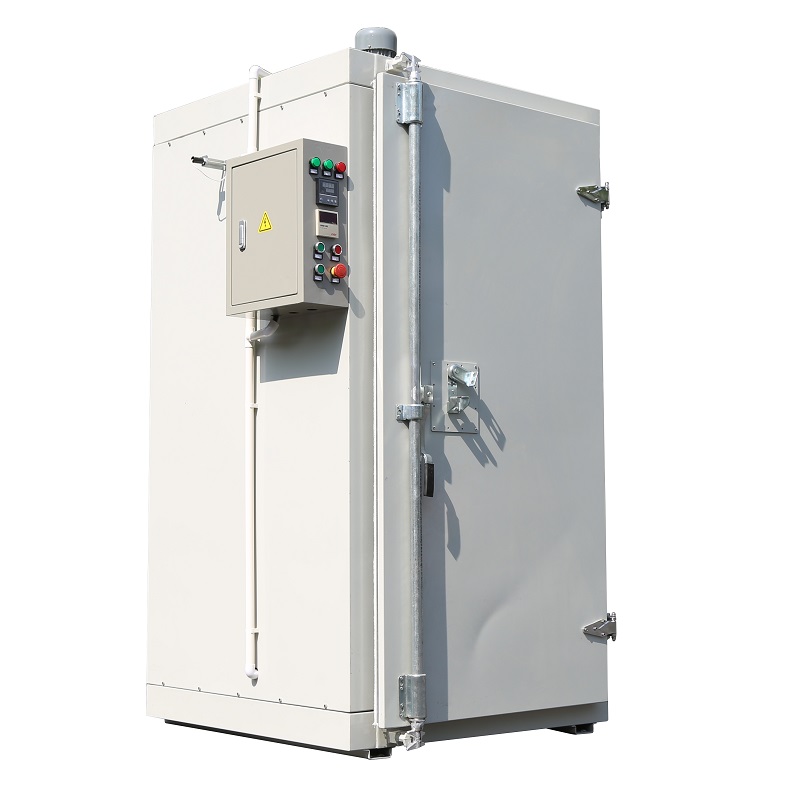

Small Budget-saving Powder Coating Oven

COLO-1688 Powder coating oven is applicable for small work pieces, specially designed for car rims, bike and motorcycle accessories. Compact powder curing oven heated by electricity, features budget-saving, space-saving and energy saving. Quality curing process forms a solid and elegant coating coverage on the workparts surface.

Small Powder Coating Oven Features

  • The circulation fan motor provides uniform heat distribution in inner chamber

  • Electric control box helps setting temperature and heating time.

  • With shelves and rails installing in the inner oven to hang the metal pieces

  • High quality electric heating tube on the bottom, 4 pcs, 1.5kw of each, ensures rapid temperature rising.

  • Rock wood material of the interlayer, good performance of heat preservation.

powder coating ovenelectric powder coating oven

Small Electric Powder Coating Oven Specifications

Model COLO-1688
Worksize dimensions (mm) Width1000 * Height1600 * Depth845
Power supply

Electric/ 6.5kw

Voltage/Frequency 110V/220v(50-60hz)
Warm-up time 15-30 min. (180° C)
Temperature stability < ± 3-5°C
Temperature max.
250° C
Ventilation performance 805-1677m3/h
Motor power 0.55kw
Circulation/ Air flow Vertical ,Variable through holes on the walls
Warranty 12 months

Why choose kafan powder coating ovens?

Kafan is brand under COLO group who specialize in sandblasting equipment and powder coating equipment. We has exported machines and system to over 100 countries in the global. Integrating of advanced technology, design ability, production speciality and professional teams, our finishing equipment gets high reputation. With imported main parts, quality-assured raw materials and in-house fabrication, our equipment requires minimal maintenance, friendly operation. We conforms to CE, ISO, ATEX standards, and promise 1 year warranty time.
