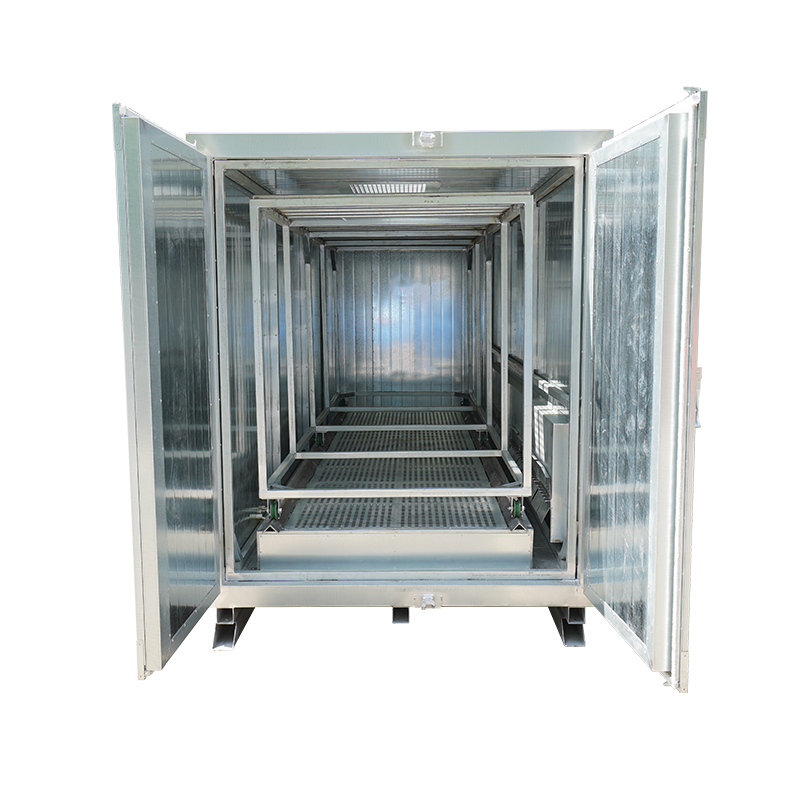

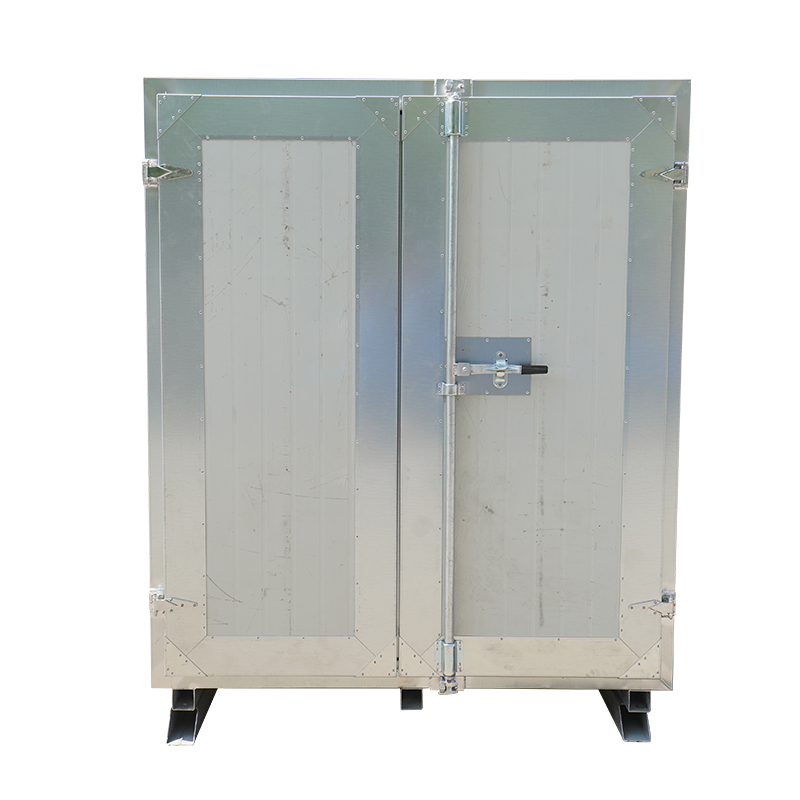

Big Electric Powder Coating Painting Oven

Industrial Powder Coating Batch Oven

The 4.5 meter length curing oven is designed for powder coating bulky parts or a big batch of small-sized parts. Electric heating style reduces the task of operation and maintenance

Model:
KF-1645
Brand:
Kafan
Size:
Width1500 * Heght1650 * Depth4500 (mm)

Availability:

Quantity:



Inquire Add to Basket

Product Description

Industrial Electric Powder Coating Batch Oven

Kafan electric powder coating oven always maintain the required temperature with uniform hot airflow throughout the entire chamber, which ensures optimal curing circles without any color difference for the metal surfaces. The curing oven equipped with trolley system has enough space for holding batch of metal parts.

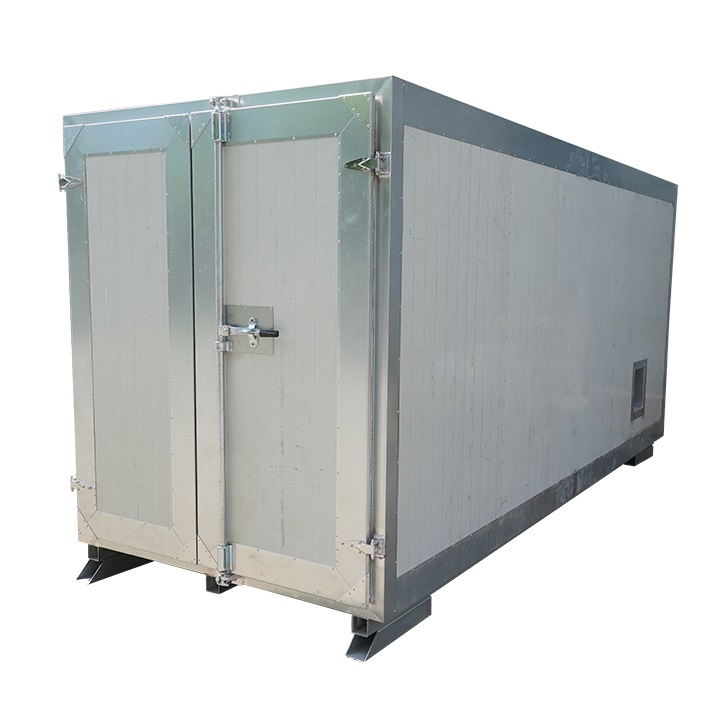

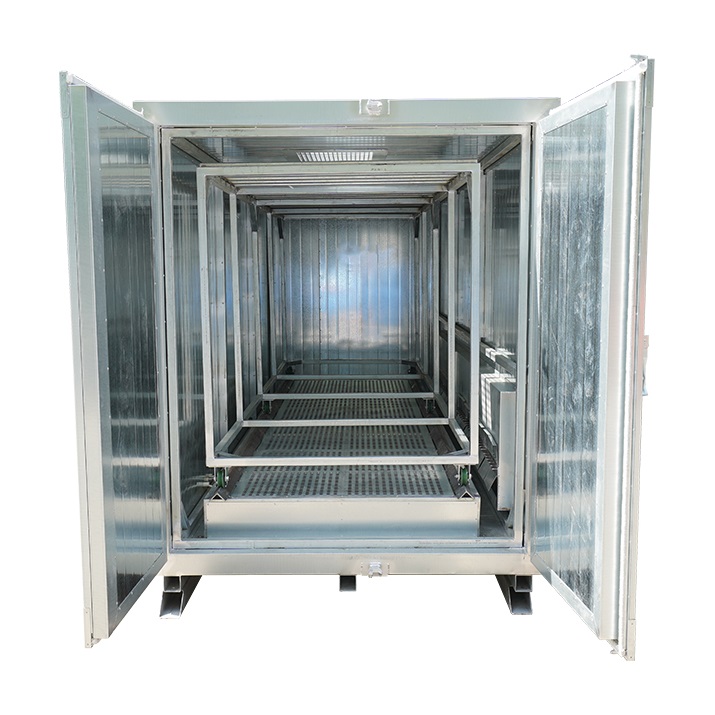

Powder Coating Batch Oven Industrial Powder Coating Batch Oven

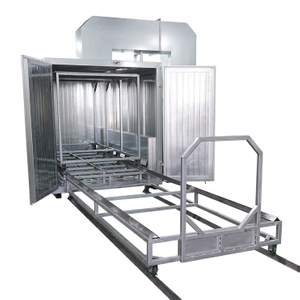

Powder Coating Oven Trolley System

The industrial powder coating oven is standardly configured with trolley system for easy loading and transporting of batch materials

It combines with an internal frame loading the workparts that is pushed into the chamber for curing process, and an external one transporting the internal trolley for easily loading and unloading.

This system is ideal for handling big batch of small or big parts that takes full utilization of oven space.

Big Electric Powder Coating Oven Applications

The 4.5 meter long length powder coating oven allows a big batch of small workparts gets curing process after electrostatic spraying, as well as accommodates medium-to-big shape workparts such as furniture cabinets, metal doors, aluminium frames.

(video shared from our Qatar customer who purchased our complete powder coating system)

Electric Powder Coating Oven Configurations

PLC Control Panel

The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.

Temperature and time can be digitally set with accurate value, and read in LCD screen.

Other functions such as: Power switch, emergency stop, fan start.

Electric Heating Element

Our electric heating element uses a certain quantity of 1.5kw U-shape electric heating tubes, uniformly distributed at the bottom of oven, ensures heating efficiency. Covered with mesh plate, those tubes are easy for maintenance.

Powder Coating Oven Material

Interlayer is 100mm thickness rock wool board that always keep the chamber warm and minimize the heat loss.

Inner wall is 1mm heat-resisting galvanized steel for heat preservation

Outer wall is anti-rust color steel, durable and long lifespan.

Circulation Fan

Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature stability less than 3 degree, creating quality finish effect with no color difference.

KF-1645 Electric Powder Coating Oven Specifications

Model	KF-1645
Working Dimension	Width1500 x Height1650 x Depth4500 mm
Overall Dimension	Width1800 x Height2050 x Depth4800 mm
Voltage	220V/380V(50-60Hz)
Warm-up Time	15-30min (180°C)
Temperature stability	< ± 3-5°C
Temperature max.	250°C
Ventilation performance	805-1677m3/h
Motor Power	3 kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley

Why choose Kafan Electric Powder Coating Ovens?

Electric powder coating ovens are constructed from high quality components, such as PLC controler, 100mm rockwool wall, powerful circulation fan, flexible trolley, all ensure efficiency, safety and long lasting use.

Powder coating ovens with standard sizes provides lower cost and shorter delivery time, which are pre-assambled, test run, data logged.

We have oven 10 years experience in the design, manufacture, installation, commissioning and ongoing support of the electric powder coating ovens. Our product range can be supplied from standard sizes or customized to your precise requirements.
