6' x 6' x 6' Electric Powder Coat Oven for Sale

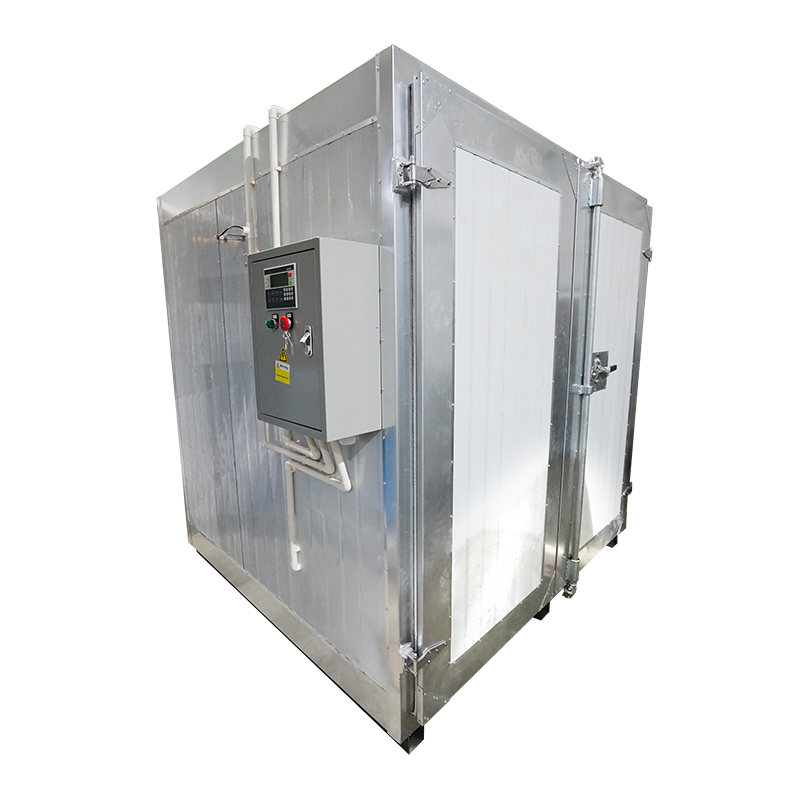

6ft Electric Powder Coat Paint Oven

Working size: 1800 x 1800 x 1800mm (6' x 6' x 6')

Our industrial powder coat ovens are available in many standard sizes (custom sizes available on request) and are the ideal choice for perfect powder curing applications

Model:
COLO-1818
Brand:
kafan
Size:
Width1800 * Heght1800 * Depth1800 (6' x 6' x 6')

Availability:

Quantity:



Inquire Add to Basket

Product Description

6ft Electric Powder Coat Paint Oven KF-1818

Kafan hot sale electric powder coat oven is recommended for batch production of small to medium sized workpieces, like wheels, bike frames and other metal parts, with excellent features of:

Excellent uniformity and heating rates for consistent, high quality curing results.
Uniform heat distribution provides quality cured finishes and optimum cure cycles.
Quick heat-up rates so you can cure more loads per day.
Fully adjusted and factory tested PRIOR to shipment to reduce installation and start-up times.

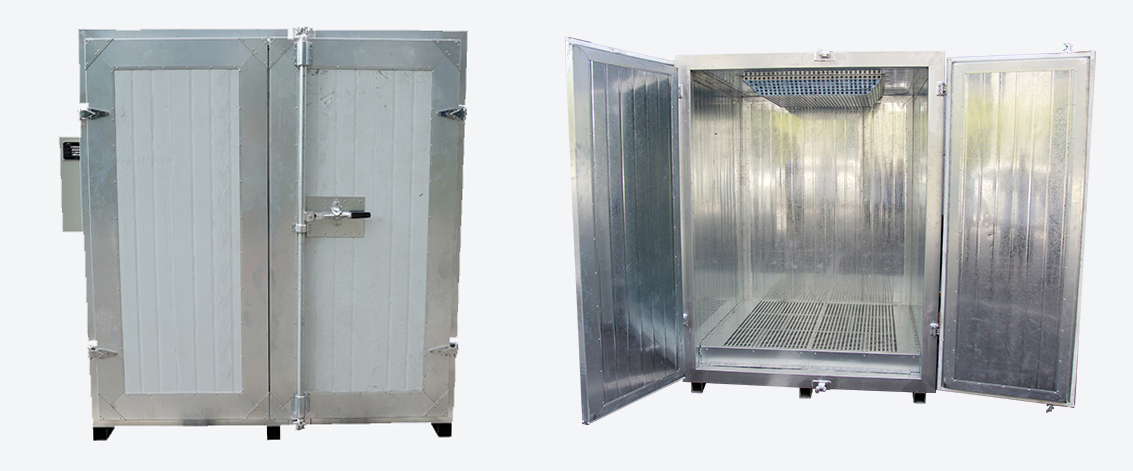

1818 powder coating oven

未标题-1(5) - 副本

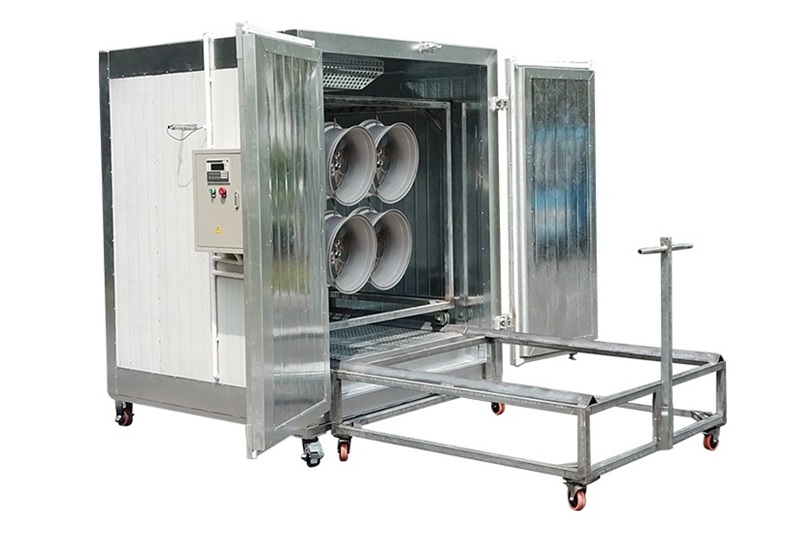

Powder Coating Oven Trolley System

The industrial powder coating oven is standardly configured with trolley system for easy loading and transporting of batch materials

It combines with an internal frame trolley loading the workparts that is pushed into the chamber for curing process, and an external one transporting the internal trolley for easily loading and unloading.

This system is ideal for handling batch of small or big parts that takes full utilization of oven space.

Electric Powder Coating Oven Configurations

PLC Control Panel

The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.

Temperature and time can be digitally set with accurate value, and read in LCD screen.

Other functions such as: Power switch, emergency stop, fan start.

Electric Heating Element

Our electric heating element uses a certain quantity of 1.5kw U-shape electric heating tubes, uniformly distributed at the bottom of oven, ensures heating efficiency. Covered with mesh plate, those tubes are easy for maintenance.

Powder Coating Oven Material

Interlayer is 100mm thickness rock wool board that always keep the chamber warm and minimize the heat loss.

Inner wall is 1mm heat-resisting galvanized steel for heat preservation

Outer wall is anti-rust color steel, durable and long lifespan.

Circulation Fan

Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature variation less than 3 degree, creating quality finish effect with no color difference.

KF-1818 Electric Powder Coat Oven Specifications

Model	KF-1818
Working Dimension (mm)	Width1800 * Heght1800 * Depth1800
Voltage	220V/380V(50-60Hz)
Heating Power	18kw
Warm-up Time	15-30min (180°C)
Temperature stability	< ± 3-5°C
Temperature max.	250°C
Ventilation performance	805-1677m3/h
Motor Power	0.75kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley

Why choose Kafan powder coating oven?

We offer a variety of standard powders curing ovens which requires less cost and shorter delivery time, we promise 1 year warranty time, free replacement if any damage of the heating and electric elements.

Thanks to the professional technical team, Kafan offers customized powder coating oven according to your product size, output and other requirements, oversea installaton and commissioning services are available.

Owning a 4000m^2 production base, each powder coating oven is built in house, using premium quality materials, such as durable steel, vital components are imported, such as Italy Riello burner. You will get reliable and long life powder coating ovens at Kafan.
