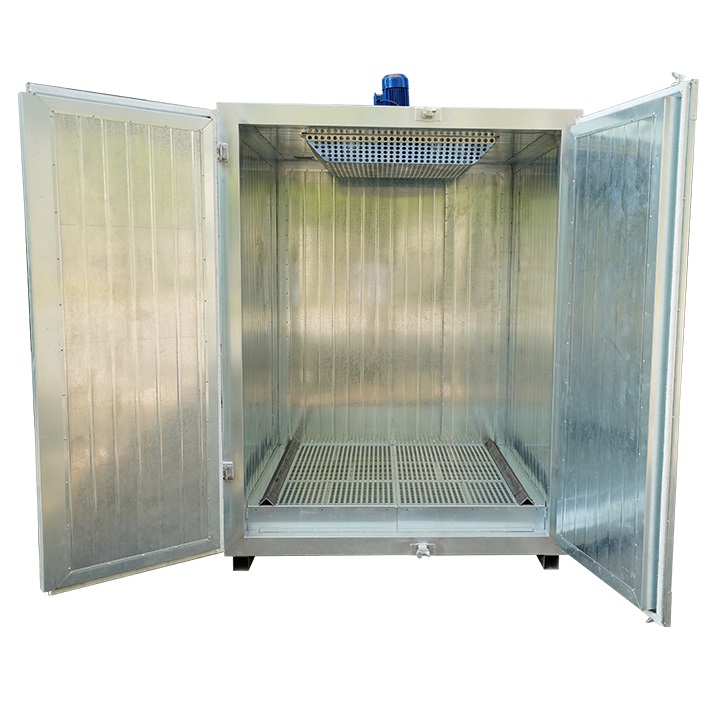

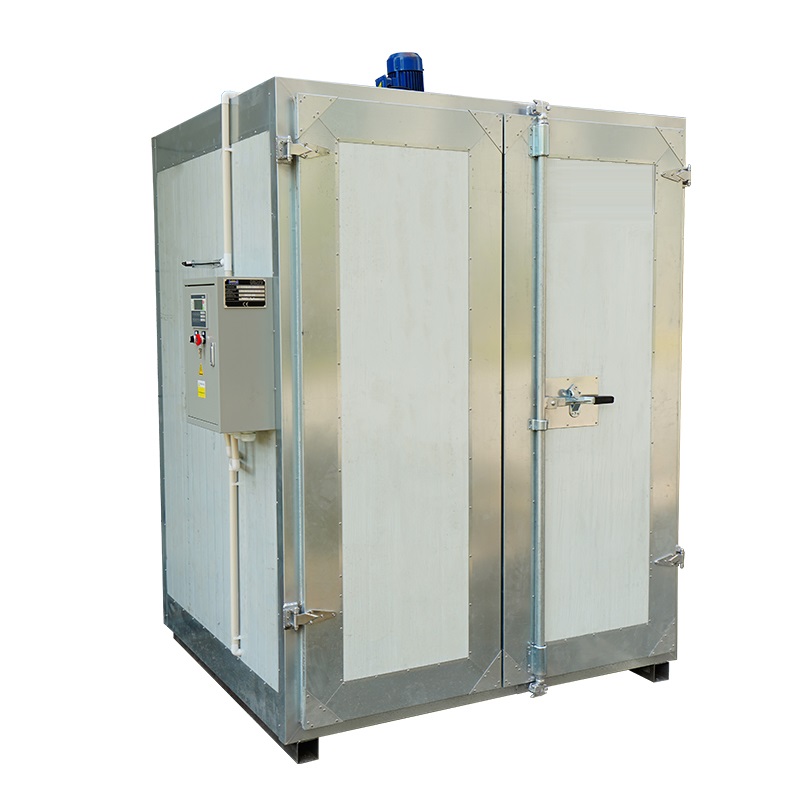

KF-1864 electric powder coating oven enjoys a large popularity in the global market, high performance, wide application, energy-saving, which integrated kafan 10 years'design and export technology, superior quality components and materials.
Electric heating source curing oven, provides clean environment and easy operation.
Rapidly raise to the required temperature(180-250 degree) in a short time, high working efficiency
Uniform heat distribution in inner chamber ensures no color difference of the metal surface.
100mm thickness rock wool board of the interlayer, reliable heat preservation.
Support for batch production of small to medium sized workpieces, such as alloy wheels, bike and motocycle frames, and other metal parts and accessories.

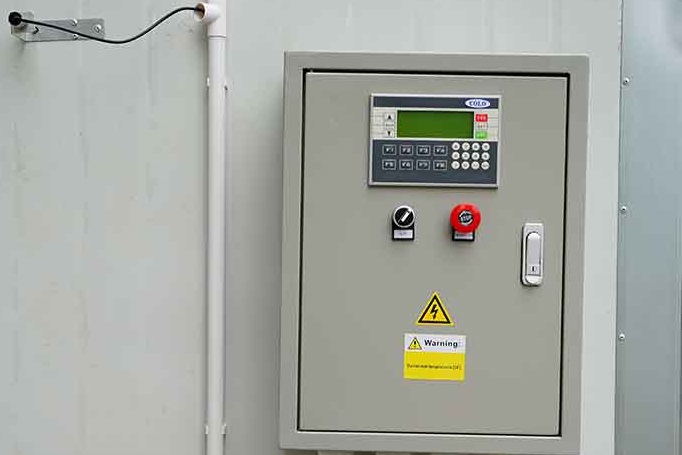

1.Electric Control Box
Allows operator easily setting heat temperature and heat time, and start the fan motor on the PLC screen. As soon as the heating time up, the oven will stop working automatically.
2.Power Coating Oven Materials
1 inner wall: Galvanized Steel(thickness=1mm), heat-resistent
2.interlayer: rock wool board(thickness=100mm), insulated, maintain the inside temperature
3.outer wall: Color Steel(thickness=0.7mm), anti-rust

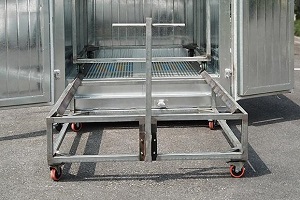

3.Transporting System
KF series ovens are standard equipped with two manual trolleys. An inexpensive solution for transporting heavy workparts by using less force. One upper trolley only move in the chamber of oven that does not pullet the furnace. The bottom trolley load the upper trolley for outside transportation.
| Model | KF-1864 |
| Working Dimension (mm) | Width1600 * Heght1800 * Depth1400 |
| Overall Dimension (mm) | Width1900 * Heght2200 * Depth1700 |
| Voltage | 220V/380V(50-60Hz) |
| Heating Power | 18kw |
| Warm-up Time | 15-30min (180°C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250°C |
| Ventilation performance | 805-1677m3/h |

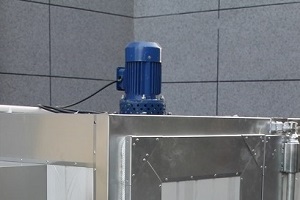

| Motor Power | 0.75kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Transportation | Trolley |
| Model | Working Dimension (mm) | Heating Power | Fan Motor Power |
| KF-1515 | Width1500 * Heght1500 * Depth1500 | 12kw | 0.75kw, 1pcs |
| KF-1864 | Width1600 * Heght1800 * Depth1400 | 12kw | 0.75kw, 1pcs |
| KF-1732 | Width1650 * Heght1700 * Depth3000 | 18kw | 1.5kw, 1pcs |
| KF-1645 | Width1500 * Heght1650 * Depth4500 | 32kw | 3kw, 1pcs |
We offer a variety of standard powders curing ovens which requires less cost and shorter delivery time, we promise 1 year warranty time, free replacement if any damage of the heating and electric elements.
Thanks to the professional technical team, Kafan offers customized powder coating oven according to your product size, output and other requirements, oversea installaton and commissioning services are available.
Owning a 4000m^2 production base, each powder coating oven is built in house, using premium quality materials, such as durable steel, vital components are imported, such as Italy Riello burner. You will get reliable and long life powder coating ovens at Kafan.
