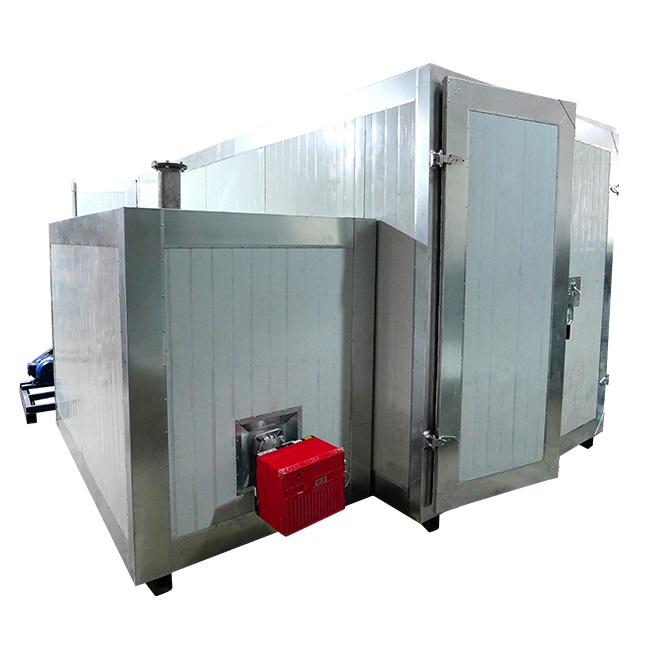

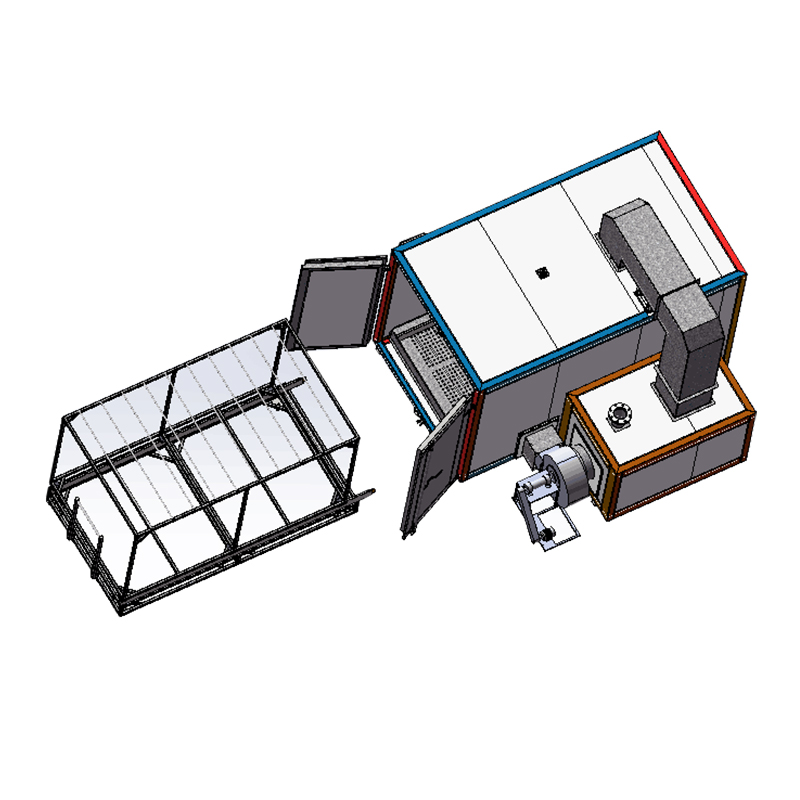

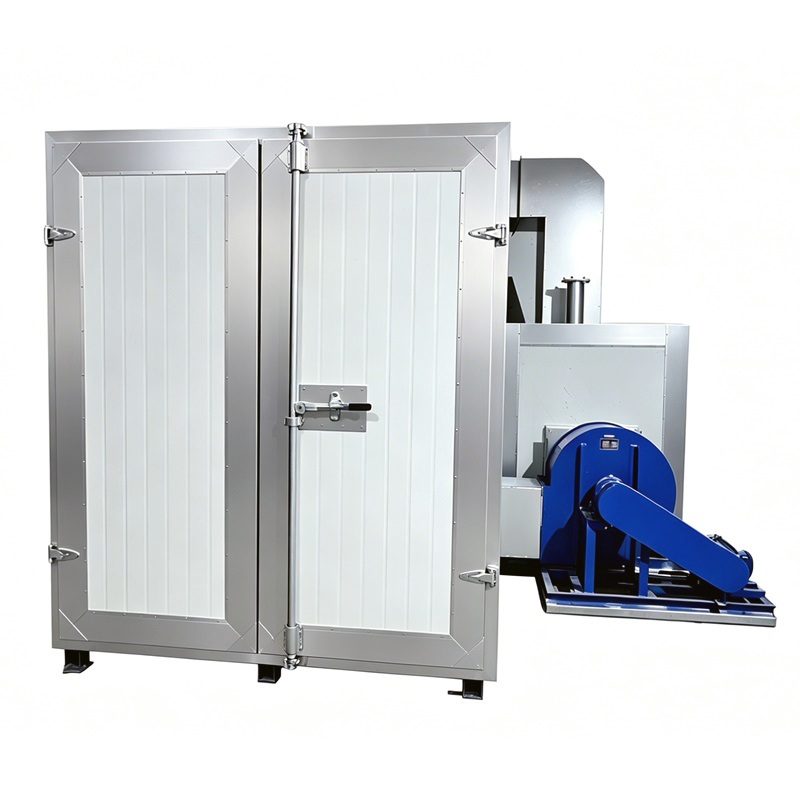

3m Gas Powder Coating Oven

Gas fired powder oven has significant advanatges of energy-saving and cost-saving, comparing with electric oven, it save more expense of energy consumption, comparing with diesel oven, it eliminates air pollution.

Model:
KF-3210
Brand:
Kafan
Size:
Width2000 * Heght1900 * Depth3100 mm
Power Supply:
Natural Gas/LPG/Diesel

Availability:

Quantity:



Inquire Add to Basket

Product Description

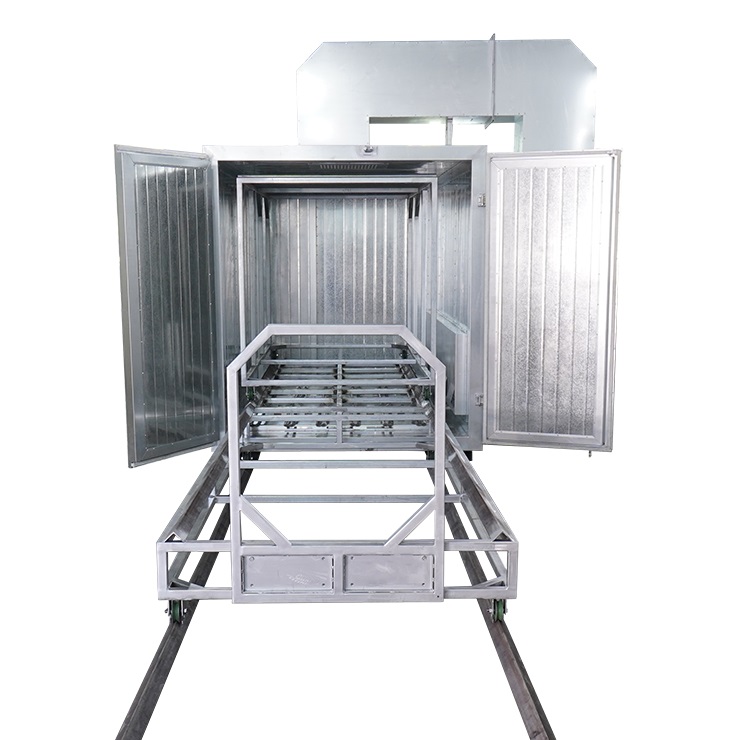

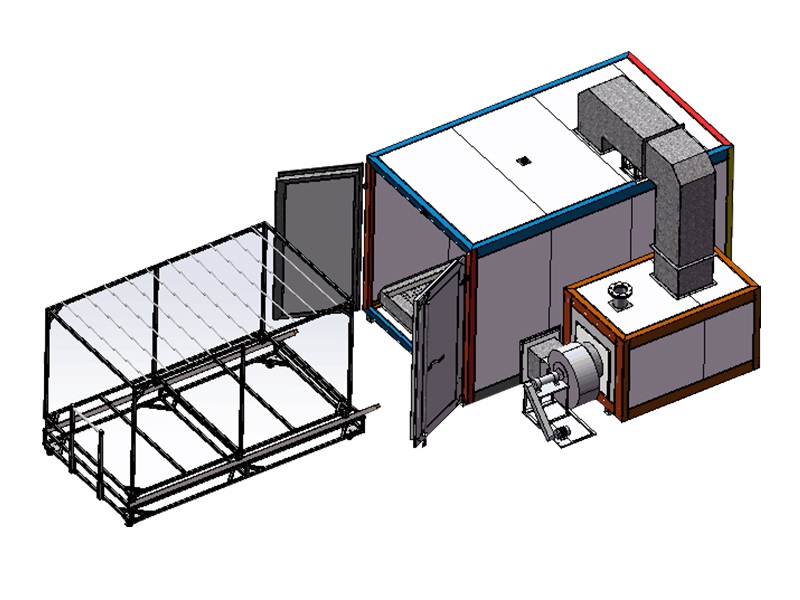

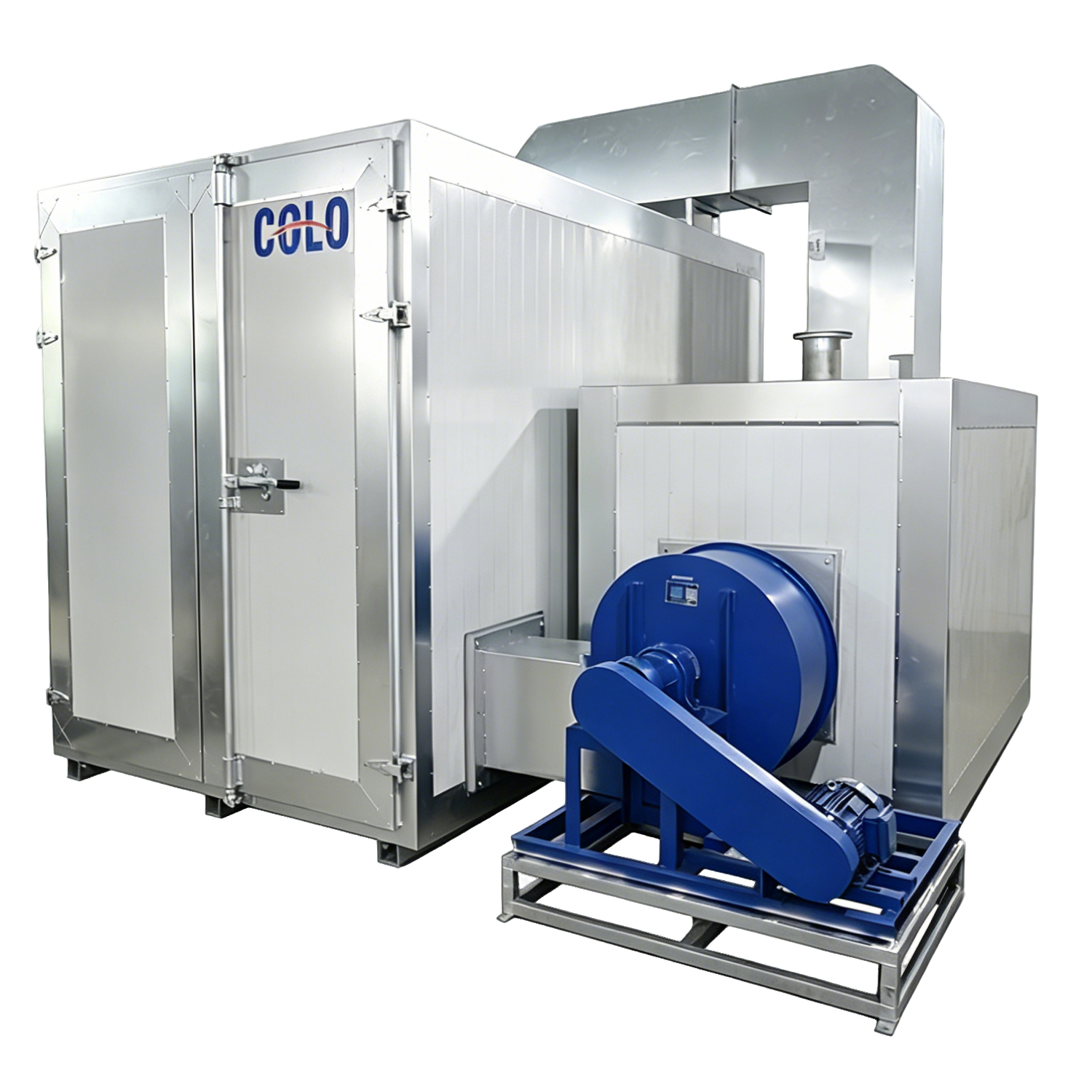

KF-3210 Gas Powder Coating Batch Oven

Kafan gas powder coating oven applies high performance burner that enables a quick raise to high temperature, saving your time everyday. And our advanced technology ensures uniform heating distribution throughout the curing oven interior that ensures quality cured results without any color aberration.

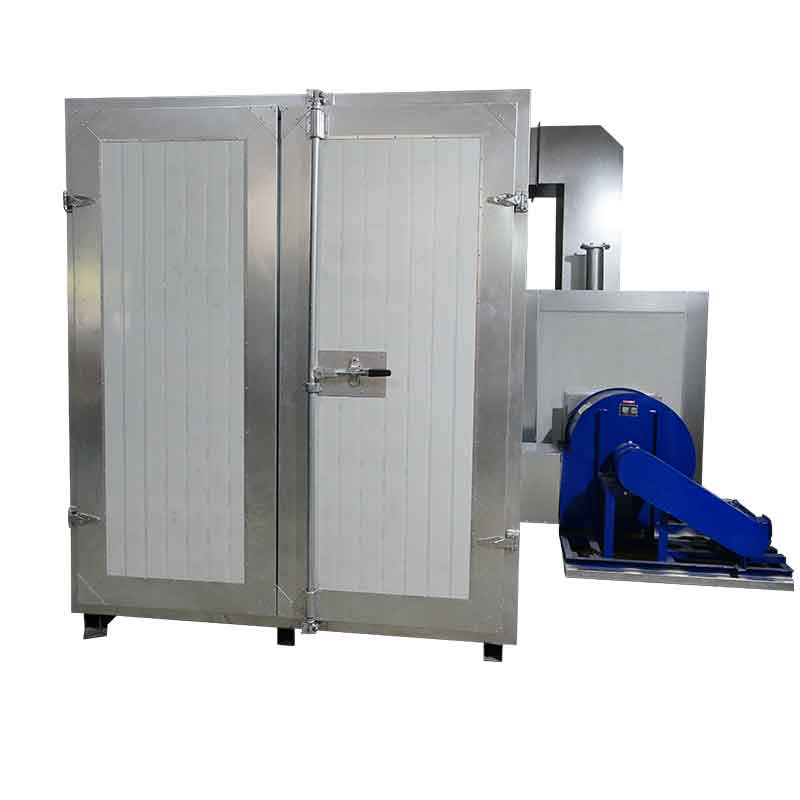

Gas Powder CoatingOven Powder Coating Batch Oven

KF-3210 Gas Powder Coating Batch Oven

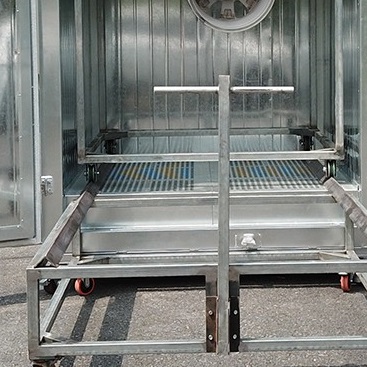

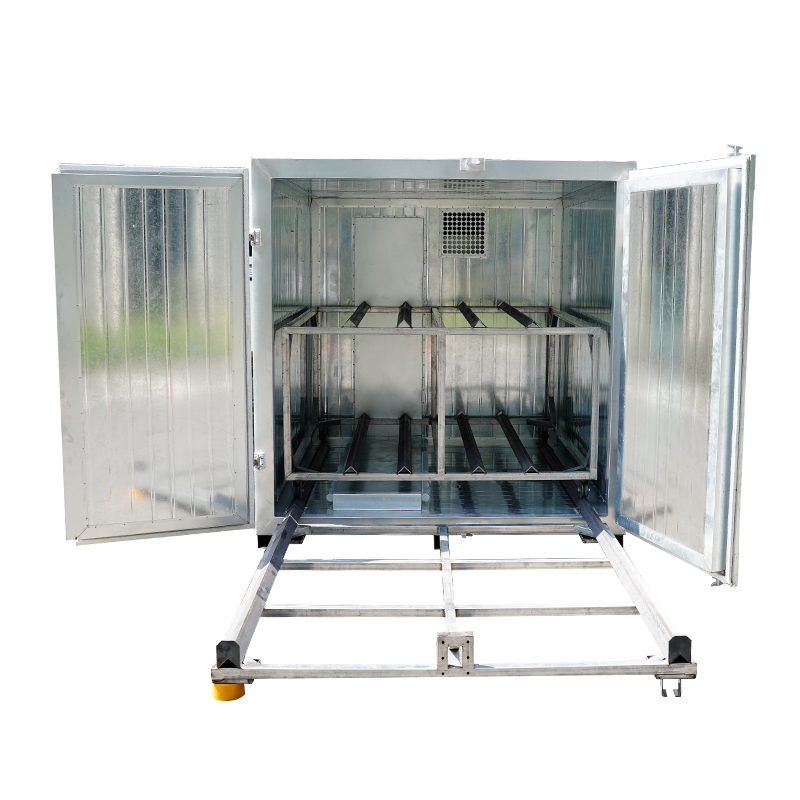

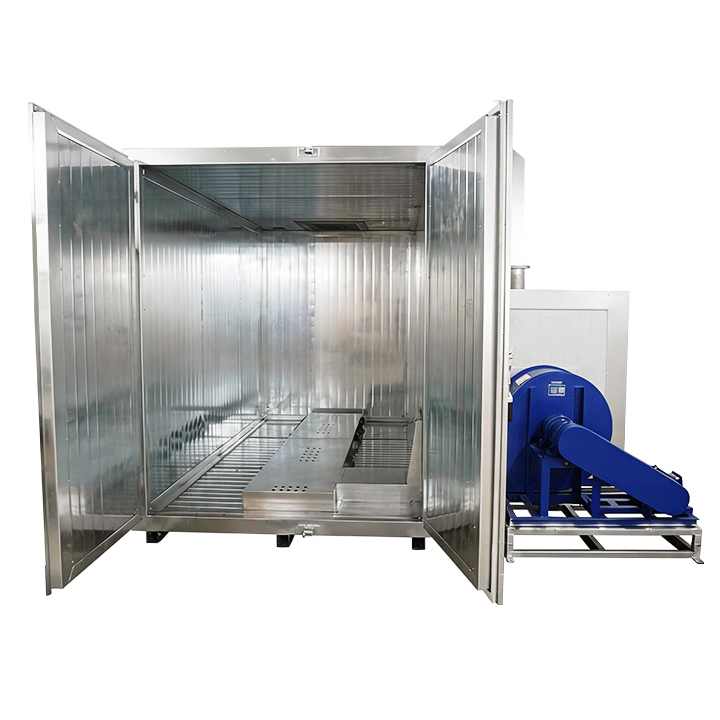

The oven system is standardly equipped with a pair of trolleys: internal one and external one. Internal trolley designed in the form of a frame to loading workparts participating in curing process inside the oven. External trolley is used to carry the internal cart for outside operation and transportation.

It is a superior solution that allows loading batch of workparts taking full utilizing of oven space, as well as carrying heavy elements using a small amount of force.

Gas Powder Coating Batch Oven Applications

Gas powder coating oven is widely used in powder coating industry, 3meter length allows batch production of various metal parts, such as vehicle wheels, frames, profiles, furniture, etc.

Gas Powder Coating Oven Specifications

Model	KF-3210
Working Dimension (mm)	Width2000 * Heght1900 * Depth3100
Voltage	220V/380V(50-60Hz)
Power Supply	Gas/Diesel/LPG
Warm-up Time	15-30min (180°C)
Temperature stability	< ± 3-5°C
Temperature max.	250°C
Burner	Italy RIELLO, 100,000kcal
Ventilation performance	805-1677m3/h
Motor Power	1.5kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley

Gas Powder Coating Oven Details

PLC Control Panel

The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.

Temperature and time can be digitally set with accurate value, and read in LCD screen.

Other functions such as: Power switch, emergency stop, fan start.

Powder Coating Oven Material

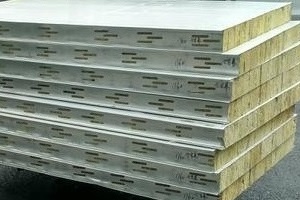

Interlayer is 100mm thickness rock wool board that always keep the chamber warm and minimize the heat loss.

Inner wall is 1mm heat-resisting galvanized steel for heat preservation

Outer wall is anti-rust color steel, durable and long lifespan.

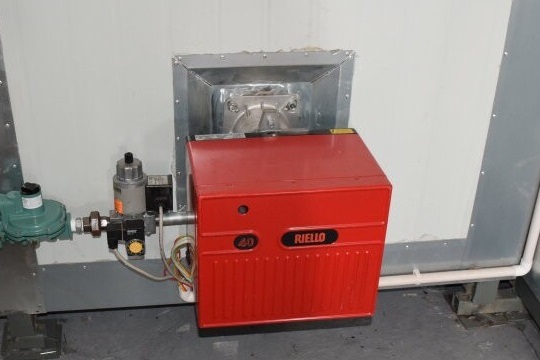

RIELLO Gas Burner

Italy Imported RIELLO gas/diesel burner, takes full utilization of fuels, making chamber rapidly and raise to required temperature. The high performance burner features reliable working and energy-saving.

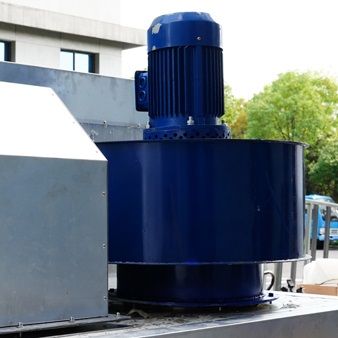

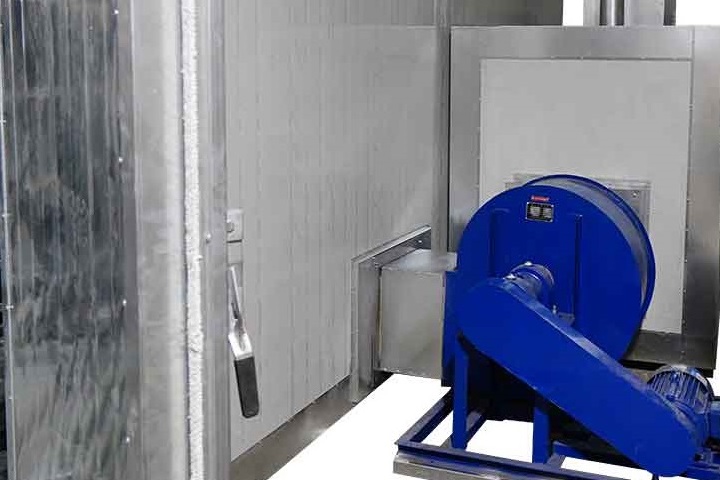

Circulation Fan

5.5kw Powerful fan circles hot air in the oven chamber and ensures uniform heat distribution with temperature stability less than 3 degree, creating quality, durable cured effect without color difference.

Why choose Kafan Powder Coating Ovens?

Kafan powder coating ovens are constructed from high quality components, such as PLC controler, 100mm rockwool wall, powerful circulation fan, flexible trolley, all ensure efficiency, safety and long lasting use.

Powder coating ovens with standard sizes provides lower cost and shorter delivery time, which are pre-assambled, test run, data logged.

We have oven 10 years experience in the design, manufacture, installation, commissioning and ongoing support of the electric powder coating ovens. Our product range can be supplied from standard sizes or customized to your precise requirements.
