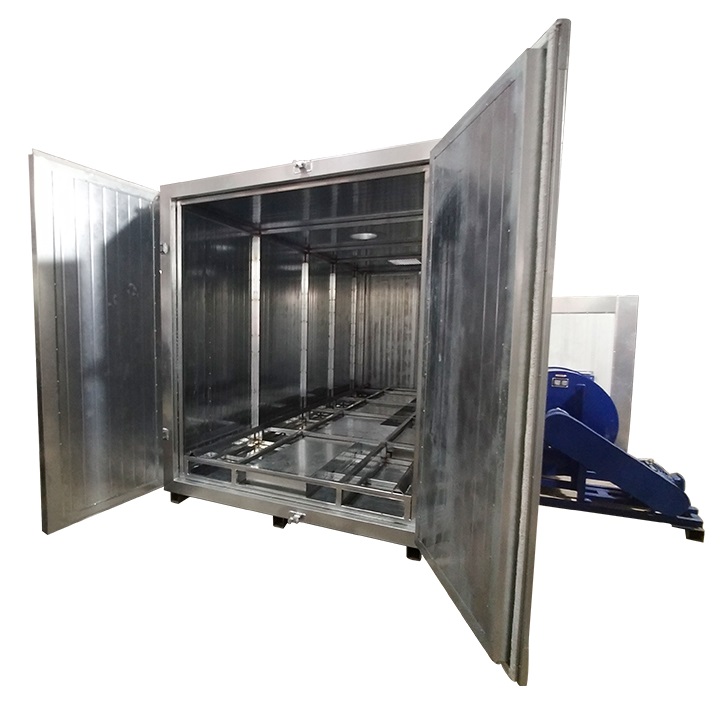

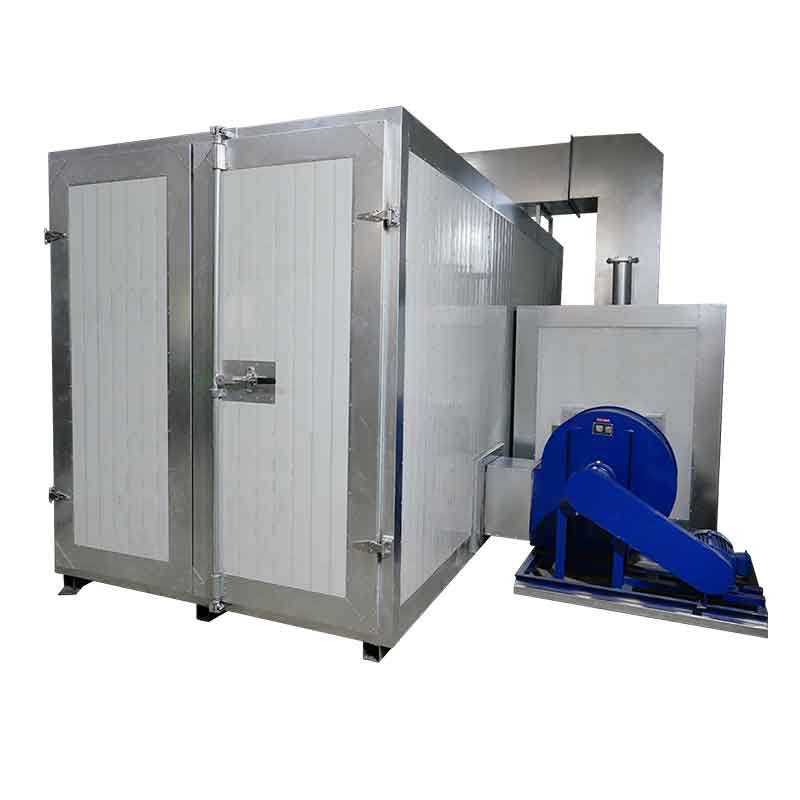

7m Batch Powder Coating Oven, Gas/Diesel Fired Curing Oven
The 7m depth powder coating oven is specially for application of long length and big dimension workpieces. Our batch curing ovens are recommended for heated by gas or diesel, using with imported Riello burner takes full utilization of fuels, leading to remarkably curing efficiency with less energy expense.
7m Batch Powder Coating Oven Applications
This powder coating oven is Ideal for big batch of workparts such as aluminium profiles, frames, plates. We could design the transport trolley or overhead rail system specially for your products that maximize your production capacity. Our powder coating oven with forced air circulation ensures continuous curing temperature, as the humanized operation design is friendly to workers.
Powder Coating Oven Transport System Design

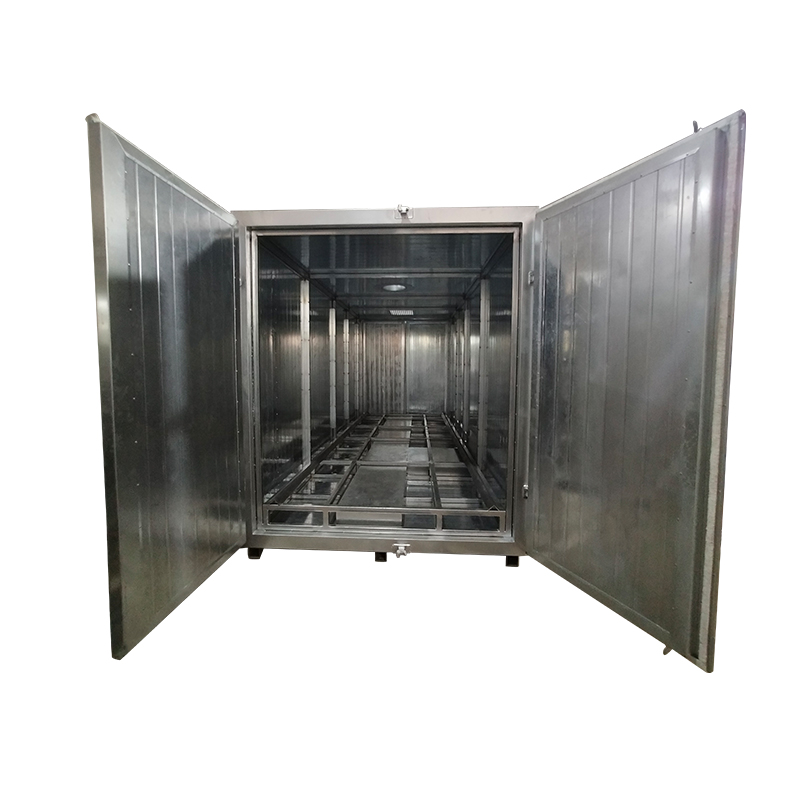

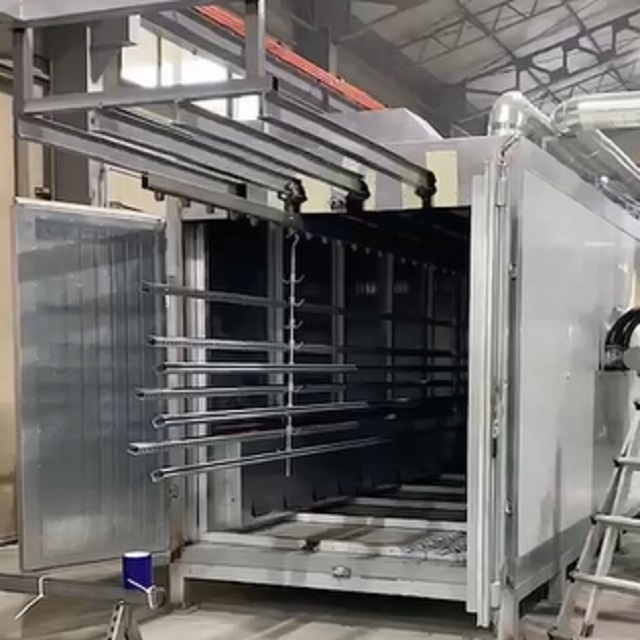

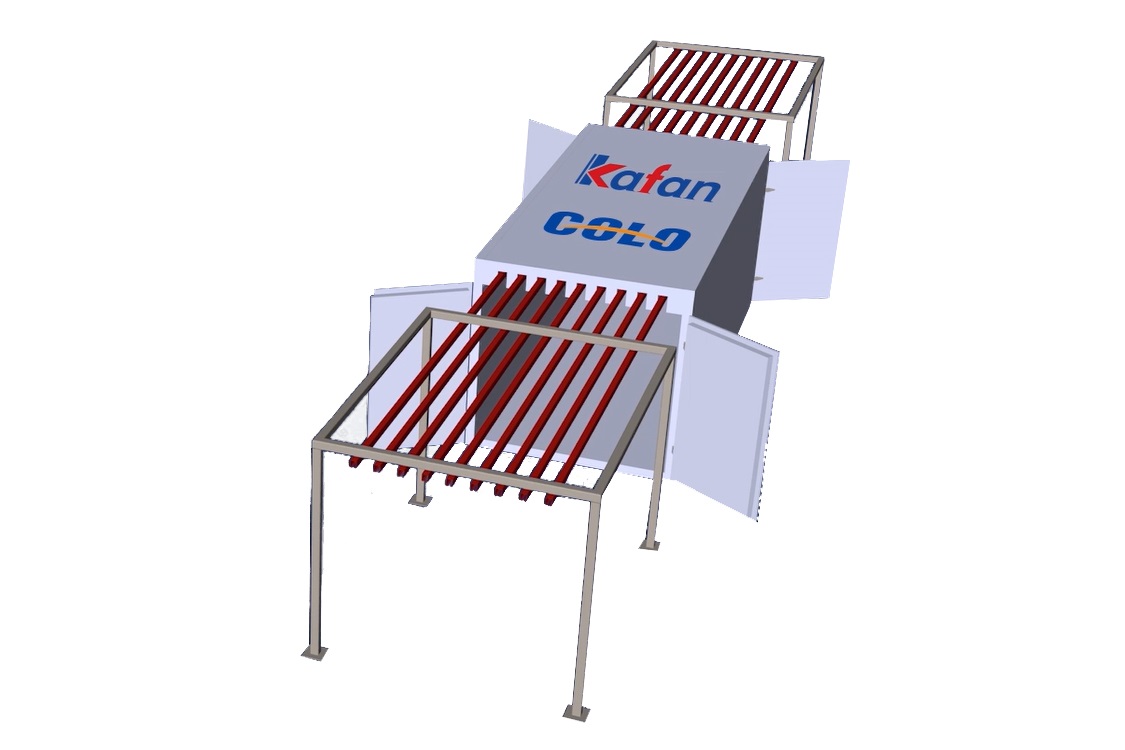

Powder Coating Oven with Overhead Rails
Suitable for transporting heavy or big workparts by using less manual efforts, the quantity of tracks can be customized as requests.

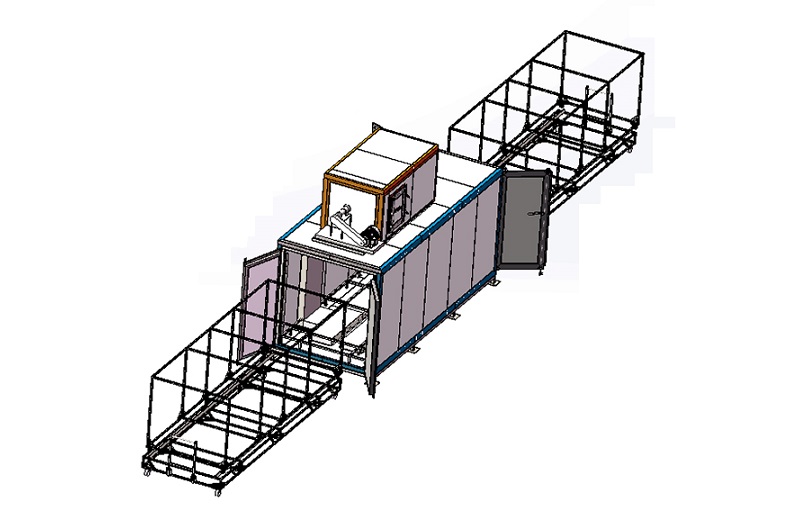

Powder Coating Oven with Trolley System
Configured with an internal one handing the workparts into the chamber for curing process, as well as an external one transport the internal trolley for easily loading and unloading.
7m Batch Powder Coating Oven Specifications
| Model | KF-7021 |
| Working Dimension (mm) | Width1800 x Height2100 x Depth7000 mm |
| Overall Dimension (mm) | Width2000 x height2400 x Depth7200 mm |
| Voltage | 220V/380V(50-60Hz) |
| Power Supply | Gas/Diesel/LPG |
| Warm-up Time | 15-30min (180°C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250°C |
| Burner | Italy RIELLO, 200,000kcal |
| Ventilation performance | 805-1677m3/h |
Motor Power
| 5.5kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Transportation | Trolley
|
Gas/Diesel Fired Powder Coating Batch Oven Details

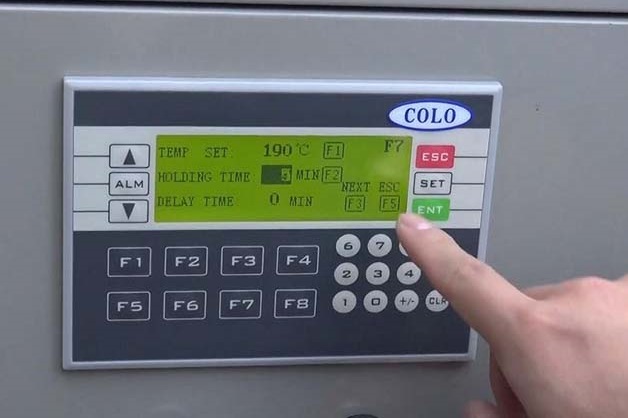

PLC Control Panel
The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.
Temperature and time can be digitally set with accurate value, and read in LCD screen.
Other functions such as: Power switch, emergency stop, fan start.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board that always keep the chamber warm and minimize the heat loss.
Inner wall is 1mm heat-resisting galvanized steel for heat preservation
Outer wall is anti-rust color steel, durable and long lifespan.

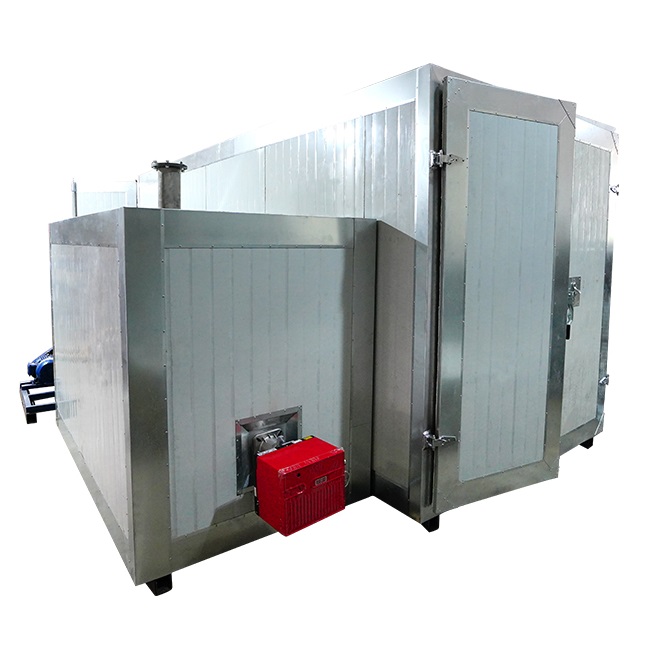

RIELLO Burner
Italy Imported RIELLO gas/diesel burner, takes full utilization of fuels, making chamber rapidly and raise to required temperature. The high performance burner features reliable working and energy-saving.

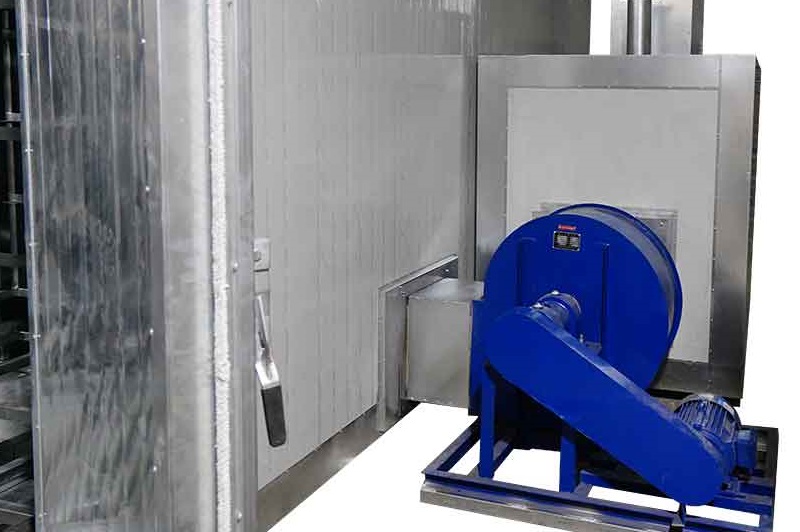

Circulation Fan
5.5kw Powerful fan circles hot air in the oven chamber and ensures uniform heat distribution with temperature stability less than 3 degree, creating quality, durable cured effect without color difference.
Batch Powder Coating Oven Application Videos
