Small Gas Powder Coating Oven for Sale

A massive reduction in energy consumption due to applying Gas/Diesel/LPG fired powder coating oven.Their service life is more longer than electric heated oven.

  • KF-0813
  • Kafan

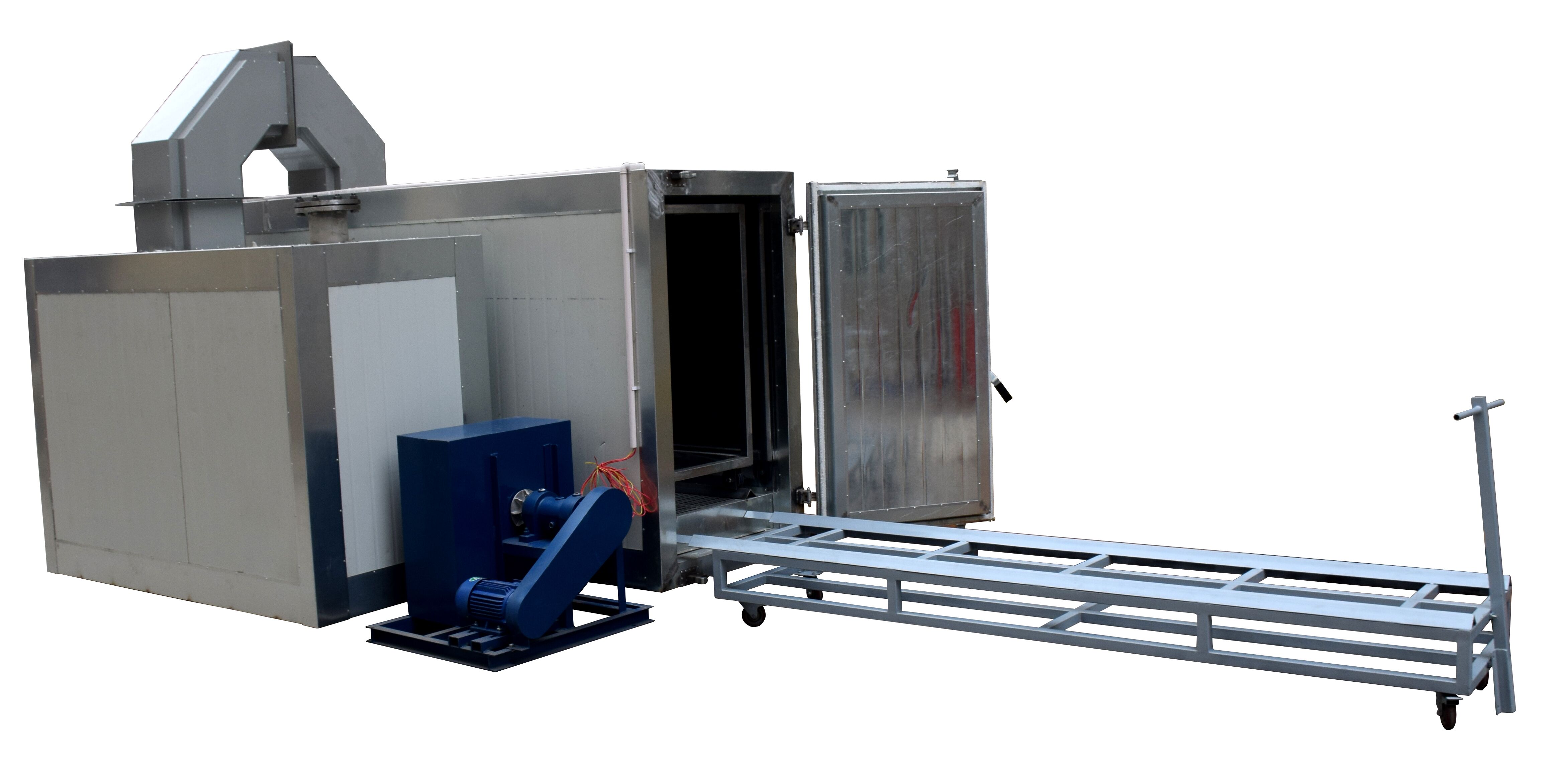

Small Gas Powder Coating Oven

Applying indirect-fired gas heating system, COLO-0813 small powder coating oven ensures excellent curing effects and stable quality which is also friendly to environment. Comparing with electric sourced oven, gas furnace leads to remarkably lower long-term running costs especially comparing with those countries whose electricity is expensive.


gas powder coating ovengas powder coating oven


Gas Powder Coating Oven Specifications

Model KF-0813
Working Dimension Width800 * Heght1500 * Depth3000mm
Overall Dimension Width1200 * Heght1900 * Depth3500mm
Voltage 220V/380V(50-60Hz), Customized
Power Supply Gas/Diesel/LPG
Warm-up Time 15-30min (180°C)
Temperature stability < ± 3-5°C
Temperature max. 250°C
Burner Italy RIELLO, 50,000cal
Ventilation performance 1131-12565m3/h
Motor Power
1.5kw
Circulation/ Air flow Vertical ,Variable through holes on the walls
Transportation Trolley


Small Powder Coating Gas Oven Details


微信图片_20170330150832

PLC Control Panel

The multi-purpose PLC control panel is easy to operate. Allows users digitally setting temperature & time while values displayed on LCD screen. This control system provides a precise heating process.

Other functions such as: Power switch, emergency stop, fan start.

Powder Coating Oven Material

Insulation material is100mm thick rockwool board, density 120kgs/cbm, always keeping a warm chamber with least temperature dropping. Innerwall is heat-resistant galvanized steel, outer wall is anti-rust color steel, durable with a long service life


burner

RIELLO Gas Burner

An imported Riello burner takes full utilization of fuels, saving energy at the same time giving much quicker raise to a required temperature. The combustion process is clean and pollution-free.

powder coating oven heat exchanger

Heating Exchanger

Heating exchanger inside the combustor that transfer clean hot air to oven chamber,
It combines seamless steel tube 8x8 array, made of 310S stainless steel with 3-4mm thickness.

powder coating oven fan

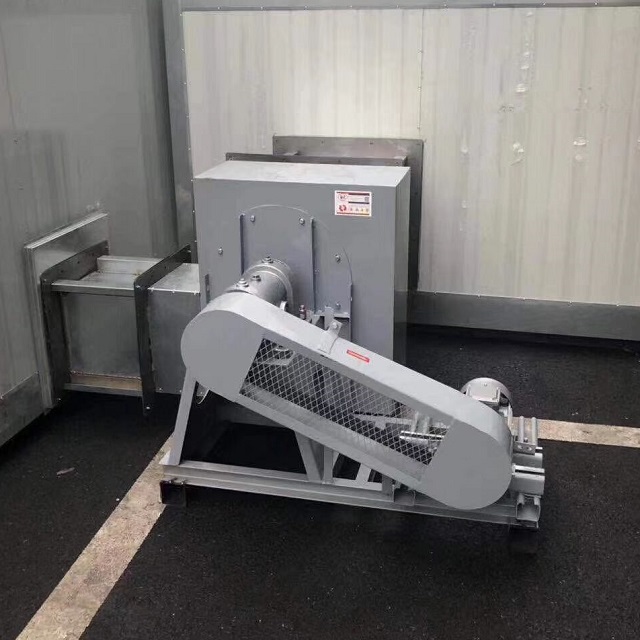

Circulation Fan

Powerful fan speeds up the flow of hot air ensures uniform heat distribution with temperature stability less than 3 degree, leading to quality cured finishes and optimum cure cycles.

HTB1CE3QR8LoK1RjSZFuq6xn0XXaj - 副本

Transporting System

It allows loading of heavy elements using a small amount of force.  Standardly equipped with two trolleys, inner trolley moves across the hall that does not contaminate the chamber, outside transportation is worked by an outer trolley.
Custom design is available to get an optimal use of the entire space of oven.
