Batch Box Powder Coating Oven with Top Tracks

Batch powder coating oven with top rack is designed to match with manual conveyor line, for the purpose of continuous production. The powder coating oven can be heated by electric, gas, or diesel.
  • COLO-3210

  • Kafan

  • Width2000 * Heght1900 * Depth3100 mm


Batch Box Powder Coating Oven with Top Track

Box powder coating oven with top rack is designed to macth with manual conveyor line, allows easy movement of heavy workparts. These powder coating systems provides continuous production in batches. The overhead track system can be supplied by Kafan or made by customer themselves.

The heating source of powder coating oven can be electricity, gas or diesel. Electric curing oven features more environmetal friendly and easier structure, taking less initial cost. Gas/diesel curing oven will save your energy expense in long term using.

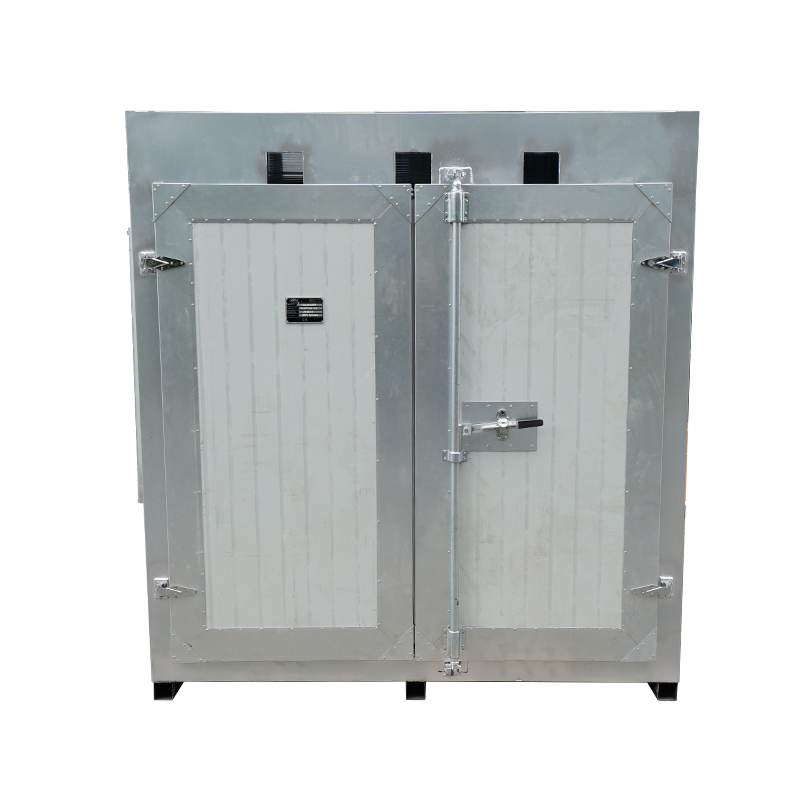

batch box powder coating oven

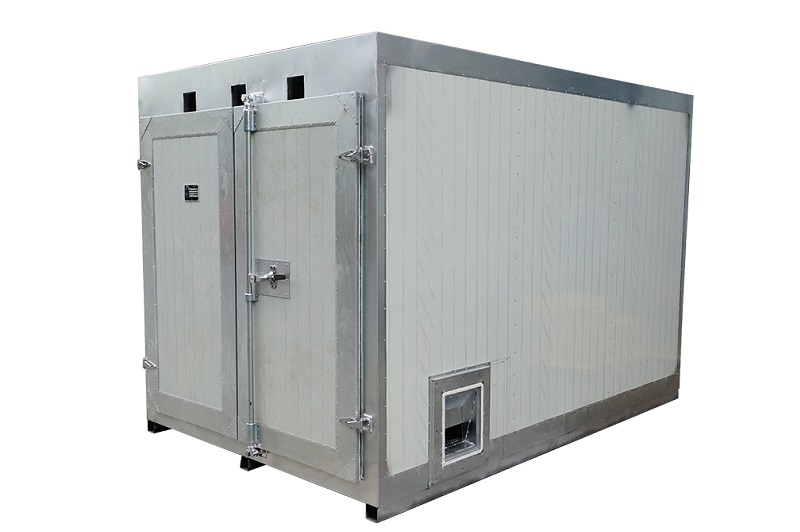

powder coating batch oven

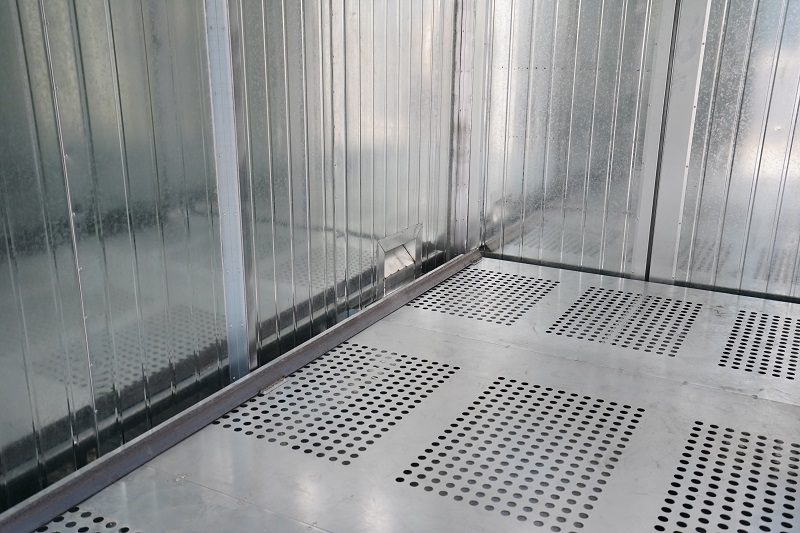

oven floor

powder coating oven parts

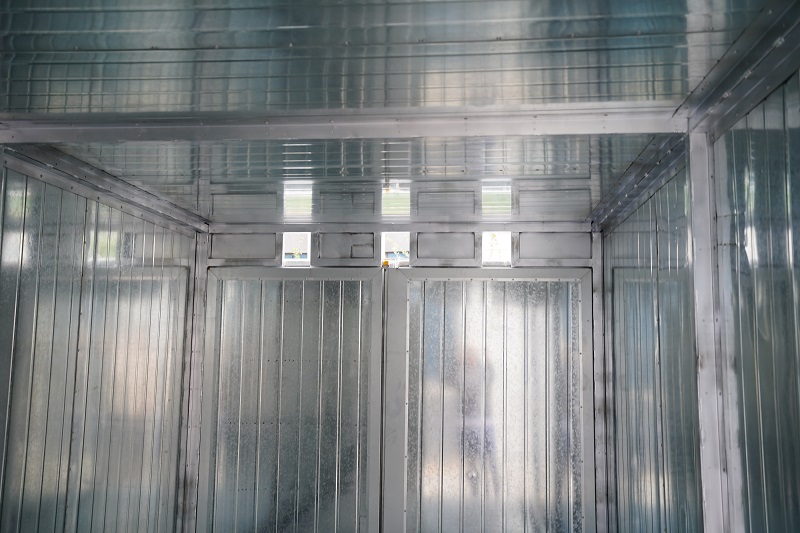

oven chamber

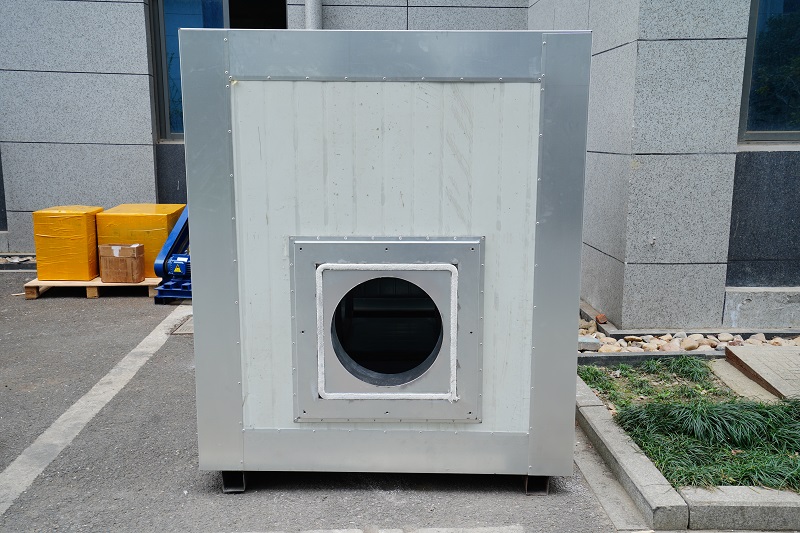

powder coating oven combustion room

combustion chamber

Batch Box Powder Coating Oven Configurations

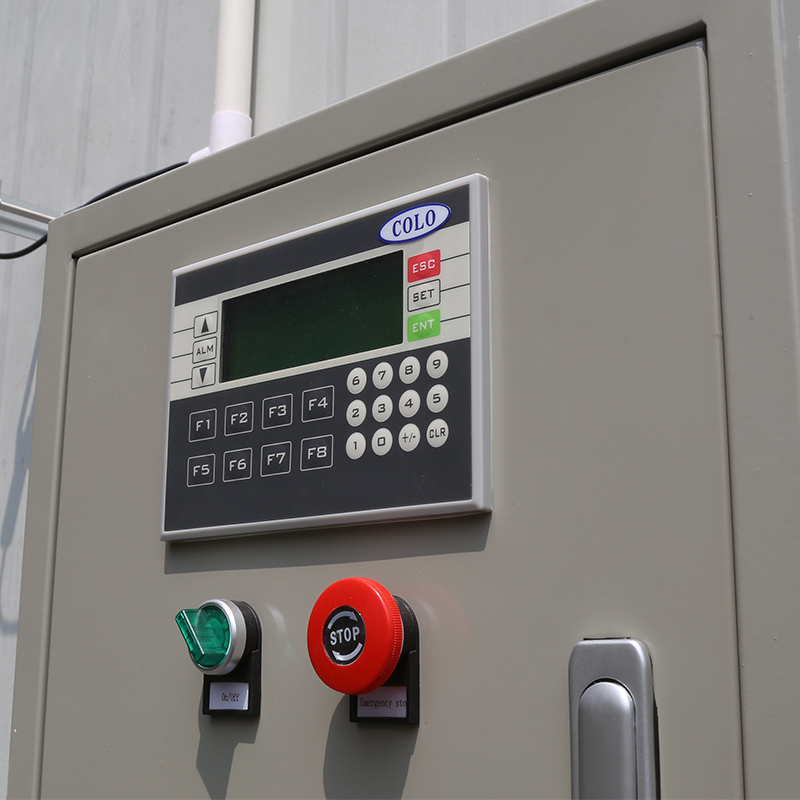

PLC Control Panel

The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.

Temperature and time can be digitally set with accurate value, and read in LCD screen.

Other functions such as: Power switch, emergency stop, fan start.

rockwool board

Powder Coating Oven Material

Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.

Inner wall is 1mm heat-resisting galvanized steel,

Outer wall is anti-rust color steel, durable and long lifespan.

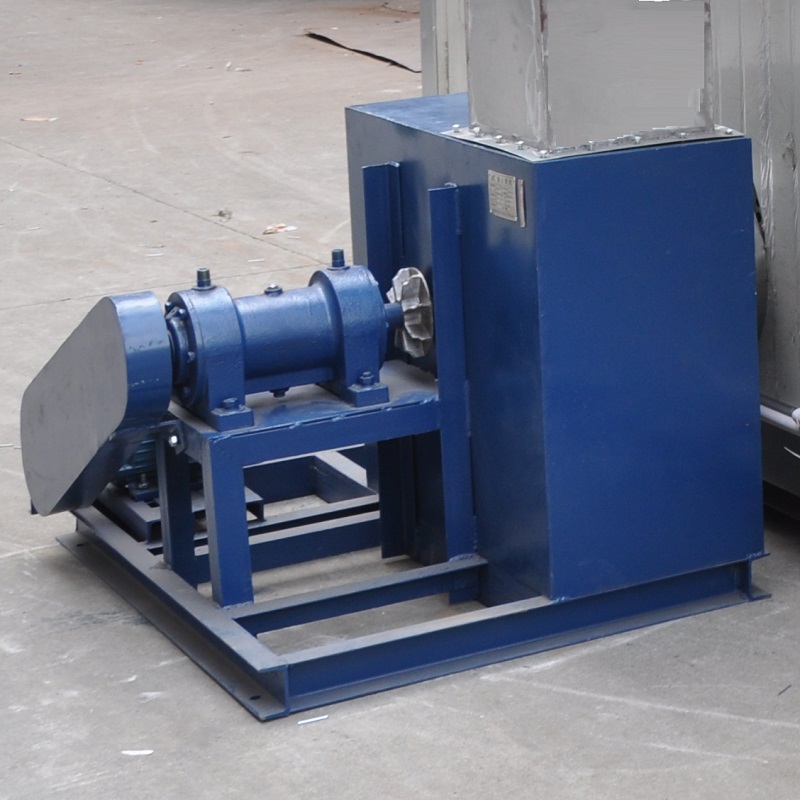

powder coating oven fan

Circulation Fan

Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature stability less than 3 degree. creating quality finish effect and no color difference.

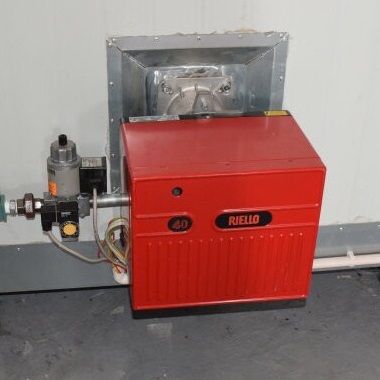

gas burner

Riello Burner

Our gas/diesel burner are Italy Riello brand, features high performance and easy maintenance, which takes full utilize of fuels and enables quick temperature raising, saving your energy expense and time.

Batch Box Powder Coating Oven Specifications

Model COLO-3210
Working Dimension (mm) Width2000 * Heght1900 * Depth3100
Voltage 220V/380V(50-60Hz)
Power Supply Gas/Diesel/LPG
Warm-up Time 15-30min (180°C)
Temperature stability < ± 3-5°C
Temperature max. 250°C
Burner Italy RIELLO, 100,000kcal
Ventilation performance 805-1677m3/h
Motor Power
Circulation/ Air flow Vertical ,Variable through holes on the walls
Transportation Overhead Conveyor

Other sizes or designs can be customized based on your requirements.
