7m Powder Coating Oven, Gas/Diesel Fired Curing Oven

Especially for large dimension, Gas/Diesel/LPG fired powder coating oven will save more of energy expense in long-term running. They have much longer life span than electric oven.
  • COLO-7021

  • Kafan

  • Width1800 x Height2100 x Depth7000 mm

  • Natural Gas/LPG/Diesel


7m Industrial Powder Coating Oven, Gas/Diesel Fired Curing Oven

The 7m length powder coating oven is specially for application of aluminium profiles or other long workpieces. Our Gas/Diesel/LPG fired curing oven using with imported Riello burner takes full utilization of fuels, leading to remarkably heating efficiency with less energy expense.

gas powder coating oven

Powder Coating Oven Applications

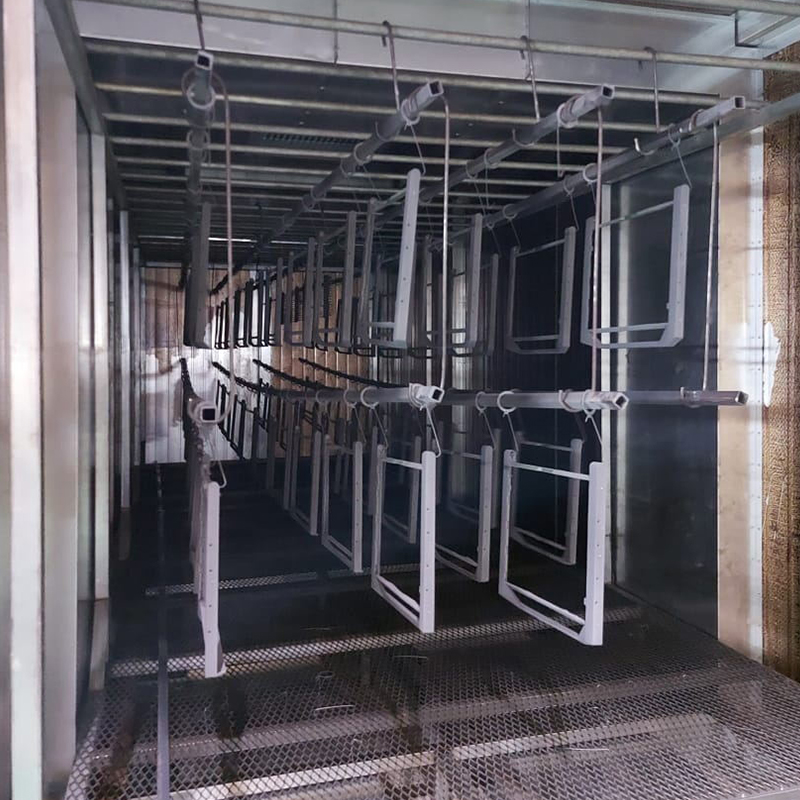

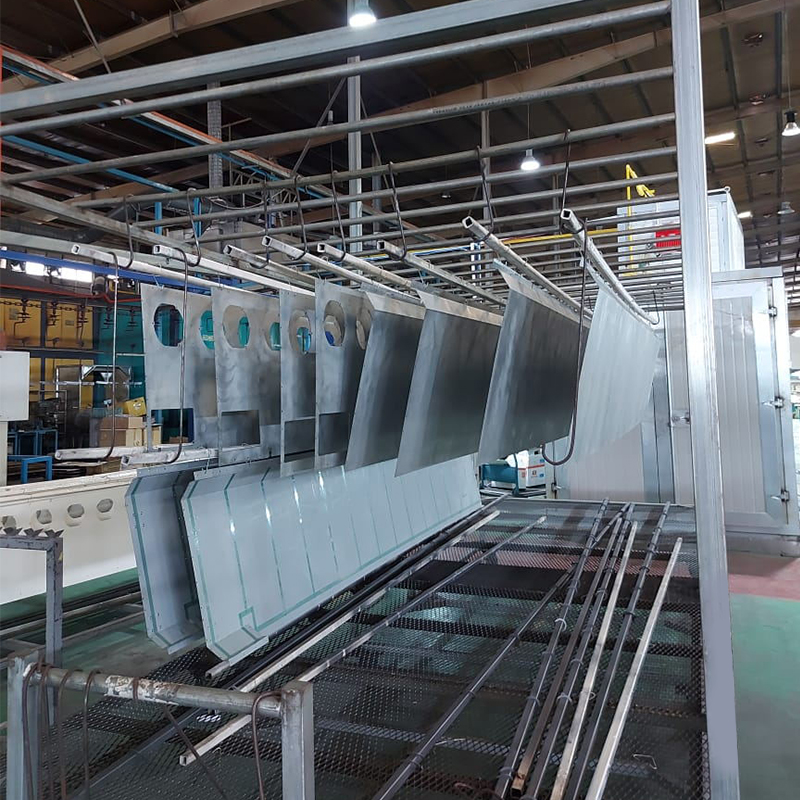

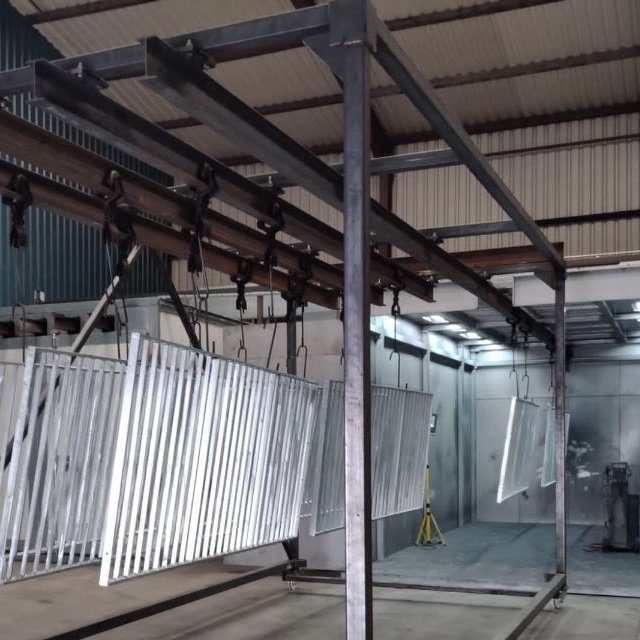

Ideal for big batch of workparts such as frames, plates. We could design the transport trolly specially for your products that maximize your production capacity. Our powder coating oven with forced air circulation ensures continuous curing temperature, as the humanized operation design is friendly to workers.

powder coating oven
powder curing oven
powder coating curing oven

Gas Powder Coating Oven Specifications

Model COLO-7021
Working Dimension (mm) Width1800 x Height2100 x Depth7000 mm
Overall Dimension (mm) Width2000 x height2400 x Depth7200 mm
Voltage 220V/380V(50-60Hz)
Power Supply Gas/Diesel/LPG
Warm-up Time 15-30min (180°C)
Temperature stability < ± 3-5°C
Temperature max. 250°C
Burner Italy RIELLO, 200,000kcal
Ventilation performance 805-1677m3/h
Motor Power
Circulation/ Air flow Vertical ,Variable through holes on the walls
Transportation Trolley

Gas/LPG/Diesel Fired Powder Coating Oven Details

powder coating oven controlPLC Control Panel

The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.

Temperature and time can be digitally set with accurate value, and read in LCD screen.

Other functions such as: Power switch, emergency stop, fan start.

powder coating oven material

Powder Coating Oven Material

Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.

Inner wall is 1mm heat-resisting galvanized steel,

Outer wall is anti-rust color steel, durable and long lifespan.

powder coating oven gas burner

RIELLO Gas Burner

Italy Imported RIELLO gas burner, takes full utilization of fuels, making chamber rapidly and raise to required temperature. The reliable burner with high performance achieves energy-saving.


Heating Exchanger

Indirect heating gas oven includes a heat exchanger inside the burning room that transfer clean hot air to oven chamber.

It combines seamless steel tube 8x8 array, made of 310S stainless steel with 3-4mm thickness.

powder coating oven fan

Circulation Fan

Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature stability less than 3 degree. creating quality, durable finish and no color difference.
