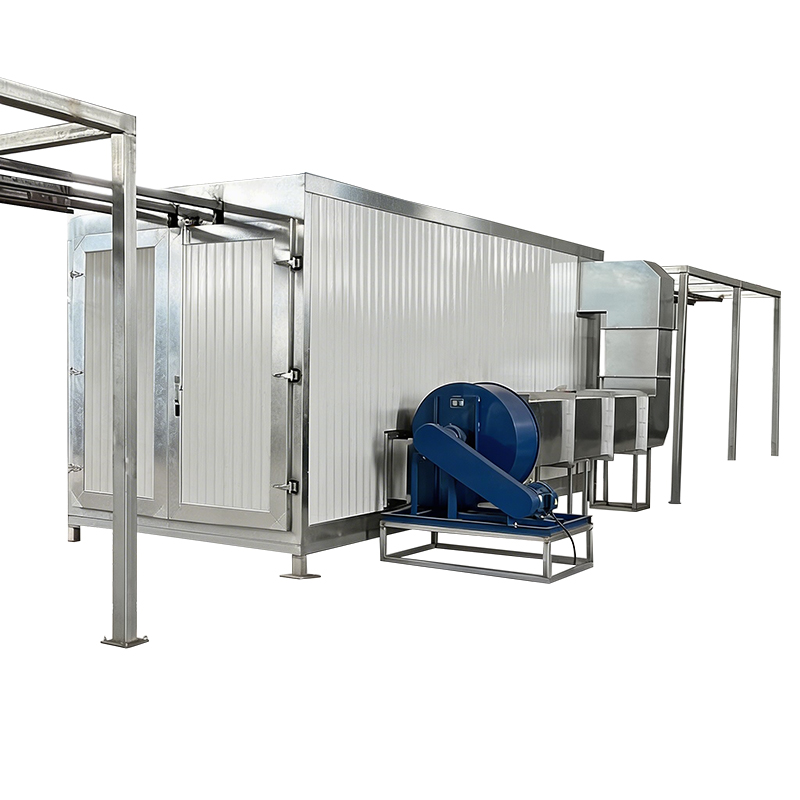

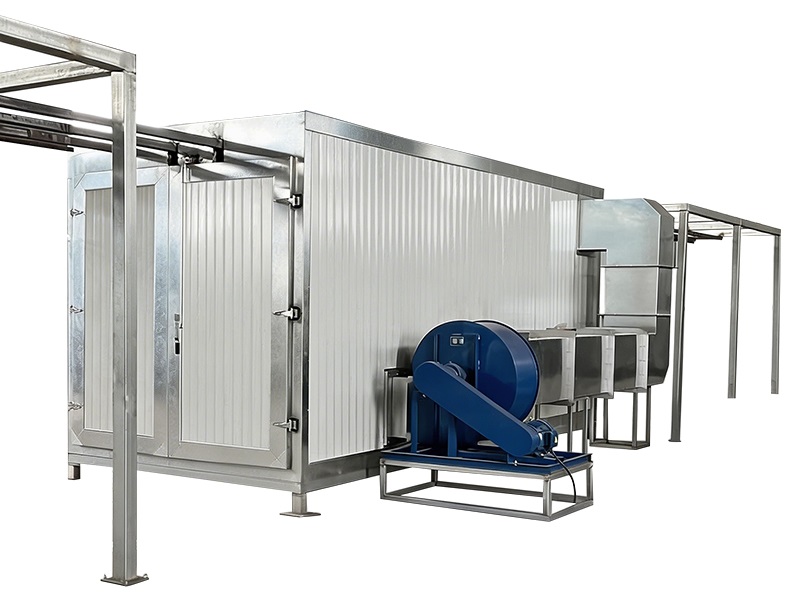

Batch Box Powder Coating Oven with Top Tracks

Batch Powder Coating Oven with Top Tracks

Batch powder coating oven with top tracks is designed for carrying heavy or big batch materials into the oven interior with minimum efforts . The powder coating oven can be heated by electric, gas, or diesel.

Brand:
Kafan
Size:
Customized

Availability:

Quantity:



Inquire Add to Basket

Product Description

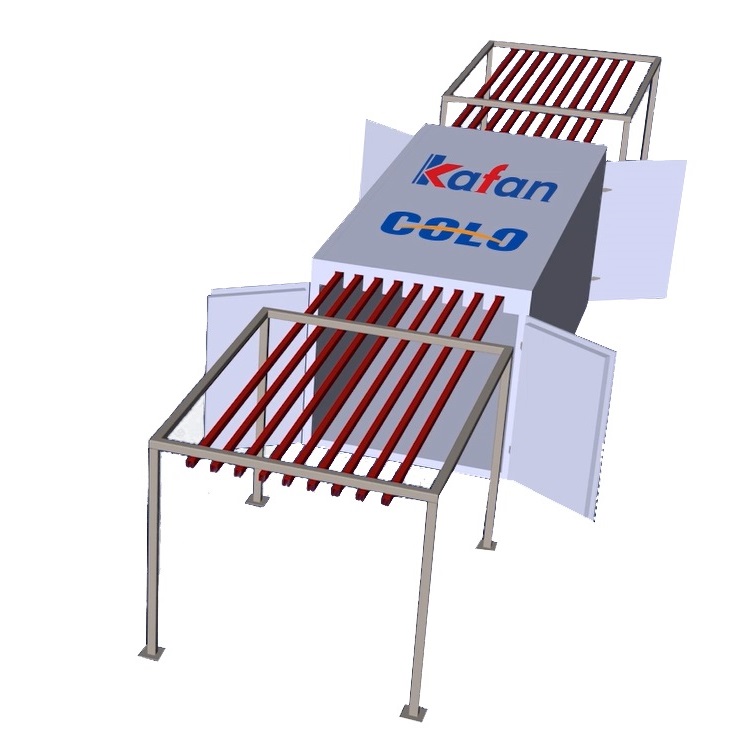

Batch Powder Coating Oven with Top Tracks

In the manual batch coating plant, powder coating oven with top tracks is ideal for transporting big, heavy or long length workparts such as aluminium profiles, steel frames, fences. The overhead rails, support frames can be supplied by Kafan or made by customer themselves.

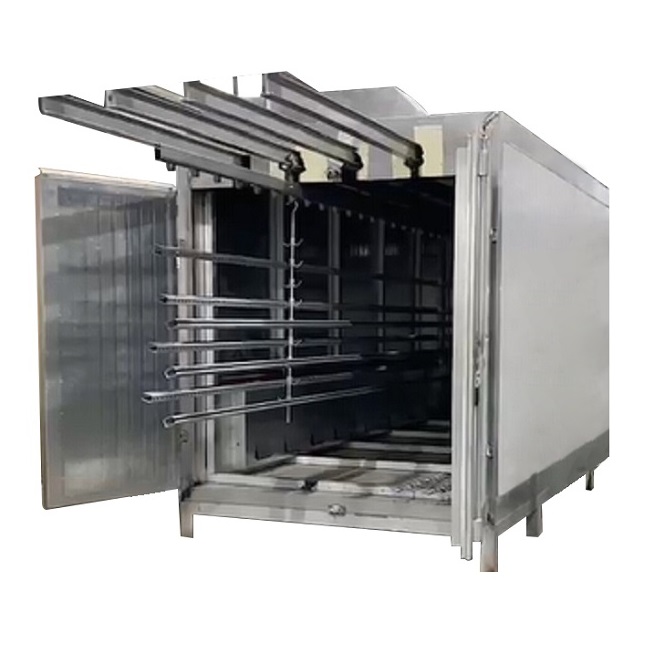

Batch Powder Coating Oven

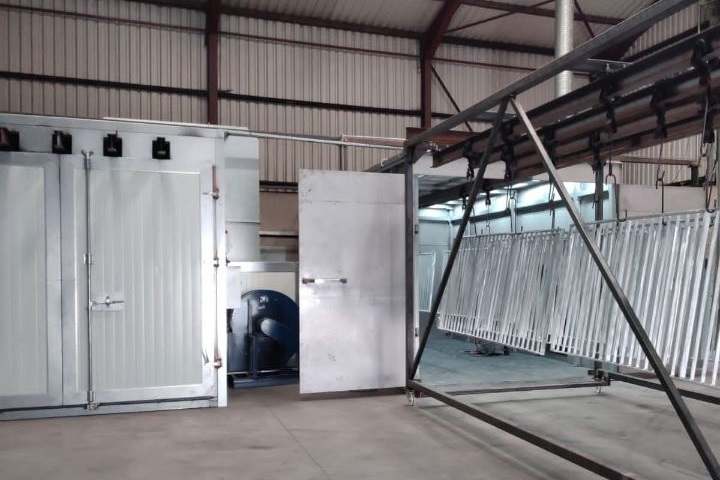

Track Powder Coating Oven in Pass Through Line

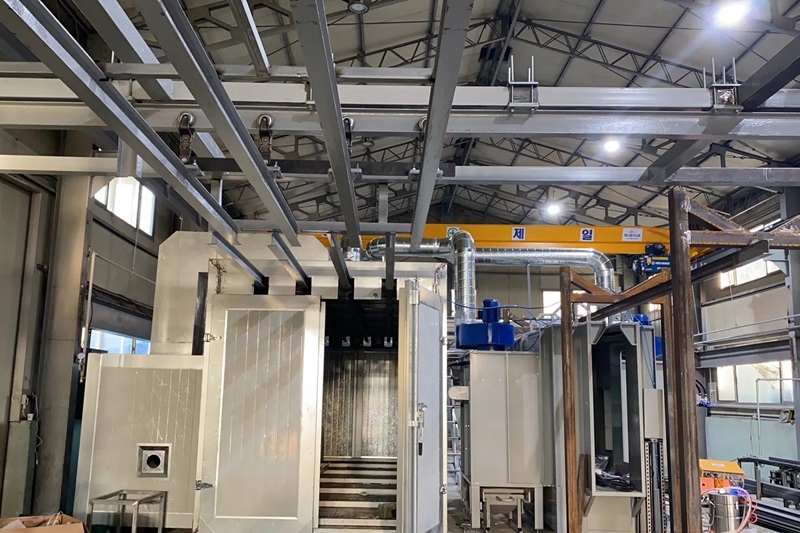

Track Powder Coating Oven in Walk-in Line

Gas/Diesel Fired Powder Coating Batch Oven Details

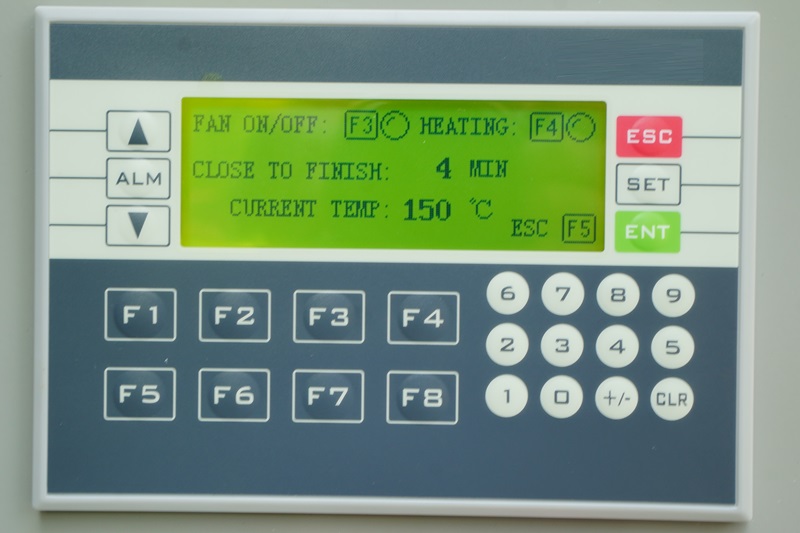

PLC Control Panel

The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.

Temperature and time can be digitally set with accurate value, and read in LCD screen. Other functions such as: Power switch, emergency stop, fan start.

Powder Coating Oven Material

Interlayer is 100mm thickness rock wool board that always keep the chamber warm and minimize the heat loss.

Inner wall is 1mm heat-resisting galvanized steel for heat preservation

Outer wall is anti-rust color steel, durable and long lifespan.

RIELLO Burner for Gas/Diesel Oven

Our gas/diesel burner are Italy Riello brand, features high performance and easy maintenance, which takes full utilize of fuels and enables quick temperature raising, saving your energy expense and time.

Circulation Fan

5.5kw Powerful fan circles hot air in the oven chamber and ensures uniform heat distribution with temperature stability less than 3 degree, creating quality, durable cured effect without color difference.

Batch Powder Coating Oven Specifications

Working Dimension (mm)	Customized
Voltage	220V/380V/415V(50-60Hz), customized
Power Supply	Electric/Gas/Diesel/LPG
Warm-up Time	15-30min (180°C)
Temperature stability	< ± 3-5°C
Temperature max.	250°C
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Overhead Rails

Track Powder Coating Ovens Standard Models for Choice

Model	Working Dimension (mm)	Riello Burner Power	Fan Motor Power
KF-3210	width2000 * height1900 * depth3100 mm	10,0000kcal	5.5kw, 1pc
KF-5219	Width1800 * Height1800 * Depth5000 mm	10,0000kcal	5.5kw, 1pc
KF-6020	Width2000 * Height2000 * Depth6000 mm	20,0000kcal	7.5kw, 1pc
KF-7021	Width1800 * Height2100 * Depth7000 mm	20,0000kcal	7.5kw, 1pc

The heating source of powder coating oven can be electricity, gas or diesel. Electric curing oven features more environmetal friendly and easier structure, taking less initial cost. Gas/diesel curing oven will save your energy expense in long term using. Other sizes or designs can be customized based on your requirements.
