Economical Powder Coating Equipment Package

The kafan powder coating equipment package usually supports for manual batch production, such as alloy wheels, motorcycle parts, bike frames. Easy system, budge-saving and wide application.

  • Kafan
  • Powder Coating Equipment Package

Manual Powder Coating Equipment Package

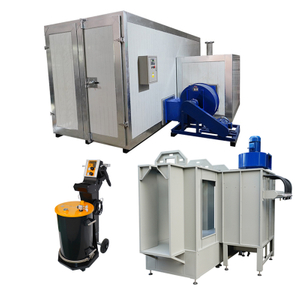

An economical solution for manual batch powder coating job, complete system includes powder coating gun, powder coating spray booth, powder curing oven, all produced by kafan to optimize your application quality and minimize your budget.

Batch Powder Coating System Application

Suitable for not large production, small to medium sized products, such as alloy wheel, bike frame, motorcycle parts, metal plates or other metal parts. Meet both single color and many powder colors application.

powder coating equipment package

Electrostatic Powder Coating Gun:

K1 powder coating gun delivers consistent and uniform powder output that ensures quality results, based on Kafan 10 years design and manufacture, K1 powder coating gun provides easy operation and efficient working.

powder coating machine


Powder Coating Spray Booth

Reach to 98% powder recovery rate. Comes with quick-release type cartridge filter and removable bottom powder funnel section allows fast cleaning and color change. High quality galvanized materials extend to long lifespan.

powder coating booth for sale


Mode: KF-1517

Type: Closed Powder Coating Booth

Working Dimension: Width1500*Depth1000*Height1700mm

Overall Dimension: width1640*Depth2070*Height2180mm

Weight: 400kgs

Power Supply:Electric

Voltage: 220V/380V/410V, can be customized

Nominal Power: 2.2kw

Cartridge Filter Material:100% polyester

Filter Count:2 pcs

Filter Hang Type: Quick release

Filter Cleaning System: Pneumatic

Air Consumption:4000m^3/h


Powder Spray Booth Material: Galvanized Plate


Powder Coating Curing Oven

Curing oven provides uniform distribution of warm air for the parts, resulting in a quality finish. Heat by electricity, energy-saving and environmental friendly. PLC controls the temperature, heating time and fan motor work, rapidly raise the required temperature in a short time, easy and efficiency.

powder curing oven


Mode: KF-1864

Type: Electric Powder Coating Oven

Working Size: width1600*Depth1400*Height1800mm

Outer Size: width1900*Depth1700*Height2200mm

Power Supply: Electric/12kw

Voltage: 380V/220V(can be customized), 3 Phase

Motor Power: 0.75kw

Heating Temperature: 180-250'C

Heating Time: 15-30min

Transportation:Trolley


Powder Coating Oven Material:

1 inner wall: Galvanized Steel(thickness=1mm),

2.interlayer: rock wool board(thickness=100mm), heat-insulated

3.outer wall: Color Steel(thickness=0.7mm), anti-rust




Size and special requirements of powder coating equipments can be customized to meet your actual powder coating products!
