Kafan
| Quantity: | |
|---|---|
The small scale powder coating system requires you minimum operation cost to start business of small parts and not large productions, such as rims, bike parts, engine parts, metal accessories.

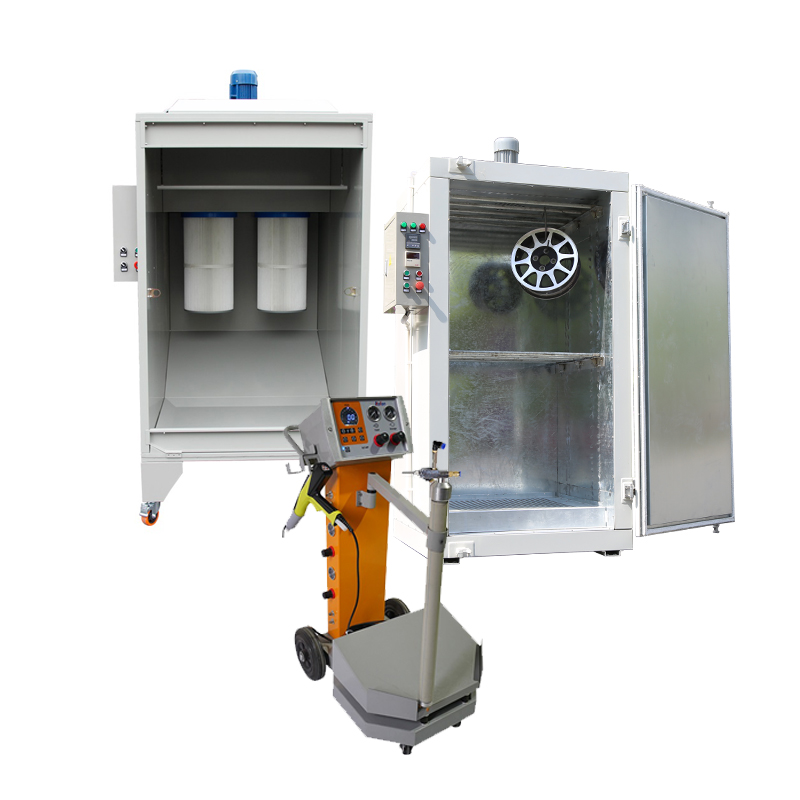

Small Powder Coating System Including:
KF-669 Box Feed Powder Coating Gun

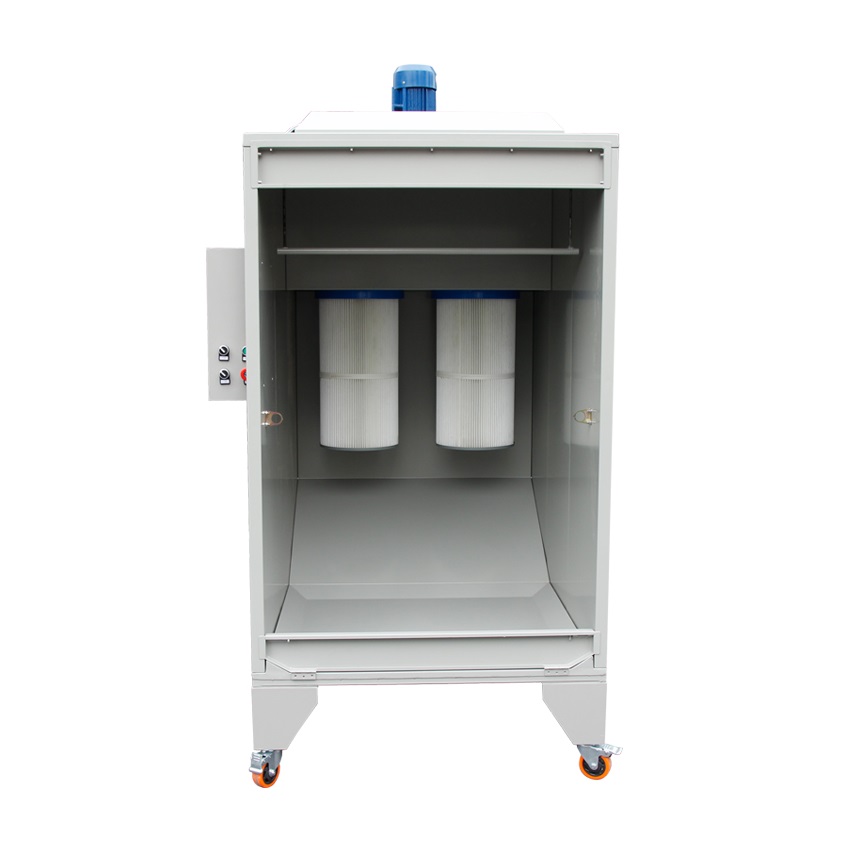

KF-1115 Small Powder Coating Booth
KF-1688 Electric Powder Coating Oven

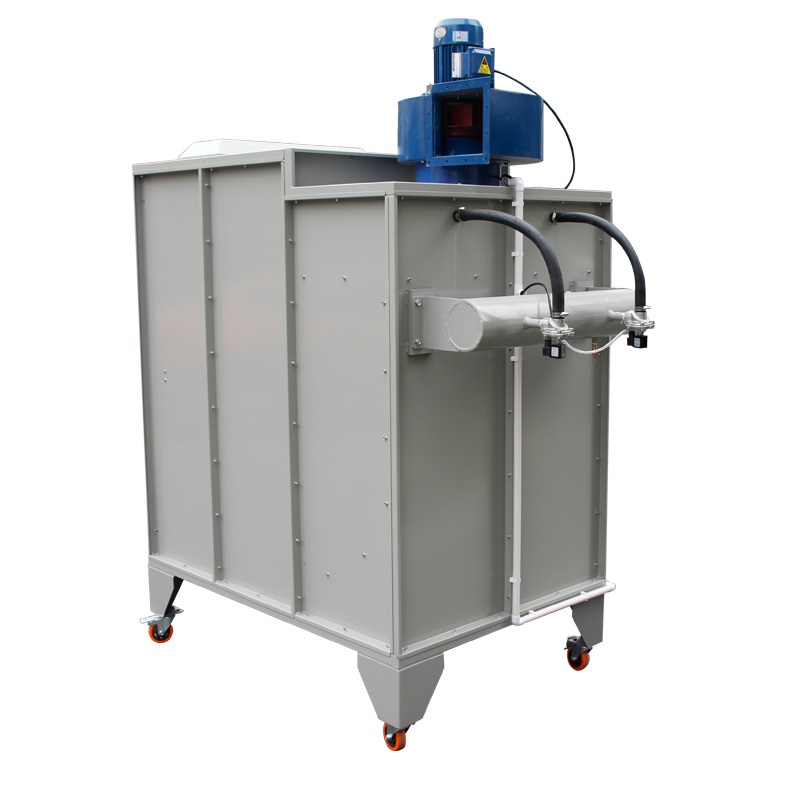

Comes with 2 pcs quick-release type cartridge filter, 0.75 powerful fan motor, reaches to 98% powder recovery rate, allows fast cleaning and color change. Simple operation and maintenance, energy-saving, budget-saving, limited space occupy.
| Working Dimension: | Width1000 * Depth1000 * Height1500mm (3.2ft * 3.2ft *4.9ft) |
| Overall Dimension: | Width1200 * Depth1200 * Height1900mm (3.9ft *3.9ft *5.9ft) |
| Voltage: | 220V/380V/410V, can be customized |
| Cartridge Filter: | 2pcs, 100% polyester |
| Air Consumption: | 805-1677m^3/h |

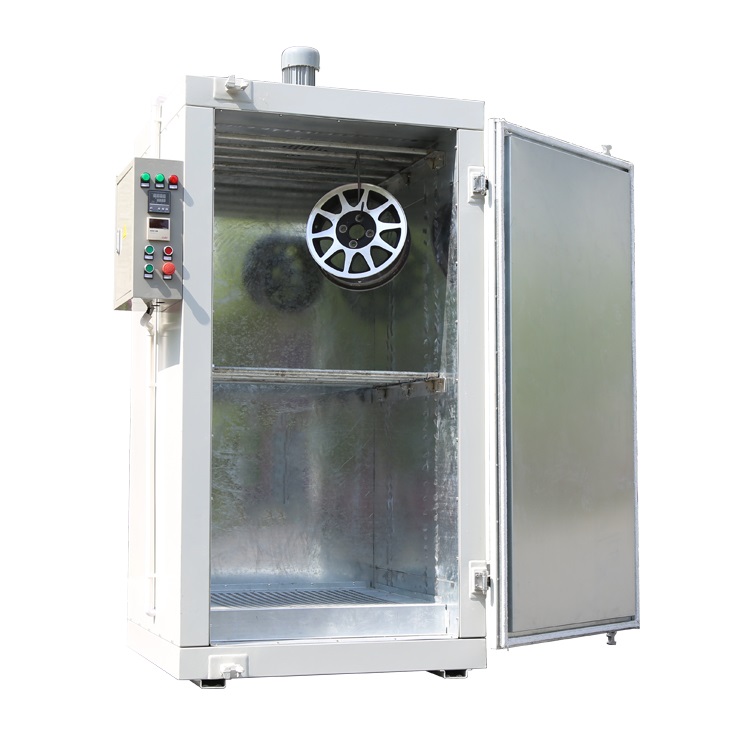

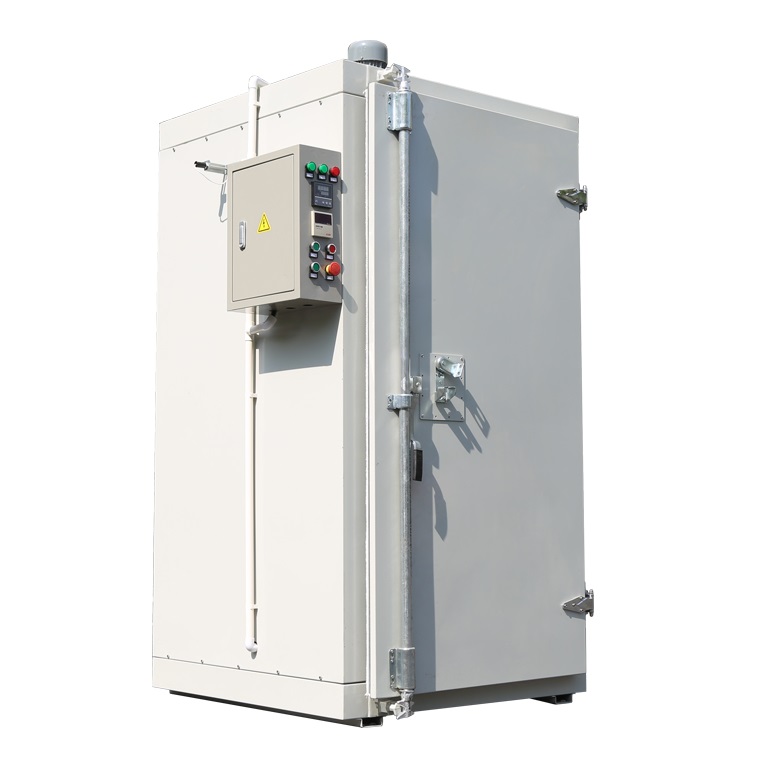

Kafan powder coating oven provides uniform distribution of warm air for the parts by a 0.55kw fan motor, resulting in a quality finish. Heat by electricity, energy-saving and environmental friendly. heating time and fan motor work, rapidly raise the required temperature in a short time, easy and efficiency.
| Worksize dimensions: | Width1000 x depth845 x height1600 mm (2.77ft * 2.77ft *5.25ft) |
| Overall dimensions: | Width 1200 x depth1100 x height2200 m m (4.59ft * 3.6ft * 5.9ft) |
| Power supply: | Electric/ 6.5kw, Votage: 110V/220v(50-60hz) |
| Temperature | 180° C, max. 250° C; |
| Warm-up time: | 15-30 min. |
| Temperature stability: | < ± 3-5°C |

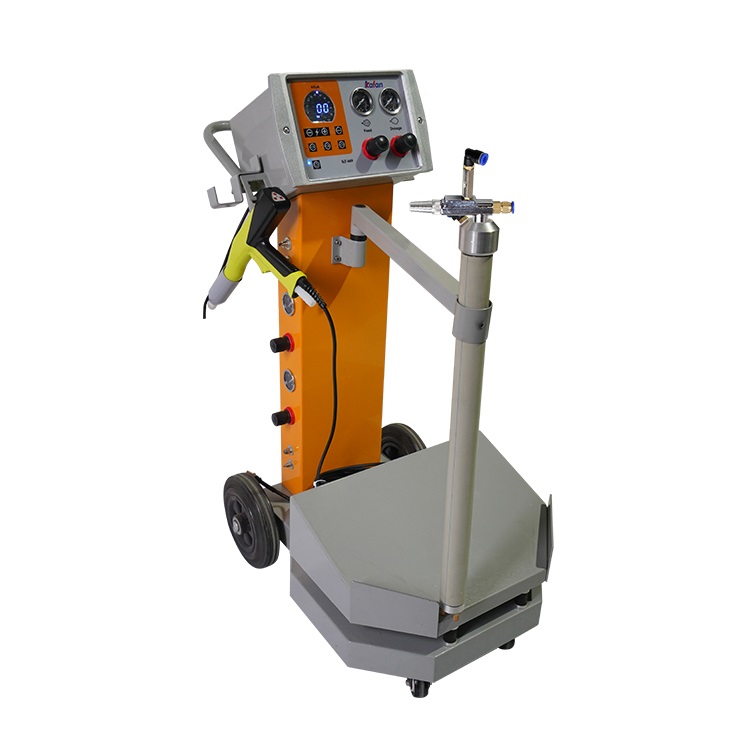

The KF-669 intelligent powder coating gun makes it efficient for wthether flat panels and complex parts with superior application quality. Based on Kafan 10+ years experience and technology, all settings for powder coating are made simple on the KF-669, such as 0-100kv adjustable for voltage, 3 pre-set applications programs for beginners.

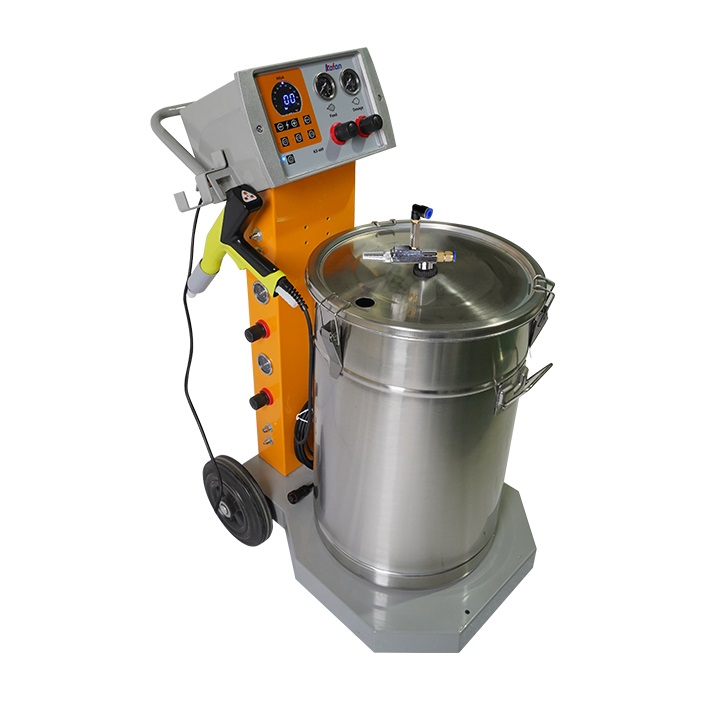

The box feed type allows directly using the original powder box, suitable for frequent color change demands, you can also choose different volume hoppers as you want(50lbs, 10 lbs. 2lbs or 1 pound)
