Kafan
| Quantity: | |
|---|---|

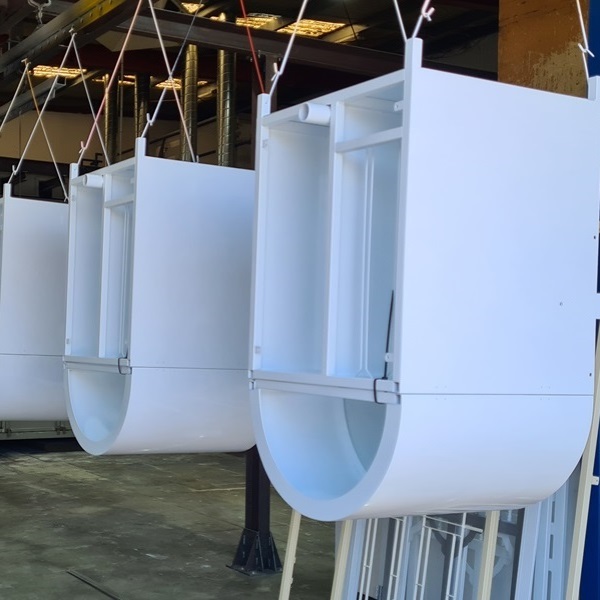

metal cabinets
big frames

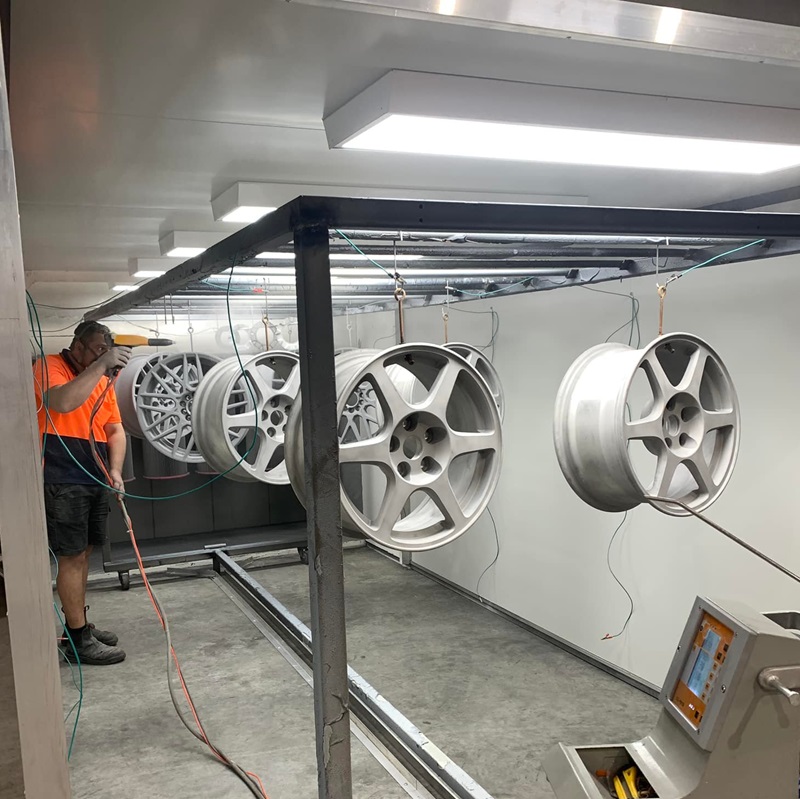

alloy wheels

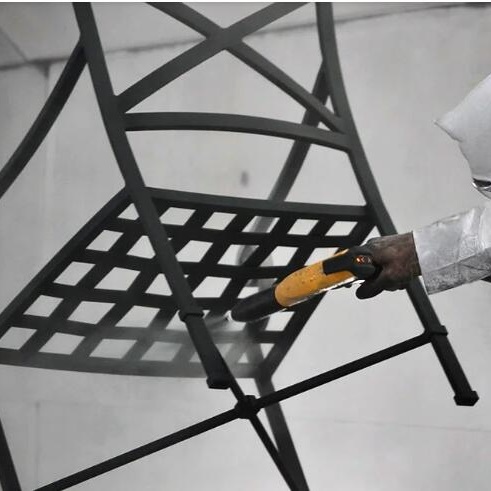

furniture

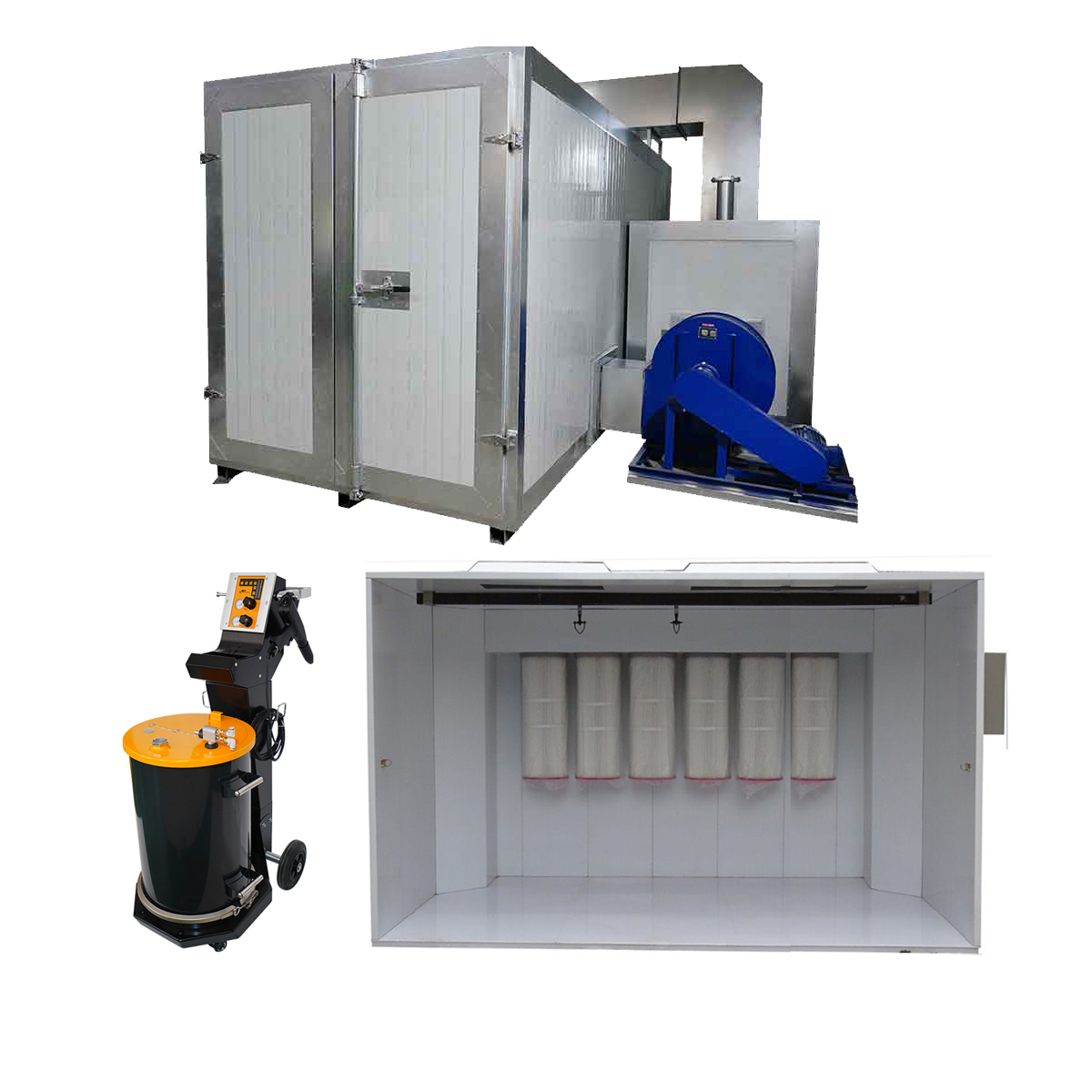

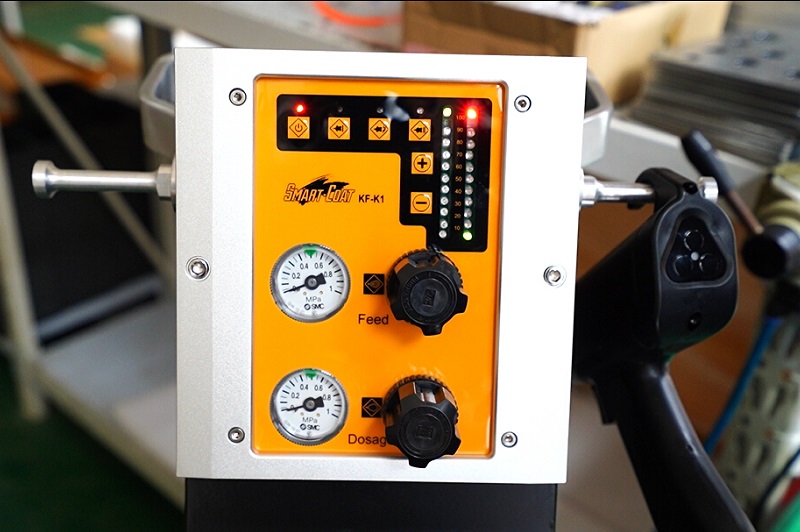

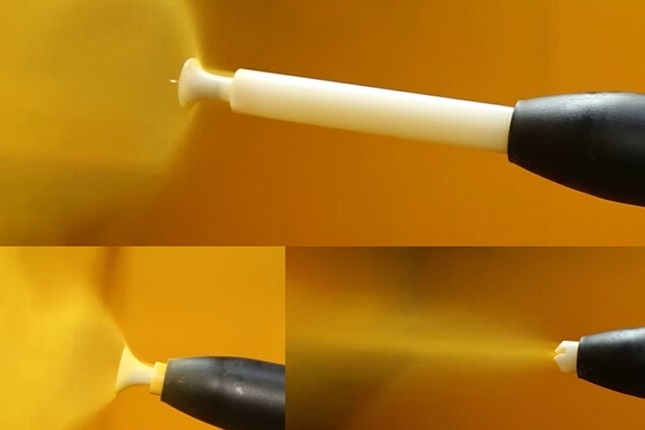

Kafan KF-K1 series powder coating machine with 100kv spray gun delivers high transfer efficiency and creates consistent and uniform powder output, perfect coating or whether flat shape parts or complex shape parts, increase working efficiency, reduce powder waste
There are 3 application programs pre-set for beginners, including flat parts coating program, corner coating program, re-coating program. 0-100kv voltage adjustable by digital, help you easily find the optimal data for different applications

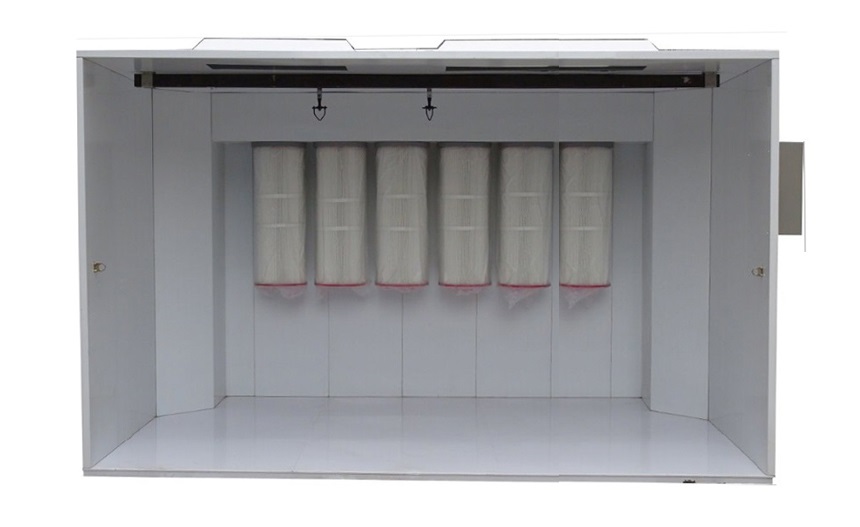

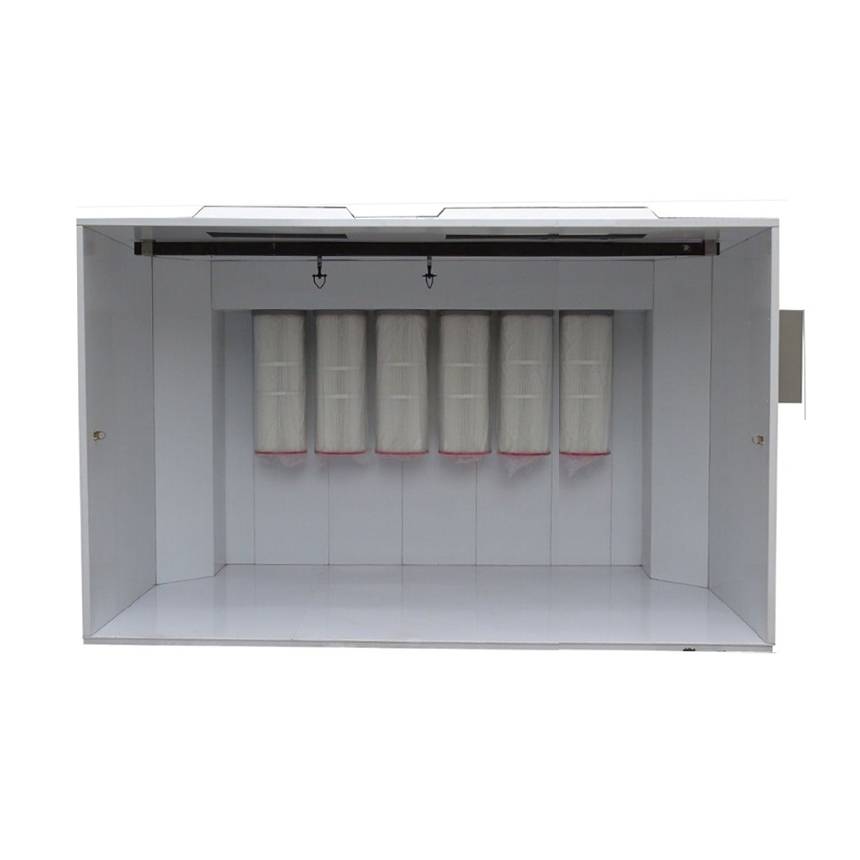

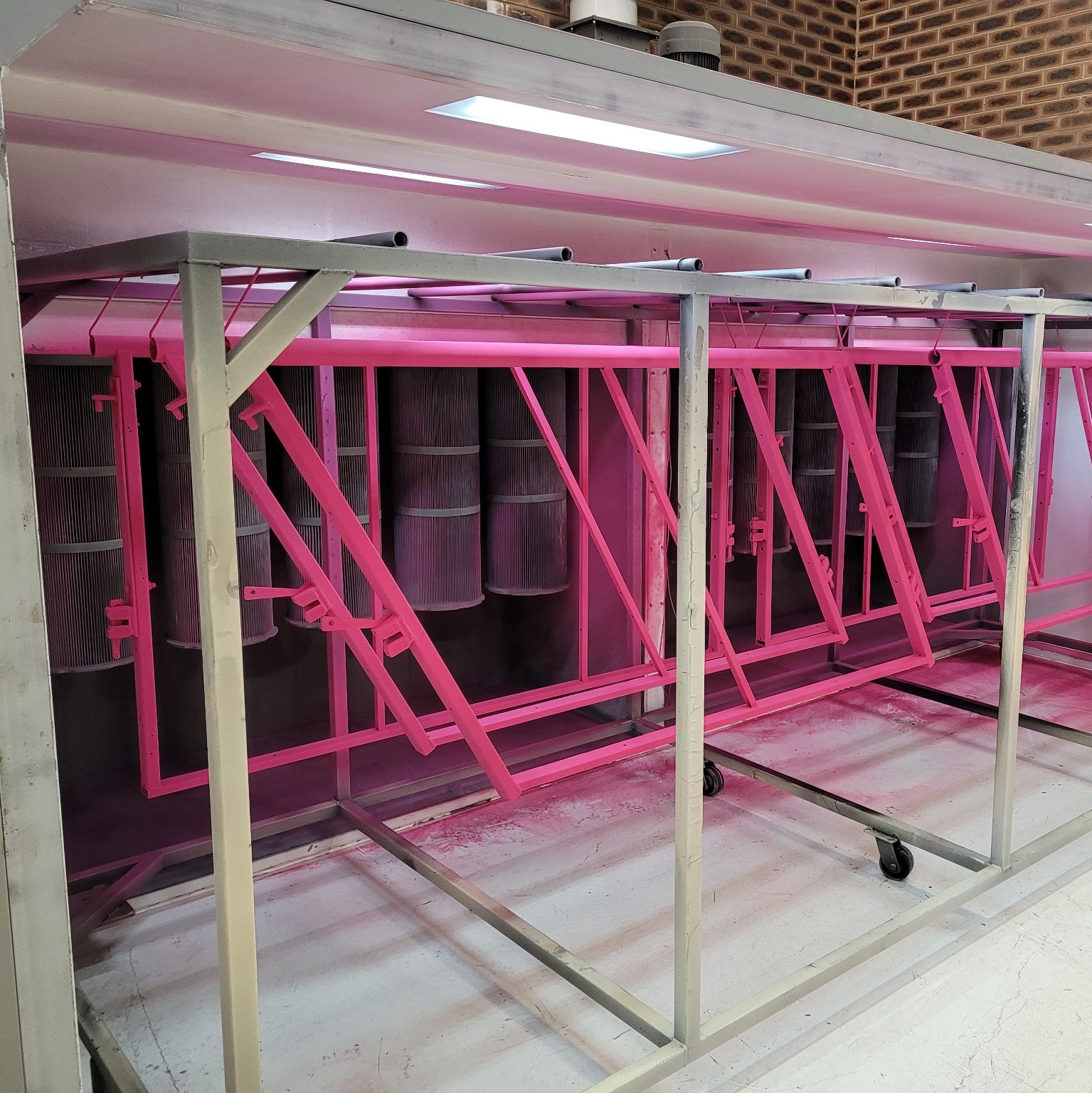

The walk in powder paint booth is ideal when coating large, bulky or heavy parts. With 12 pcs of cartridge filters for highly efficient powder recovery and ensures a dustless workshop. As the name suggests, operator could walk into the booth chamber and medicously coat the object from all directions

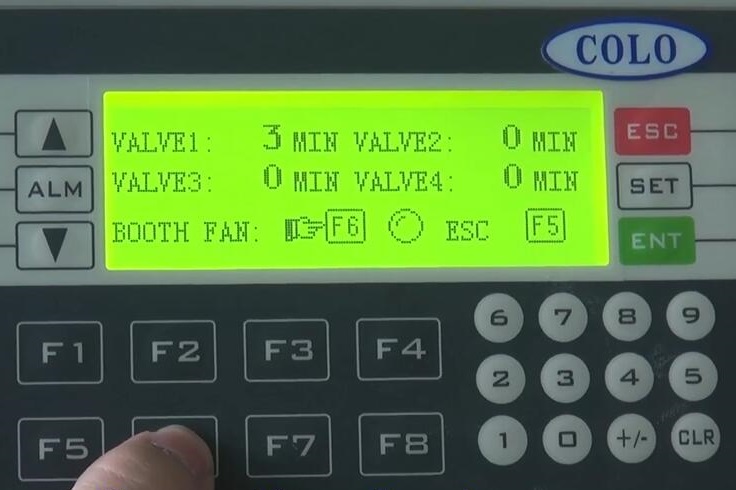

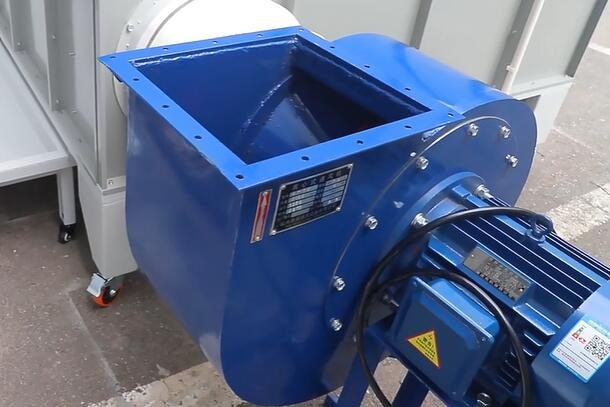

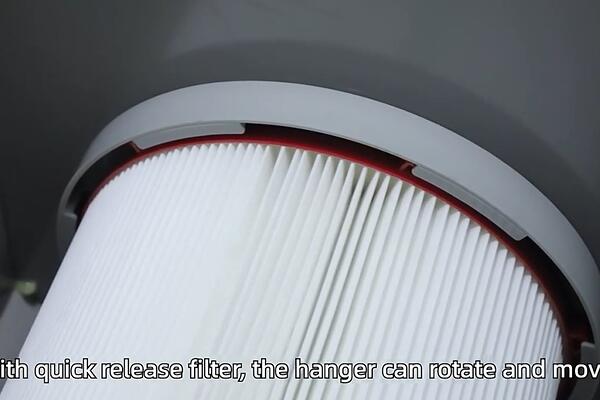

The walk-in spray booth configures a 4kw centrifugal fan motor with strong extraction volume powerfully draw clean shop air through filter and exhaust the dustless air back to the atmosphere. And we apply PLC control system to easily set the fan working and automatic pulse-jet cleaning for filters. The cartridge filter is quick-release type, fast for replacement and color change.
| Mode | KF-3924 |
| Type | Walk-in Powder Booth |
| Working Dimension | Width3900 * Depth2400 * Height2400mm |
| Power Supply | Electric |
| Voltage | 220V/380V/410V, can be customized |
| Nominal Power | 5.5kw |
| Cartridge Filter Material | 100% polyester |
| Filter Count | 12 pcs |
| Filter Hang Type | Quick release |
| Filter Cleaning System | Pneumatic |

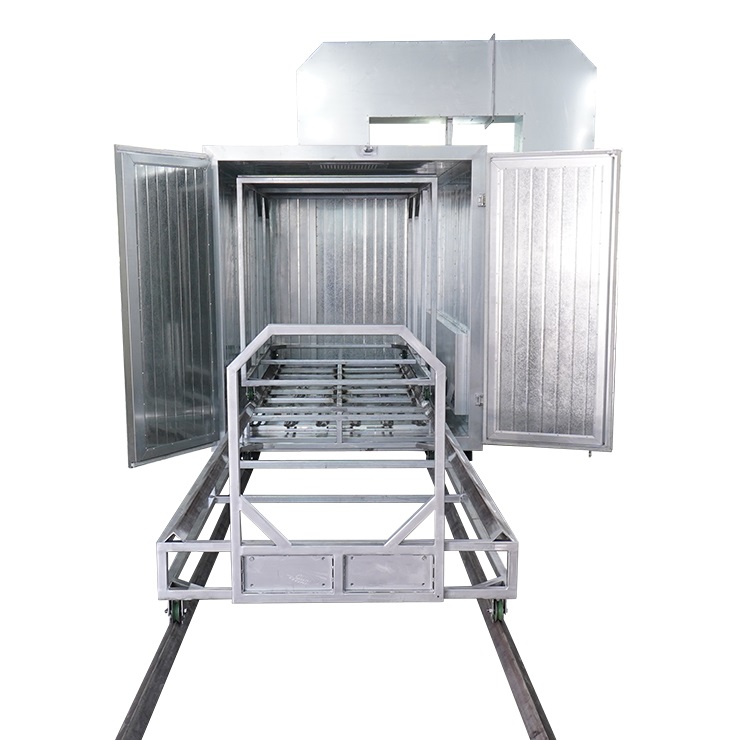

Our batch powder coating oven are be heaed by gas or diesel, designed with ground trolley system allows transporting heavy parts with less efforts and holding batch of workparts for efficient curing process.

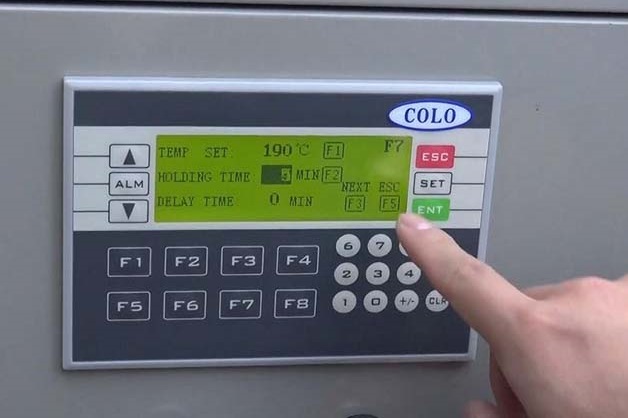

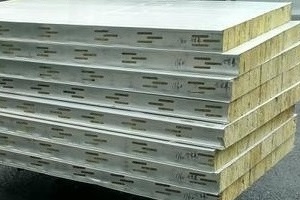

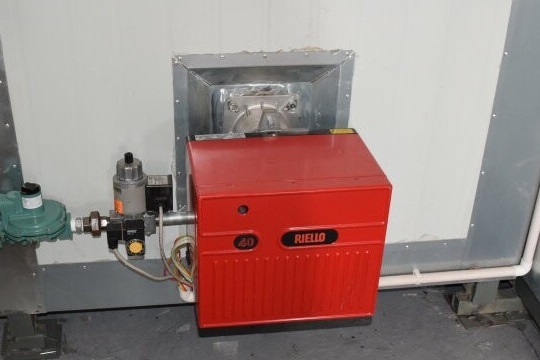

Kafan curing oven provides uniform hot air distribution thanks to the circulation fan that ensures the coated parts cured with consistent color. The Riello gas/diesel burner enables a rapidly raise to required temperature, save your production time everyday. The 100mm thickness rock wool board always keeps the inner chamber warm. The whole process is reliablely controlled via PLC, which allows you setting precise heating temprerature and duration.
| Model | KF-5219 |
| Working Dimension | Width1900 * Heght1900 * Depth5000mm |
| Voltage | 220V/380V(50-60Hz) |
| Power Supply | Gas/Diesel/LPG |
| Warm-up Time | 15-30min (180°C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250°C |
| Burner | Italy RIELLO, 200,000kcal |
| Ventilation performance | 805-1677m3/h |
| Motor Power | 5.5kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Transportation | Trolley |
Size and special requirements of powder coating equipment can be customized to meet your actual application.
