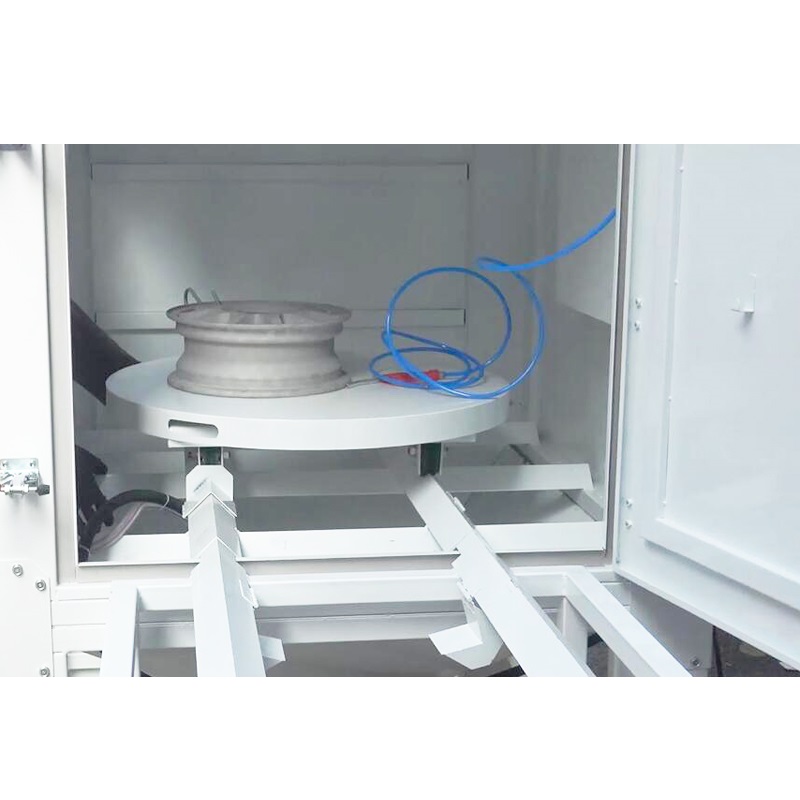

The KF-1212FTA manual blast cabinets incorporate a turntable with loading cart used to operates heavy objects with minimal force. Specially applied to surface treatment of alloy wheels, castings, molds, etc.
Model | KF-1212FTA |
Overall Dimension | Length1620 * Width1250 * Height2000mm |
Work Chamber | Length1200 * Width1200 * Height800mm |
Turntable | Diameter 800mm (Maximum Load 200kgs) |
Door Size | W750xH780 |
Power Supply | 110V/220V/380V/410V450V(50-60Hz) |
Motor Power | 0.75kw |
Main Structure | Working chamber Cartridge filter dust collector Electric controll system Pnuematic control system Rotating Turtable Loading Cart and track ... |
Spare parts | Sandblasting gun with boron carbide nozzle Air blowing gun Blasting hose Sandblasting gloves pressure regulator air moisture separator ... |

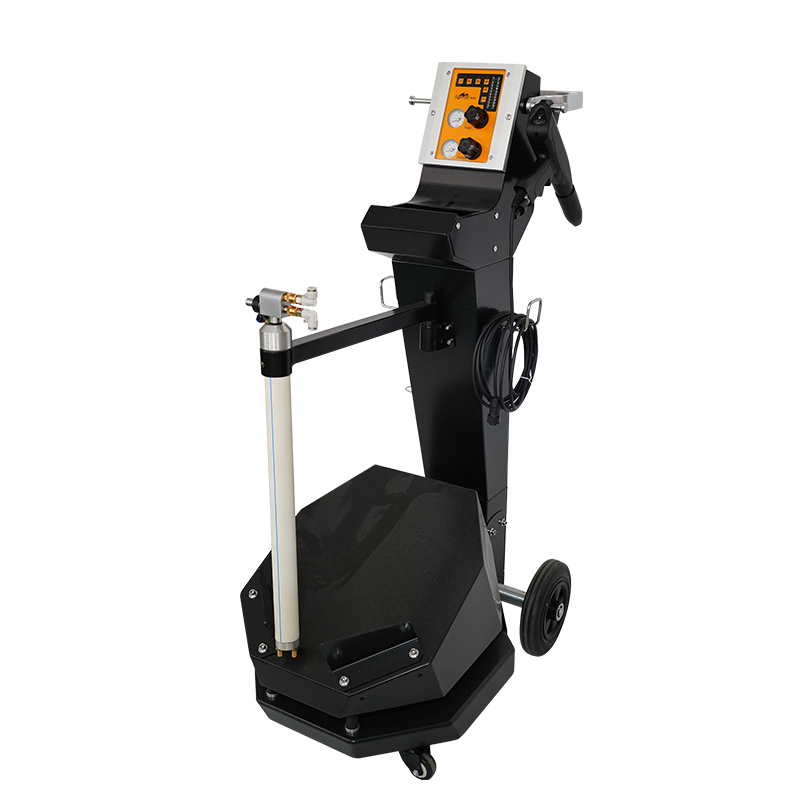

Kafan KF-K1 advanced powder coating machine combines intelligent controller and 100kv spray gun makes it easy for coating whether simple or complicated workparts with perfect quality, and increases working efficiency, reduces powder, ensures uniform powder output. Big hopper type and fast color change type for choice.
There are 3 application programs pre-set for beginners, including flat parts coating program, corner coating program, re-coating program. 0-100kv voltage adjustable by digital, help you easily find the optimal data for different applications. Configured with 3 type nozzles for multi-spray applications, including flat nozzles, round nozzles, and extension nozzles.
The rear-mounted filtration unit including 4 pcs cartridge filters keeps your cabin clear of particulate and is perfect for batch coating operations and reach to 98% powder recovery rate. Those filters are quick-release type which is easy to replace when changing powder colors.
4kw centrifugal fan motor with strong extraction volume, powerfully draw air through powder booth filter and ehaust the air back to the atmosphere free of powder particulars.

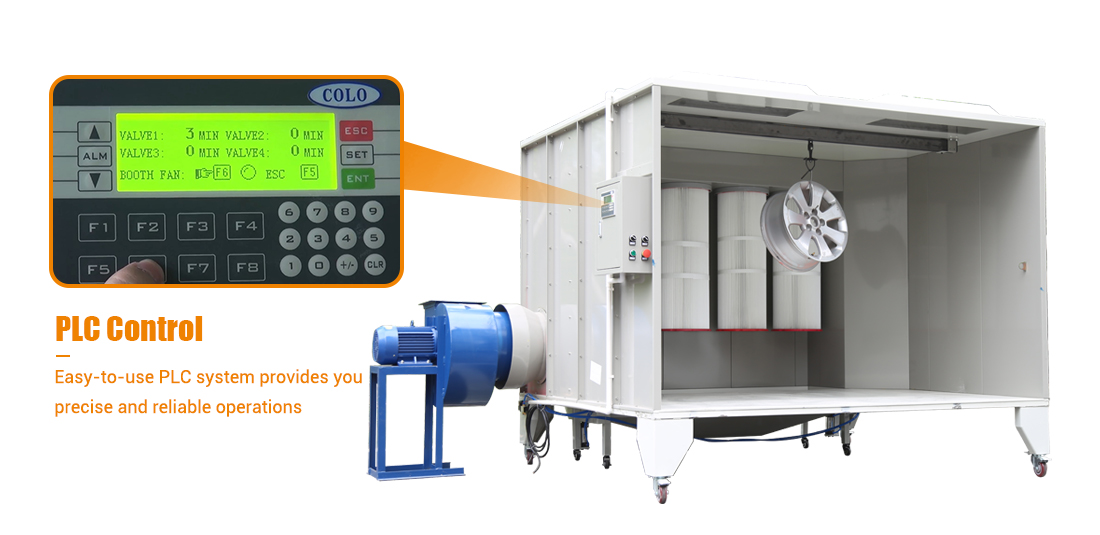

Reliable and easy operation, the PLC panel allows users to stop and start fan motor, set working times of solenoid valves which controls the filter cleaning, also has powder collector lifting switch and emergency stop switch,

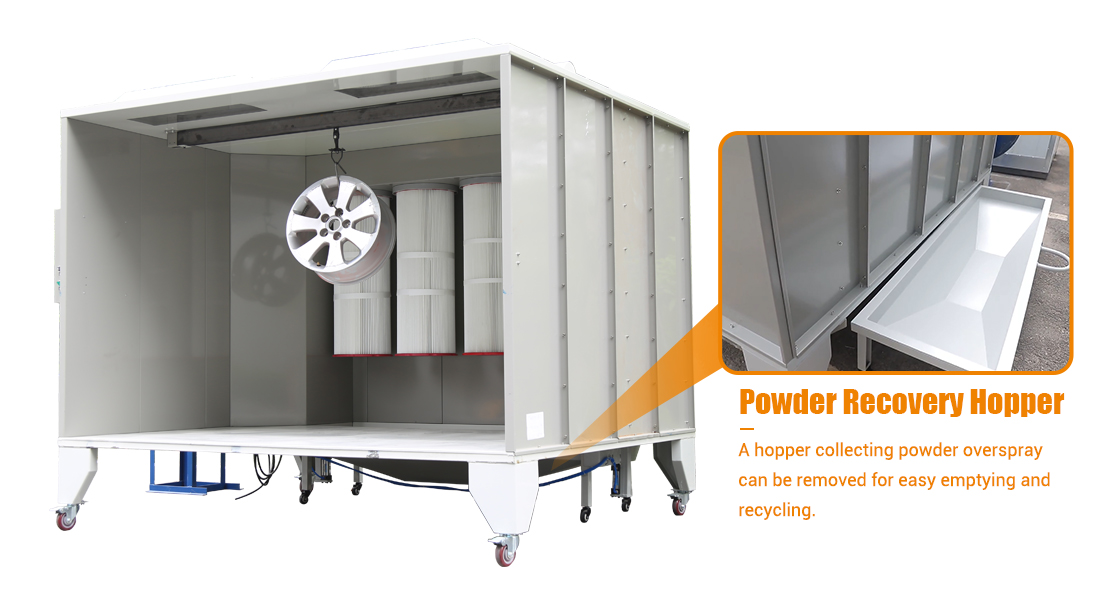

A removable powder funnel beneath the filters will collects powder overspray for easy recycling, and ensures powder purity.
Mode | KF-2315 |
Working Dimension | Width2300 * Depth1500 * Height1500 mm (7.5ft*4.9ft*4.9ft) |
Overall Dimension | Width1640 * Depth2070 * Height2180 mm |
Power Supply | Electric |
Voltage | 220V/380V/410V, can be customized |
Nominal Power | 4kw |
Cartridge Filter | 4 pcs, quick release type , 100% polyester |
Filter Cleaning System | Pneumatic |
Air Consumption | 4000m^3/h |

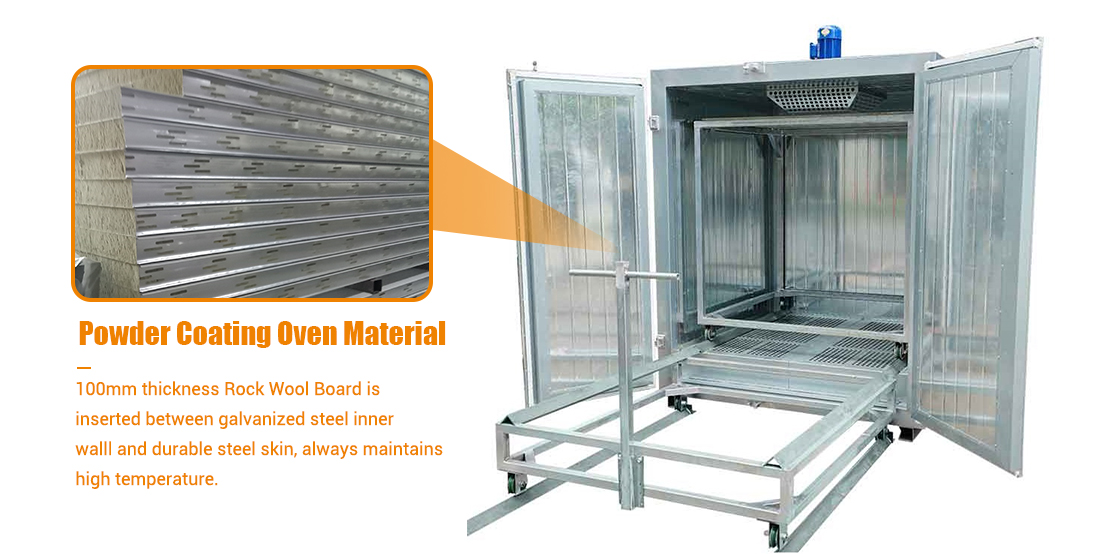

Our energy-saving powder coating oven provides uniform distribution of hot airlfow for the parts thanks to a circulation fan, and has minimum heat loss because of the 100mm thick rockwool insulation material, which ensures quality, consistent quality finish without color difference.
Heated by electricity, this curing oven features easy operation and maintenace, as well as environmental friendly. PLC controls the temperature, time and fan motor work, providing a precise, reliable and safe heating process. Comes with a set of trolley for loading batch of workparts and transporting them with minimum labor efforts.
| Mode | KF-1864 |
| Type | Electric Powder Coating Oven |
| Working Size | Width1600 * Depth1400 * Height1800 mm (5.2ft * 4.6ft * 5.9ft) |
| Outer Size | Width1900 * Depth1700 * Height2200mm |
| Power Supply | Electric/18kw |
| Voltage | 380V/220V(can be customized), 3 Phase |
| Motor Power | 0.75kw |
| Heating Temperature | 180-250'C |
| Heating Time | 15-30min |
| Transportation | Trolley |
Size and special requirements of powder coating equipment can be customized to meet your actual application.
