Batch Powder Coating Equipment Package

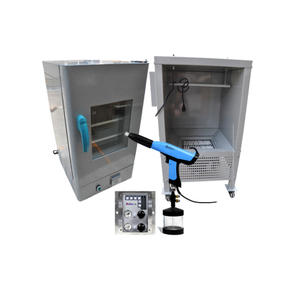

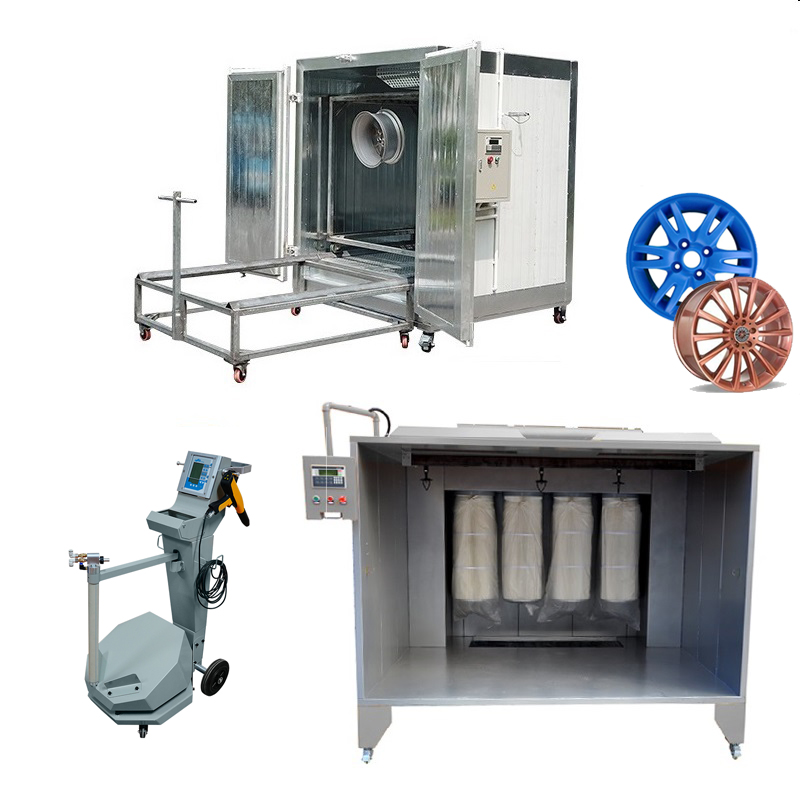

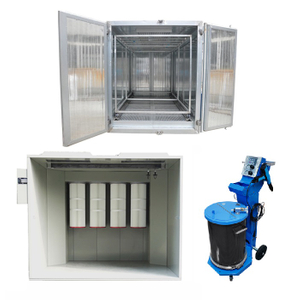

The powder coating package supports for small or medium sized products in batches, All equipment produced by kafan to optimize your application quality and minimize your budget. The Batch Powder Coating Equipment Package Including Manual Professional Powder Coating Gun, Filter Type Powder Coating Spray Booth, Electric Powder Curing Oven.
  • Kafan
  • Powder Coating Equipment Package
Availability:

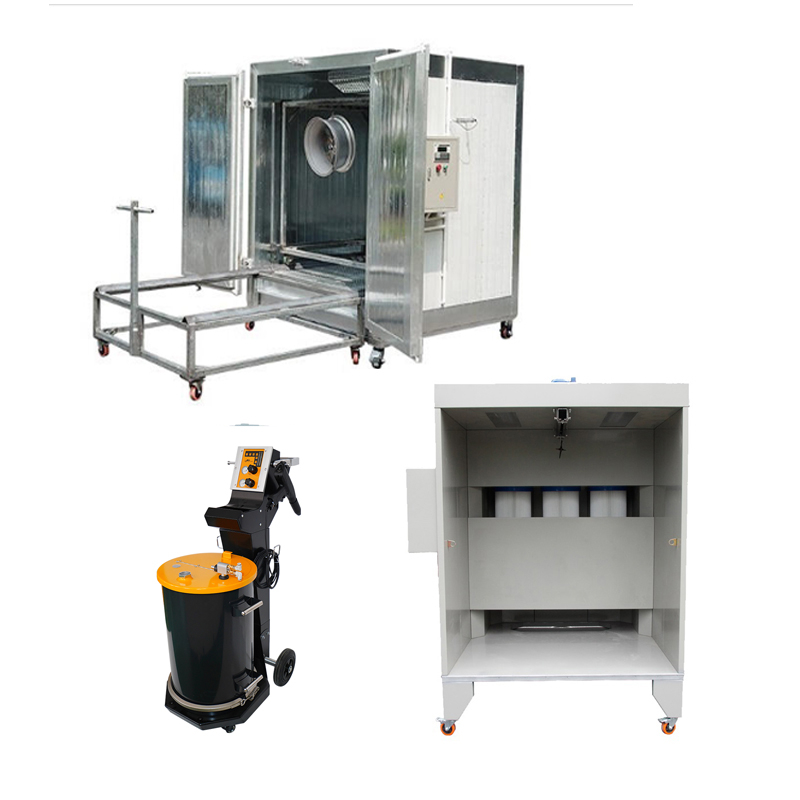

Easy & Efficiency Powder Coating Equipment Package


This easy & efficiency complete powder coating system is intended for use when you powdercoat small and medium parts in batches, such as bike frames, car/truck/ parts, and all kinds of metal parts and accessories.

powder coating equipment package

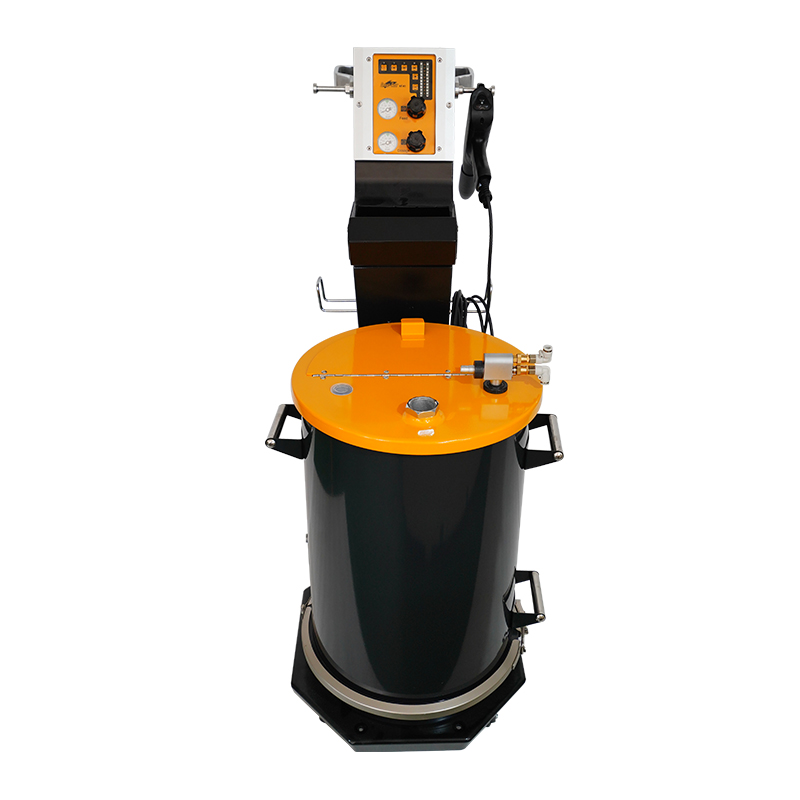

Electrostatic Powder Coating Gun:

KF-X1 professional powder coating gun applies world's latest DVC (digital valve controlled) technology that easily allows precise setting of all parameters,  delivering excellent transfer efficency, and generates consistent, full powder clouds.

It requires less efforts to do any types of powder coating jobs whether for powder coating corners or complex parts. We supply hopper type for single color production and box feed type for fast color change.

x1-5

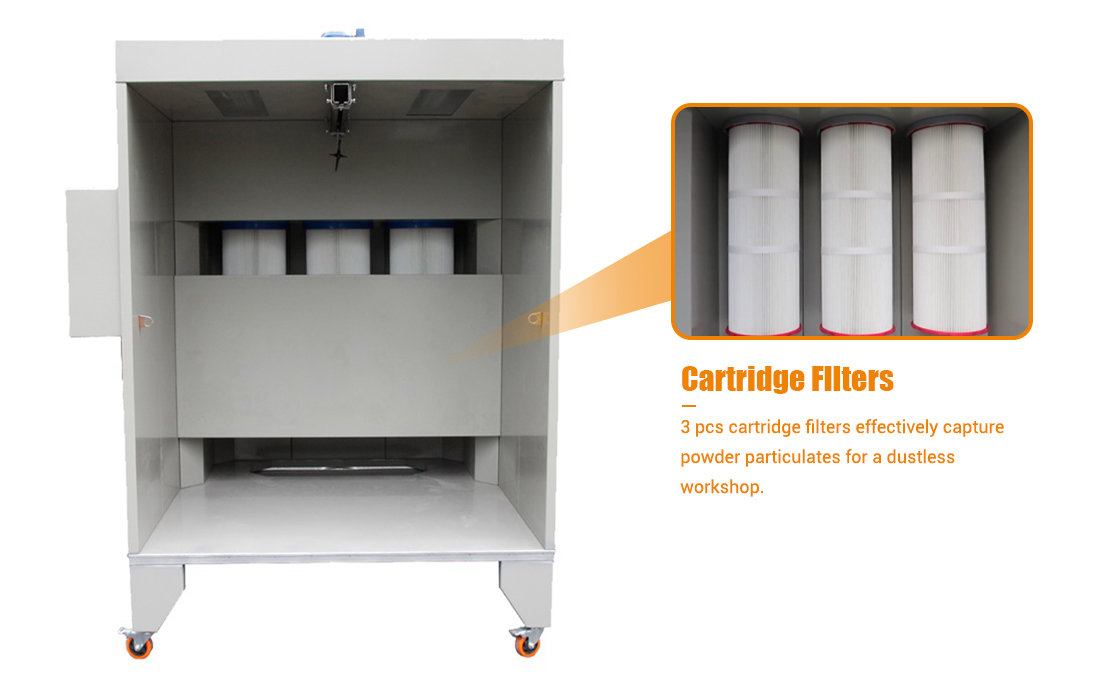

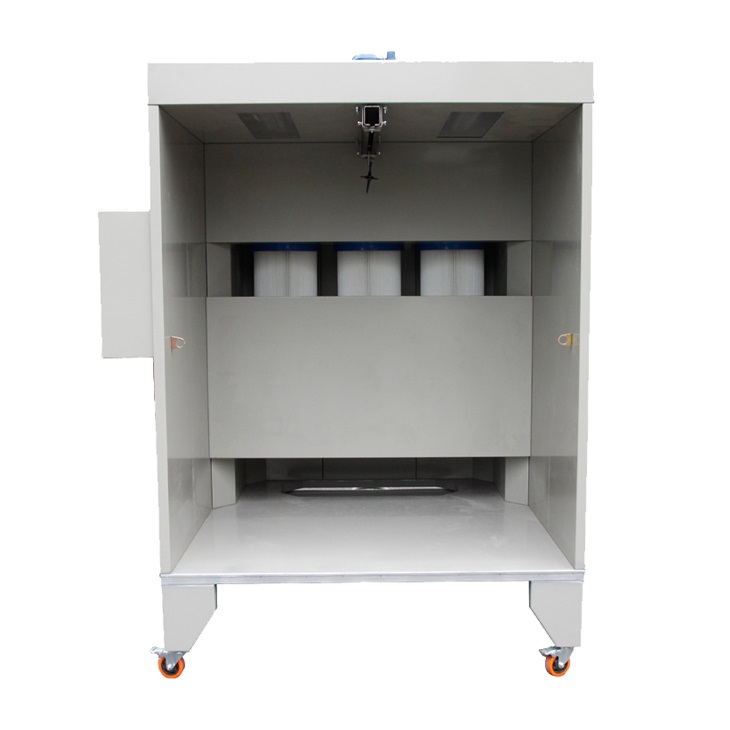

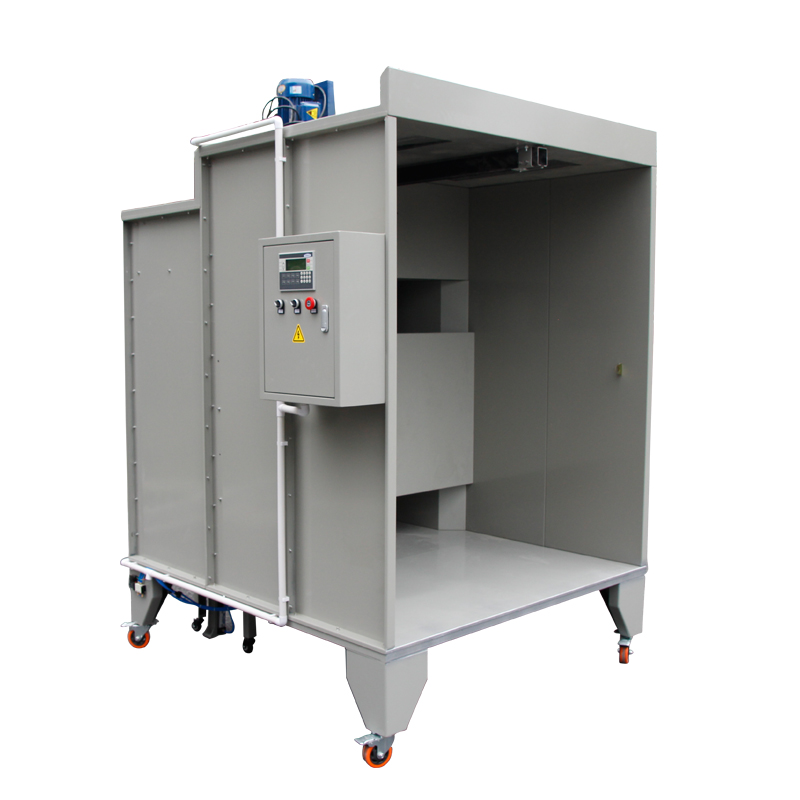

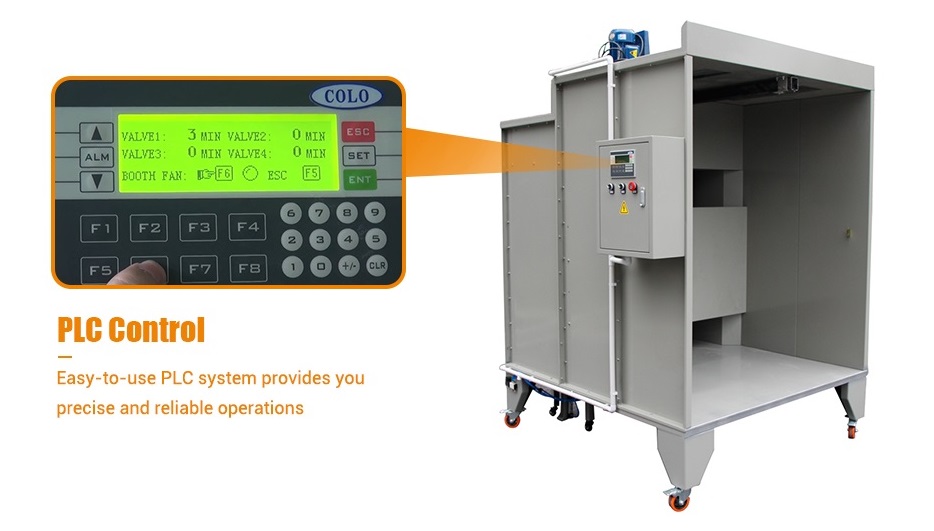

Powder Coating Spray Booth

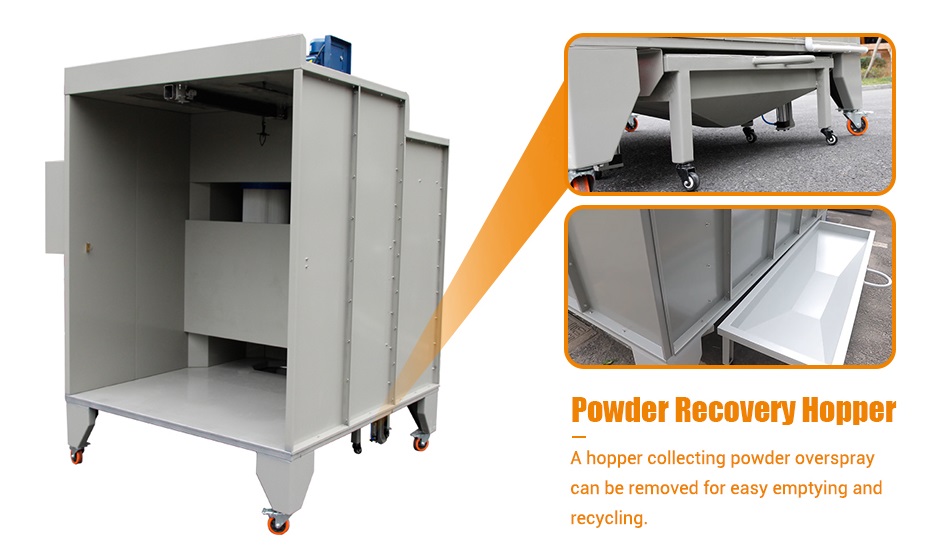

Reach to 98% powder recovery rate. Comes with quick-release type cartridge filter and removable bottom powder funnel section allows fast cleaning and color change. High quality galvanized materials extend to long lifespan.

COLO-S-2315 Powder coating booth


Powder Coating Booth Specifications

Mode

KF-2315

Working Dimension

Width2300 * Depth1500 * Height1500 mm

 (7.5ft*4.9ft*4.9ft)

Overall Dimension

Width1640 * Depth2070 * Height2180 mm

Power Supply

Electric

Voltage

220V/380V/410V,

can be customized

Nominal Power

4kw

Cartridge Filter

4 pcs, quick release type ,

100% polyester

Filter Cleaning System

Pneumatic

Air Consumption

4000m^3/h

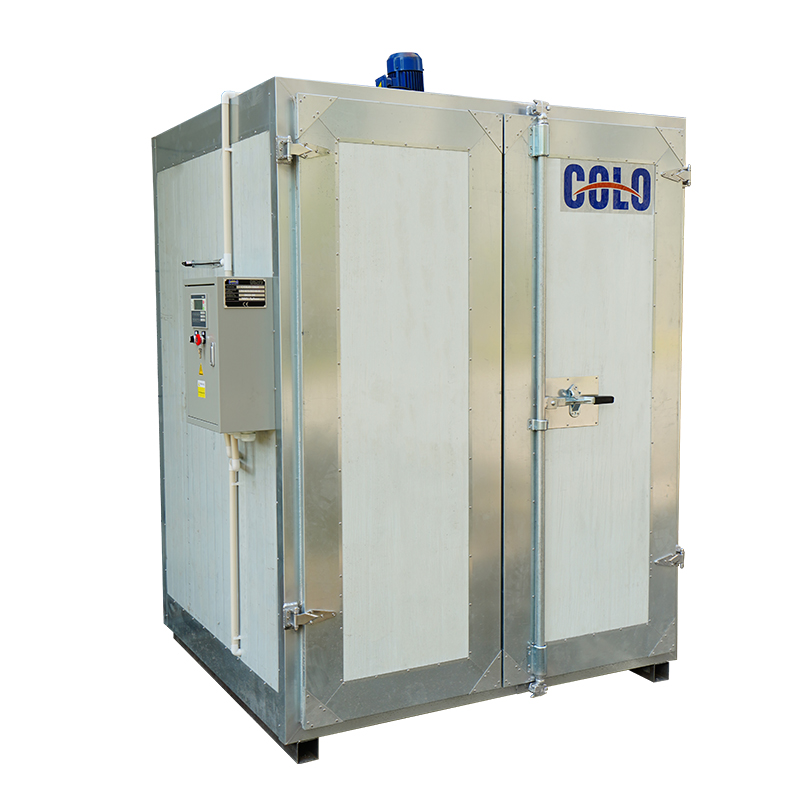

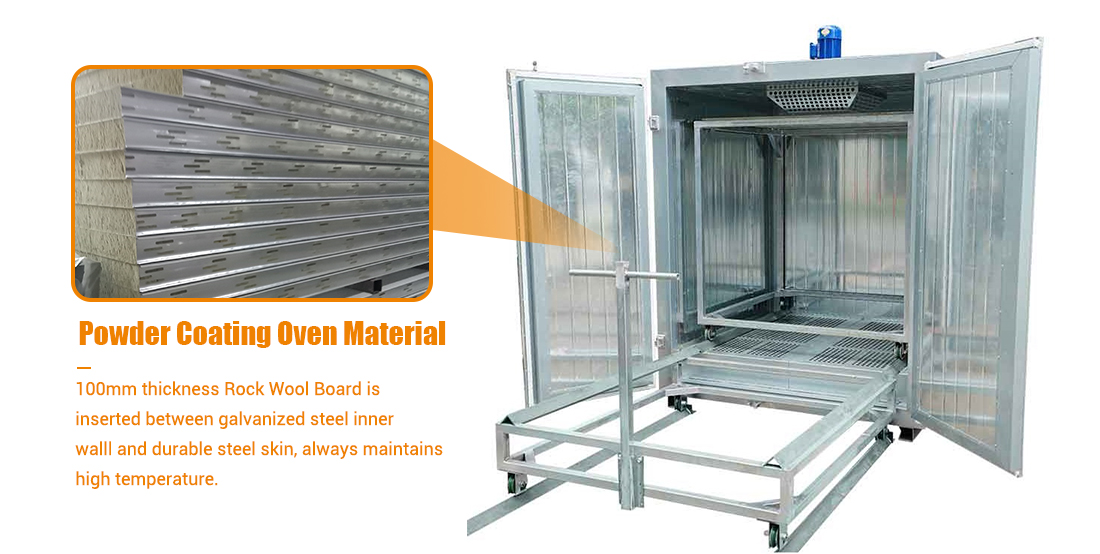

Powder Coating Curing Oven

Curing oven provides uniform distribution of warm air for the parts, resulting in a quality finish. Heat by electricity, energy-saving and environmental friendly. PLC controls the temperature, heating time and fan motor work, rapidly raise the required temperature in a short time, easy and efficiency.

powder coating oven - 副本


Powder Coating Oven Specifications


Mode KF-1864
Type Electric Powder Coating Oven
Working Size

Width1600 * Depth1400 * Height1800 mm

(5.2ft * 4.6ft * 5.9ft)

Outer Size Width1900 * Depth1700 * Height2200mm
Power Supply Electric/18kw
Voltage 380V/220V(can be customized), 3 Phase
Motor Power 0.75kw
Heating Temperature 180-250'C
Heating Time 15-30min
Transportation Trolley


Size and special requirements of powder coating equipment can be customized to meet your actual application.
