Availability: | |
---|---|
Quantity: | |

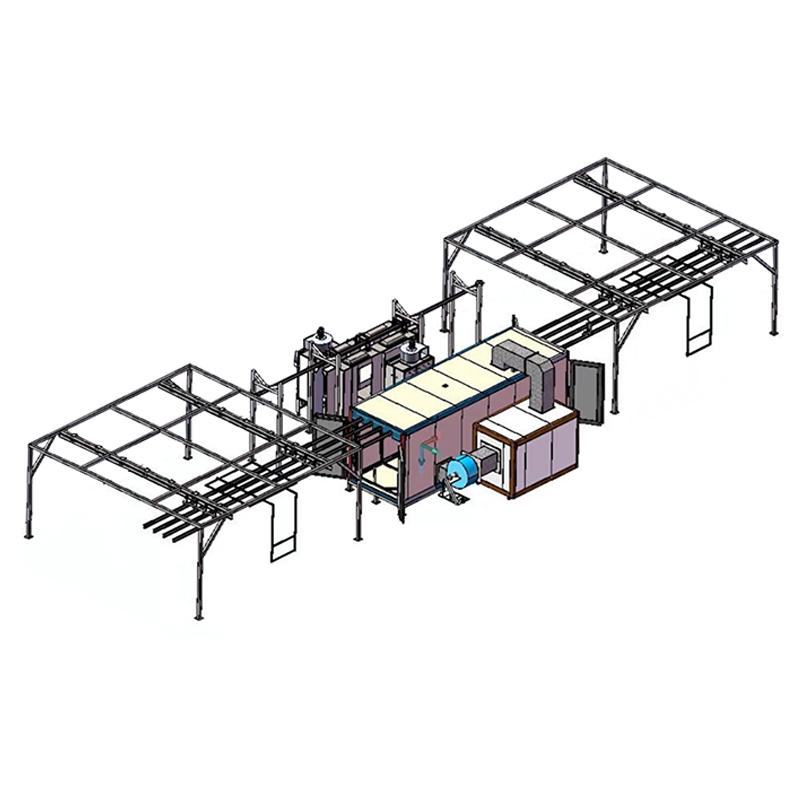

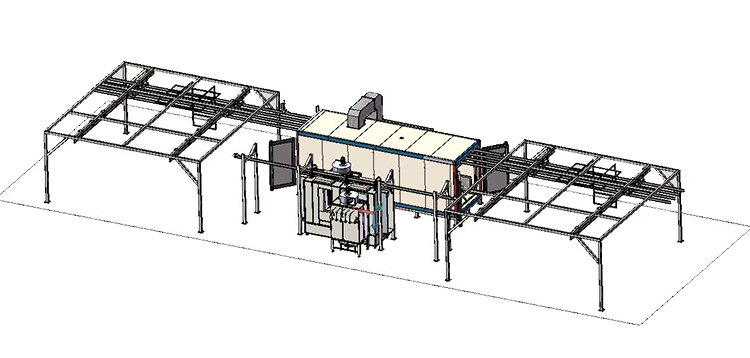

This manual powder coating line allows transporting heavy workparts across the overhead track system, which reduce manual efforts and ensures production efficiency. The complete system includes manual coating machine, pass thru spray booth and curing oven, manual-pull track system.
This powder coating line is specially designed for manual coating of various small, big dimension or long length workparts in batches, such as aluminium profiles, frames, brackets, etc Get a custom plan to start your own powder coating business with Kafan teams!
COLO-191S Powder Coating Machine
Powder coating is by manual spray system, which offers more precise operation that automatic line can not achieve, especially for handling objects in complex shapes.
COLO-191S Powder coating equipment is digital valve controlled, features precise and easy operated, offering best application quality for various products, such as metal frames, aluminum profiles, whose 60 pounds hopper allows big powder coating productivity.
Pass Thru Powder Coatig Booth
Pass thru powder coating booth allows parts enter the booth from one entrance and exit from the other through overhead track while recieving powder coating from bilateral stations, suitable for long lenth workparts.
The powder spray booth configured with double filter stages for highly-efficient powder recovey, as well as ensures cleaning working environment.
A removable powder collector beneath the filter stage will holds oversprayed powders and can be taken out for recycling use.

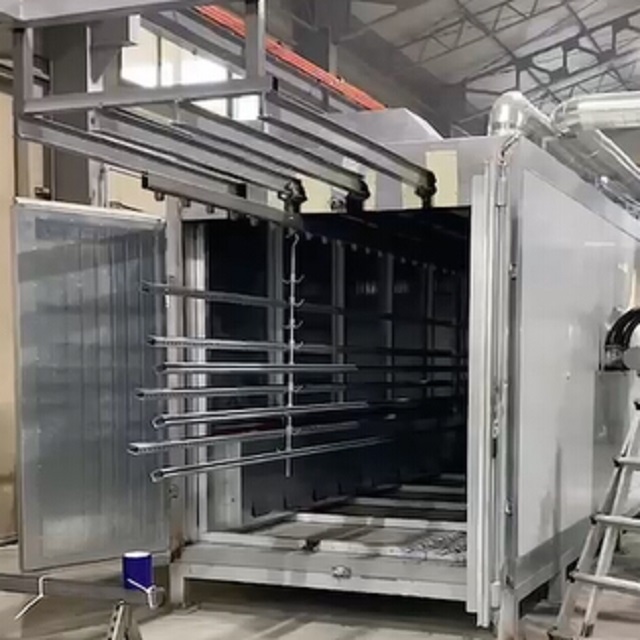

Track Powder Coating Gas Oven
This powder coating oven designed wth top tracks allows batch conveyed workparts entering for powder curing Made of 100mm thick rock wool board, the oven keeps good heat preservation. A circulation fan cycles hot air uniformly that results quality curing effect.
The powder-coating oven is easy to operate thanks to the PLC control unit with, it offers all features and flexibilities to achieve precise heating process.
Gas fired powder coating oven features quck-heating, energy-saving, reducing operating cost and curing more parts everyday.
Powder Coating Machine | |
Model | COLO-191S |
Max. Output Voltage | 100kv |
Powder Hopper Capacity | 60lbs |
Powder Coating Booth | |
Type | Pass Thru |
Inner Size | L4m x W1.1m x H1.82m |
Opening Size | W0.5m x H1.82m |
Material | SPCC/t=1.5mm |
Bottom Frame | 8# square tube |
Booth Inner Frame | 8# square tube |
Recovery System | Filter Cartridge (10pcs) |
Fan Motor | 4kw, 2sets |
Air Flow | 5000m^3/h |
Powder Coating Oven | |
Type | Gas Curing Oven |
Working Dimension | Width 1.87m x Height 2.16m x Depth 7m |
Insulation | t=100mm |
Hemming | SGCC/t=1.5mm |
Bottom Frame | 8# Square Tube |
Inner Frame | 8# Square Tube |
Gas Burner | 300,000 kcal/h, RIELLO brand |
Fan Motor | 7.5kw, 1 set |
Air Flow | 8000m^3/h |
