KF-K1 Electrostatic Powder Coating Spray Machine with 60lbs Hopper

- Manual electrostatic powder coating equipment
- Easy electric and pneumatic parameter control
- Budget-saving and reliable powder coating system
- Powder gun pare parts always available 1 year warranty time
  • KF-K1

  • Kafan

  • Powder Coating Machine


Electrostatic Powder Coating Spray Machine

Kafan KF-K1 series powder coating machine applies the easiest spray method that delivers consistent and uniform powder output and ensures powder transfer efficiency. The easy-structured powder coating equipment requires simplest operation and minimal maintenance. Combined 60 lbs powder hopper supports for industrial large production and single color application.

KF-K1 Powder Coating Machine Intelligent Controller Features

  • Three one-button application programs pre-set for beginners, including flat parts coating program, corner coating program, re-coating program.

  • 0-100kv voltage adjustable by digital, help you easily find the optimal data for different applications

  • Easy regulation of pneumatic parameters by mechanical valves, reliable and durable.

  • Perfect coating results for whether flat shape parts or complex shape parts, increase working efficiency, reduce powder cost.

   K1 powder gun control

Manual Powder Spray Gun

  • Unique ergonomic design, lightweight to reduce operator's fatigue

  • 100kv built-in voltage cascade for high transfer efficeincy and reduce powder waste

  • Quality material and non-stick of powders, fast cleaning during color change

  • Flat nozzles and round nozzles, extension nozzles optimize the application,

   manual powder coating gun

KF-K1 Powder Coating Machine Parts

  • All the parts for the KF-X1 powder coating system is best configuration.

  • The powder hose is durable and long life, smoothly conveying the powders from the hopper to the gun.

  • Powder injector enables easily assembling to the machine only by manual, and gives uniform powder output for higher coating quality.

  • Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.

  powder coating machine parts

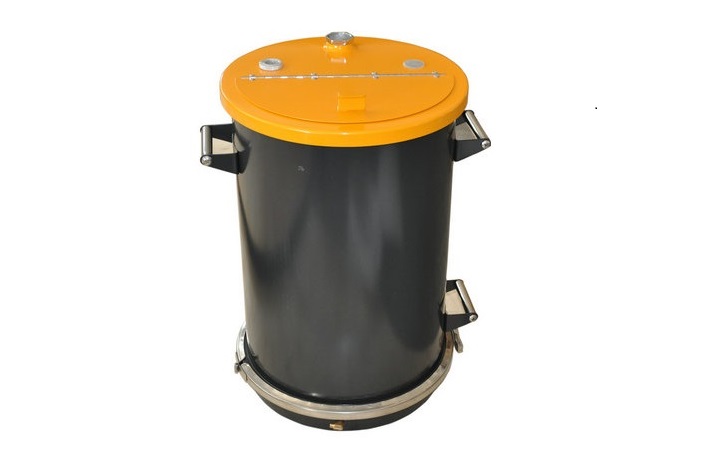

Powder Coating Machine Hopper

Size: D36xH62cm, Capacity: 60 pounds powders.

The easy cleaning powder coating hopper is popular among worldwide powder coaters, It is  extraordinary designed to be dismountable, convenient to clean the inwall, bottom, fluidizing board, seal ring of the hopper. The powder hopper with fluidizng board prevents the powder block, which is also well sealed keep the powders from contaminants and damp.

powder coating machine hopper

KF-K1 Powder Coating Machine Technical Data

Model KF-K1 Hopper Type
Power range   220/110V 1 Phase (customized as local)
Frequency   50HZ
Temperature range in use -10 ℃+50 ℃
Powder Gun
Gun weight:    … 500G
Rated output voltage 24VDC
Maximum output current 180Ua(max)
Maximum output voltage 0-100KV (  adjustable)
Maximum powder injection : 600g/min
Polarity negative (-)
Pneumatic data
Maximum input-air pressure 10kg/cm
Optimum input-air pressure 6kg/cm
Minimum input-air pressure 4kg/cm
Maximum water vapor content or compressed air 1.4g/N m3
Maximum oil vapor content of compressed air 0.1ppm
Maximum compressed-air consumption 13.2 m3/h

KF-K1 Powder Coating Gun Controller Operation Guide

Powder Coating System Packing & Delivery

Order of powder coating gun and parts, wooden case for sea shipping, cartons for international express, each machine is wrapped with film first to prevent scratch, each package is filled with foam to eliminate damage.

For powder spray booth or large quantities orders, if reach to a certain dimension, we can ship you by a full 20’ or 40’ container. That is much safer.

powder coating equipment packing  Packing  delivery

About US

10 years specializing on powder coating equipment, market development, research & design, manufacture and export,  we have established business relationship with over 100 countries, including distributors in US, Canada, Peru, Ecuador, Argentina, Vietnam, Thailand, Indonesia, UK, Germany, Poland, Russia, Spain, South Africa, Pakistan, Saudi Arabia and many others. We have professional sales team, market team, techinical team, production team, quality control team, management and finance team, etc.

Kafan powder coating gun

Powder Coating Equipment Production

Design & Drawing (for non-standard products) - Material Preparing(CNC punching, bending, welding) - Preliminary Assembly - Surface Coating - Complete Assembling - Electricity Connection - Testing

Kafan After Sale Service

  • Each powder coating equipment is delivered with a manual to guide you how to Install & operation, any doubts contact with our sales, or watch our teaching videos.

  • One year warranty for any quality problem, free replace of main parts, PCB, cascade, gun cable(not includes wearing parts.

  • We will call back or email back to ask your satisfactory of using our machine, and anything if you need our help.

  • Powder coating equipment daily maintenance, technical upgrading, sale promotion will be offered to you.

  • Build warehouse for quick wearing parts and replacements, such as spray nozzles, insert sleeves, gun shells, injectors, powder hose, etc.
