KF-K1-V
Kafan
Availability: | |
---|---|
Quantity: | |
The box feed powder coating machine features quick color change by directly conveying powders from original powder carton. It is typically recommended for customer who need frequently change change powder colors but without cleaning of powder container.
Kafan box feed unit incorporates a vibrating motor that ensures smooth and uniform powder feeding without accumulation, with anti-static electricity-conductive powder hose optimizing the application quality.
Three one-button application programs pre-set for beginners, including flat parts coating program, corner coating program, re-coating program.
0-100kv voltage adjustable by digital, help you easily find the optimal data for different applications
Easy regulation of pneumatic parameters by mechanical valves, reliable and durable.
Perfect coating results for whether flat shape parts or complex shape parts, increase working efficiency, reduce powder cost.
Unique ergonomic design, lightweight to reduce operator's fatigue
100kv built-in voltage cascade for high transfer efficeincy and reduce powder waste
Quality material and non-stick of powders, fast cleaning during color change
Flat nozzles and round nozzles, extension nozzles optimize the application,
All the parts for the KF-X1 powder coating system is best configuration.
The powder hose is durable and long life, smoothly convey the powders from the hopper to the gun.
Powder injector enables easily assembling to the machine only by manual, and gives uniform powder output for higher coating quality.

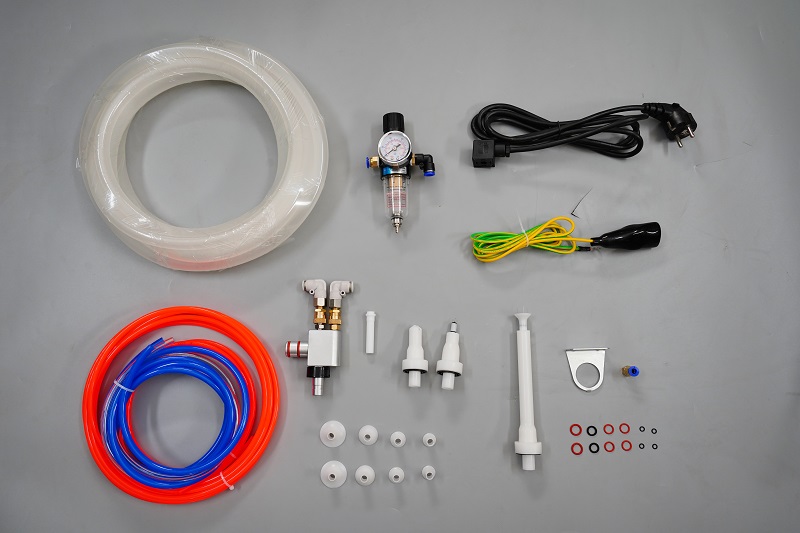

Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.
Model | KF-K1-V Box feed unit |
Power range | 220/110V 1 Phase (customized as local) |
Frequency | 50HZ |
Temperature range in use | -10 ℃+50 ℃ |
Powder Gun | |
Gun weight: … | 500G |
Rated output voltage | 24VDC |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV ( adjustable) |
Maximum powder injection : | 600g/min |
Polarity | negative (-) |
Pneumatic data | |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Minimum input-air pressure | 4kg/cm |
Maximum water vapor content or compressed air | 1.4g/N m3 |
Maximum oil vapor content of compressed air | 0.1ppm |
Maximum compressed-air consumption | 13.2 m3/h |
Based on Kafan 10+ years design and manufacture technology, kafan will meet all of your powder coating demands, whether single color application or frequently color change, whether for big production or lab use.
Depending on your budget, speciality, you can choose all intelligent powder coating machine or economical practical type.
Kafan powder coating spray units delivers high performance and efficiency for both regular shape parts and complex shape parts. Save cost and improve quality.
Kafan powder coating system enjoys a large scale of metal coating jobs, typically for car rims, alloy wheels, steel plates, aluminum profiles, bike frames, motorcycle parts, brake calipers, fence and rails, security door and windows, LPG tank, etc.
The box feed powder coating machine features quick color change by directly conveying powders from original powder carton. It is typically recommended for customer who need frequently change change powder colors but without cleaning of powder container.
Kafan box feed unit incorporates a vibrating motor that ensures smooth and uniform powder feeding without accumulation, with anti-static electricity-conductive powder hose optimizing the application quality.
Three one-button application programs pre-set for beginners, including flat parts coating program, corner coating program, re-coating program.
0-100kv voltage adjustable by digital, help you easily find the optimal data for different applications
Easy regulation of pneumatic parameters by mechanical valves, reliable and durable.
Perfect coating results for whether flat shape parts or complex shape parts, increase working efficiency, reduce powder cost.
Unique ergonomic design, lightweight to reduce operator's fatigue
100kv built-in voltage cascade for high transfer efficeincy and reduce powder waste
Quality material and non-stick of powders, fast cleaning during color change
Flat nozzles and round nozzles, extension nozzles optimize the application,
All the parts for the KF-X1 powder coating system is best configuration.
The powder hose is durable and long life, smoothly convey the powders from the hopper to the gun.
Powder injector enables easily assembling to the machine only by manual, and gives uniform powder output for higher coating quality.
Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.
Model | KF-K1-V Box feed unit |
Power range | 220/110V 1 Phase (customized as local) |
Frequency | 50HZ |
Temperature range in use | -10 ℃+50 ℃ |
Powder Gun | |
Gun weight: … | 500G |
Rated output voltage | 24VDC |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV ( adjustable) |
Maximum powder injection : | 600g/min |
Polarity | negative (-) |
Pneumatic data | |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Minimum input-air pressure | 4kg/cm |
Maximum water vapor content or compressed air | 1.4g/N m3 |
Maximum oil vapor content of compressed air | 0.1ppm |
Maximum compressed-air consumption | 13.2 m3/h |
Based on Kafan 10+ years design and manufacture technology, kafan will meet all of your powder coating demands, whether single color application or frequently color change, whether for big production or lab use.
Depending on your budget, speciality, you can choose all intelligent powder coating machine or economical practical type.
Kafan powder coating spray units delivers high performance and efficiency for both regular shape parts and complex shape parts. Save cost and improve quality.
Kafan powder coating system enjoys a large scale of metal coating jobs, typically for car rims, alloy wheels, steel plates, aluminum profiles, bike frames, motorcycle parts, brake calipers, fence and rails, security door and windows, LPG tank, etc.
1. Kafan Pre-sales Service
Inquiry on the website or directly contact with our sales, they are well speaking in English, Spanish, German, Russian, and 24hour online for any of your questions. Our sales is knowledgeable for powder coating machines and applications. We have professional techinical team, productions, quality control team, management and finance team, etc.
2. Kafan On-sales Service
Before orders, we need get clear of below questions
Q1: Are you a distributor or powder coating users?
If you are a user, we need know your actual condition to offer solution, replace your old machines or just begin to build a powder coating plant. If you are a distributor, we have preferential strategy to help you sell our powder guns.
Q2: What metal product do you coat?
Our powder coating equipment is applicable for coating every kinds of metal parts, whether flat panel or complex shapes.
Q3: Do you have many powder colors need to be frequently changed?
If one or two powder colors, choose the hopper type powder coating machine, if many powder colors, choose the box feed powder gun system, fast and convenient for color change.
Q4: What is the required production capacity?
Manual powder coating equipment for small and normal production. Automatic powder coating system for large production (including auto powder gun equipment, reciprocator, automatic powder coating booth, etc)
Q5: What is your local voltage?
Before production, we must confirm your voltage, we can customized based on your local, 110V/220V/380V/410V, etc.
Powder Coating Equipment Production
Design & Drawing (for non-standard products) - Material Preparing(CNC punching, bending, welding) - Preliminary Assembly - Surface Coating - Complete Assembling - Electricity Connection - Testing
Packing & Delivery
Order of powder coating gun and parts, wooden case for sea shipping, cartons for international express, each machine is wrapped with film first to prevent scratch, each package is filled with foam to eliminate damage.
For powder spray booth or large quantities orders, if reach to a certain dimension, we can ship you by a full 20’ or 40’ container. That is much safer.
3. Kafan After Sale Service
Each powder coating equipment is delivered with a manual to guide you how to Install & operation, any doubts contact with our sales, or watch our teaching videos.
One year warranty for any quality problem, free replace of main parts, PCB, cascade, gun cable(not includes wearing parts.
We will call back or email back to ask your satisfactory of using our machine, and anything if you need our help.
Powder coating equipment daily maintenance, technical upgrading, sale promotion will be offered to you.
Build warehouse for quick wearing parts and replacements, such as spray nozzles, insert sleeves, gun shells, injectors, powder hose, etc.
1. Kafan Pre-sales Service
Inquiry on the website or directly contact with our sales, they are well speaking in English, Spanish, German, Russian, and 24hour online for any of your questions. Our sales is knowledgeable for powder coating machines and applications. We have professional techinical team, productions, quality control team, management and finance team, etc.
2. Kafan On-sales Service
Before orders, we need get clear of below questions
Q1: Are you a distributor or powder coating users?
If you are a user, we need know your actual condition to offer solution, replace your old machines or just begin to build a powder coating plant. If you are a distributor, we have preferential strategy to help you sell our powder guns.
Q2: What metal product do you coat?
Our powder coating equipment is applicable for coating every kinds of metal parts, whether flat panel or complex shapes.
Q3: Do you have many powder colors need to be frequently changed?
If one or two powder colors, choose the hopper type powder coating machine, if many powder colors, choose the box feed powder gun system, fast and convenient for color change.
Q4: What is the required production capacity?
Manual powder coating equipment for small and normal production. Automatic powder coating system for large production (including auto powder gun equipment, reciprocator, automatic powder coating booth, etc)
Q5: What is your local voltage?
Before production, we must confirm your voltage, we can customized based on your local, 110V/220V/380V/410V, etc.
Powder Coating Equipment Production
Design & Drawing (for non-standard products) - Material Preparing(CNC punching, bending, welding) - Preliminary Assembly - Surface Coating - Complete Assembling - Electricity Connection - Testing
Packing & Delivery
Order of powder coating gun and parts, wooden case for sea shipping, cartons for international express, each machine is wrapped with film first to prevent scratch, each package is filled with foam to eliminate damage.
For powder spray booth or large quantities orders, if reach to a certain dimension, we can ship you by a full 20’ or 40’ container. That is much safer.
3. Kafan After Sale Service
Each powder coating equipment is delivered with a manual to guide you how to Install & operation, any doubts contact with our sales, or watch our teaching videos.
One year warranty for any quality problem, free replace of main parts, PCB, cascade, gun cable(not includes wearing parts.
We will call back or email back to ask your satisfactory of using our machine, and anything if you need our help.
Powder coating equipment daily maintenance, technical upgrading, sale promotion will be offered to you.
Build warehouse for quick wearing parts and replacements, such as spray nozzles, insert sleeves, gun shells, injectors, powder hose, etc.
