KF-K1-TH Electrostatic Powder Coating Spray Gun with 10lbs Hopper

KF-K1-TH Powder coating spray gun with 10 lbs portable hopper is easy to use for effective coating jobs. Based on Kafan 10 years manufacture & export experience, it is the most economical and practical solution.
  • KF-K1-TH
  • Kafan
  • Powder Coating Spray Gun
Availability:

Electrostatic Powder Coating Spray Gun, 10 lbs Portable Hopper Type

Kafan KF-K1-TH electrostatic powder coating spray gun applies the easiest spray method that delivers consistent and uniform powder output. The easy-structured powder coating machine requires simplest operation and minimal maintenance. Combined 10 lbs portable powder hopper supports for small production, easy to carry and quick for color change.

3 - 副本

Features of The Electrostatic Powder Coating Spray Gun

  • Three pre-setting application programs, flat parts coating, complex parts coating, repeat coating.

  • Based on Kafan 10 years design and manufacture technology, most economical and practical application

  • High performance powder coating gun, increases working efficiency, reduce powder consumption

  • Perfect powder coating results for flat shape parts or complex shape parts, such as alloy wheels, metal plates.


K1 Series Powder Coating Machine Operation


KF-K1-TH Powder Coating Spray Gun Machine Includes:

  • K1 Controller

  • KF-08 Manual Spray Gun

  • 10lbs Stainless Steel Powder Hopper

  • Powder Injector and Sleeves

  • Fan Spray Nozzle

  • Round Spray Nozzle & Different Dia Deflectors

  • Anti-static Powder Hose

  • Moisture Filter

  • 5 Meter Gun Cable

  • Grounded Wire

  • Air Pipes


Spare Parts of KF-K1-TH Portable Powder Coating Gun

1. Manual Powder Spray Gun

Kafan KF-08 Manual powder gun with unique ergonomic design, lightweight to reduce operator's fatigue  But powerful for long lasting use and great powder savings.

  • Back cover with remote powder flow controls

  • 100kv high voltage cascade

  • Quality material and non-stick of powders

  • Flat nozzles and round nozzles optimize the application

_MG_90571
k1 powder coating injector

2.Powder Coating Injector

Kafan powder injector meets the demands of spraying a large quantity of powders shortening the production time. The unique design enables the injector easily assembled to the machine only by manual. The injector sleeves is high quality teflon.

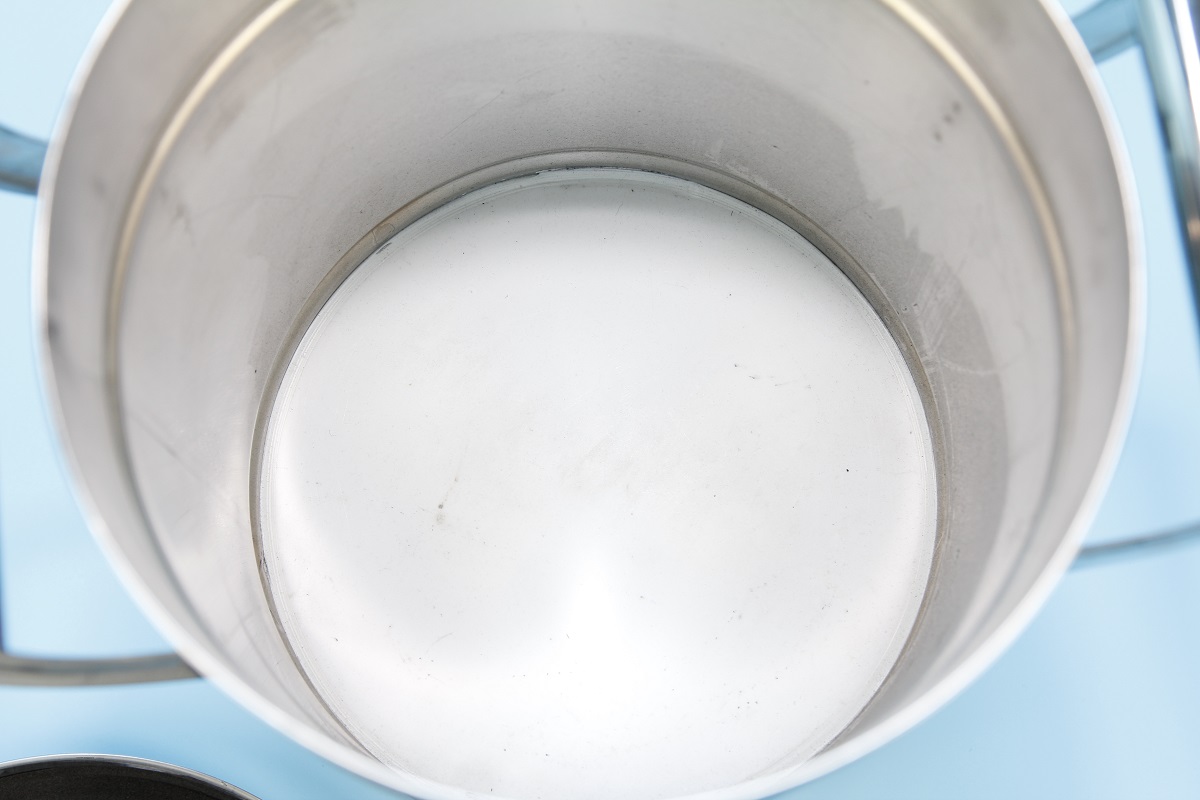

3. Powder Hopper

Size: D20xH30cm, Capacity: 10 pounds powders.

Stainless steel powder hopper, anti-rust and long lifespan. Easy cleaning and quick for color change

The powder hopper with fluidizng board prevents the powder block, which is also well sealed keep the powders from contaminants and damp

  powder hopper
powder coating hose

4 Anti-static Powder Hose

All the parts for the KF powder coating system is best configuration, the powder hose is electric-conductive for anti-static, smoothly convey the powders from the hopper to the gun, results in best powder coating quality.

KF-K1-TH Digital Powder Coating Machine Technical Data

ModelKF-K1-TH Portable Type
Power range  220/110V 1 Phase (customized as local)
Frequency  50HZ
Temperature range in use-10 ℃+50 ℃
Powder Gun
Gun weight:    …500G
Rated output voltage24VDC
Maximum output current180Ua(max)
Maximum output voltage0-100KV (  adjustable)
Maximum powder injection :600g/min
Polaritynegative (-)
Pneumatic data
Maximum input-air pressure10kg/cm
Optimum input-air pressure6kg/cm
Minimum input-air pressure4kg/cm
Maximum water vapor content or compressed air1.4g/N m3
Maximum oil vapor content of compressed air0.1ppm
Maximum compressed-air consumption13.2 m3/h



1. Kafan Pre-sales Service

Inquiry on the website or directly contact with our sales, they are well speaking in English, Spanish, German, Russian, and 24hour online for any of your questions. Our sales is knowledgeable for powder coating machines and applications. We have professional techinical team, productions, quality control team, management and finance team, etc.

Kafan powder coating gun


2. Kafan On-sales Service

Before orders, we need get clear of below questions

Q1: Are you a distributor or powder coating users?

If you are a user, we need know your actual condition to offer solution, replace your old machines or just begin to build a powder coating plant. If you are a distributor, we have preferential strategy to help you sell our powder guns.

Q2: What metal product do you coat?

Our powder coating equipment is applicable for coating every kinds of metal parts, whether flat panel or complex shapes.

Q3: Do you have many powder colors need to be frequently changed?

If one or two powder colors, choose the hopper type powder coating machine, if many powder colors, choose the box feed powder gun system, fast and convenient for color change.

Q4: What is the required production capacity?

Manual powder coating equipment for small and normal production. Automatic powder coating system for large production (including auto powder gun equipment, reciprocator, automatic powder coating booth, etc)

Q5: What is your local voltage?

Before production, we must confirm your voltage, we can customized based on your local, 110V/220V/380V/410V, etc.


Powder Coating Equipment Production

Design & Drawing (for non-standard products) - Material Preparing(CNC punching, bending, welding) - Preliminary Assembly - Surface Coating - Complete Assembling - Electricity Connection - Testing

IMG_6569IMG_6580IMG_6627


Packing & Delivery

Order of powder coating gun and parts, wooden case for sea shipping, cartons for international express, each machine is wrapped with film first to prevent scratch, each package is filled with foam to eliminate damage.

For powder spray booth or large quantities orders, if reach to a certain dimension, we can ship you by a full 20’ or 40’ container. That is much safer.

powder coating equipment packing  Packing  delivery


3. Kafan After Sale Service

  • Each powder coating equipment is delivered with a manual to guide you how to Install & operation, any doubts contact with our sales, or watch our teaching videos.

  • One year warranty for any quality problem, free replace of main parts, PCB, cascade, gun cable(not includes wearing parts.

  • We will call back or email back to ask your satisfactory of using our machine, and anything if you need our help.

  • Powder coating equipment daily maintenance, technical upgrading, sale promotion will be offered to you.

  • Build warehouse for quick wearing parts and replacements, such as spray nozzles, insert sleeves, gun shells, injectors, powder hose, etc.
