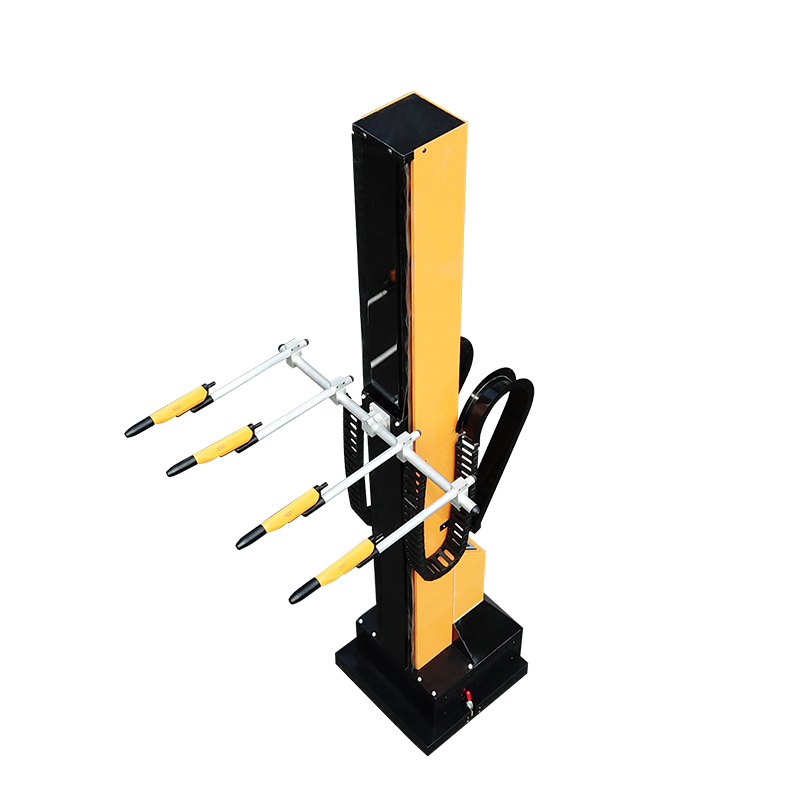

PLC Controlled Powder Coating Reciprocator

Kafan automatic powder coating reciprocator is driven by a frequency controlled motor via PLC, giving more smooth and precise motion.
  • KF-2200D

  • Kafan

  • Powder Coating Reciprocator


PLC Controlled Powder Coating Reciprocator for Automatic Line

In the automatic production line, COLO-2200D powder coating reciprocator carries a certain quantity of spray guns for up-and-down motion, delivers excellent uniformity and efficiency of powder coating.

Excellent Features & Benefits

  • Frequency adjustable to meet various coating demands

  • Applies a linear silder, gives more gentle up-and-down motion with less wear.

  • The moving stroke and speed is controlled via PLC.

  • Carry up to 24 pcs auto spray guns to achieves a certain productivity

  • Set and store 20 programs of individual stoke and speed

  • With user-friendly touch screen for easy operation and trainin

powder coating reciprocator

Touching Screen Interface

A user-friendly touching screen interface with multi-language offers you great flexibility to set parameters and control the whole process.

* Could set and store 20 individual programs

* User-friendly touch screen is easy to set parameters

* Three languages of the operation interface: Chinese/English/Spanish

PLC powder coating reciprocator

Powder Coating Reciprocator Specifications

Model KF-2200D
Power Supply AC 220V/110V 50-60Hz
Motor Power 1.1kw
Speed Range 0-50m/min(0-0.8m/s)
Max. Loading Capacity 25kgs
Stroke Length: 1.5m/2m/2.5m
Standard Size: 850*680*2970mm
Reciprocator Weight: 295kg

Powder Coating Reciprocator Application Case

For the automatic powder coating lines, Kafan reciprocators with spray guns are the ideal entry into continuous series production. Based on 10+ years application experience our products will meet the highest requirement of powder coating quality, reliability.
