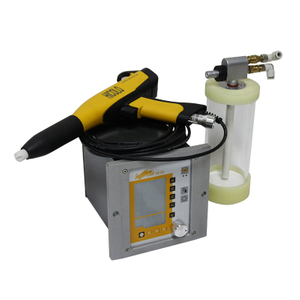

KF-X2-TH Small Powder Coating Machine

- Suitable for small scale powder coating jobs
- 10 lbs fluidizing powder cup
- 0-100kv voltage adjustable,
- Kv, amperage, powder flow, easily set by digital
- Ideal for all kinds of metal parts, perfect penetration for corner.
  • KF-X2-TH

  • KAFAN

Availability:
Quantity:

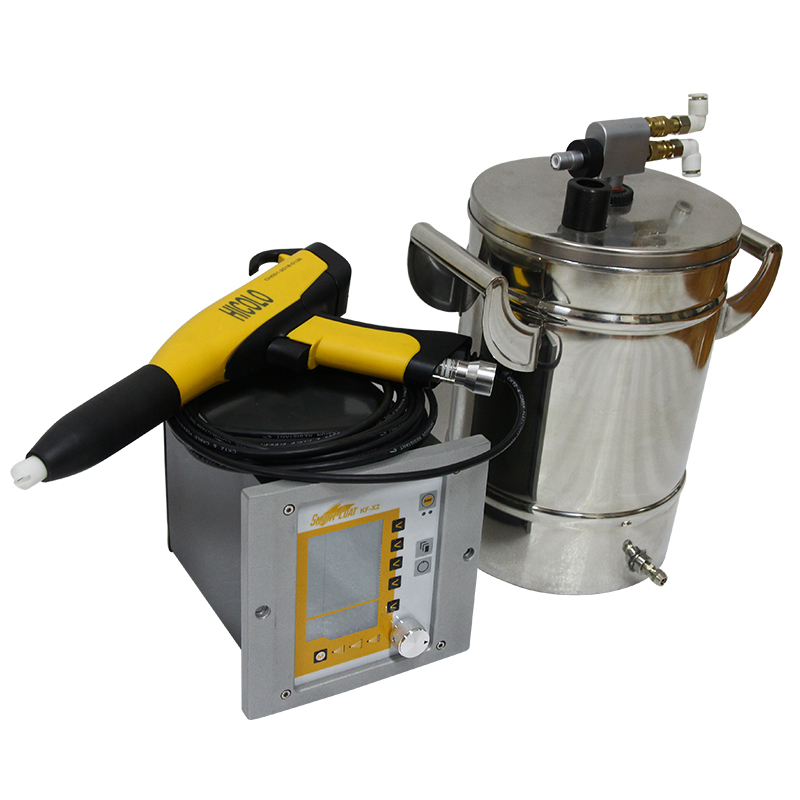

KF-X2-TH Small Powder Coating Machine

KF-X2-TH the small powder coating machine combined the 100KV spray gun and digital valve control technology, achieving excellent coating resuilts with high use ratio of powders. It is a simple set-up requiring just an air and power supply to be coating like an experienced operator immediately.

small powder coating machine

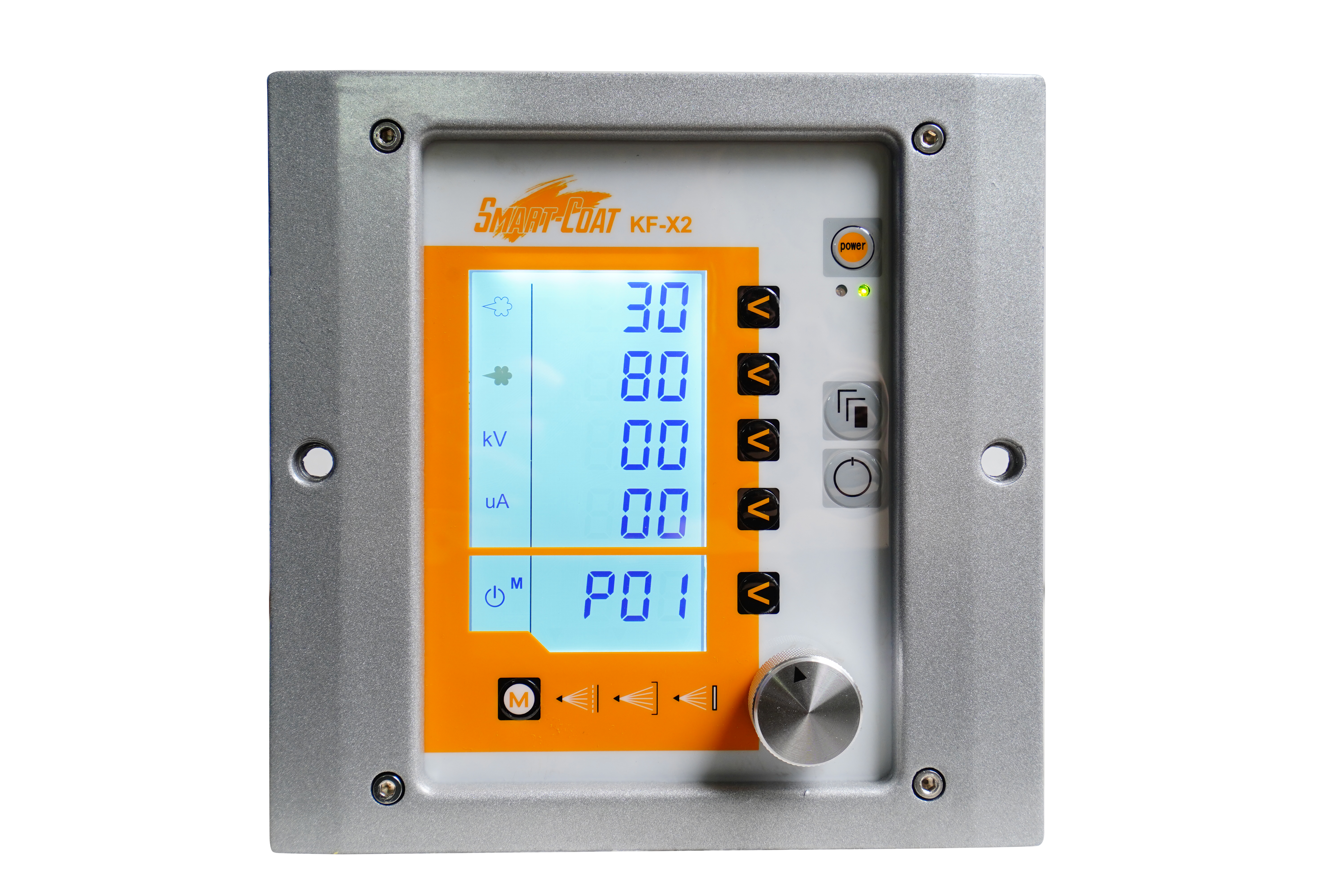

Intelligent Controller

  • An easy-to-use panel with LCD screen gives you great conveninece for adjusting kv, amperage, conveying air and atomizing air.

  • Three one-touch pre-set programs are designed for beginners who are shot or knowledge, applying to flat shapes. complex shapes and re-coating jobs.

  • For different parts and jobs, it allows you to create 20 applications programs which will be automatically stored and easily selected during operation.

Intelligent Controller


KF-08 Electrostatic Spray Gun

  • Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.

  • Remote control of changing powder flow and application programs on the back cover, fast and easy.

  • Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.

  • Comes with full array of nozzle assortment to optimize your spray effect, including flat,  round spray nozzles with different size deflectors, and extension nozzles.

powder spray gun

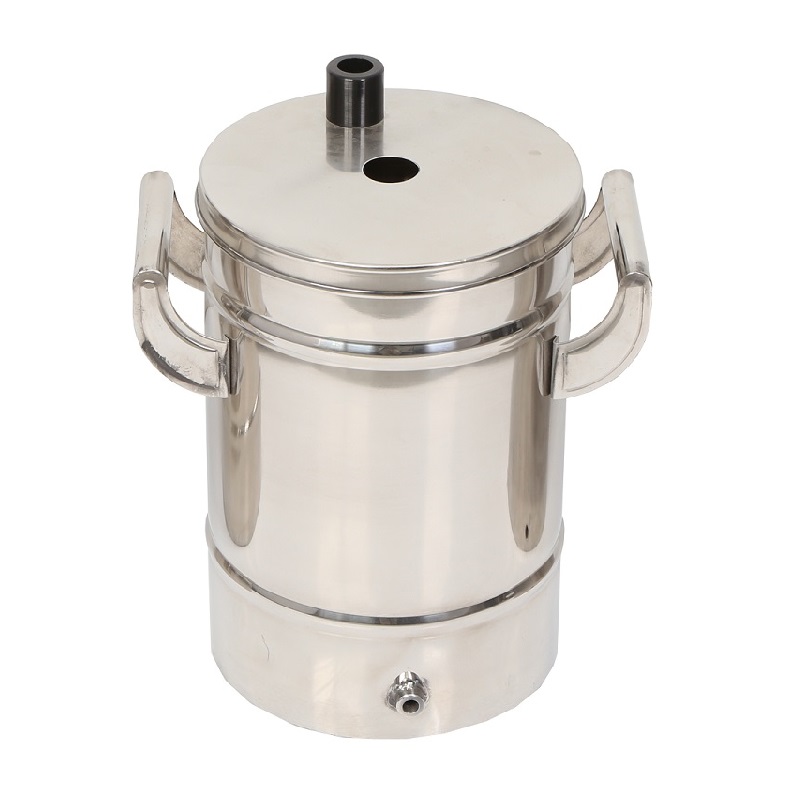

10 lbs Fluidized Hopper

  • Stainless steel powder hopper, Diameter20 x Height30cm

  • Recommended for small powder coating workshop, or DIY applications.

  • Fluidizing-plate based powder hopper ensures constant and smooth powder flow for better finish quality.

  •  Easy to clean, quick for color change.

portable powder hopper



Specification for Mini Powder Coating Spray System
Electrical data

Power range
220V/110V
Frequency
50HZ /60HZ
Temperature range in use
-10 ℃+50 ℃
Powder Gun

Gun weight:
500g
Rated output voltage
24VDC
Maximum output current
180Ua(max)
Maximum output voltage
0-100KV ( adjustable)
Maximum powder injection
600g/min
Polarity
negative (-)
Pneumatic data

Maximum input-air pressure
10kg/cm
Optimum input-air pressure
6kg/cm
Minimum input-air pressure
4kg/cm
Maximum water vapor content or compressed air
1.4g/N m3
Maximum oil vapor content of compressed air
0.1ppm
Maximum compressed-air consumption
13.2 m3/h
