KF-X2-TB Mini Powder Coating Spray System

Suitable for mini powder coating jobs
2lbs fluidizing powder cup
0-100kv voltage adjustable, easily set by digital
Ideal for all kinds of metal parts
  • KF-X2-TB

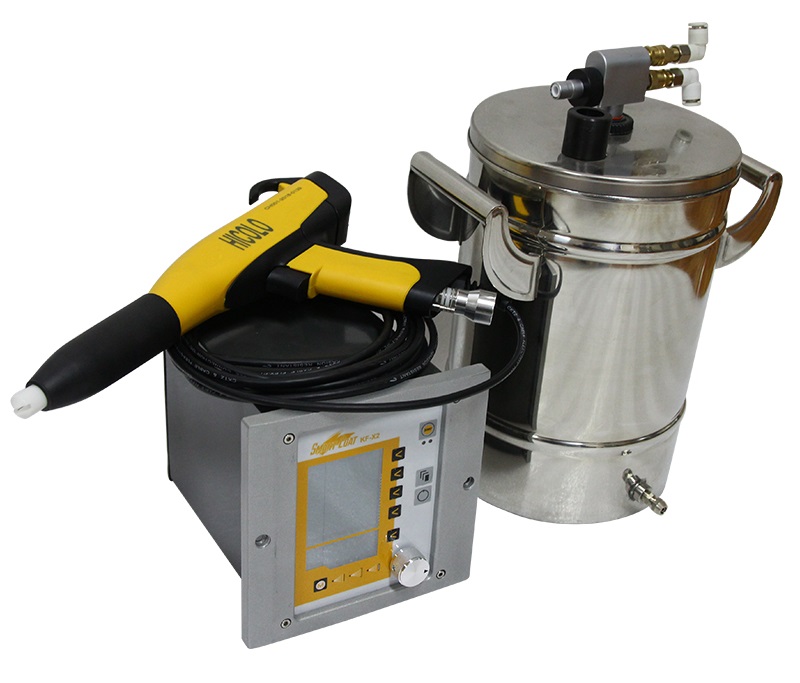

KF-X2-TB  Mini Powder Coating Spray System

KF-X2-TB Mini Powder Coating Spray System with 2lb hopper  is good for small production or many color change powder coating job.This powder spray gun system can also gives you the ability and flexibility to control both voltage and current, which are the vital parameters in the electrostatic powder coating process. Combined the 100KV spray gun technology, our system offers optimal method to achieve high transfer efficiency even for complex shapes.

X2 powder coating machine

Intelligent Controller

  • An easy-to-use panel with LCD screen gives you great conveninece for adjusting kv, amperage, conveying air and atomizing air.

  • Three one-touch pre-set programs are designed for beginners who are shot or knowledge, applying to flat shapes. complex shapes and re-coating jobs.

  • For different parts and jobs, it allows you to create 20 applications programs which will be automatically stored and easily selected during operation.

Intelligent Controller

Manual Electrostatic Spray Gun

  • Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.

  • Remote control of changing powder flow and application programs on the back cover, fast and easy.

  • Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.

  • Comes with full array of nozzle assortment to optimize your spray effect, including flat,  round spray nozzles with different size deflectors, and extension nozzles.

powder spray gun

2lbs Fluidized Hopper

  •  Recommended for hobby or home use, powder manufacturer testing job, or laboratory education, etc.

  •  Fluidizing-plate based powder hopper ensures constant and smooth powder flow for better finish quality.

  •  Easy to disassemble without any tools, quick for cleaning and color change.

powder hopper

KF-K1 Powder Coating Spray System Technical Data

Electrical data

Power range
50HZ /60HZ
Temperature range in use
-10 ℃+50 ℃
Powder Gun

Gun weight:
Rated output voltage
Maximum output current
Maximum output voltage
0-100KV ( adjustable)
Maximum powder injection
negative (-)
Pneumatic data

Maximum input-air pressure
Optimum input-air pressure
Minimum input-air pressure
Maximum water vapor content or compressed air
1.4g/N m3
Maximum oil vapor content of compressed air
Maximum compressed-air consumption
13.2 m3/h
