Automatic Powder Sieve Machine, Vibrating Powder Coating Sieving Machine

Automatic powder sieve machine features high sieve performance and high powder utilization rate. Applied in the automatic line, the vibrating powder sieving machine ensures quality and superior coating results.

  • KF-3000-S
  • Kafan
  • Automatic Powder Sieve Machine

Automatic Powder Sieve Machine, Vibrating Powder Coating Sieving Machine

Automatic powder sieve machine works in the powder coating line that connects powder recovery booth and feeds powders to the spray gun, the powder sieves machine mainly serves for 2 purposes

  • Sieve excess powders for second use, remove rust or contaminants to be pure powders, a great saving of powders

  • Vibrating powder accumulations into uniform and subtle powders, smooth the powder conveying.

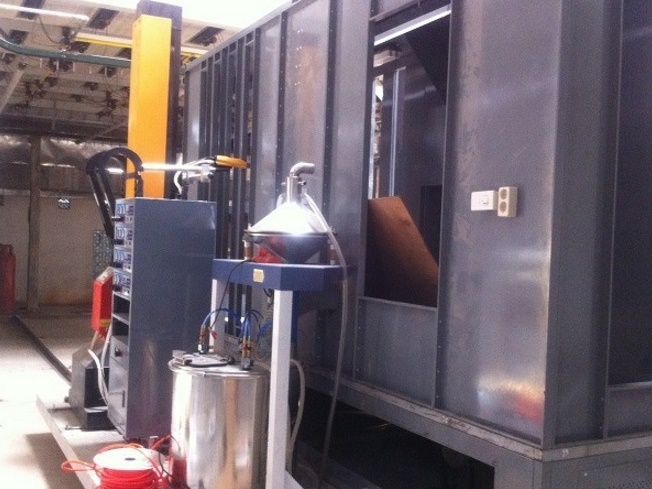

                             automatic powder sieving machine


The sieve unit fully automate the continuous powder feeding and recycling, greatly improve the working efficiency as well as ensures the application quality, a necessary section in the automatic powder coating line.

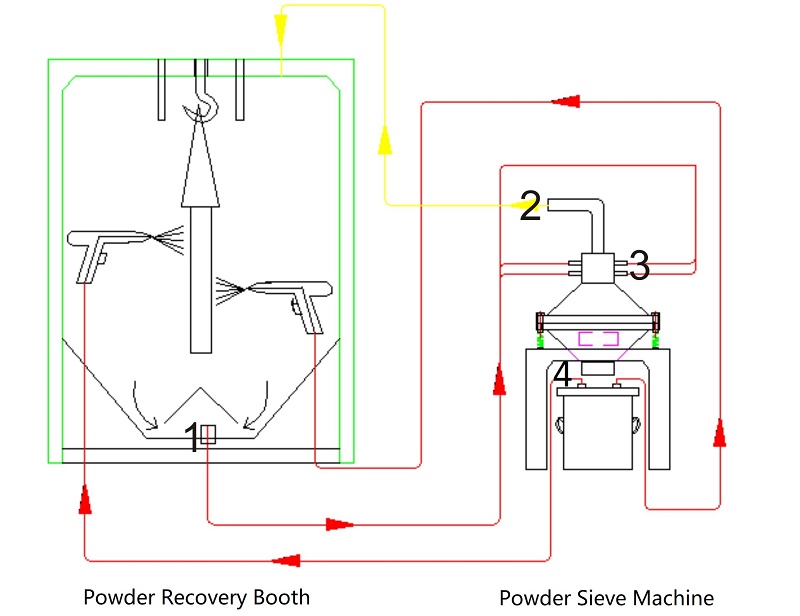

drawing of sieving machine connection


Benefits of Automatic Powder Coating Sieving Machine

  • Standard 8 holes in the powder container, can hold 8 pcs powder coating injector(more holes can be customized)

  • Two powder hoppers for matching: 55x55cm(80L powder, 68x68cm(100L powder).

  • The vibrating powder sieving machine effectively mix new powders and old powders.

  • Robust stainless steel structure, compact design, space-saving.

  • The auto powder sieve machine features simple installation, easy operation and maintenance.

  • Stainless steel sreen mesh, high sieve performance, high powder utilization rate


   vibrating powder coating sieving machine

Automatic Powder Sieve Machine Specifications


Model: KF-3000-S
Total power: 90W
Output Current: 0.4A
Voltage:  220 V ± 10 AC, 50-60hz
Working environment:  -5 ºC ~ 35 ºC
Machine Weight: 55kg
Machine Size: L850 * W570 * H1470cm
Powder Hopper Size:

55X55cm, 68X68cm, 2 types for choice


Auto Powder Sieving Machine Application:

In the automatic powder coating line, the powder sieving machine works with reciprocator, auto powder spray guns and powder spray booth for high productivity.


auto powder sieve machine
