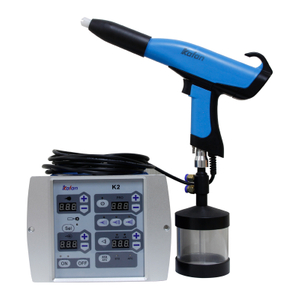

Mini Powder Coating Gun Kit for Small Business

The mini powder coating beginner kit is recommended for small application, such as powder testing, laboratory use and home use. It is easy to use and simple-structured, suitable for powder coating beginner without training.
Powder hopper capacity: 2 lbs powders.

  • K2-4
  • Kafan
  • Powder Coating Kit

Mini Powder Coating Kit,  Beginner Powder Coating Gun Kit

The mini powder coating beginner kit with 2 lbs powder hopper, is recommended for small parts and production, or powder testing use, laboratory use and home use. The small powder hopper is non-stick of powders allows easy cleaning and quick color change, with self-fluidizing function ensures smooth conveying of powders.

small powder coating kit

Kafan use latest technology to design the "K2" series powder coating gun delivering most outstanding functions and advantages

  • Excellent powder coating coverage on edge and corner with consistent quality

  • Best performance in condition of any powders, any challenging shapes, or any environment,

  • Highest transfer efficiency by maximizing the utilization of powder with less air

  • Less fatigue coating for operators by using a lightweight and well-balanced spray gun


powder coating gun controller


The powder coating gun kit provides 3 pre-setting application programs for powder coating beginners

  • Flat Panel Coating Mode

This mode maximize kV(80-100kv) and provides a big volume of powder output, suitable for large area of panel parts. Building high coverage of powders improves the working efficiency.

  • Faraday Cage Coating Mode

Also called corner coating, profile coating mode, This setting lowers the kVs, decrease the powder flow to allow powders penetrate hard-to-reach corners, angles, bends. A great saving of powders.

  • Re-coating Mode

This mode is for already-coated part that needs repair coating by setting much lower Kv. The Kafan powder gun achieves quality application and avoids coating defects.


Our powder coating kit is not restricted to above functions, it allows customized coating mode(manual adjusting kvs, powder flow, air supply), you can create and store 20 kinds of personalized programs, optimizing products application with various shaped or different powders.

Spare Parts of Mini Powder Coating Kit


manual powder coating gun

1. Manual Powder Coating Gun

Kafan KF-08 Manual powder gun has ergonomic design, lightweight to reduce operator's effort.

1)Included 100kv high voltage cascade is powerful for long lasting use and great powder savings.

2)The manual spray gun shell uses high quality materials with non-stick of powders, back cover has remote powder flow adjustment buttons.

3)Flat spray nozzles, round spray nozzle with different diameter deflectors are designed for various application. The spray nozzle delivers highest powder transfer efficiency and perfect powder distribution

We have replacements warehouse for your change, always ready to ship.



k1 powder coating injector

2.Powder Coating Injector

Kafan powder injector meets the demands of spraying a large quantity of powders shortening the production time. The unique design enables the injector easily assembled to the machine only by manual. The injector sleeves is high quality teflon.


powder coating hose

3. Anti-static Powder Hose

All the parts for the KF powder coating system is best configuration, the powder hose is electric-conductive for anti-static, smoothly convey the powders from the hopper to the gun, results in best powder coating quality.


small powder hopper

4. Powder Hopper

Size: Dia10 x Height 20cm Capacity: 2 pounds powders

Material: Non-static-powder Plastic.

The easy cleaning small powder hopper with bottom fluidizng board offers smooth and ideal powder conveying. It is a well sealed hopper keeping the powders from contaminants and damp

K2-4 Powder Coating Gun Technical Data

ModelK2-4 Powder Coating Gun Kit
Power range  220/110V 1 Phase (customized as local)
Frequency  50HZ
Temperature range in use-10 ℃+50 ℃
Powder Gun
Gun weight:    …500G
Rated output voltage24VDC
Maximum output current180Ua(max)
Maximum output voltage0-100KV (  adjustable)
Maximum powder injection :600g/min
Polaritynegative (-)
Pneumatic data
Maximum input-air pressure10kg/cm
Optimum input-air pressure6kg/cm
Minimum input-air pressure4kg/cm
Maximum water vapor content or compressed air1.4g/N m3
Maximum oil vapor content of compressed air0.1ppm
Maximum compressed-air consumption13.2 m3/h



1. Kafan Pre-sales Service

Inquiry on the website or directly contact with our sales, they are well speaking in English, Spanish, German, Russian, and 24hour online for any of your questions. Our sales is knowledgeable for powder coating machines and applications. We have professional techinical team, productions, quality control team, management and finance team, etc.

Kafan powder coating gun


2. Kafan On-sales Service

Before orders, we need get clear of below questions

Q1: Are you a distributor or powder coating users?

If you are a user, we need know your actual condition to offer solution, replace your old machines or just begin to build a powder coating plant. If you are a distributor, we have preferential strategy to help you sell our powder guns.

Q2: What metal product do you coat?

Our powder coating equipment is applicable for coating every kinds of metal parts, whether flat panel or complex shapes.

Q3: Do you have many powder colors need to be frequently changed?

If one or two powder colors, choose the hopper type powder coating machine, if many powder colors, choose the box feed powder gun system, fast and convenient for color change.

Q4: What is the required production capacity?

Manual powder coating equipment for small and normal production. Automatic powder coating system for large production (including auto powder gun equipment, reciprocator, automatic powder coating booth, etc)

Q5: What is your local voltage?

Before production, we must confirm your voltage, we can customized based on your local, 110V/220V/380V/410V, etc.


Powder Coating Equipment Production

Design & Drawing (for non-standard products) - Material Preparing(CNC punching, bending, welding) - Preliminary Assembly - Surface Coating - Complete Assembling - Electricity Connection - Testing

powder coating equipment production


Packing & Delivery

Order of powder coating gun and parts, wooden case for sea shipping, cartons for international express, each machine is wrapped with film first to prevent scratch, each package is filled with foam to eliminate damage.

For powder spray booth or large quantities orders, if reach to a certain dimension, we can ship you by a full 20’ or 40’ container. That is much safer.

powder coating machine package  Wooden Case Packing  powder coating equipment shipping & delivery


3. Kafan After Sale Service

  • Each powder coating kit is delivered with a manual to guide you how to Install & operation, any doubts contact with our sales, or watch our teaching videos.

  • One year warranty for any quality problem, free replace of main parts, PCB, cascade, gun cable(not includes wearing parts.

  • We will call back or email back to ask your satisfactory of using our machine, and anything if you need our help.

  • Powder coating equipment daily maintenance, technical upgrading, sale promotion will be offered to you.

  • Build warehouse for quick wearing parts and replacements, such as spray nozzles, insert sleeves, gun shells, injectors, powder hose, etc.
