Electrostatic Powder Coating Spray Equipment Hopper Unit

K2 Powder coating equipment features intelligent and easy operated, offering best application quality for various products, such as alloy wheels, aluminum profiles, whose 60 pounds hopper allows big powder coating productivity.

  • K2-1
  • Kafan
  • Powder Coating Equipment

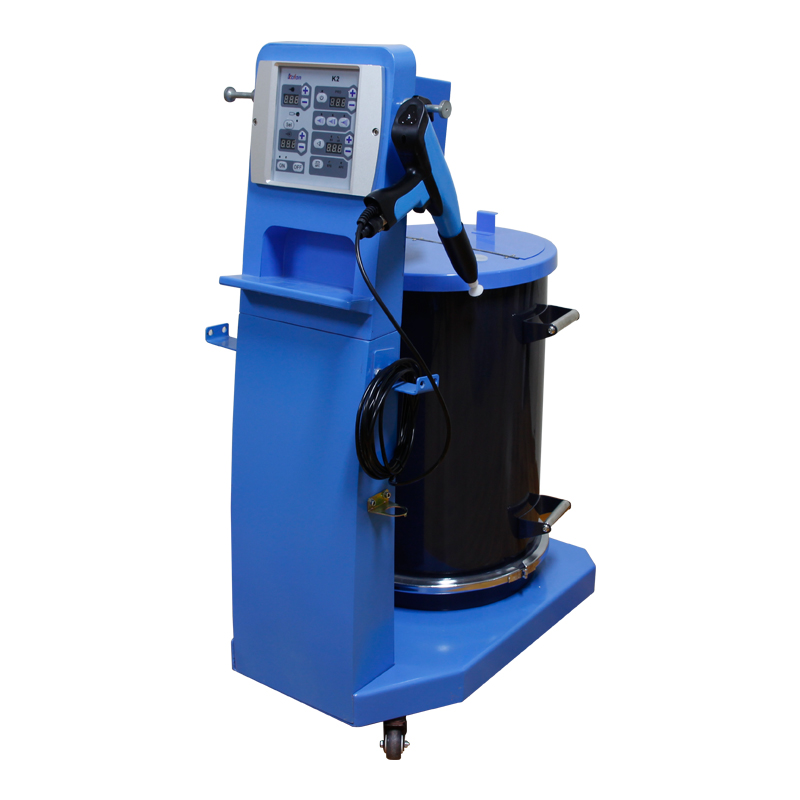

Electrostatic Powder Coating Equipment Hoper Unit

The K2 hopper unit intelligent powder coating equipment offers precise adjustment of electrical and pneumatic data, can easily penetrating corners and awkward holes, ideal for complex and irregular shape products, such as wheels, profiles, radiators, etc.

Kafan electrostatic powder coating equipment requires simplest operation and minimal maintenance, whose high transfer efficiency builds better coating coverage and is a great saving of powders.

industrial powder coating equipment


Excellect Features of Powder Coating Equipment

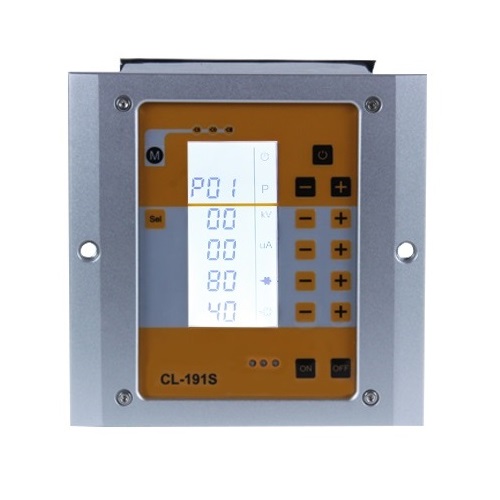

powder gun controller

Smart Powder Gun Controller

1. The powder gun equipment offers 3 pre-setting application programs for powder coating beginners, flat parts coating, corner coating, re-coating.

2. Allows advanced users or powder coating specialists create and store a library of personalized programs by “PRO” setting.

3. Digital valve control for precise powder flow regualtion, delivers smooth and constant output. As well as flexible current charging on different type of powders, ideally avoids the orange peel defects.



powder coating gun

Powerful Manual Spray Gun

Kafan KF-08 Manual powder gun with unique ergonomic design. Lightweight to reduce operator's fatigue  But powerful for long lasting use and great powder savings.

1. Back cover with remote powder flow controls

2. 100kv high voltage built-in cascade

3. Quality material and non-stick of powders

4. Flat nozzles and round nozzles optimize the application



powder coating hopper

Fluidizing Powder Hopper

Size: D36xH62cm, Capacity: 60 pounds powders.

The easy cleaning powder coating hopper is popular among worldwide powder coaters, It is extraordinary designed to be dismountable, convenient to clean the inwall, bottom, fluidizing board, seal ring of the hopper.

The powder hopper with fluidizing bed prevents the powder block, which is also well sealed keep the powders from contaminants and damp



K2-1 Powder Coating Equipment Technical Data

Electric Data
ModelK2-1 Hopper Type
Power range  220/110V 1 Phase (customized as local)
Frequency  50HZ
Temperature range in use-10 ℃+50 ℃
Powder Gun
Gun weight:    …500G
Rated output voltage24VDC
Maximum output current180Ua(max)
Maximum output voltage0-100KV (  adjustable)
Maximum powder injection :600g/min
Polaritynegative (-)
Pneumatic data
Maximum input-air pressure10kg/cm
Optimum input-air pressure6kg/cm
Minimum input-air pressure4kg/cm
Maximum water vapor content or compressed air1.4g/N m3
Maximum oil vapor content of compressed air0.1ppm
Maximum compressed-air consumption13.2 m3/h
