Automatic Powder Coating Spray System

▪ Cleaning and recovery efficiency from seconds to a few minute.
▪ Super-fast color change
▪ Automatic cleaning of the entire powder feed lines (from hopper to the guns)
▪ Continuous coating for a higher efficiency
▪ Maximized productivity and flexibility of the line
▪ Easy operation with comfortable touch screen panel
  • Kafan


Automatic Powder Coating Spray System

It is an integrated solution for your automatic coating line with single or different colors application, maximizes productivity and powder recovery due to the super-fast and contamination-free color changes.  Including cyclone powder booth, reciprocators, automatic spray guns, powder feed center.

automatic powder coating system

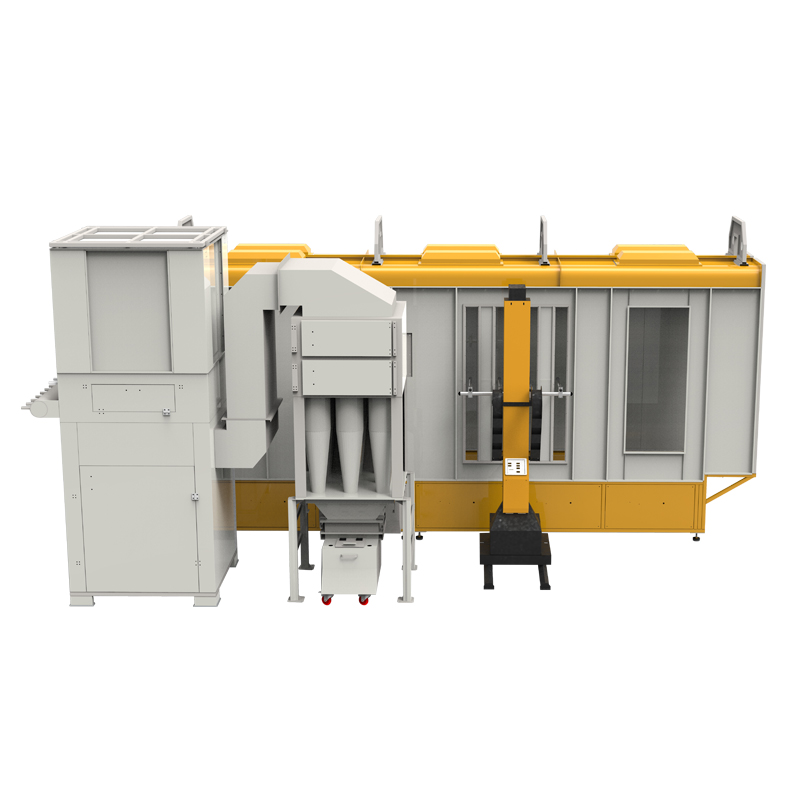

Automatic Powder Coating Cyclone Booth

Automatic powder booth system

1. Cyclone device achieves recycling efficiency up to 98%, a great saving of powders. The quick cleaning takes around 15 minutes, reduce downtime during color changes.

2. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.

3. The self-cleaning floor continuously transports dropped overspray from the booth floor, quickly recycling it back to the powder feed container.

4. Booth wall can be made of anti-static engineering plastic, which prevents powder accumulations and accelerates powder cleaning.

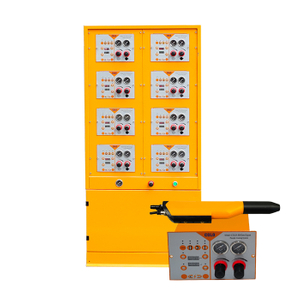

Automatic Powder Coating Gun System

automatic powder coating gun

1. A central control cabinet combines all powder gun controllers for integrated operation, enbales to set parameters only at one host unit to control whole system.

2. K1 powder coating unit applies latest technology allows a flexible and accurate setting of all parameters, giving perfect finish with consistent quality.

3. The 100kv spray gun powerfully charge powders that delivers high transfer efficiency, increase powder utilization.

4. Kafan advanced powder gun offers consistent and uniform thickness of powder coverage, even for most complex shape parts.

5. Tested reliable system Based on COLO 10 years technology.

Automatic Powder Coating Reciprocator

powder coating reciprocator

1 Linear rail guide mechanism, spray gun rack travels through a belt, a frequency adjustable motor controlled by PLC, giving more smooth, stable and precise motion

2. Heavy-loaded reciprocator with reliability is able to carry up to 24 pcs spray guns

3. Moving speed and stroke can be easily set the touching screen with 20 storable programs.

4. The slim column design allows for space-saving arrangement of the guns

5. Automatic reciprocator powder coating Increases uniformity and quality consistency, reduces powder consumption.

Powder Management Center

powder management center

1. Allows directly placing the powder box on a funnel, flexible for color change.

2. Automatic cleaning of spray guns, injectors, and other pipe lines during color change, reduce manpower and increase efficiency.

3. Ultrasonic sieving of fresh powders and recovery powders, dissolving and loosening of powder accumulations for delivering uniform powder flow.

4. A closed powder hopper with a sener will detect the powder position and alarm a signal when a lack of powder.

5. A user-friendly PLC touching screen panel makes it easy to handle the process.

Automatic Powder Coating System Applications

Based on 10+ years design, manufacture, application experience, our powder coating systems get proved quality, productivity and performance among worldwide customers. For your specific workparts and requirements, the kafan Magic system is easy to customize in booth dimensions, air volume, number and position of guns and touch-up stations.
